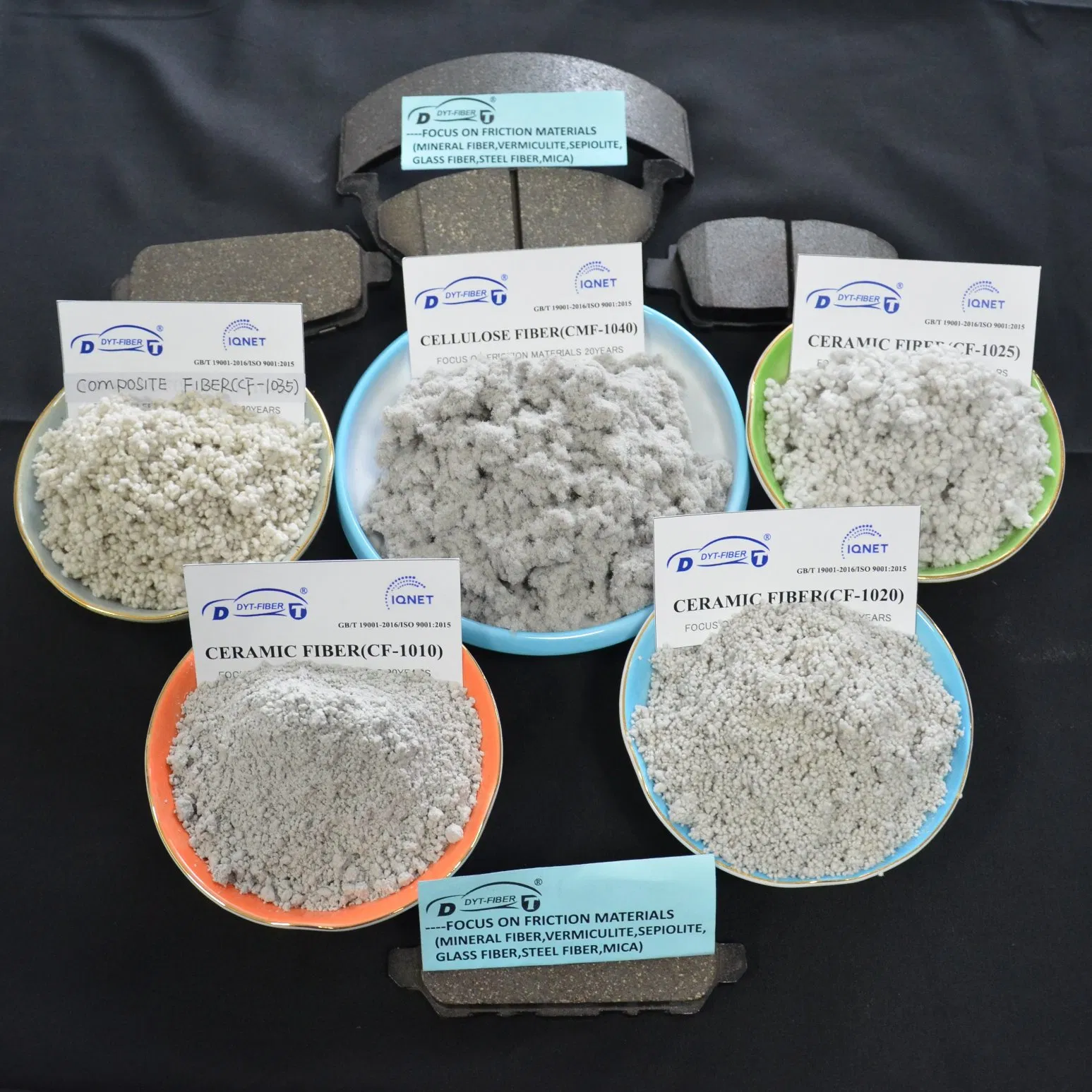

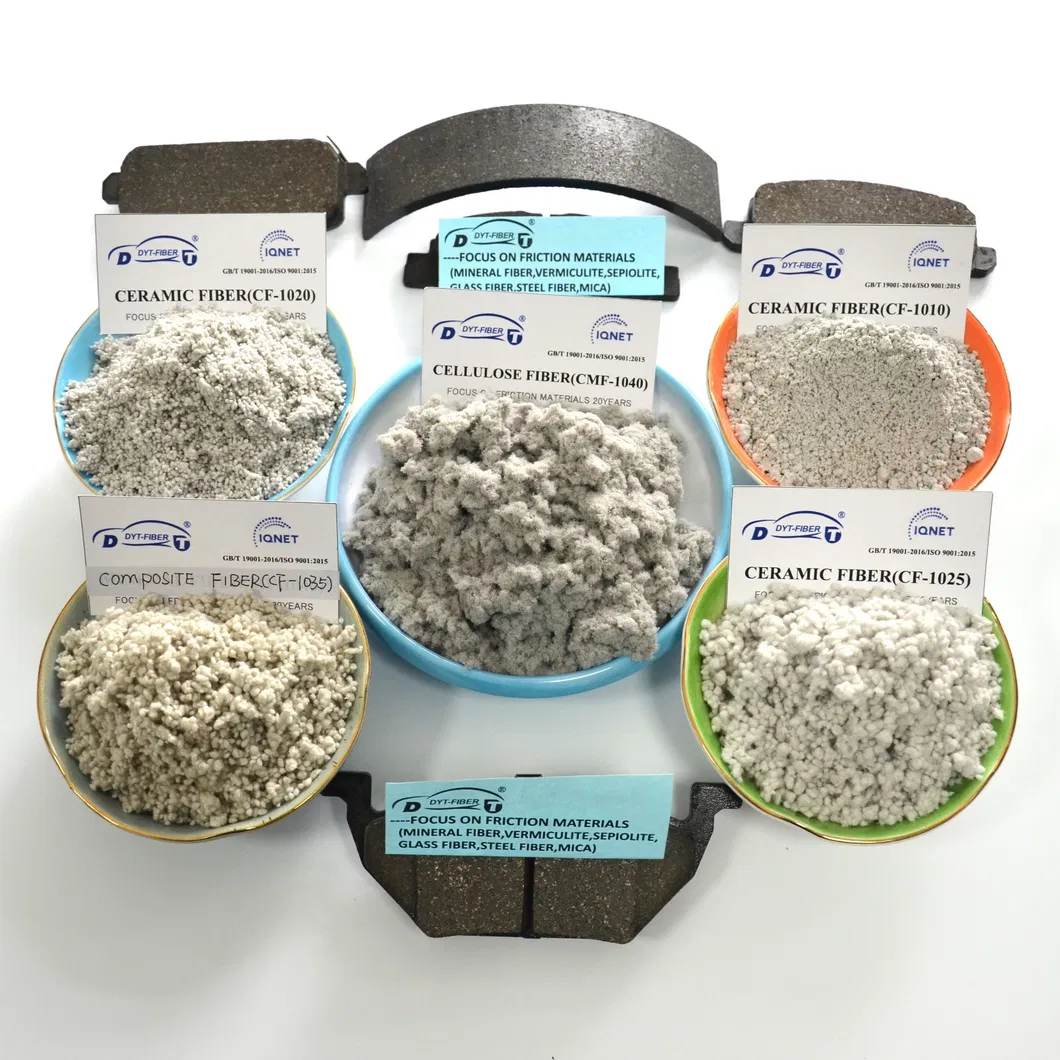

Friction Materials of Ceramic Fiber CF-1010 for Manufacturing Brake Lining

Basic Specifications

Model NO.CF-1010, CF-1020, CF-1025, CF-1035 CMF-1040

Chemical CompositionSiO2, Al2O3.SiO2

ShapeCeramic Fiber Cotton

Manufacturing TechniqueJilt Silk Rug

KindOrdinary Ceramic Fiber

Average Fiber Length0.15--2.5mm

Average Fiber Diameter4-9um

Softening Point>1750°C

pH Value7

Specific Gravity0.25-0.45G/M3

HS Code680690000

Product Overview

Aluminum silicate fiber is produced from raw materials such as kaolin, coke gem, and pyrophyllite with high aluminum content. The silicon dioxide and alumina content is more than 96%.

SiO2	Al2O3	Fe2O3	Na2O+K2O
45%-55%	40-50%	0.8%-1.0%	0.2%-0.5%

Characteristics & Applications:
Low heat conductivity, high thermal stability, and chemical stability. Ideal for brake linings requiring high temperature resistance and heat recovery capacity.

Recommended Dosage:
• Brake Drum: 20-35%
• Brake Disc: 10-25%

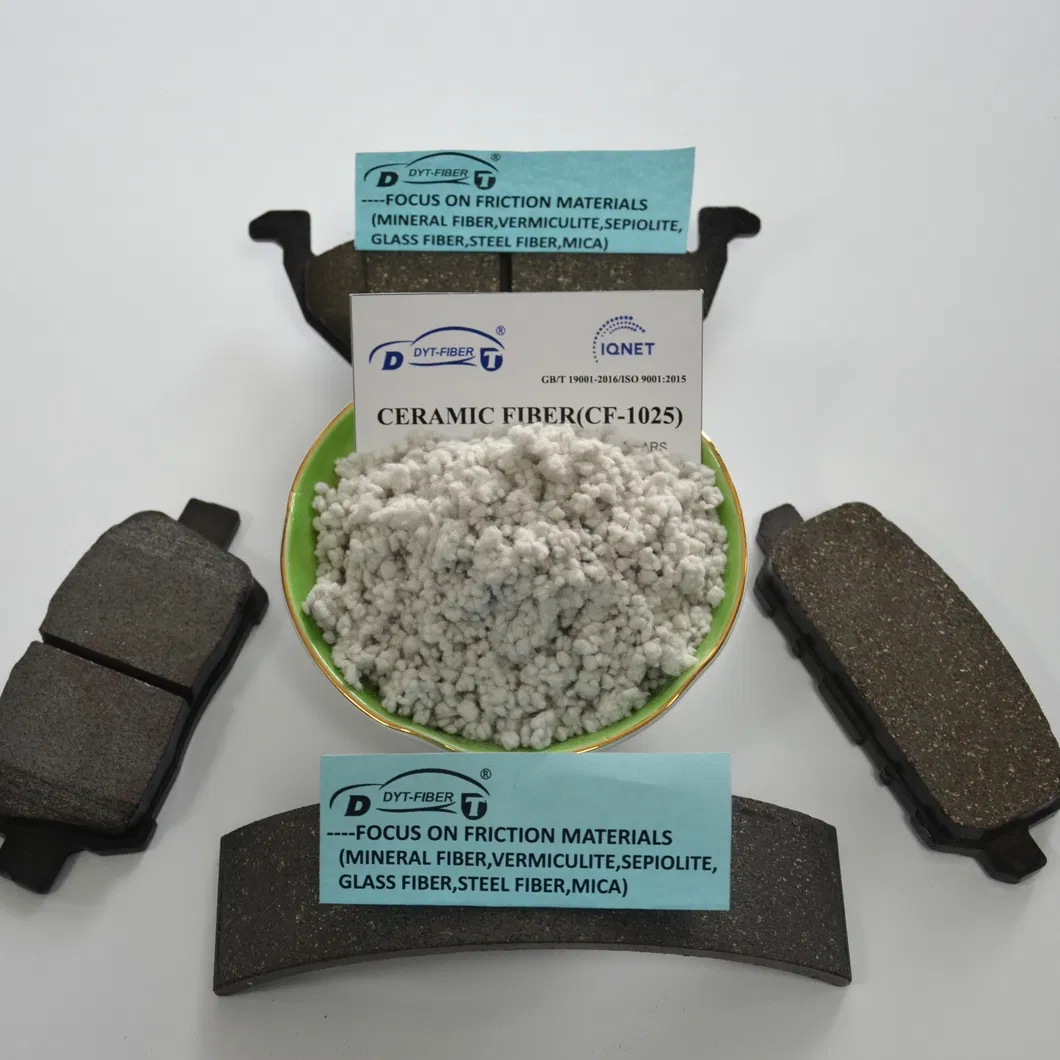

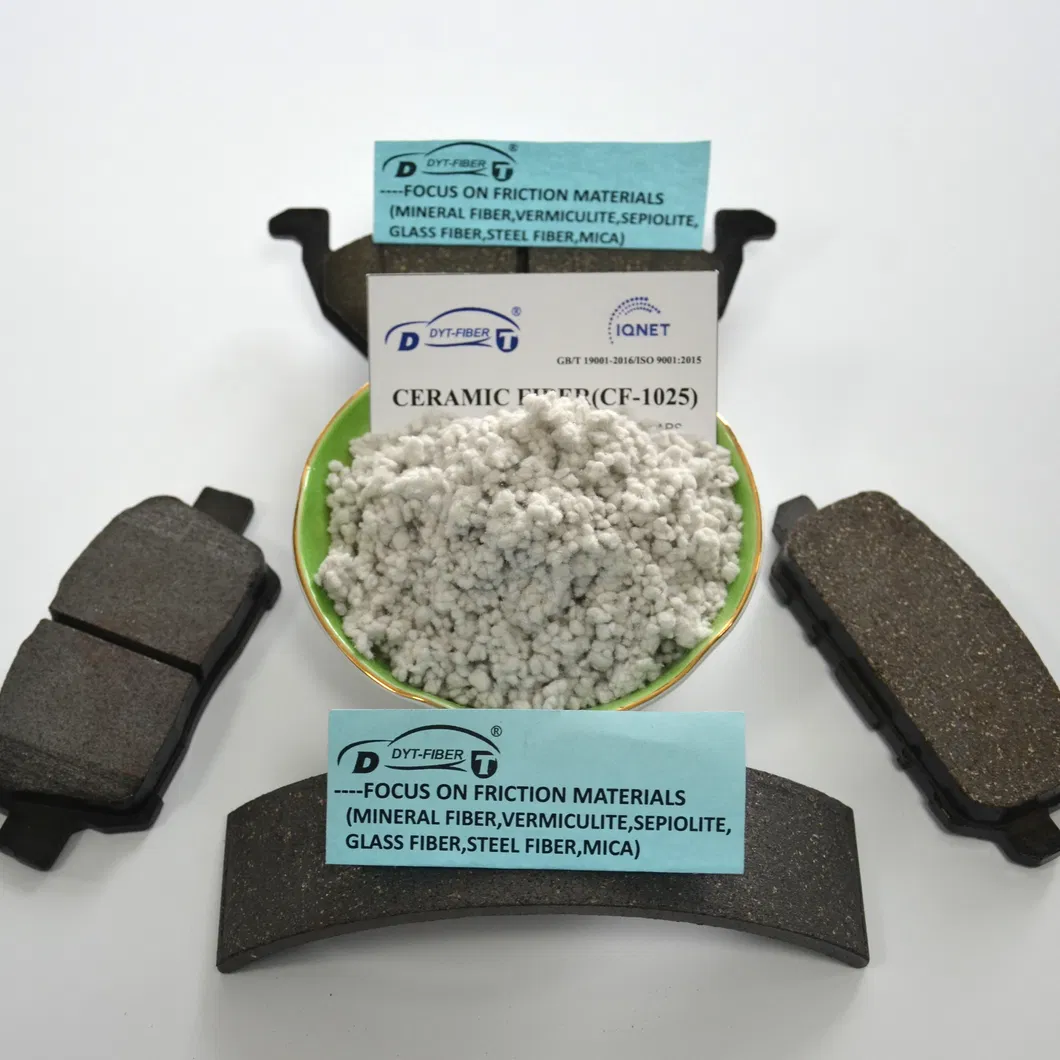

Technical Indicators: CF-1025

Project	Index (%)
Average Fiber Length	0.15--2.5mm
Average Fiber Diameter	4-9um
Specific Gravity	0.25-0.45g/m3
Softening Point	>1750°C
Shot Content (>120mesh)	<20

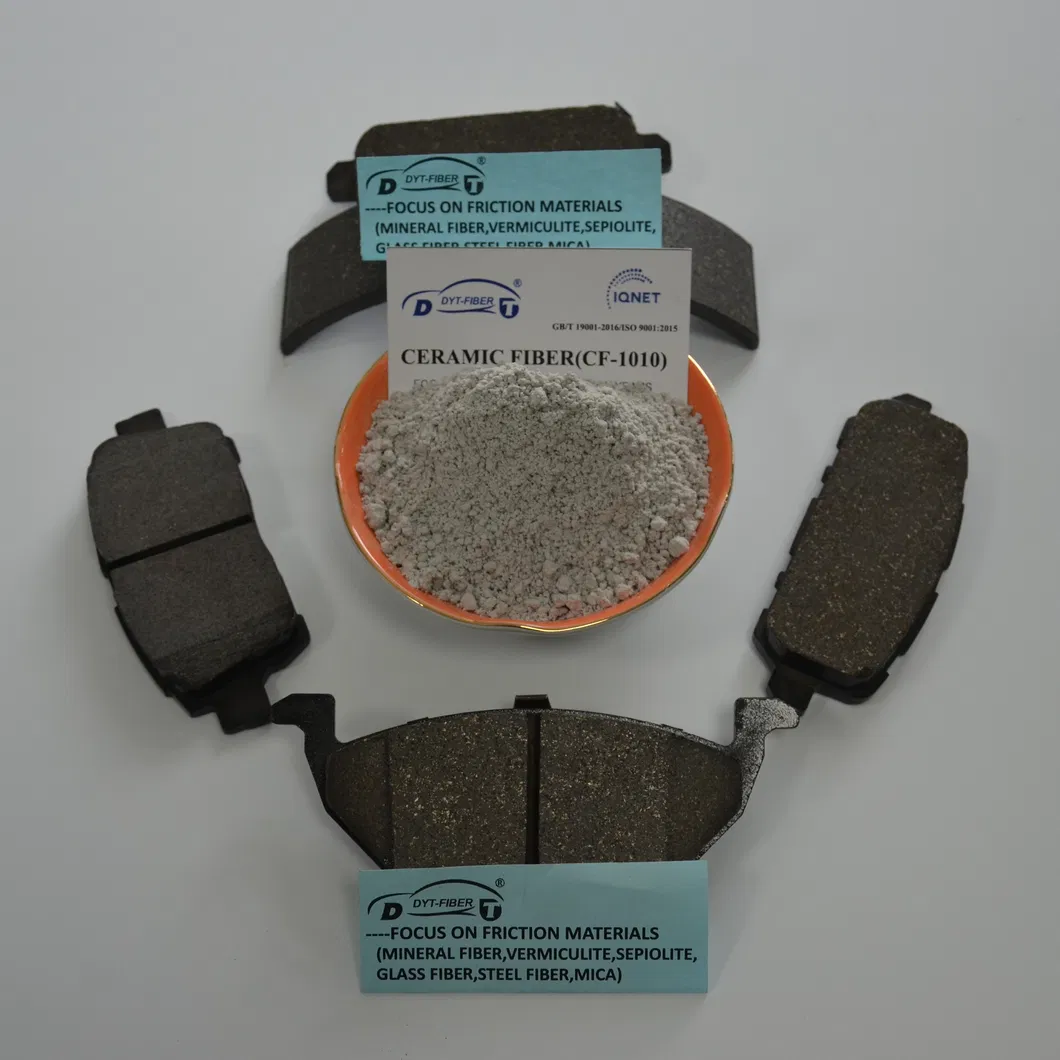

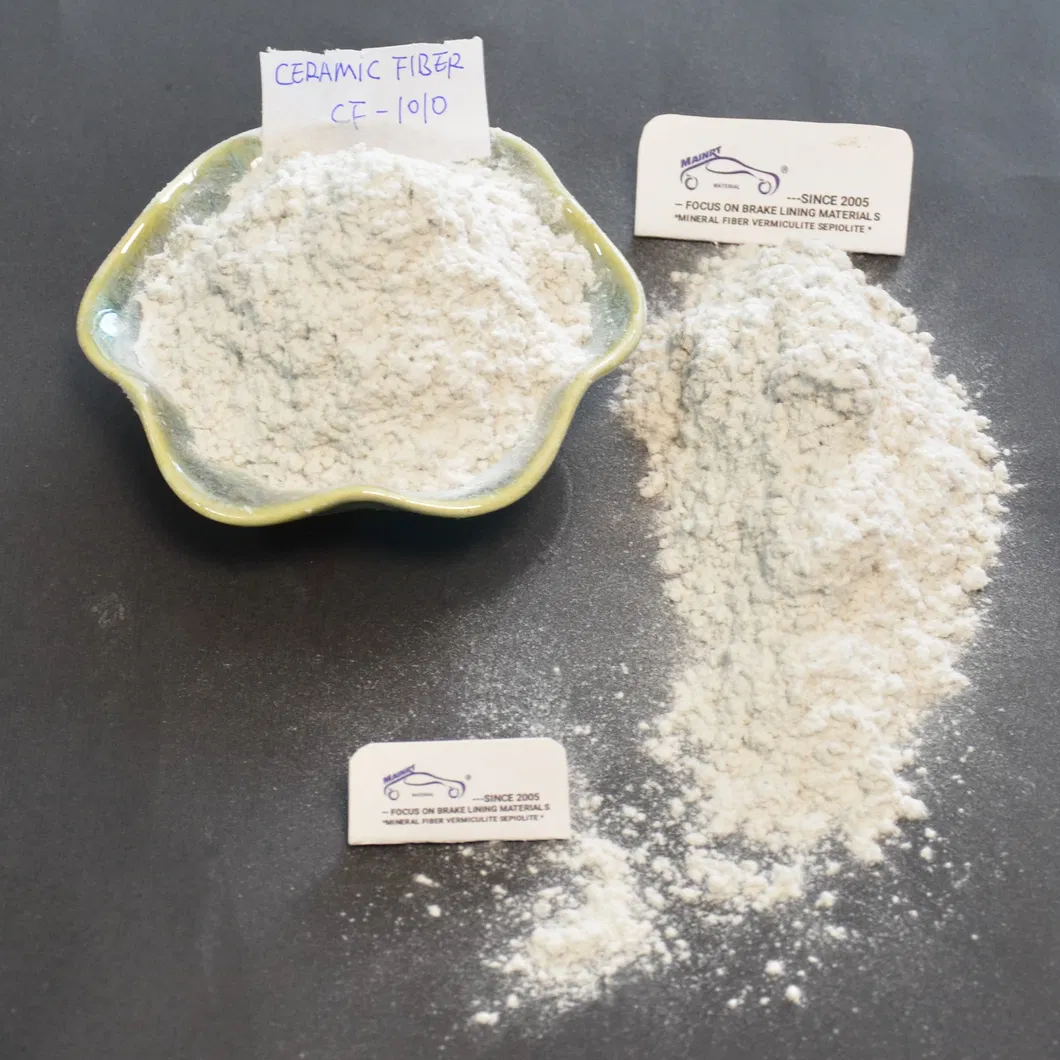

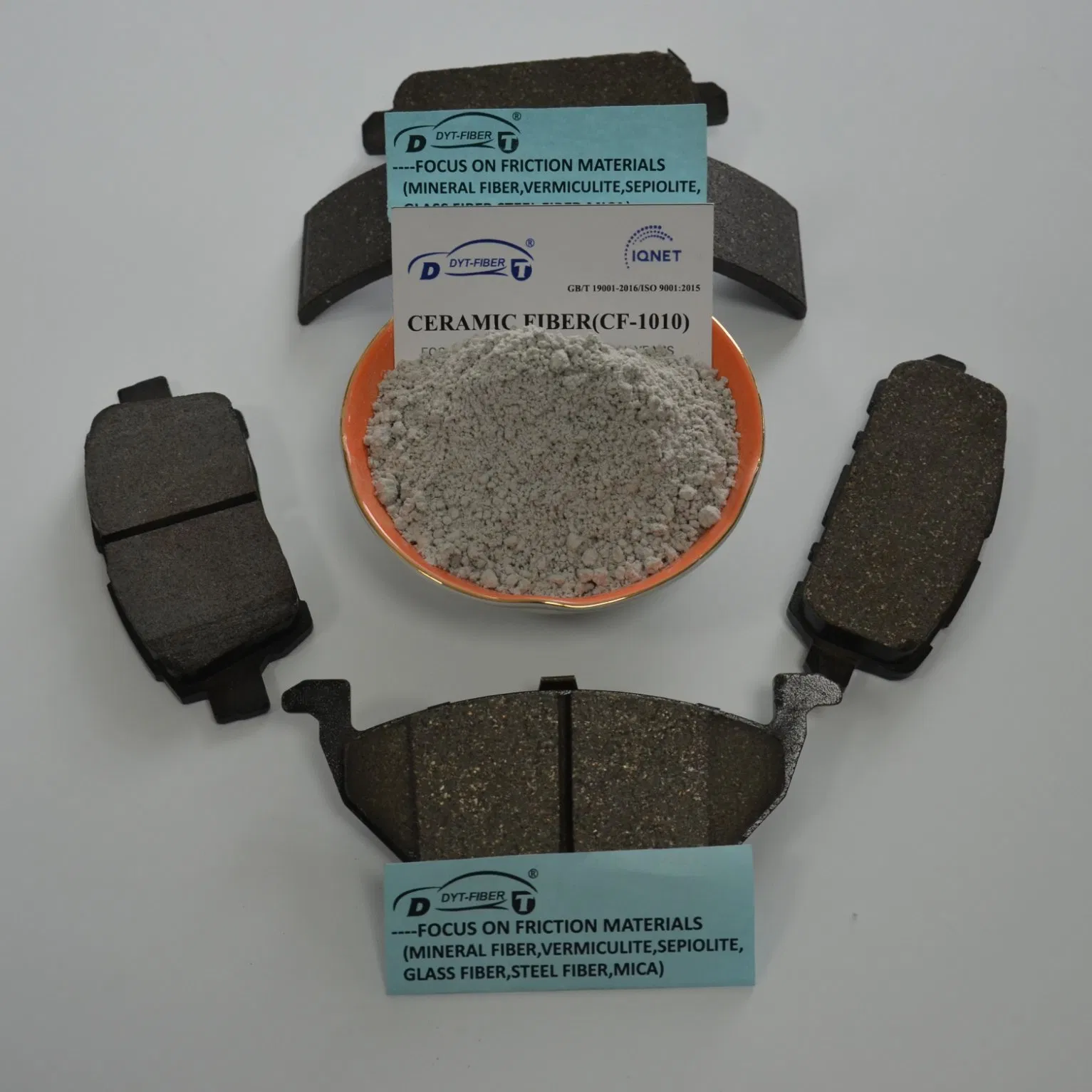

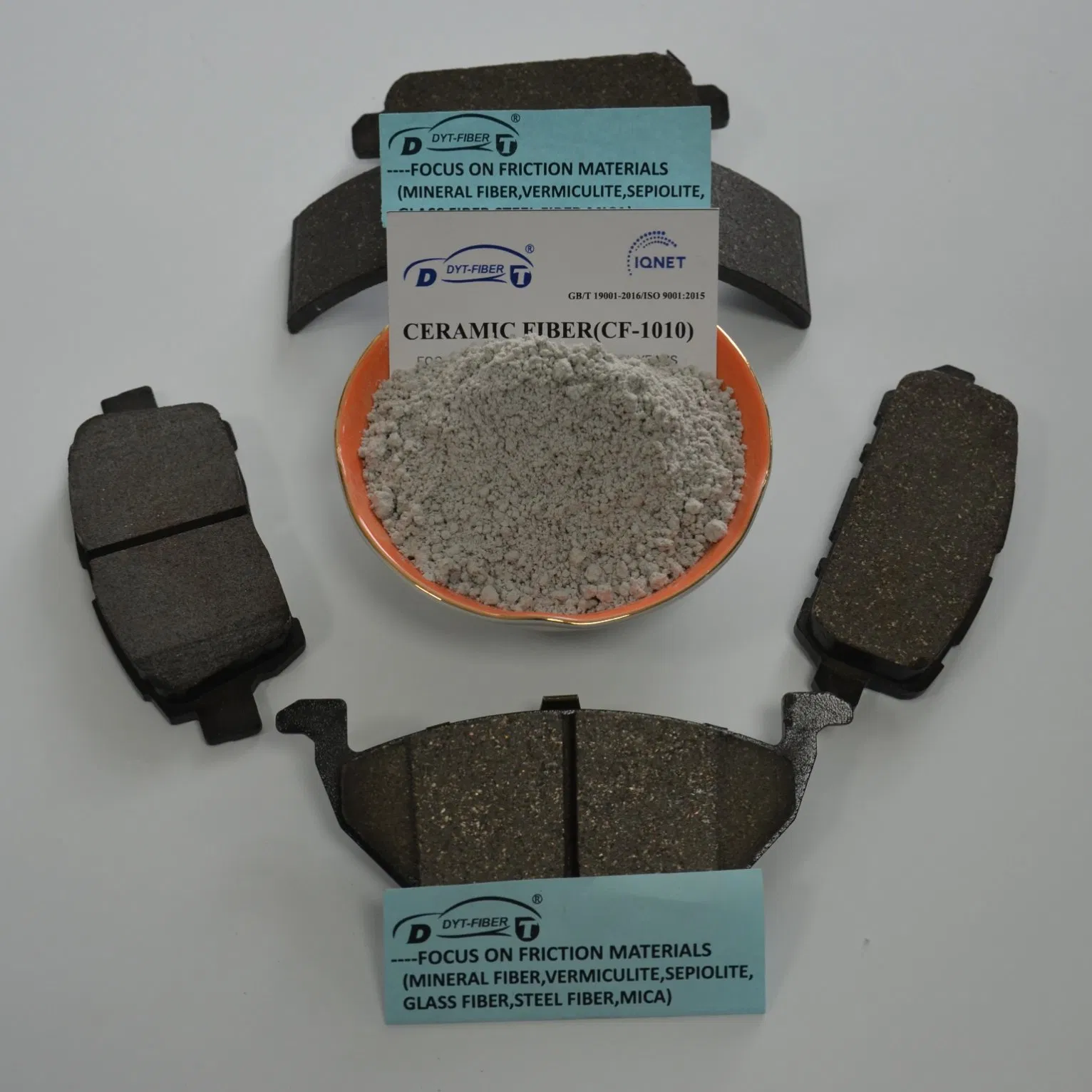

Technical Indicators: CF-1010

Project	Index (%)
Average Fiber Length	0--1mm
Specific Gravity	0.45-0.55g/m3
Surface Density	0.25-0.40g/cm³
Shot Content (>120mesh)	<30

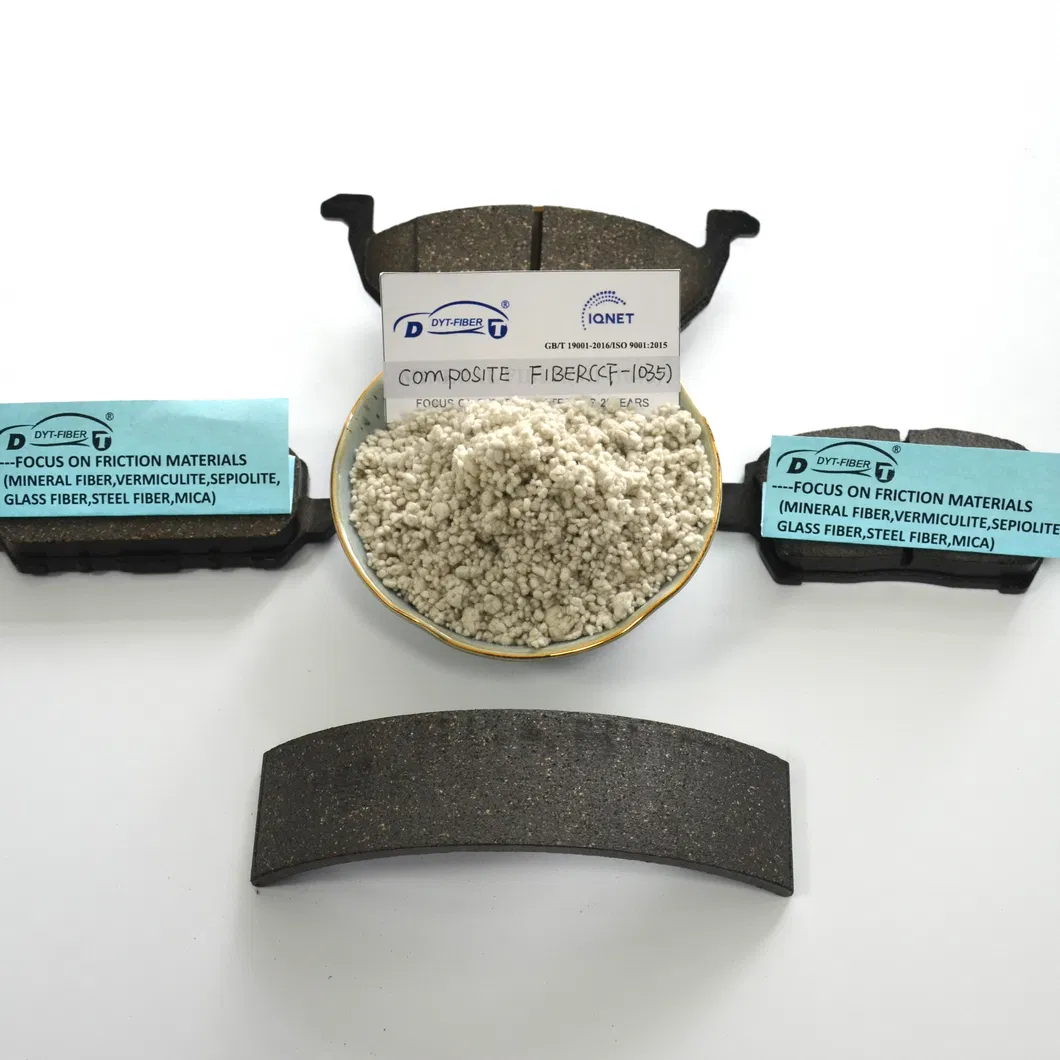

Non-Asbestos Composite Mineral Fiber

Models: CF-1035, CF-1025
Composed of 70% Mineral Fiber and 30% Cellulose Fiber. Features excellent dispersion, specifically designed for cold-type two-step brake lining production processes without the need for additional organic fibers.

Project	Indicators
Specific Gravity	2.25g/cm³
Fiber Length	1.0-3.5mm
Loose Density	800-1100 cm³/100g
Burn Loss (800°C)	28-32%
pH Value	8-10

Packaging, Storage & Safety

Package: 25kg*40nos packed in 3-ply sacks, stacked on wooden pallets, wrapped and strapped.
Storage: Store in a cool, dry place. Reseal opened packs immediately to prevent moisture.
Safety:

Risk of explosion by static sparks; use explosion-proof equipment.
Use with local exhaust ventilation.
Wear protective eyeglasses or chemical safety goggles.

Frequently Asked Questions

What are the primary applications for this ceramic fiber?

It is widely used as a friction material in manufacturing brake linings, brake drums (20-35% dosage), and brake discs (10-25% dosage) due to its high temperature resistance.

What is the softening point and heat stability of the fiber?

The softening point is above 1750°C, providing excellent thermal and chemical stability for high-performance industrial applications.

Does the composite fiber require additional organic fibers?

No, the CF-1035 and CF-1025 composite fibers are designed for cold-type production and do not require the addition of further organic fibers.

How should the ceramic fiber be stored?

It must be stored in a cool, dry place. Opened packs should be sealed as soon as possible to prevent moisture penetration.

What safety precautions are necessary during handling?

Industrial safety requires the use of local exhaust ventilation, explosion-proof equipment, and protective gear like chemical safety goggles to prevent irritation or static sparks.
