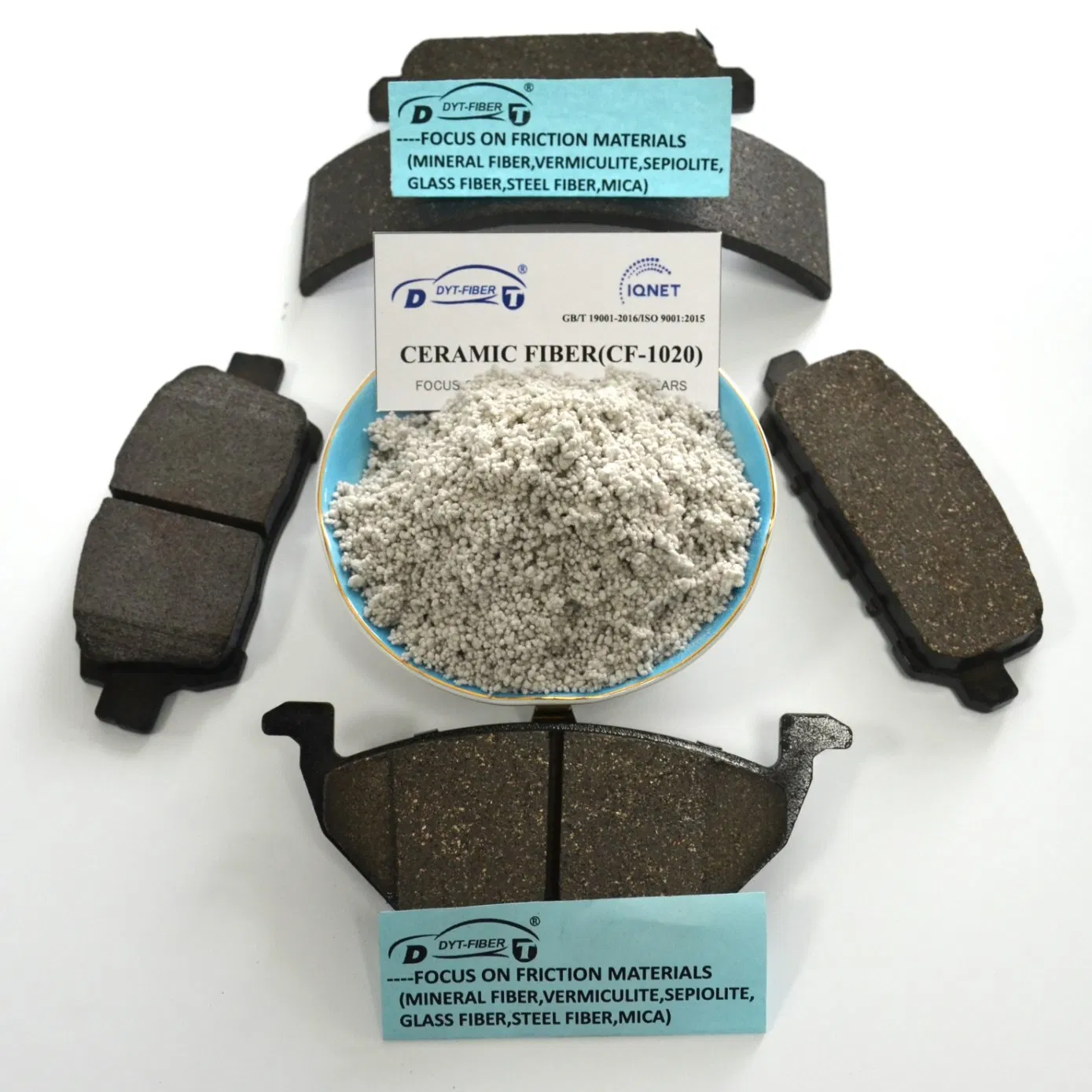

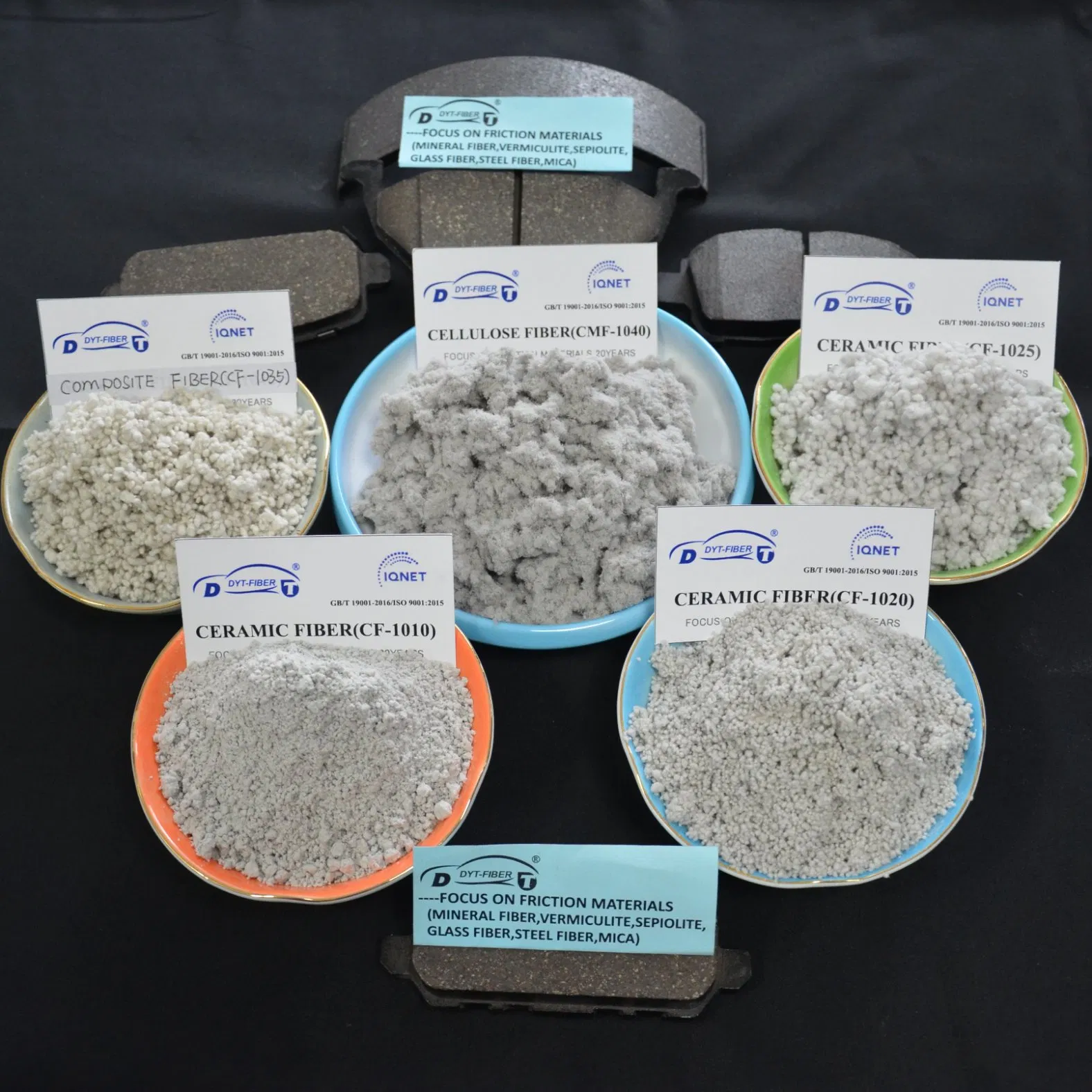

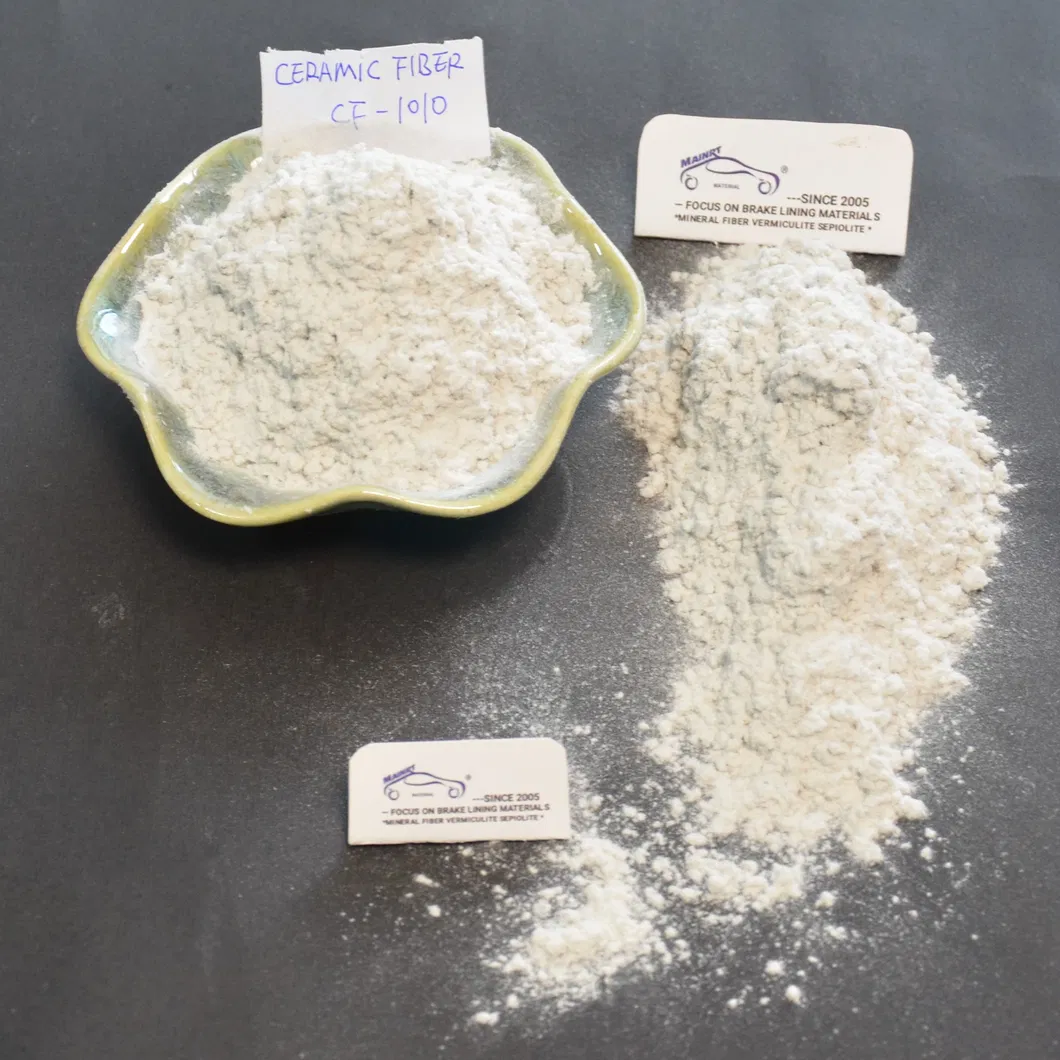

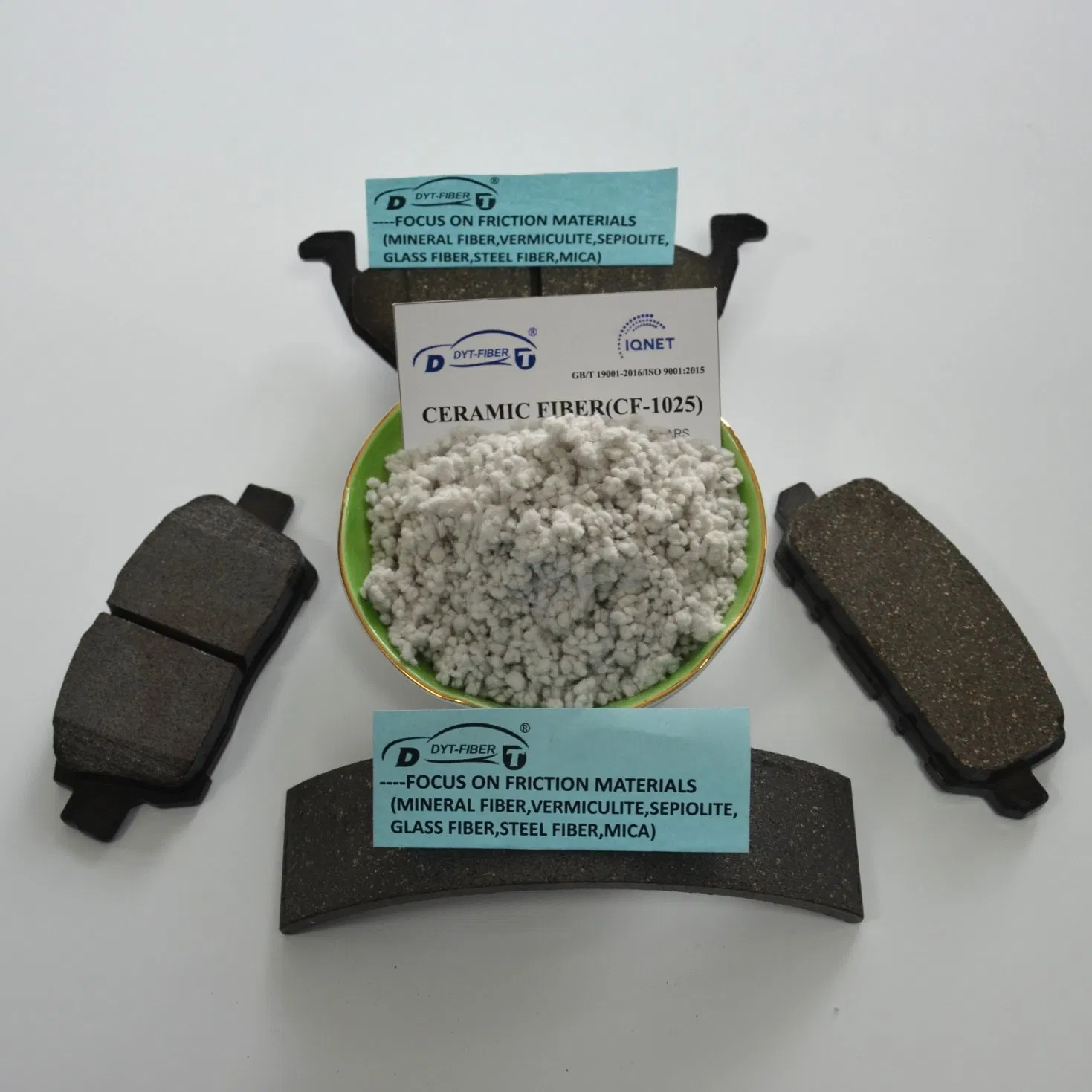

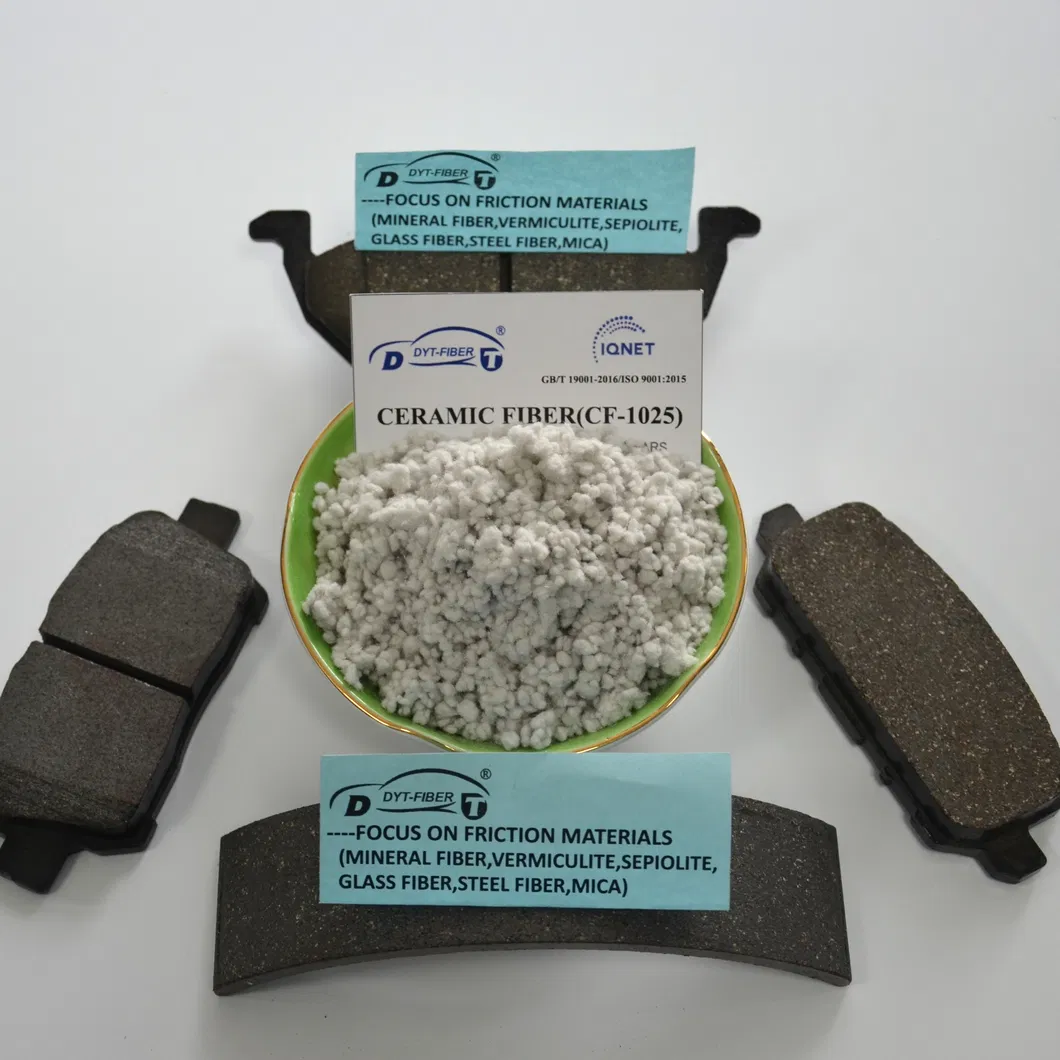

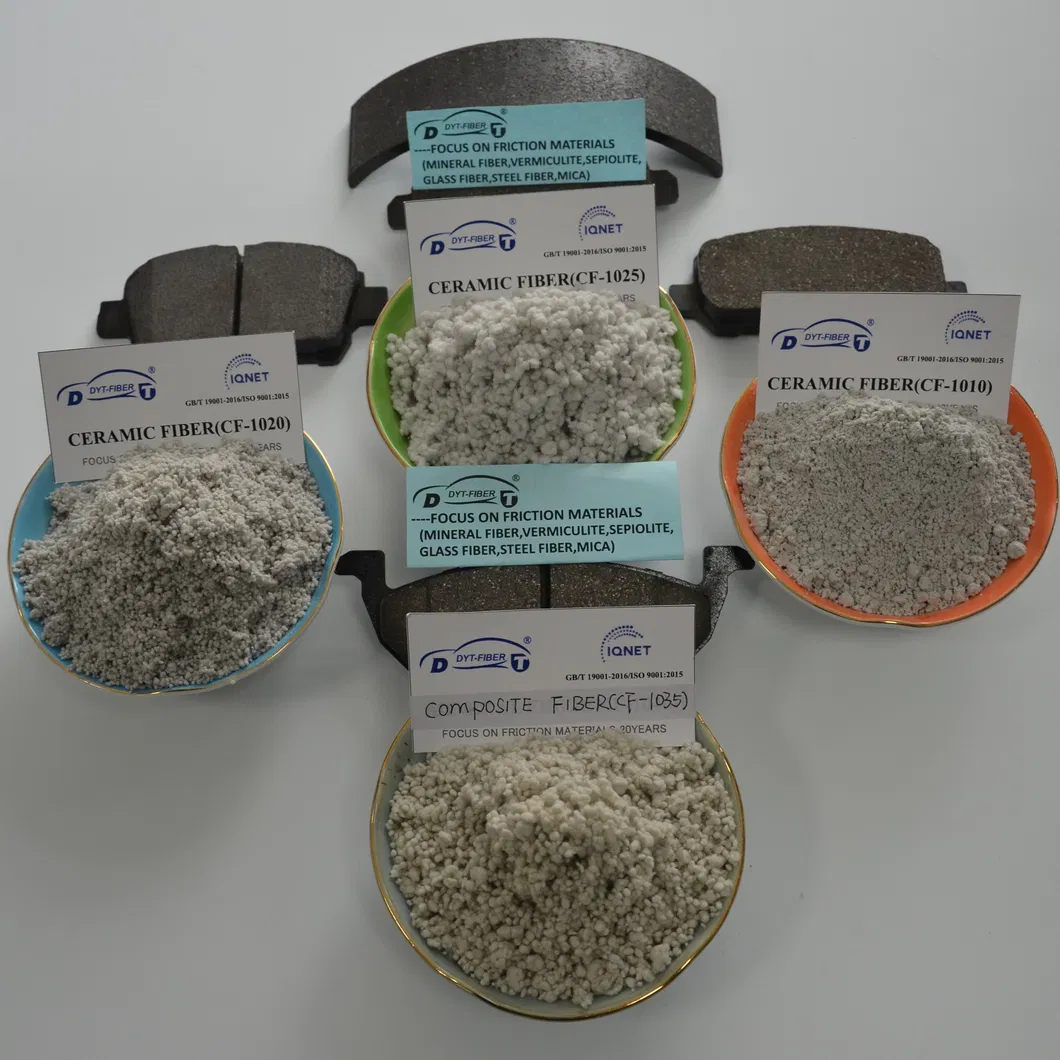

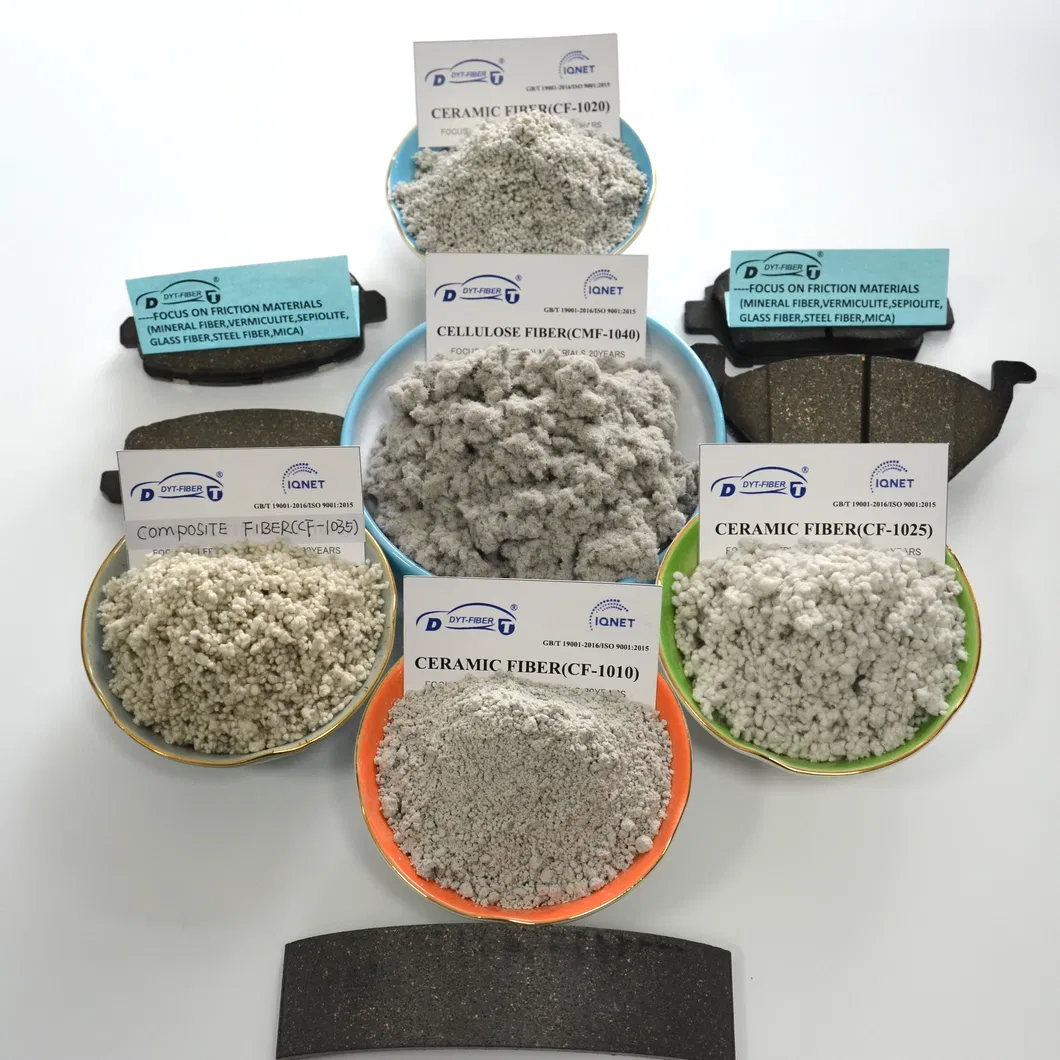

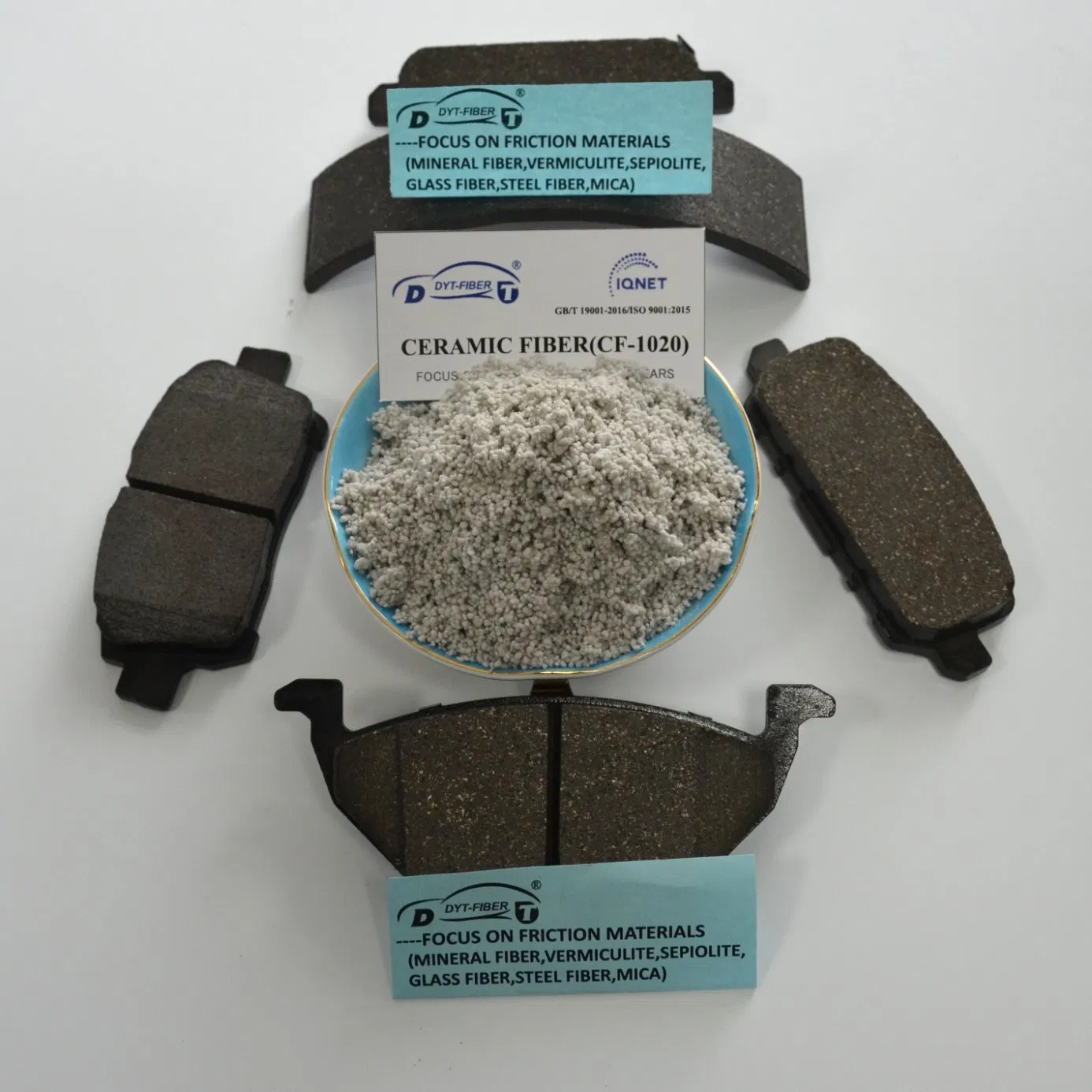

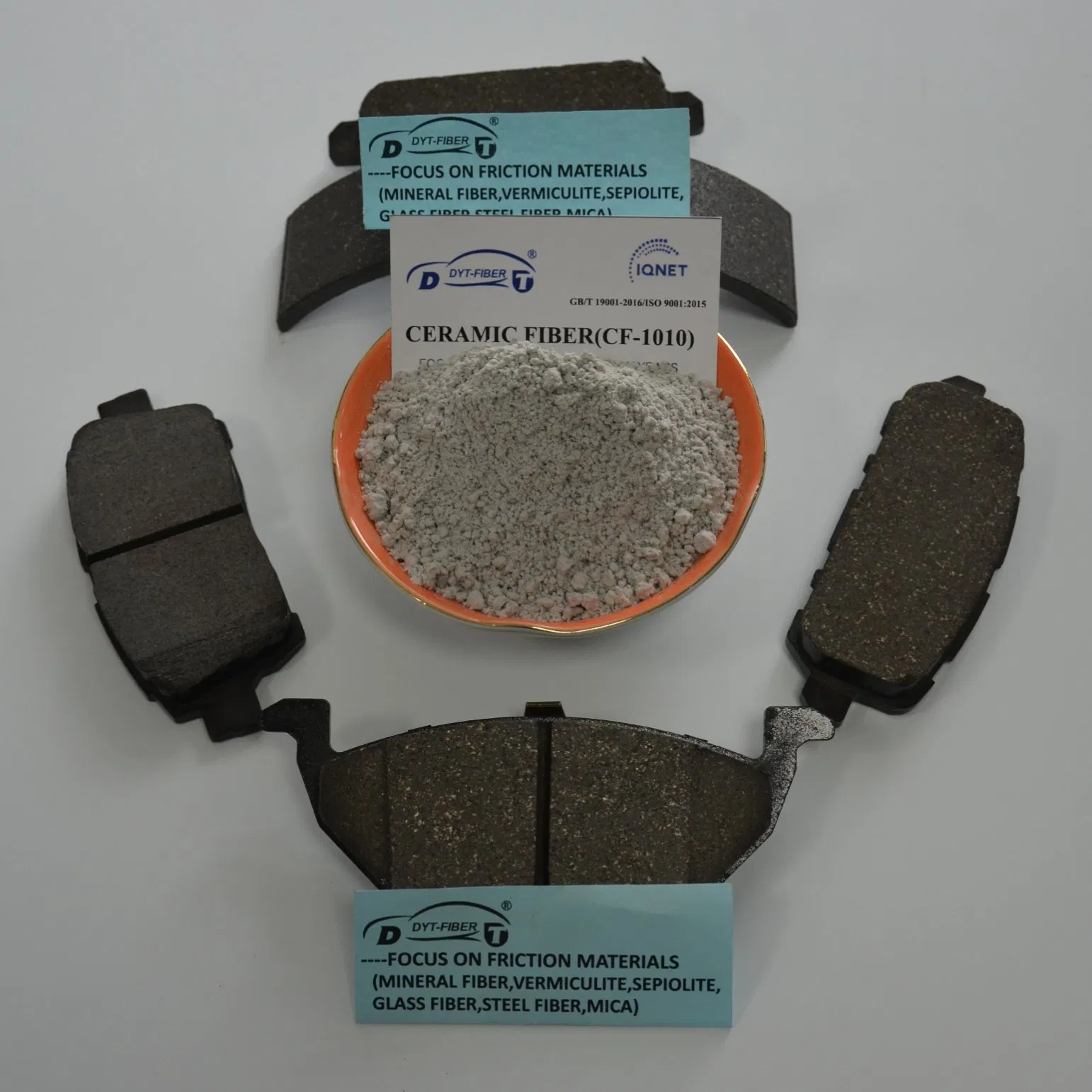

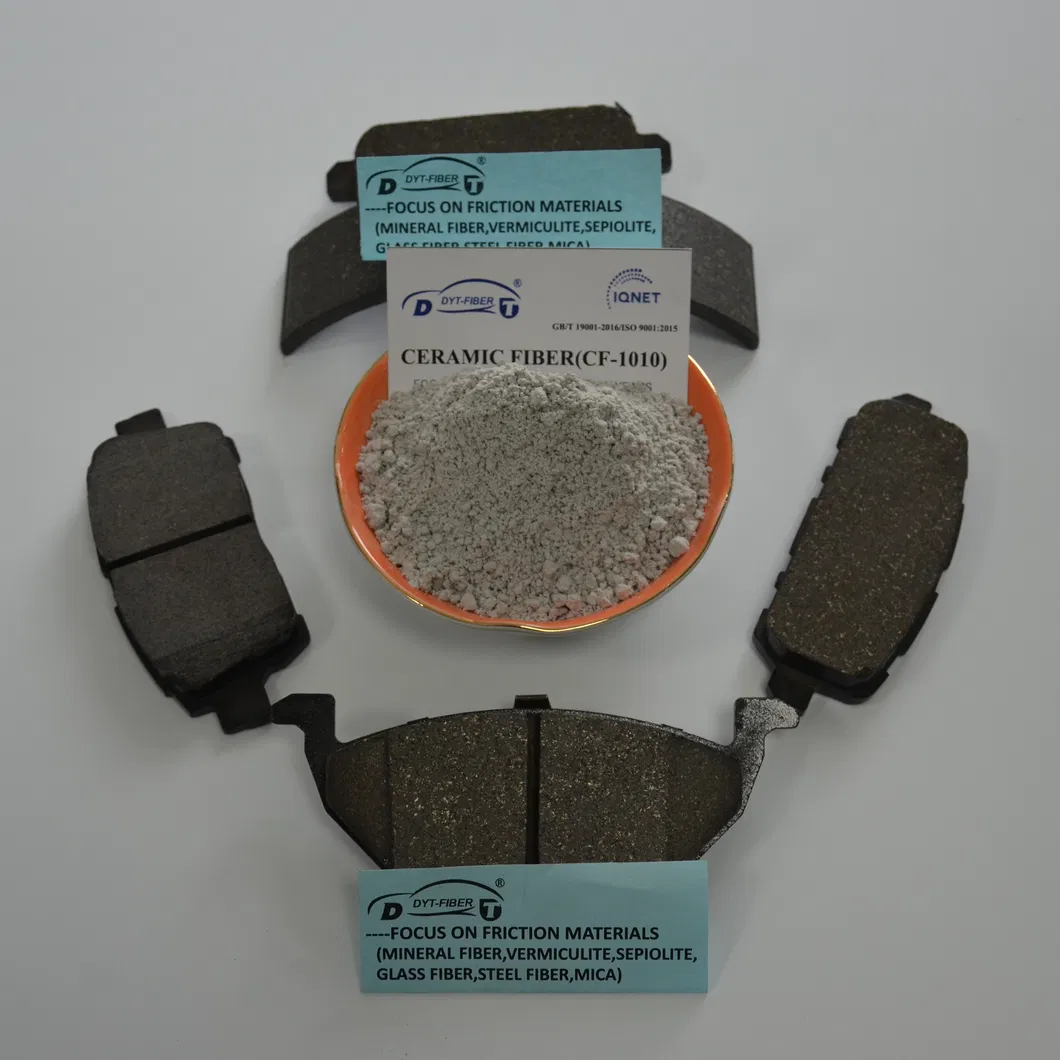

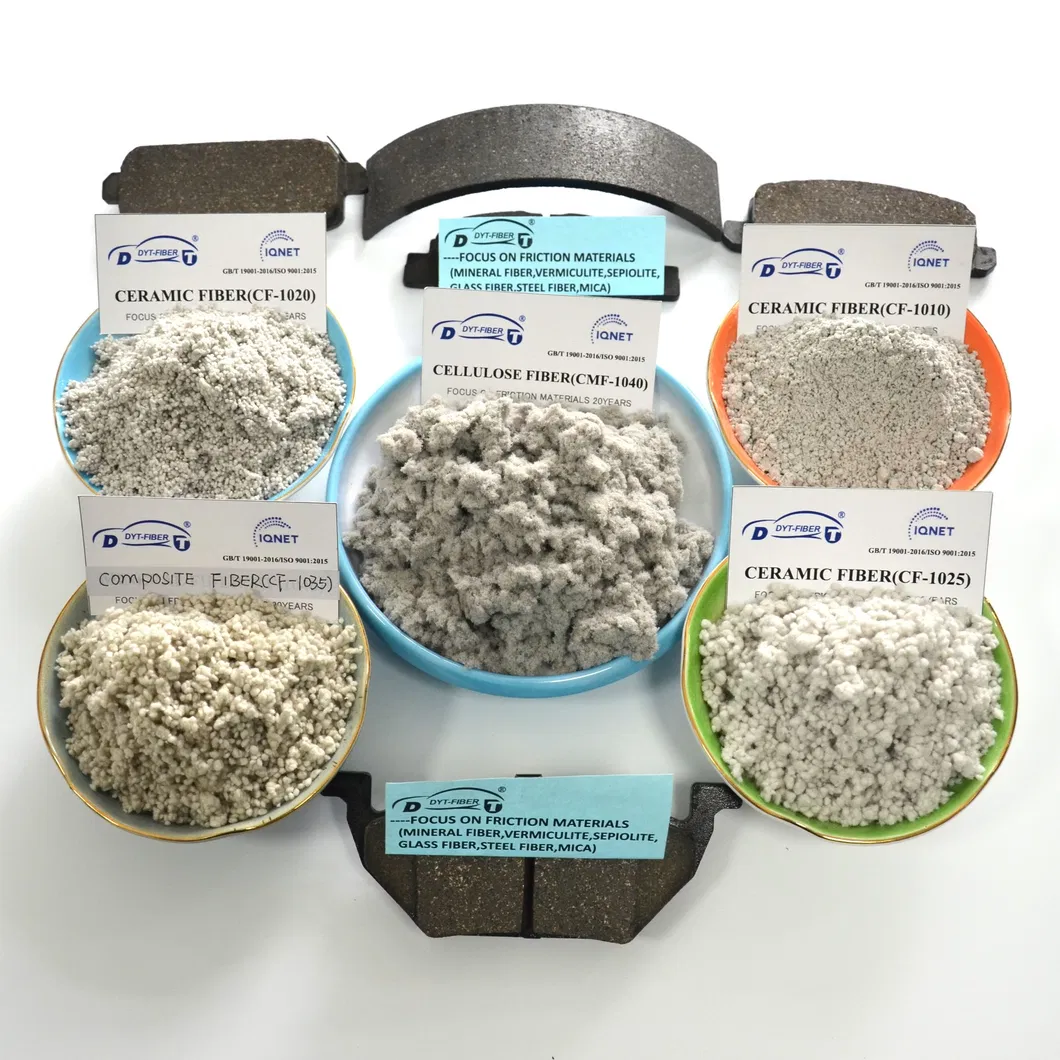

Ceramic fiber (CF-1010, CF-1020, CF-1025, CF-1035)
Aluminum silicate fiber, raw materials to kaolin, coke gem, pyrophyllite and other high aluminum content of silicate ore as raw materials, silicon dioxide and alumina content is more than 96%.
| SiO2 | Al2O3 | Fe2O3 | Na2O+K2O |
|---|---|---|---|
| 45%-55% | 40-50% | 0.8%-1.0% | 0.2%-0.5% |
It has low heat conductivity, thermal stability, chemical stability, and no causticity. Brake linings made from ceramic fiber have high temperature resistance and decentrality, can be used in brake linings which requires high temperature resistance and heat recovery capacity, it also can be used in all types of mixer.
Recommendatory dosage:
| Project | Index(%) |
|---|---|
| The average fiber length | 0.15--2.5mm |
| The average fiber diameter | 4-9um |
| Specific Gravity | 0.25-0.45g/m3 |
| Fiber moisture | ≤1.0 |
| Softening Point | >1750°C |
| PH | 7 |
| Fiber Asbestos Content | 0 |
| Shot Content (>120mesh) | <20 |
| Project | Index(%) |
|---|---|
| The average fiber length | 0--1mm |
| The average fiber diameter | 4-9um |
| Specific Gravity | 0.45-0.55g/m3 |
| Fiber moisture | ≤1.5 |
| Shot Content (>120mesh) | <30 |
| Surface density (compression) | 0.25-0.40g/cm³ |

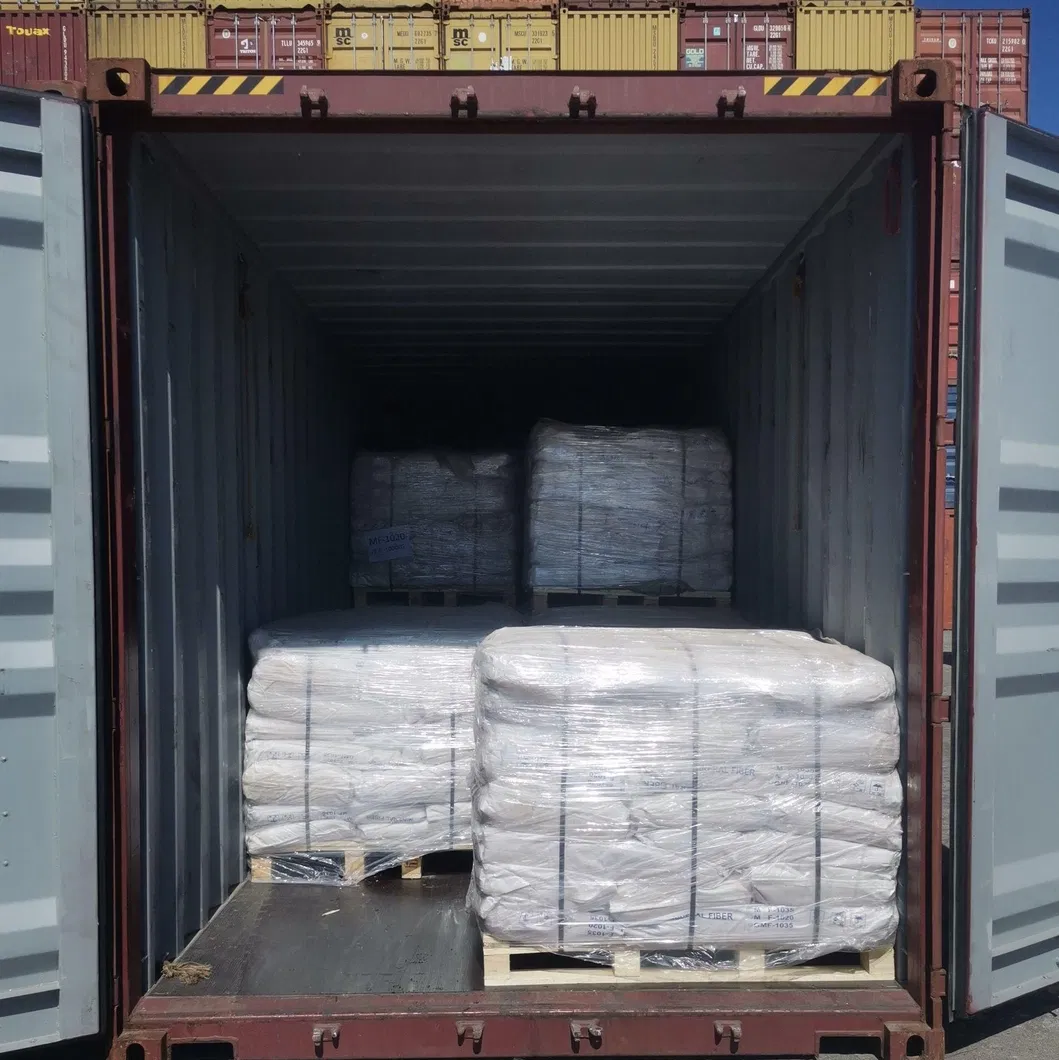

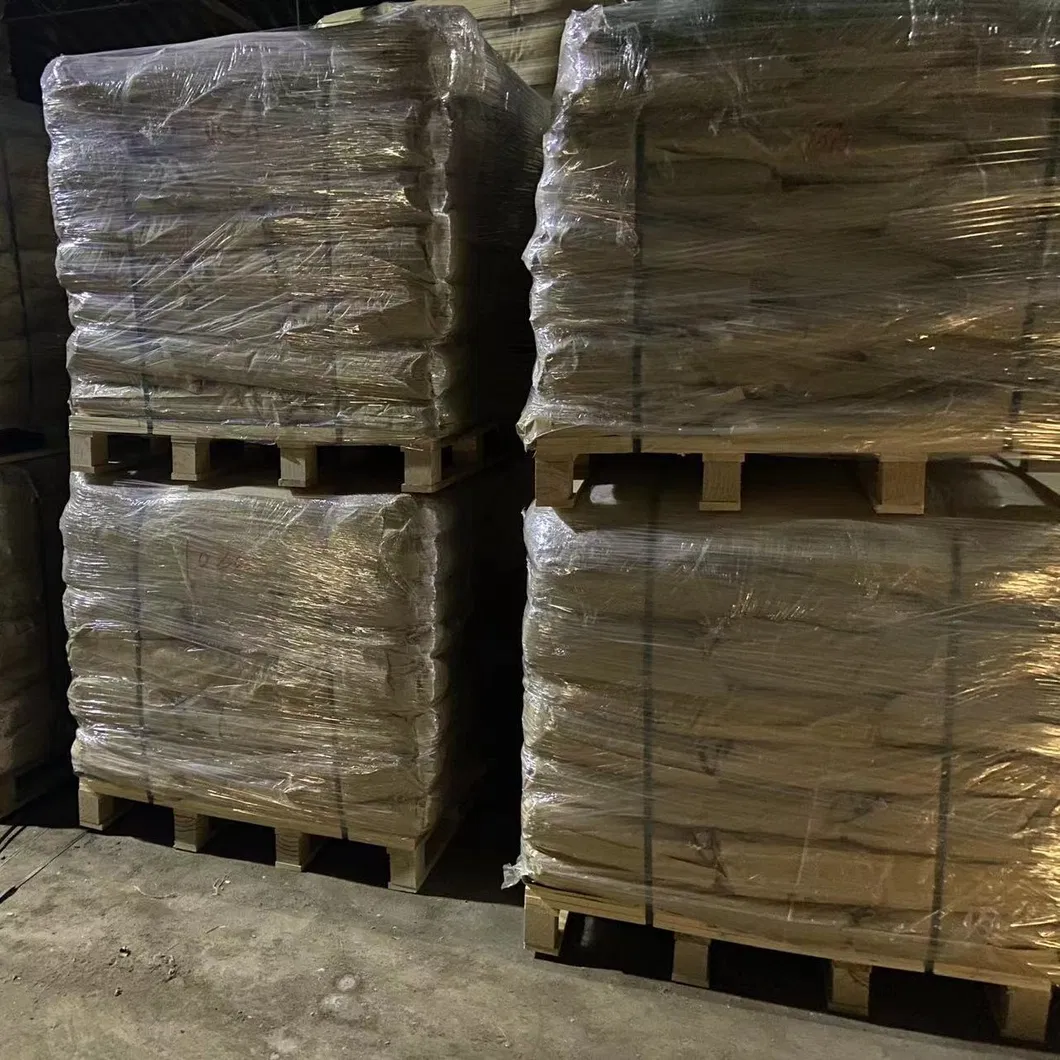

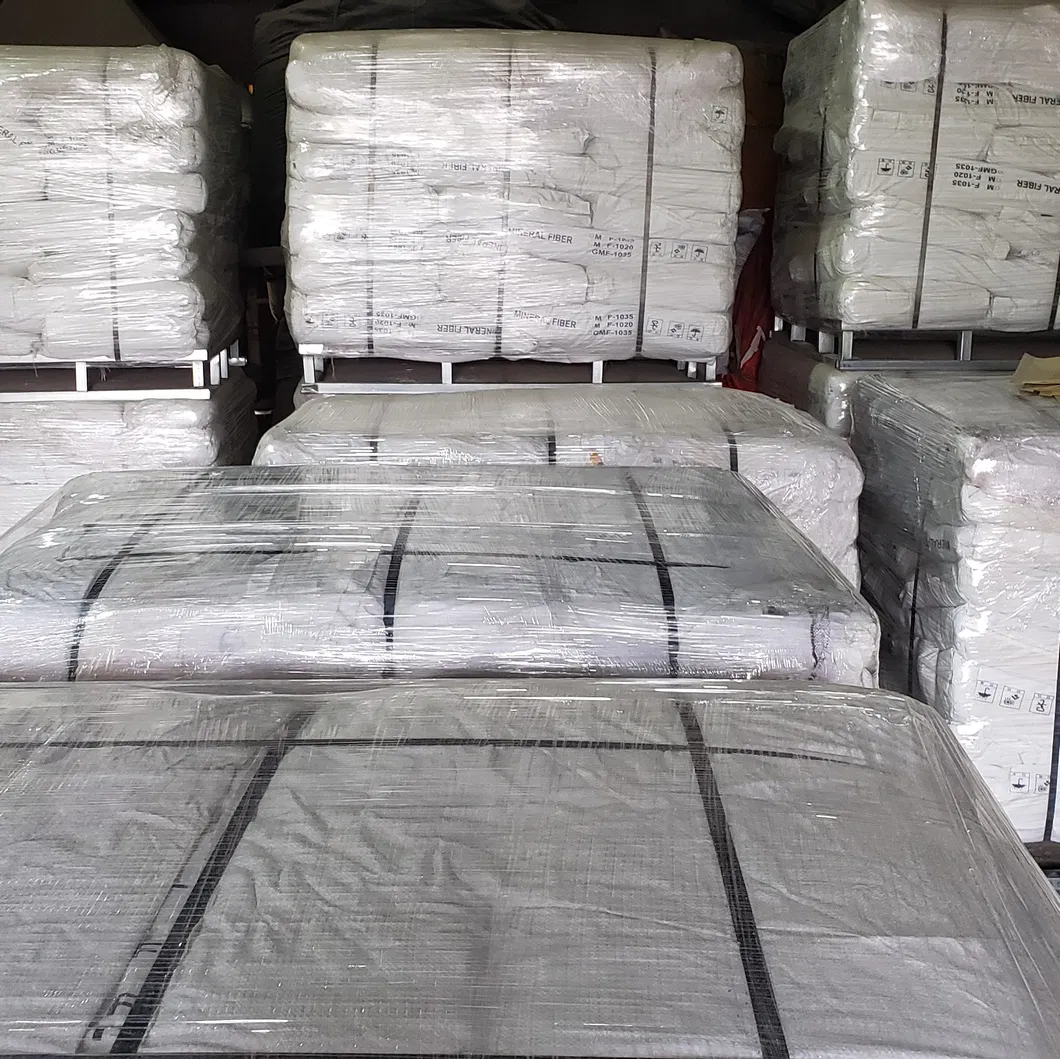

Package: 25kg*40nos packed in 3 ply sacks stacked on a wooden pallet wrapped, strapped and shrink wrapped.
Storage: Ceramic Fiber must be stored in a cool, dry place to prevent moisture penetration. Packs which have been opened should be sealed again as soon as possible.

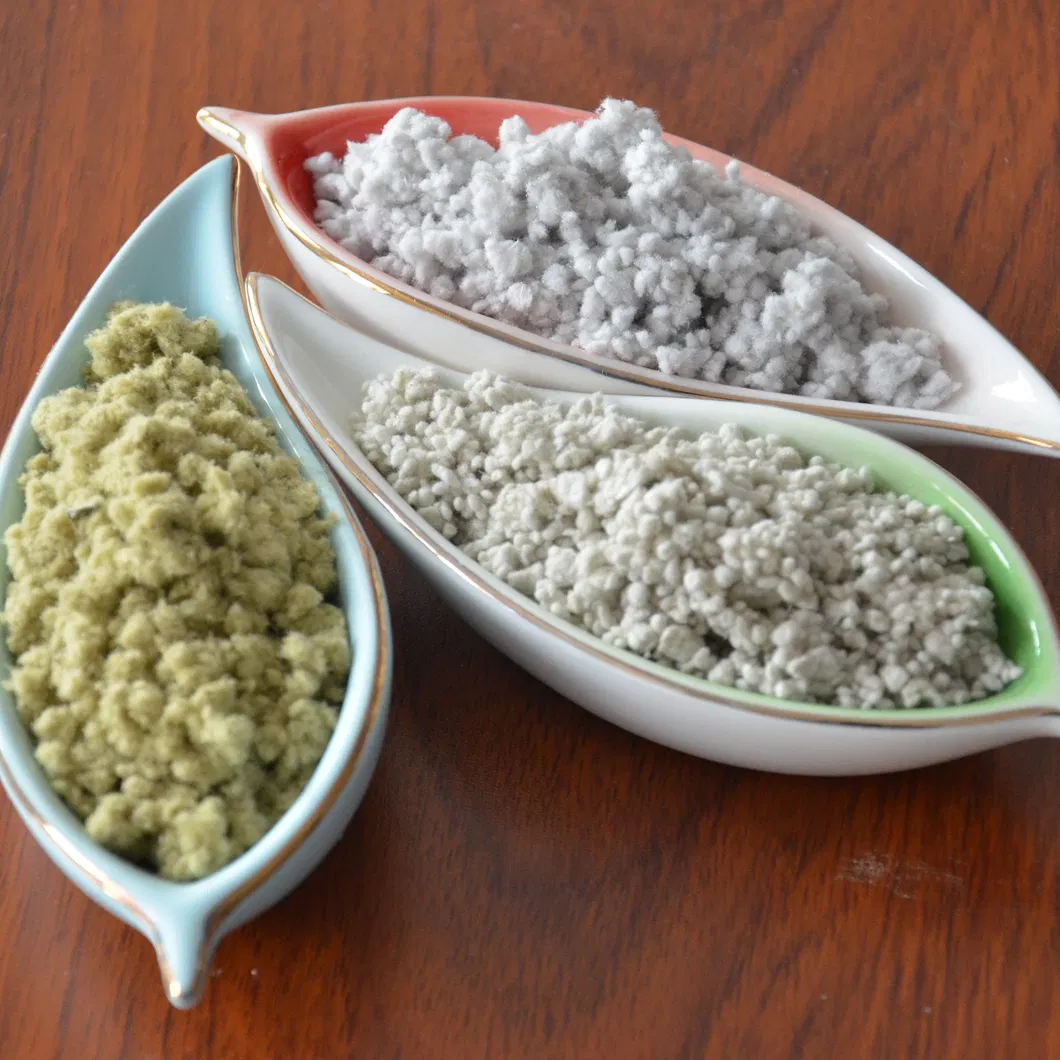

Non-Asbestos Composite Mineral Synthetic Fibre (Model: CF-1035, CF-1025)
The fiber is made of mineral fiber, organic fiber and surface treatment agent. Length 1.0-3.5mm, featuring good dispersion for all kinds of mixers. Especially suitable for cold type two-step brake lining production processes.
| Project | Indicators |
|---|---|
| Specific Gravity | 2.25g/cm³ |
| Fiber length | 1.0-3.5mm |
| Loose density | 800-1100 cm³/100g |
| 800ºC Burn loss | 28-32% |
| Main ingredients | Mineral Fiber 70%, Cellulose Fiber 30% |
