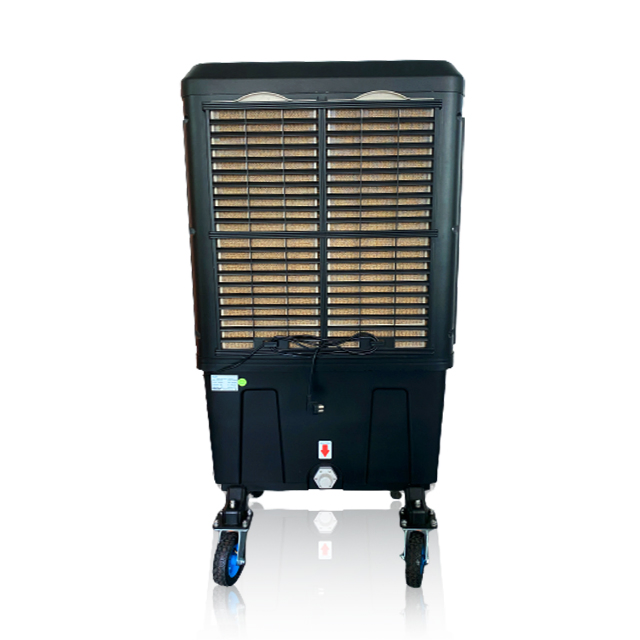

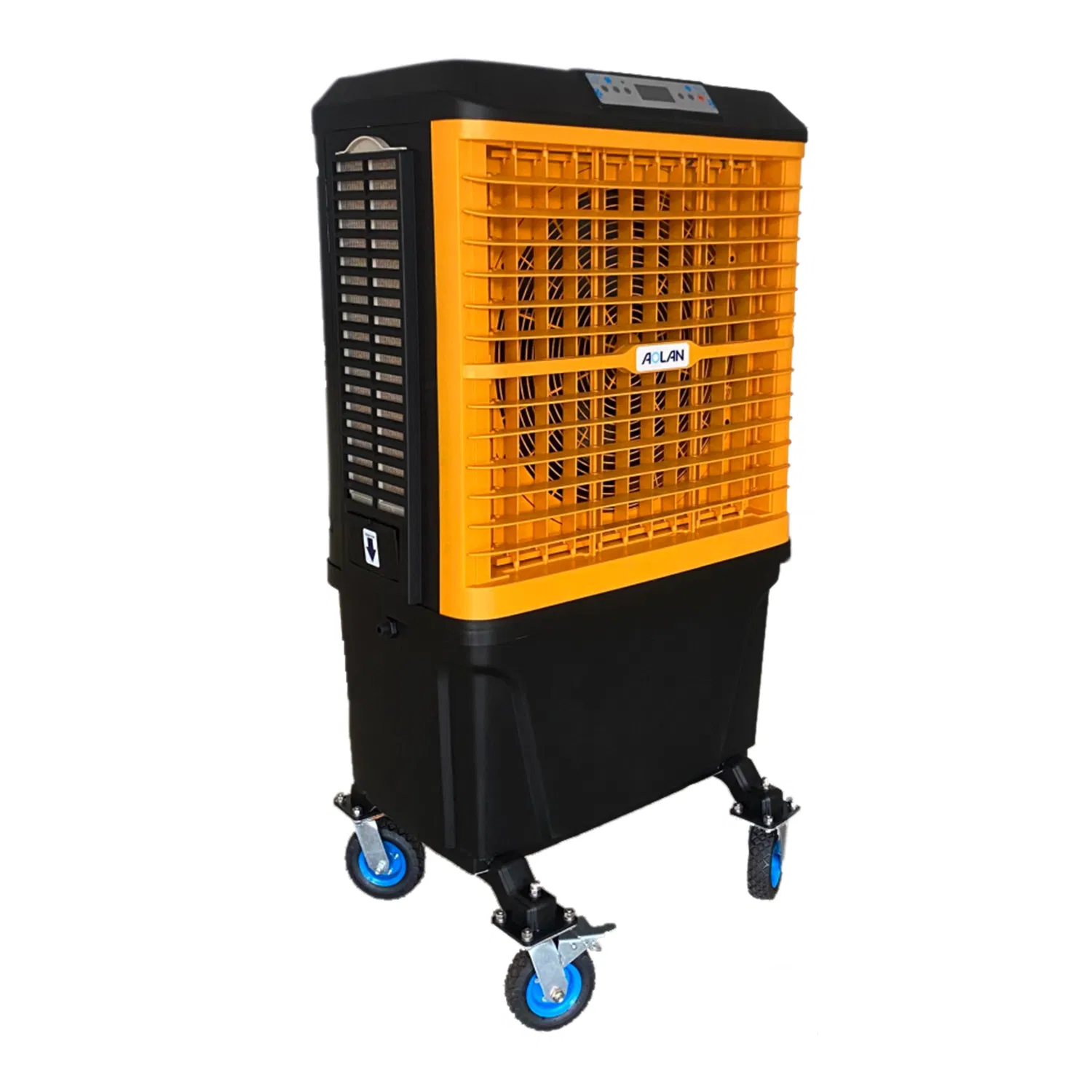

12000m3h Water Cooling Fan Cooling System Rubber Pneumatic Wheel with Brake

Customization: Available
Timer: With Timer
Remote Control: With Remote Control

Product Description

i

Basic Information

Model NO.AZL12-ZY13B
Airflow12000m3/H
Watertank Capacity90-100L
Power Output300W
Fan TypeAxial
Noise LevelLow (≤60 dBA)
MountingFloor Standing
Key Selling PointsLow Maintenance Cost

Product Description

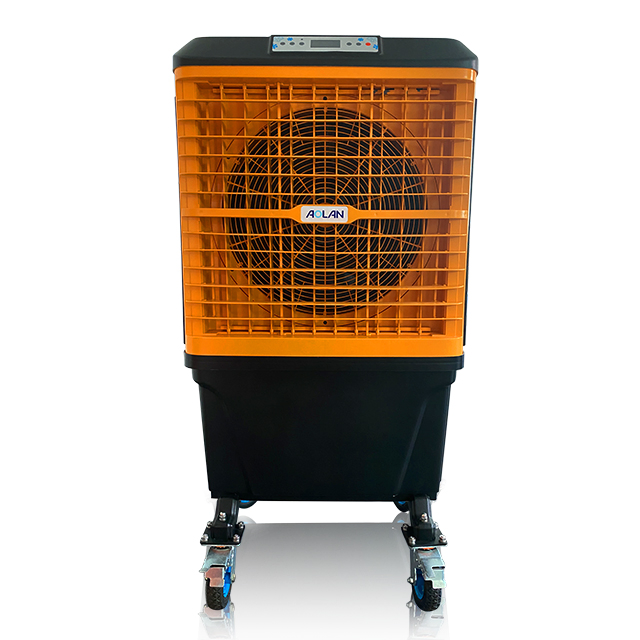

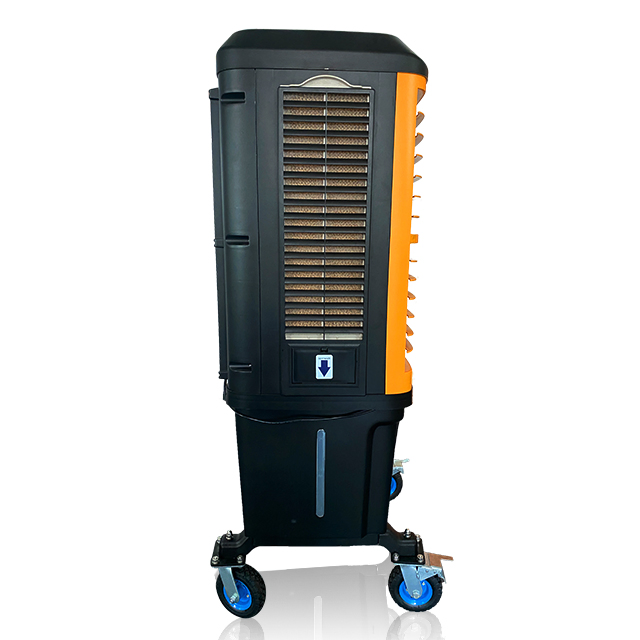

12000m3h Portable Electric Fan Evaporative Cooler with ETL Standard

This portable air cooler is designed for ease of use—simply install the wheels, add water, and it's ready to operate. It is an ideal solution for office, home, and industrial environments. When used alongside traditional air conditioning, it helps maintain humidity levels and significantly reduces energy consumption.

  • High Efficiency: Achieves supply air temperature differences of 5-15ºC depending on climate.

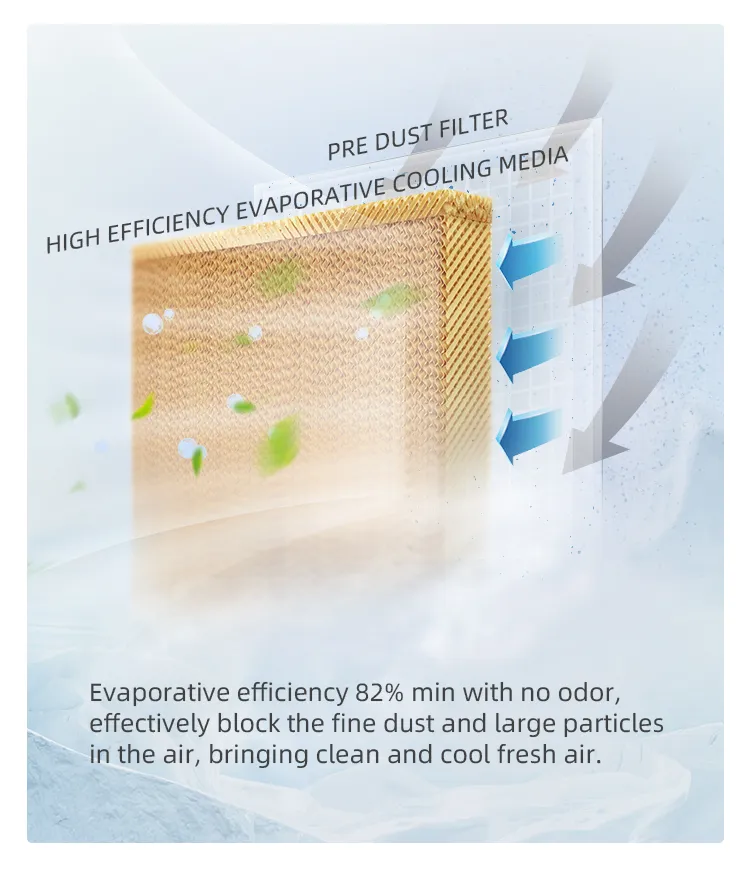

  • Advanced Cooling Pads: Uses high-efficiency evaporative cooling pads with an evaporation efficiency of up to 82%.

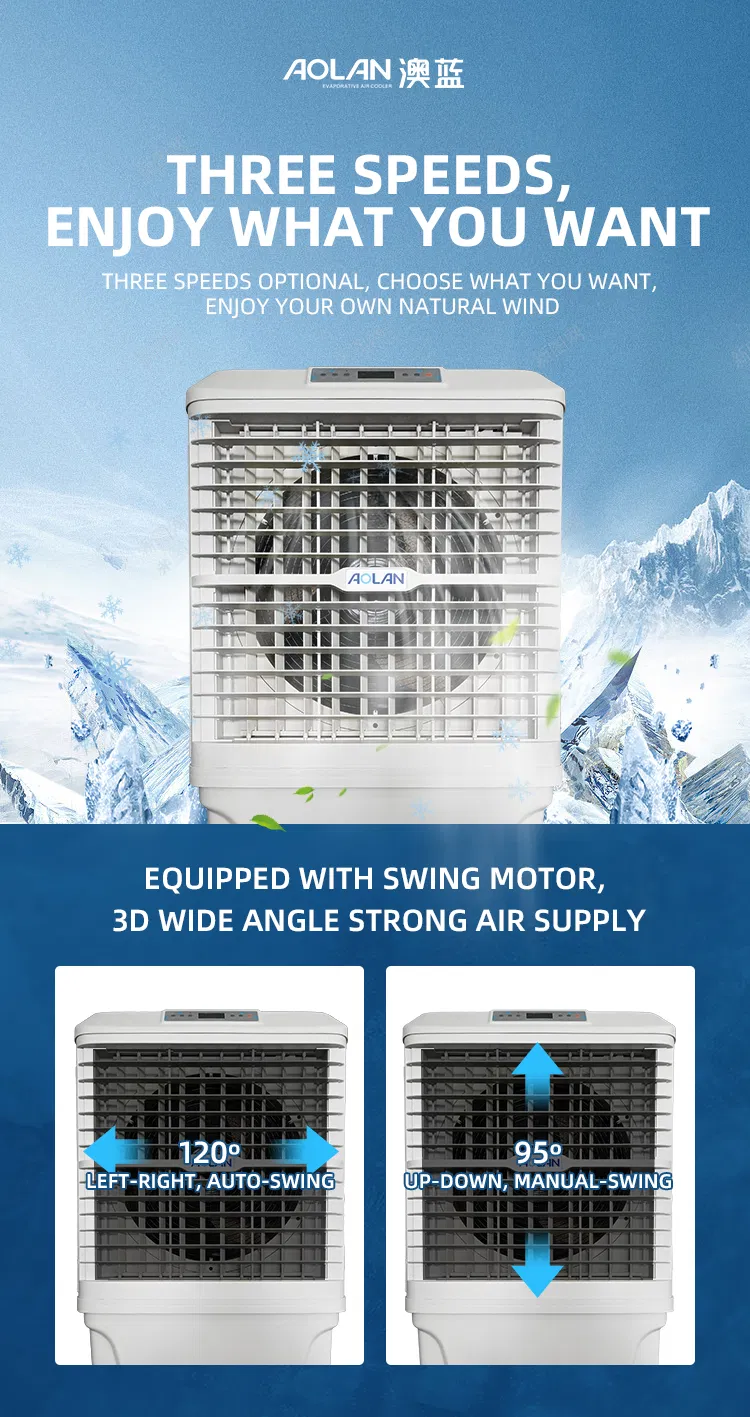

  • Smart Control: Includes a remote controller with 3 optional speeds for easy operation.
  • Auto-Water System: Open-type water distribution ensures smooth flow and prevents blockages.
  • Fresh Air: Constantly exhausts hot air while drawing in fresh, cool air.

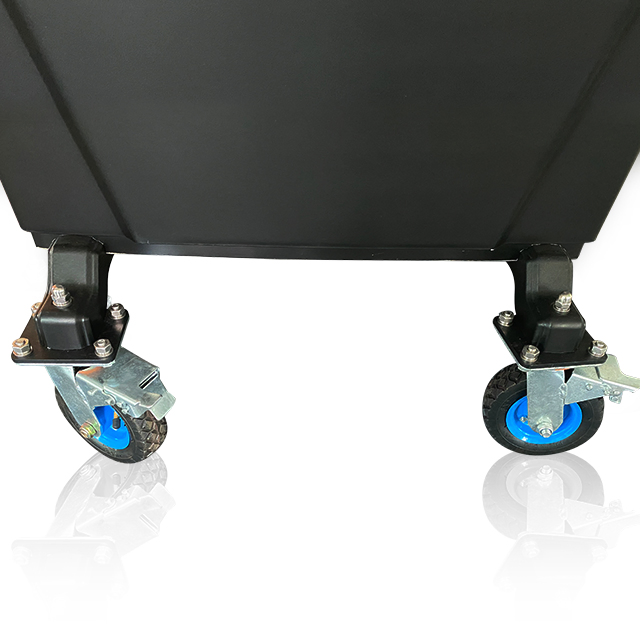

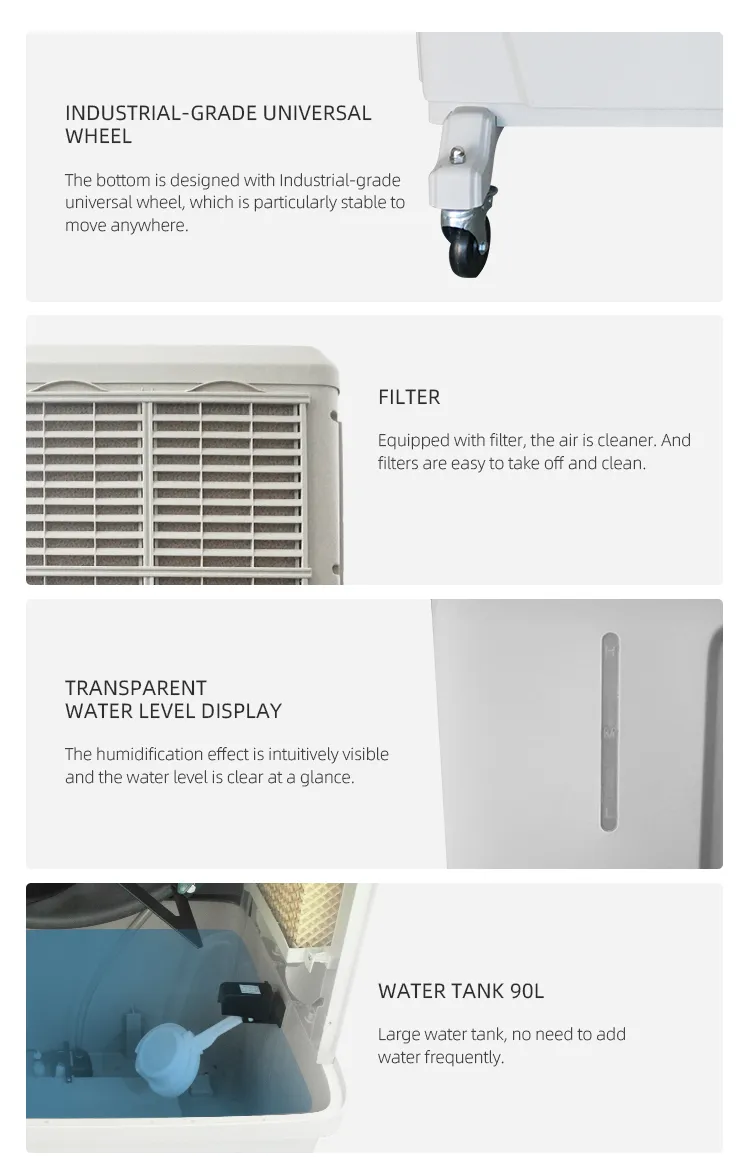

  • Mobility: Equipped with industrial-grade universal wheels with brakes for stable movement.
  • Air Purification: Integrated filters ensure the output air is cleaner.
  • Pump Protection: One-way floater protects the pump against water shortage.
  • Real-time Monitoring: Built-in temperature probe for real-time checks.

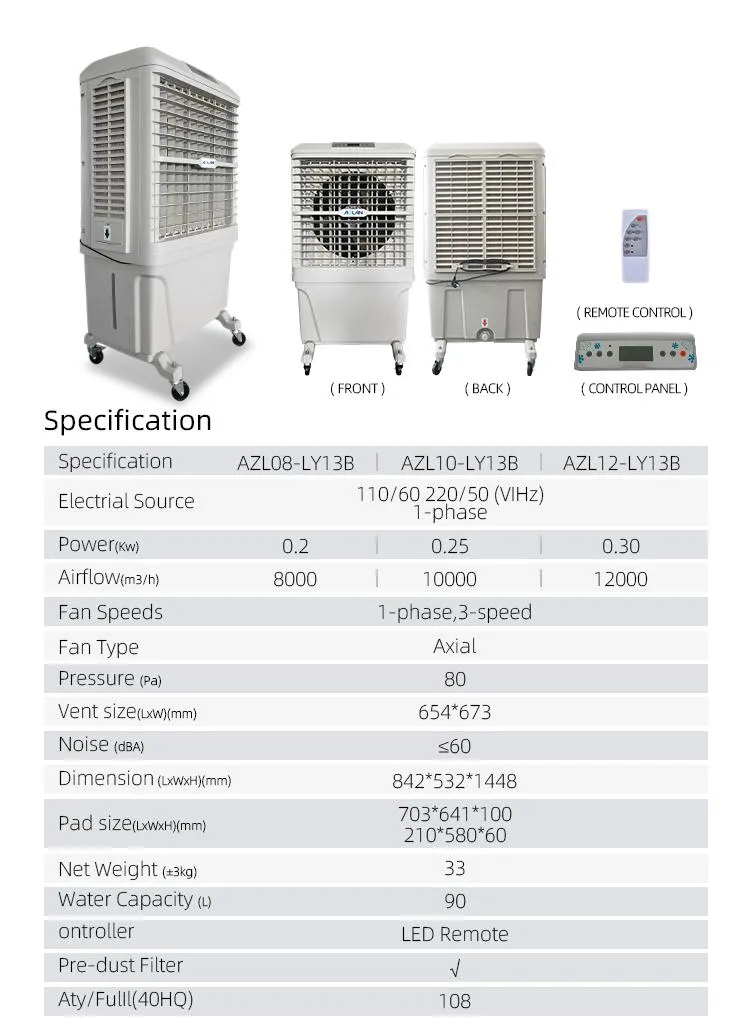

Product Parameters

Model/Specs AZL08-ZY13B AZL10-ZY13B AZL12-ZY13B
Electrical Source 110/60 220/50 (V/Hz), 1-phase
Power (Kw) 0.2 0.22 0.30
Airflow (m3/h) 8000 10000 12000
Fan Type Axial (3-speed)
Pressure (Pa) 90
Noise (dBA) ≤60
Dimension (mm) 842*532*1550

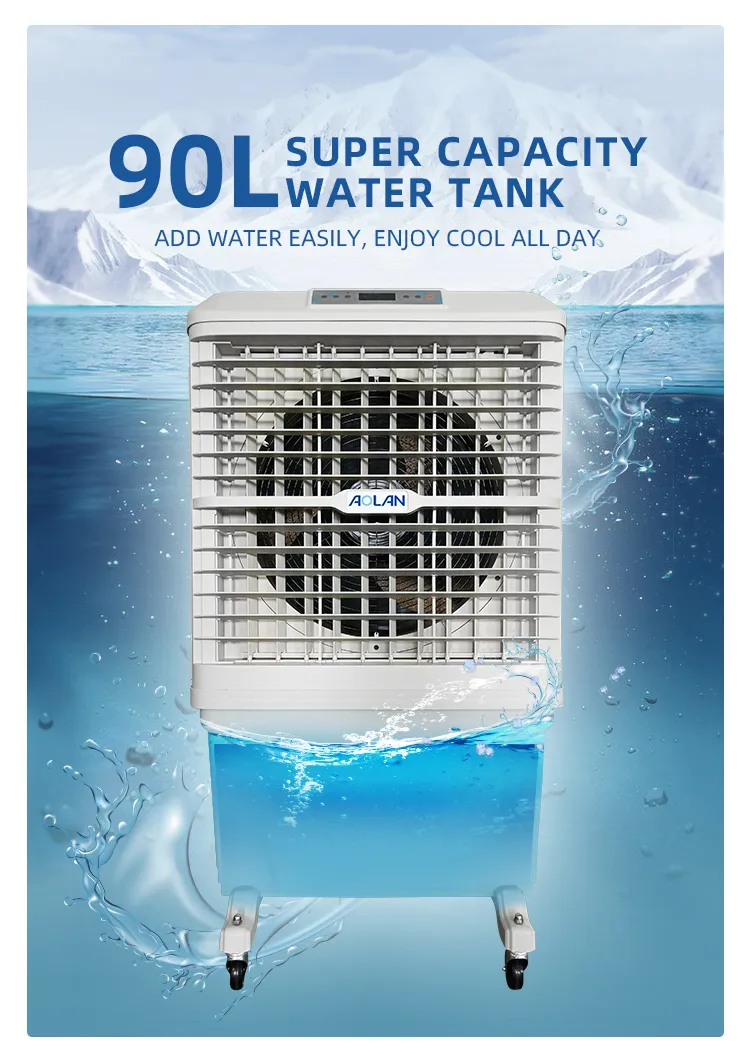

Water Capacity (L) 90
Net Weight (kg) 33 ±3
📷

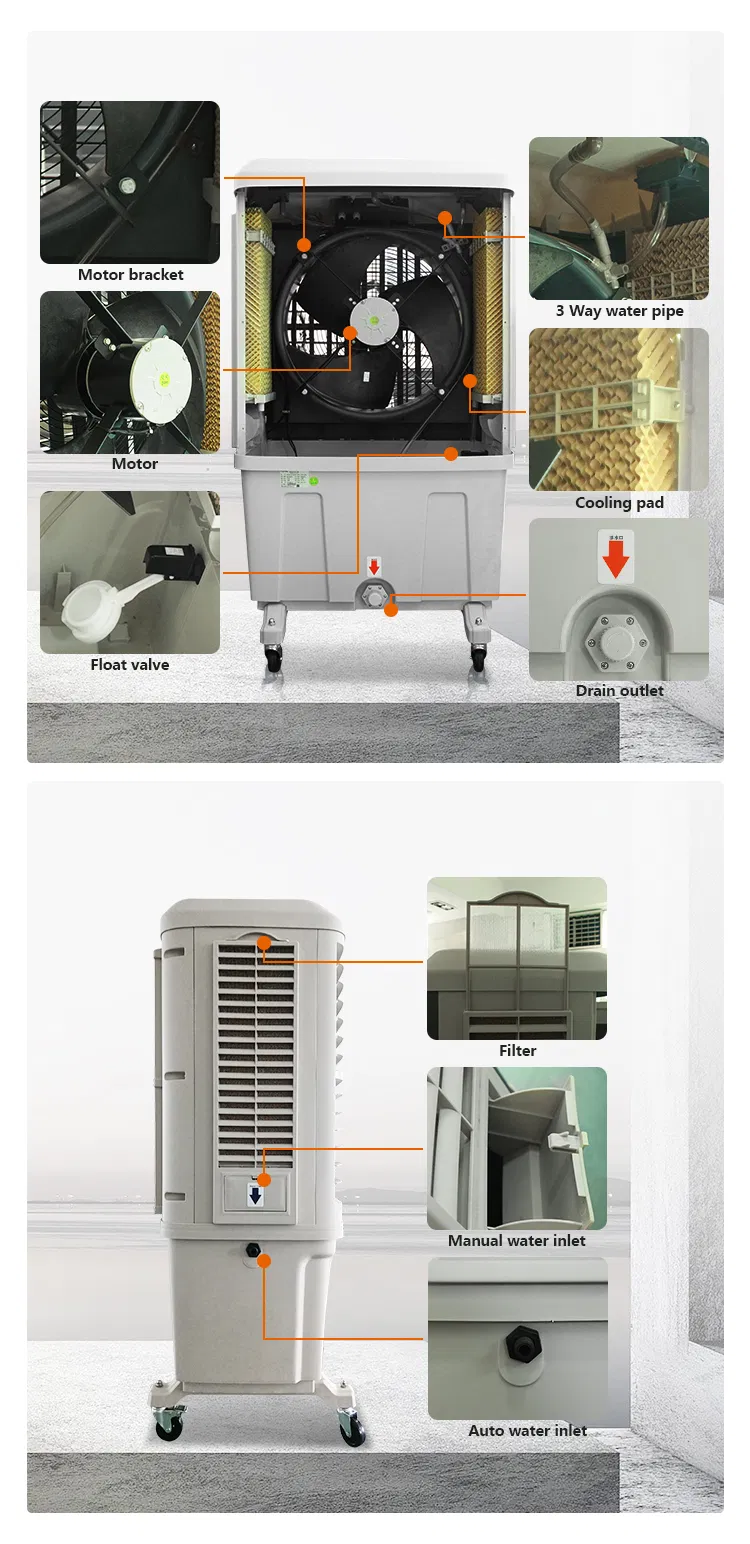

Detailed Photos

🏢

Company Profile

The manufacturer is one of the largest producers of evaporative air coolers in China. As a leader in the international evaporative cooling industry, the company has developed 11 series and more than 80 types of air coolers, with airflow capacities ranging from 800m3/h to 80,000m3/h. These products are widely utilized in domestic, commercial, and industrial sectors.

With a commitment to scientific rigor and continuous expansion, the company exports to over 50 countries and regions across Europe, America, Asia, South America, and Africa. Notably, the manufacturer drafted the National Standards for Evaporative Air Coolers and operates a national-level laboratory dedicated to testing and advancing evaporative cooling technology.

?

Frequently Asked Questions

1. How does the evaporative air cooler differ from a traditional air conditioner?
Unlike air conditioners that use refrigerants and dry out the air, evaporative coolers use water evaporation to cool the air, which adds healthy humidity and uses significantly less electricity.
2. Is the AZL12-ZY13B suitable for large industrial spaces?
Yes, with an airflow of 12000m3/h and a powerful axial fan, it is designed for household, commercial, and industrial applications.
3. What maintenance is required for this unit?
The unit is designed for low maintenance. Regular cleaning of the cooling pads and the water tank is recommended to ensure optimal cooling efficiency and air hygiene.
4. Does the unit come with safety certifications?
Yes, this model is ETL approved and meets US standards, including a US standard plug and air turbine safety features.
5. Can I control the fan speed?
Yes, the unit features 3 optional speeds which can be easily adjusted using the included LED remote controller.
6. How do I know when the water is running low?
The unit is equipped with a one-way floater system that protects the pump by automatically detecting water shortages.
