| Type | LT Water Tank Type Metal Drawing Machine |
| Usage | Wire |
| Metal Material | Steel |
| Outlet Diameter | 0.05-0.23mm |
| Max. Inlet Wire Dia. | 0.55-1.0mm |
| Drawing Speed | 10 M/S |
| Motor Power | 7.5kw+1.5kw |
| Control Method | Touch Screen |
| Core Components | Bearing, Motor, PLC |
Wet wire drawing machine for producing fine stainless steel wire

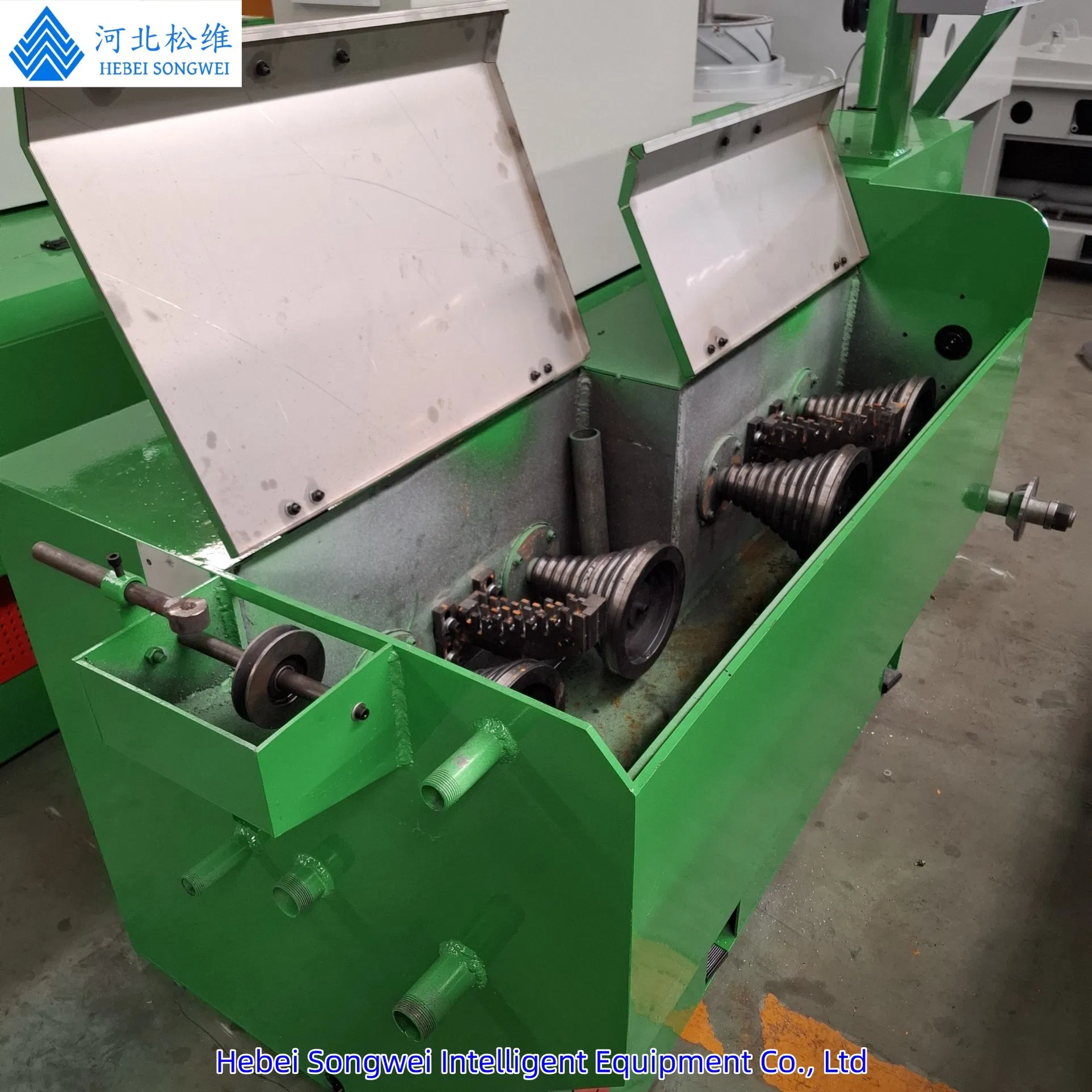

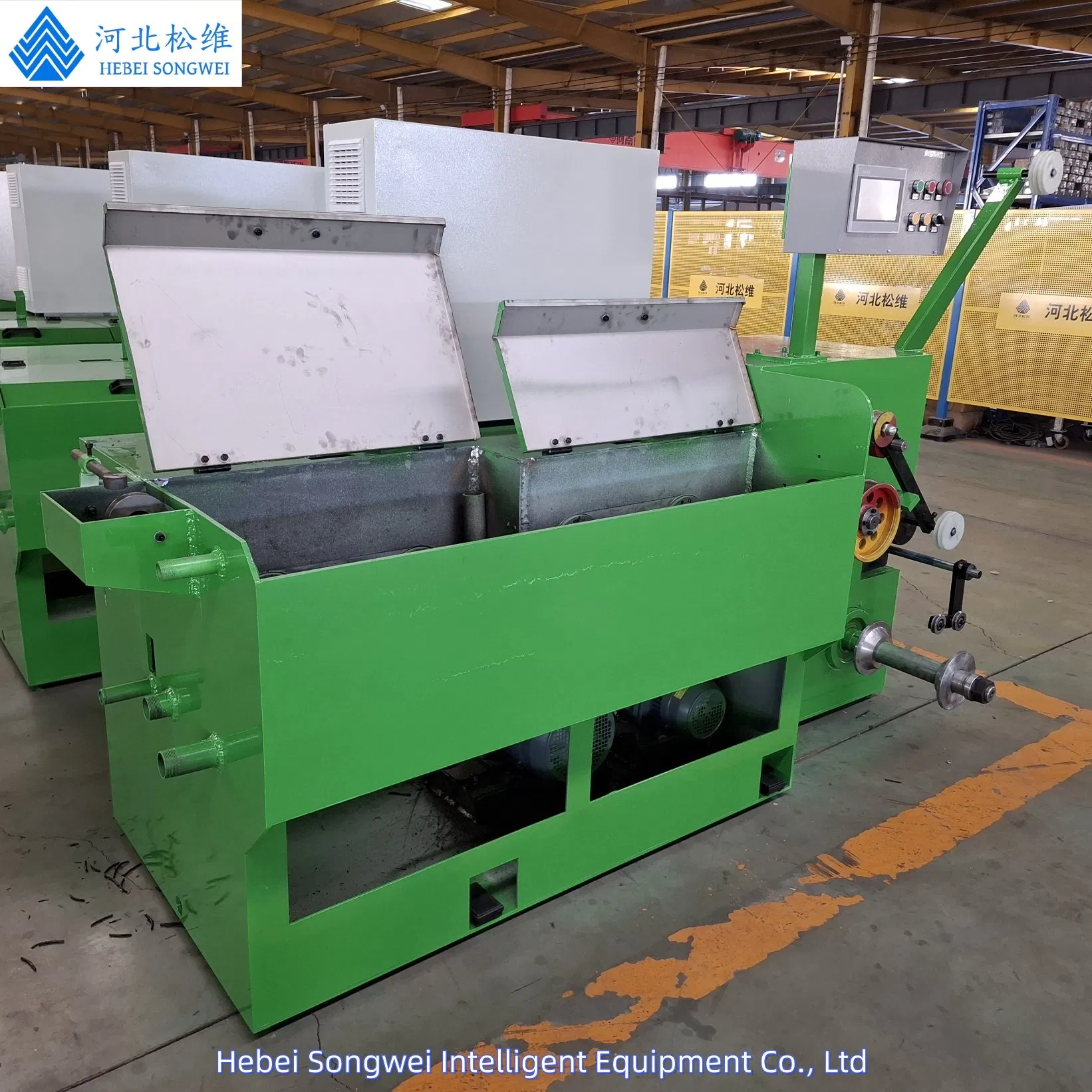

The water tank type wire drawing machine is a small continuous production equipment composed of multiple wire drawing heads. By gradually pulling, place the pulling head into the water tank, and finally pull the steel wire to the desired specifications. The entire drawing process is completely controlled by the mechanical speed difference between the main shaft of the drawing machine and the lower shaft of the drawing machine.
Its biggest advantage is the use of a small spool wire take-up machine. It can meet more production needs of customers, and the machine can also be equipped with a separate trunk wire take up machine (Coiler).

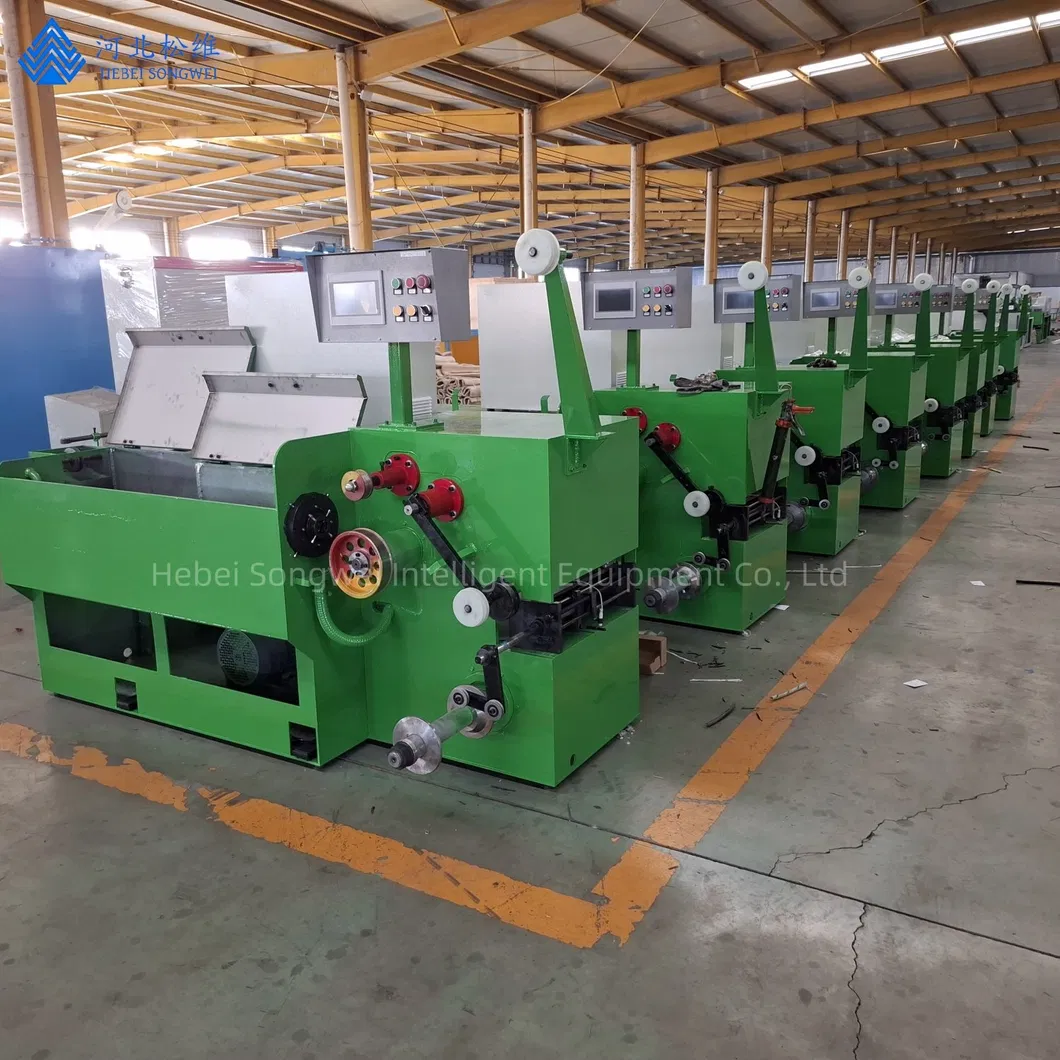

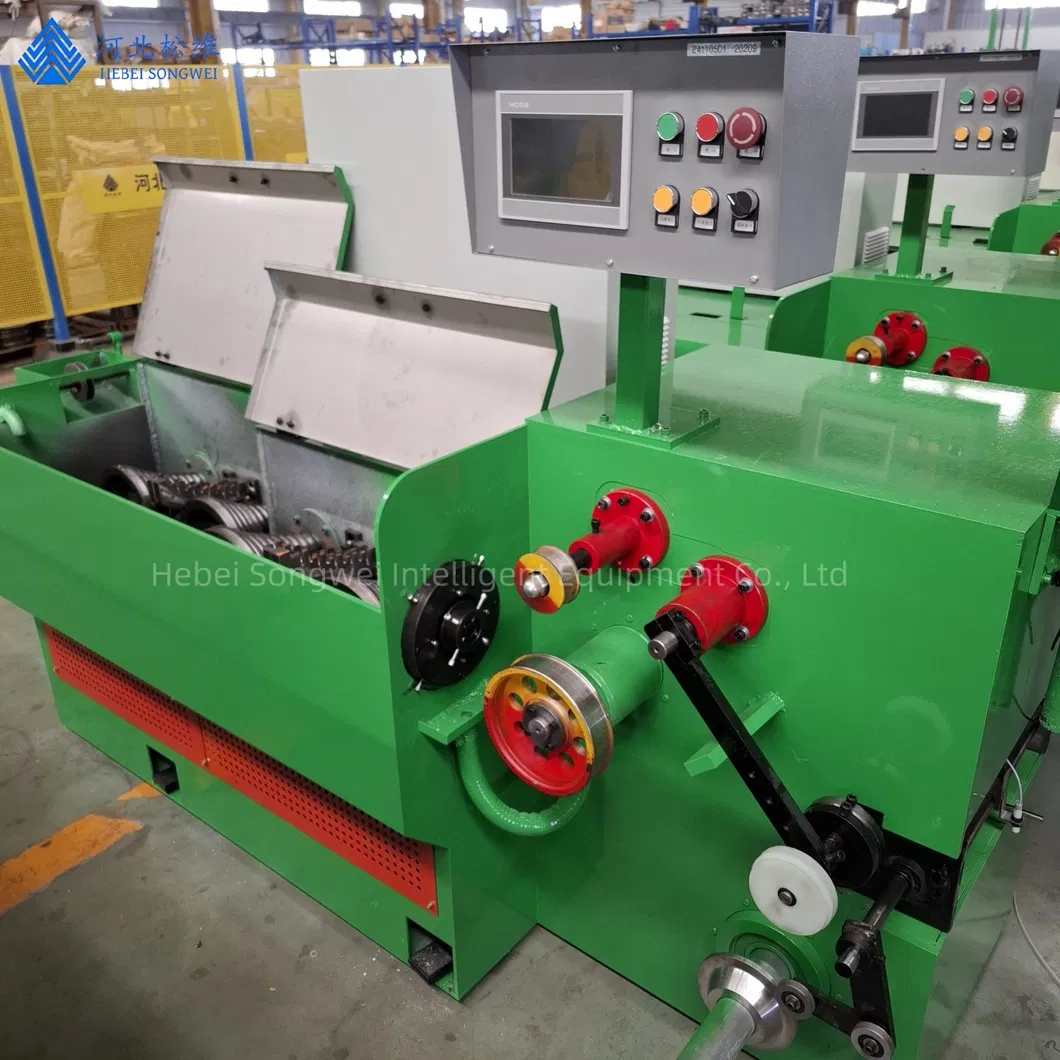

0.05mm-0.23mm Stainless Steel Wire Drawing Machine Display
| Stainless Steel Wire Wet Drawing Machine Parameters | |
|---|---|
| Inlet wire diameter | 0.55-1.0(mm) |
| Outlet wire diameter | 0.05-0.23(mm) |
| Max speed | 600(m/min) |
| Drawing dies | 21 |
| Tower wheel material | Alloy |
| Main motor | 7.5(kw) |
| Cooling method | Immersion |
| Weight | 1480(kg) |

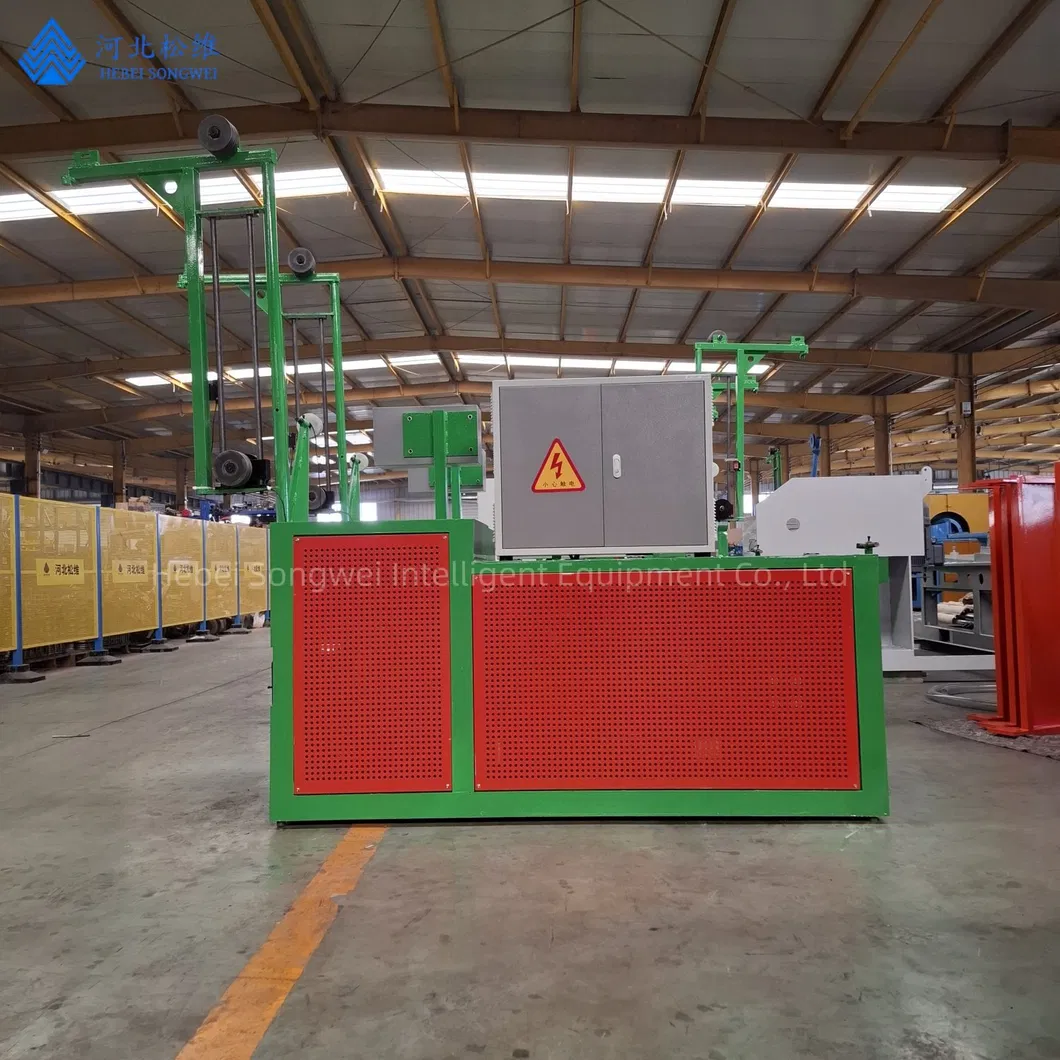

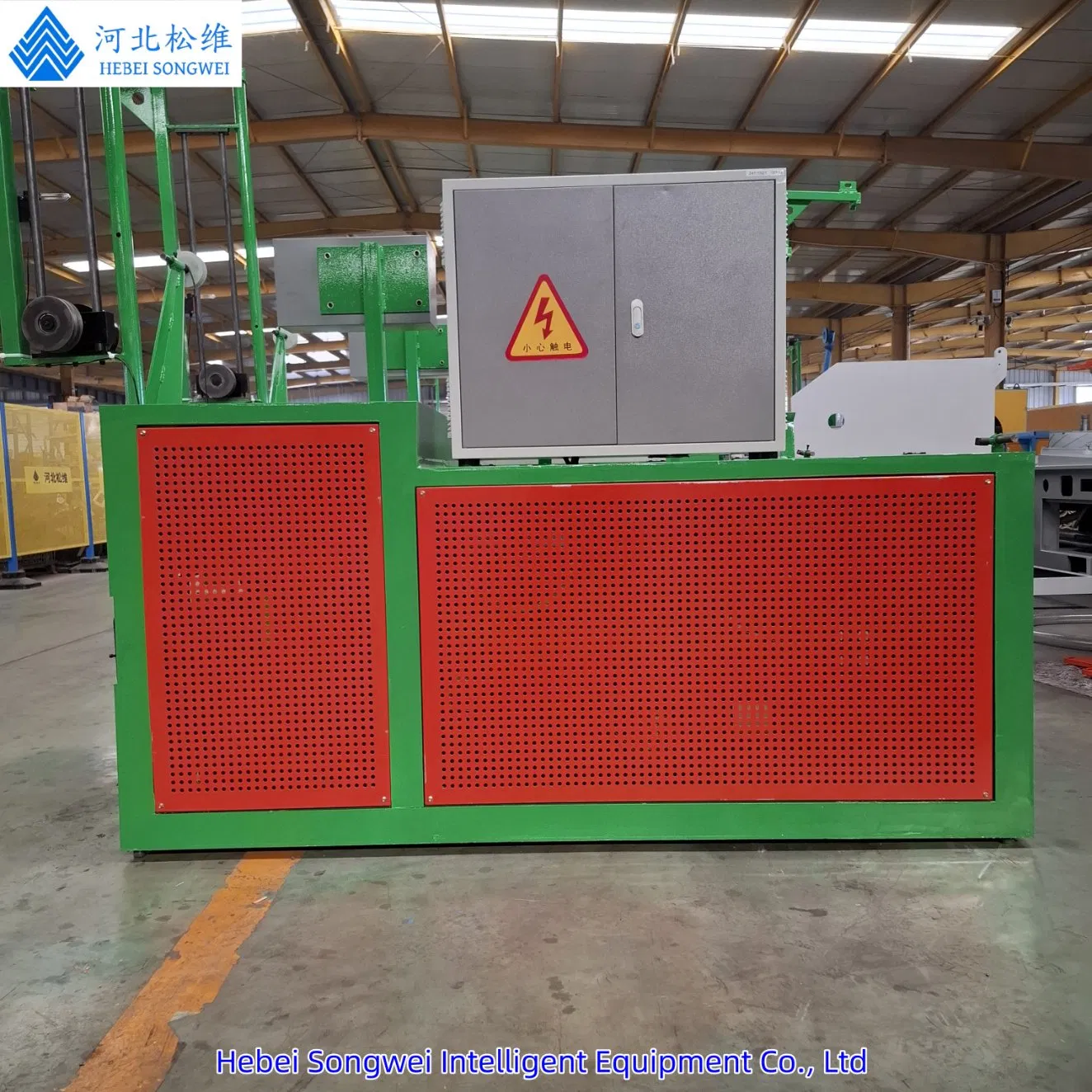

1 Protective cover: The running parts of the machinery are equipped with protective covers to ensure safety. Customers can customize the color of the machinery.

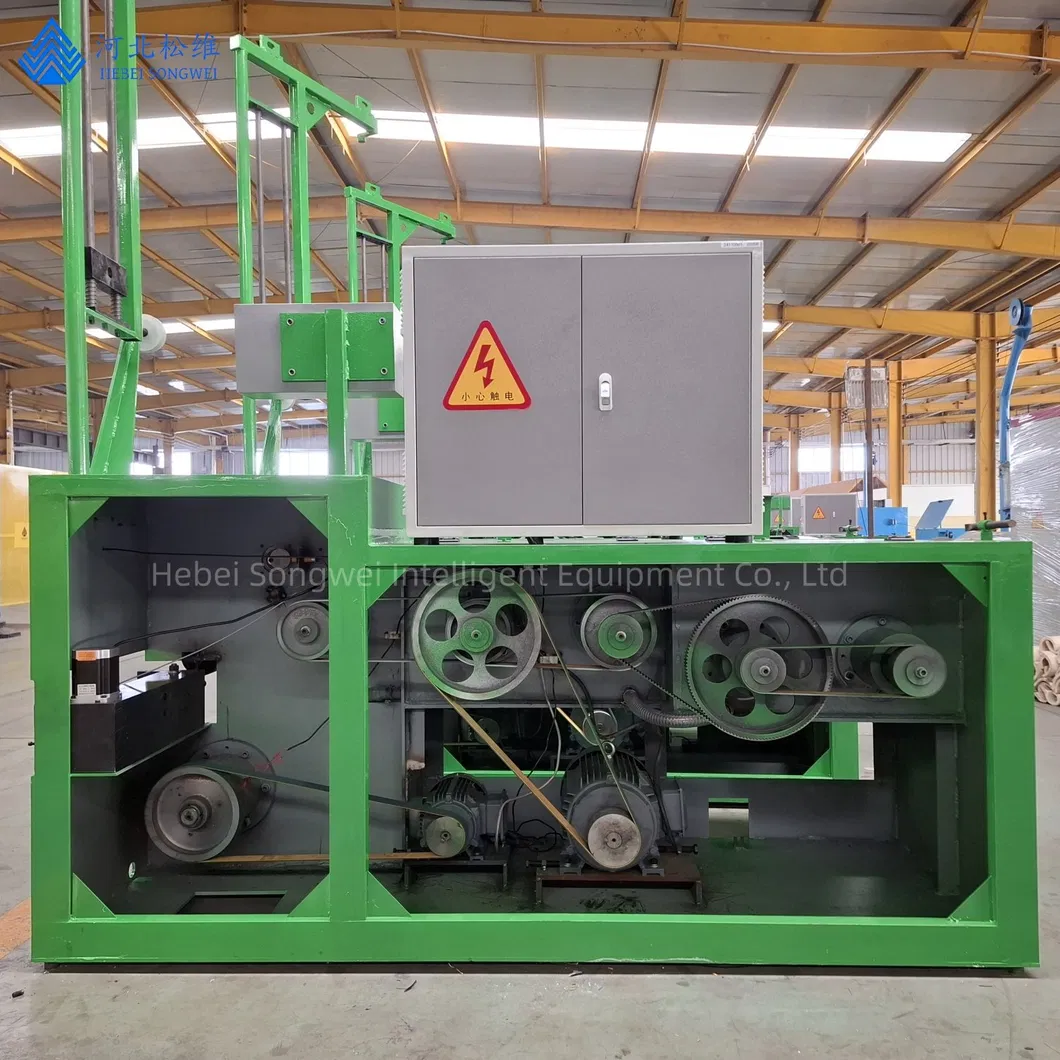

2 Vulnerable parts: All vulnerable parts use well-known brands to ensure quality, with most accessories independently designed.

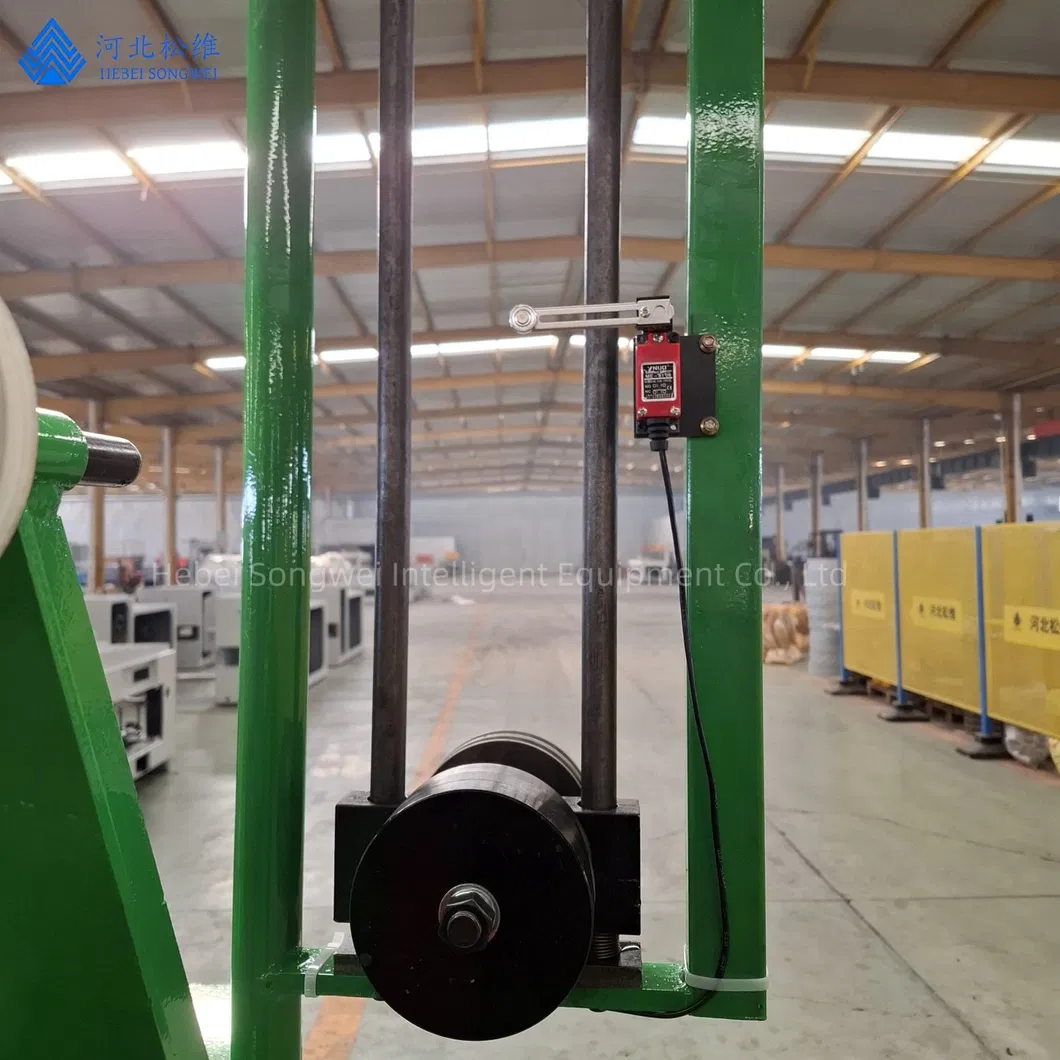

3 Tensioning device: Effectively adjusts wire tightness and features emergency sensing for safety.

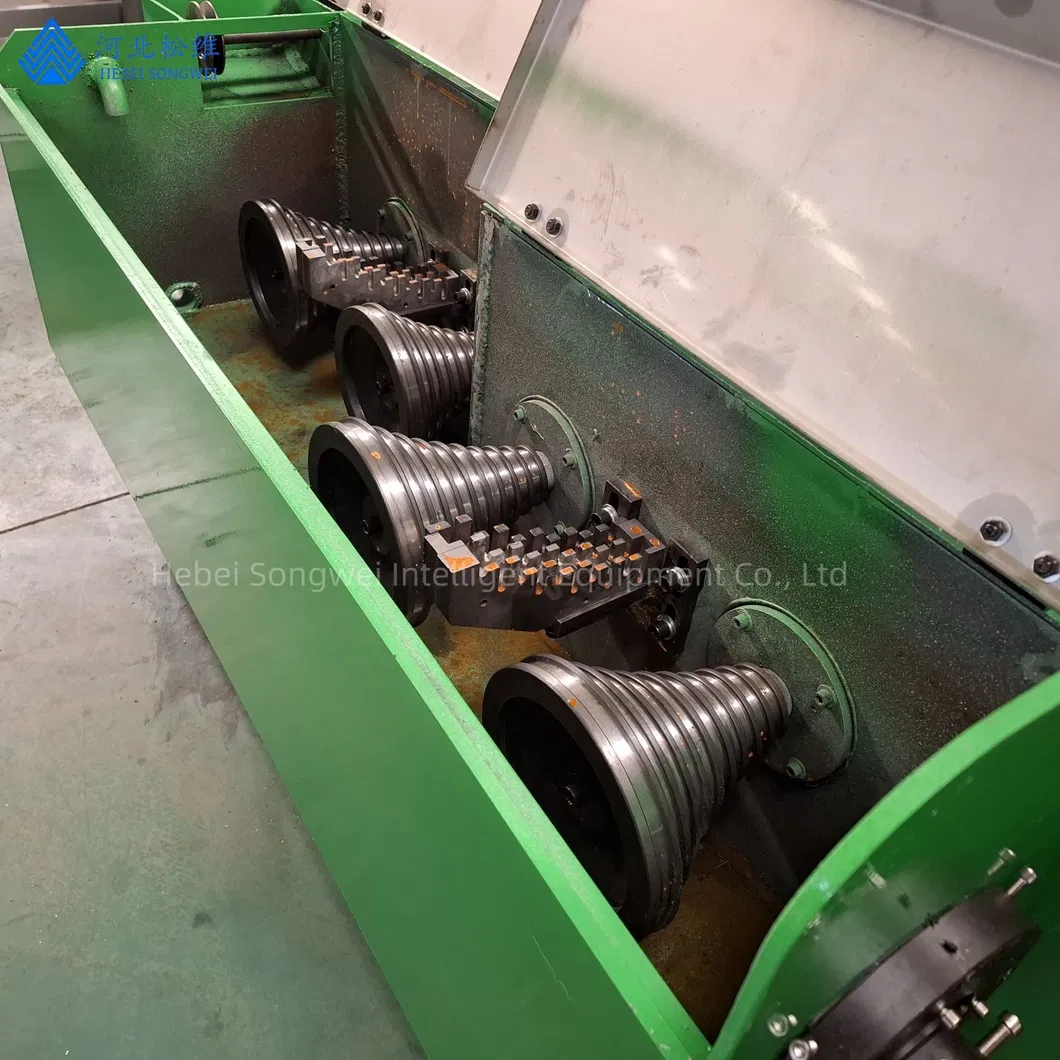

4 Tower wheel: Adopts a 4-tower wheel structure made of alloy, supporting up to 20 drawing dies.

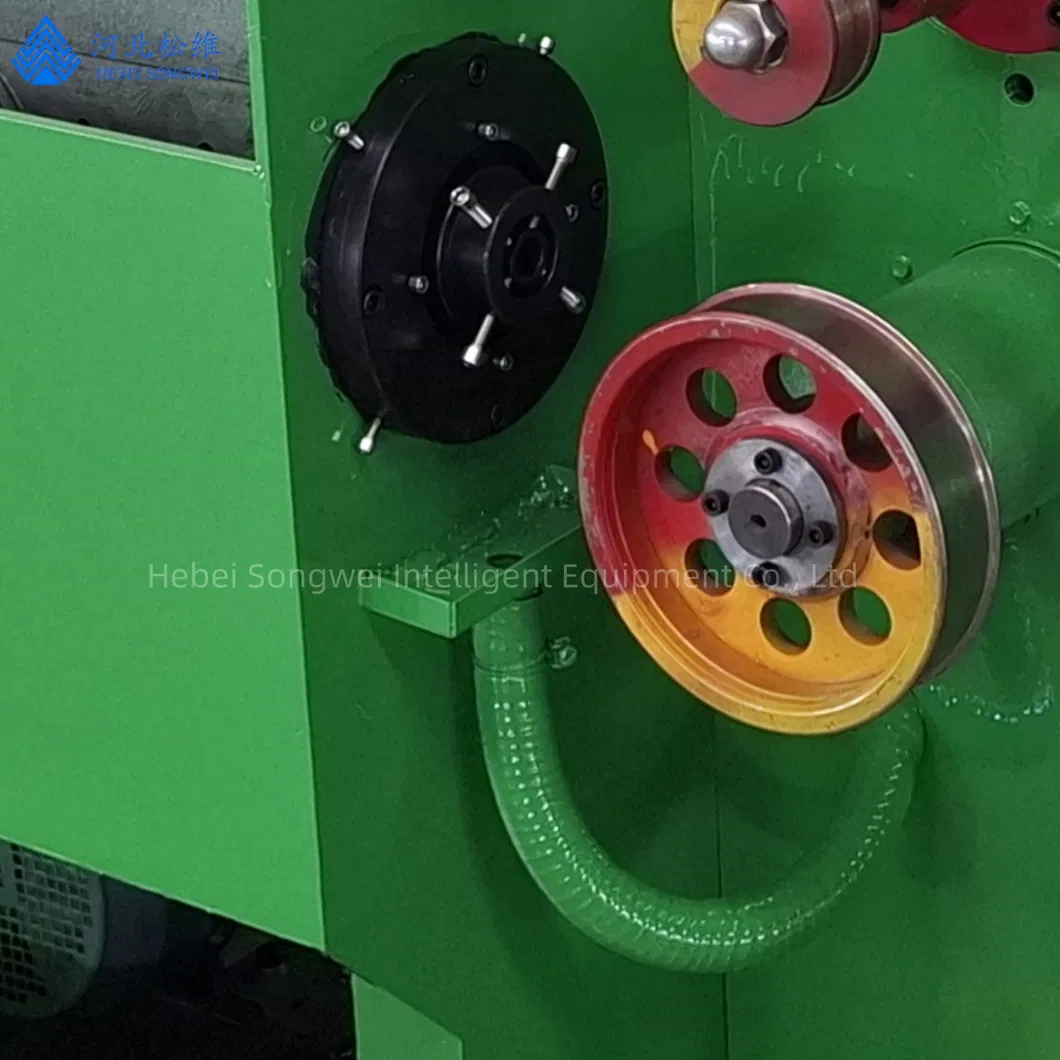

5 Water collection device: Collects soapy water to keep the workshop clean during high-speed operation.

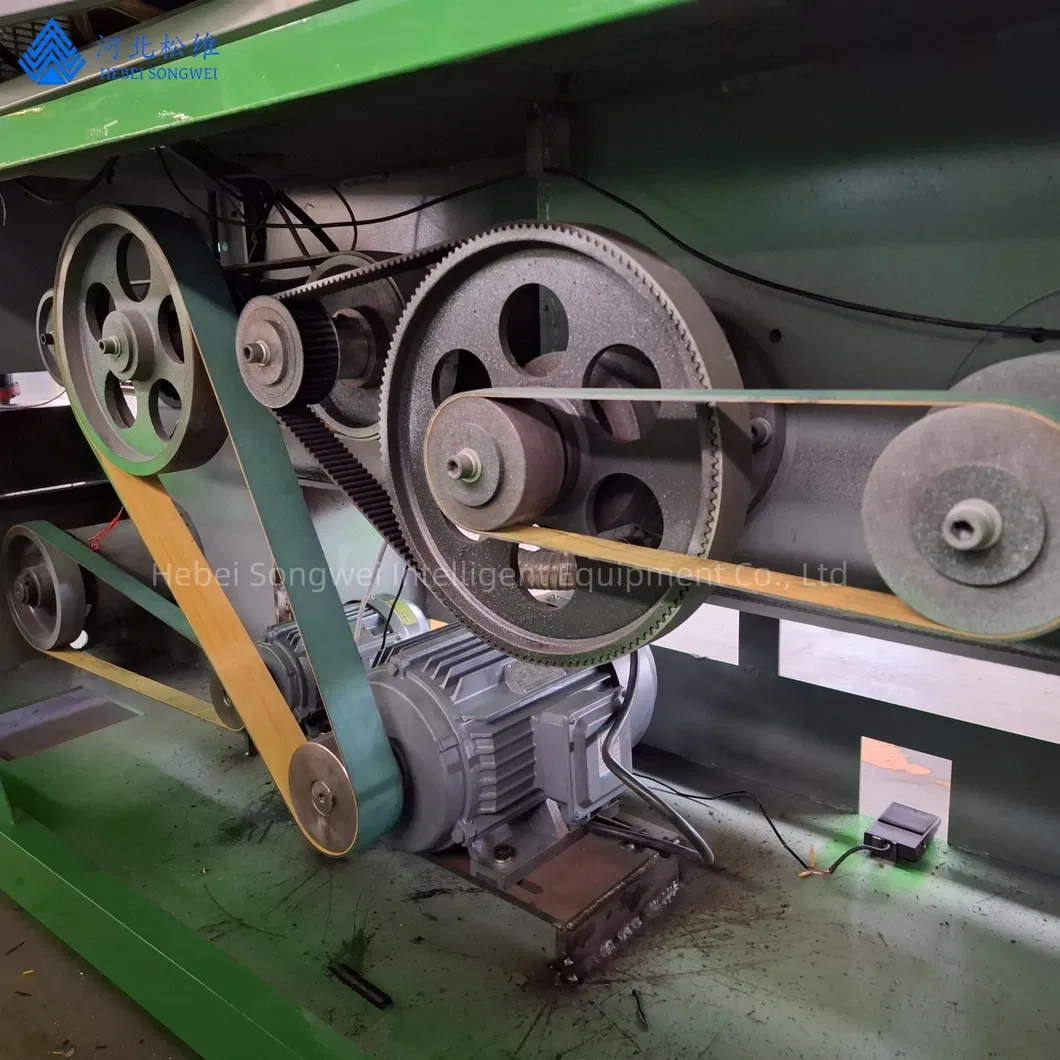

6 Motor: High-quality 7.5kw motor ensures reliable long-term performance.
Package: The main machinery is packed with plastic film and fixed in the container with steel wire. Small mechanical parts are packed in wooden cases.

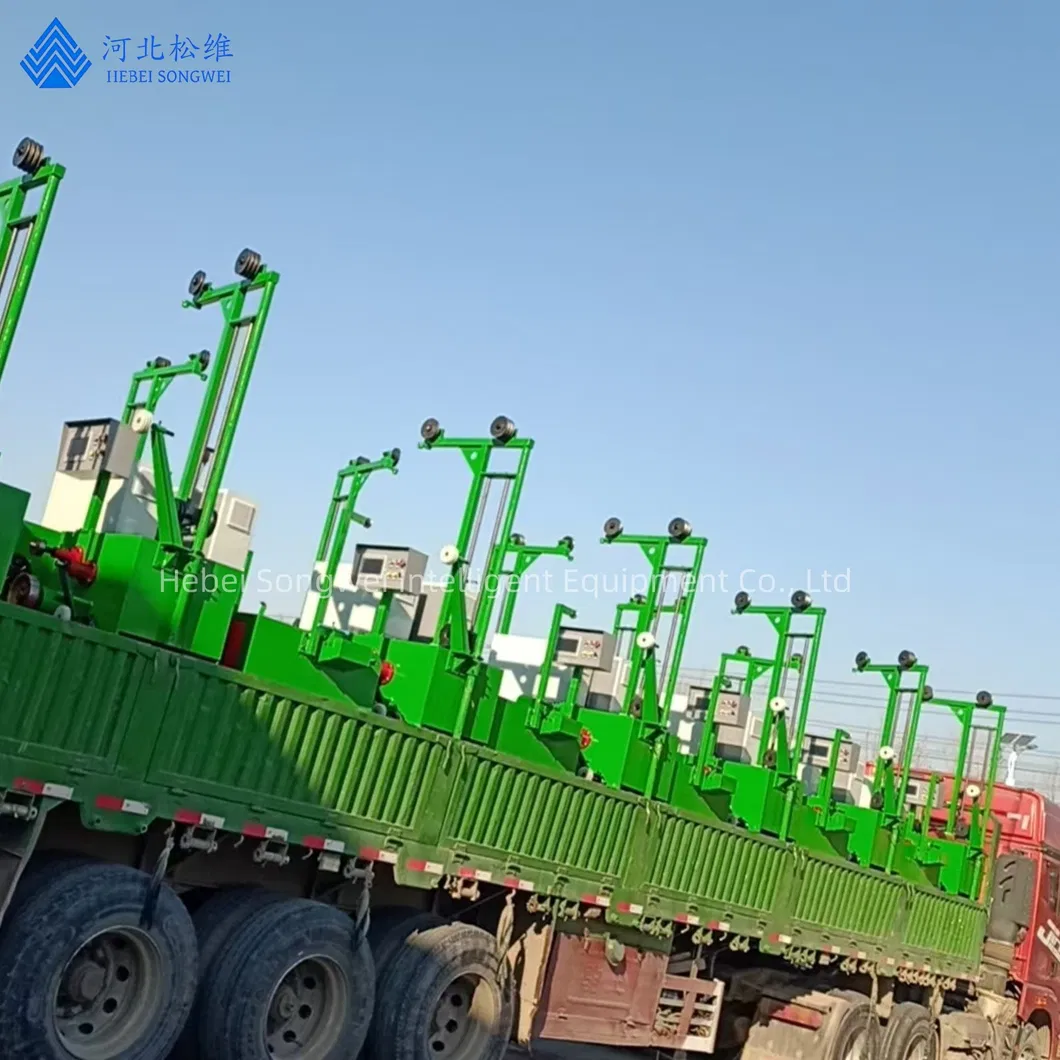

Shipment: We book containers according to machine dimensions and can arrange LCL (Less than Container Load) for smaller orders.
Our enterprise was established in 2002 and is a high-tech company specializing in the design and manufacturing of metal wire drawing equipment and galvanizing equipment. We enjoy a high reputation in the metal processing industry.

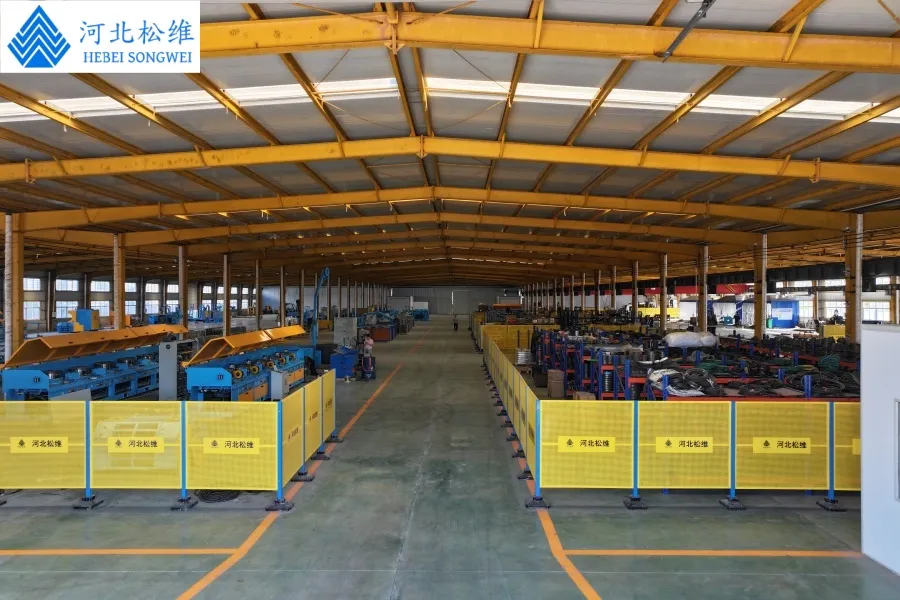

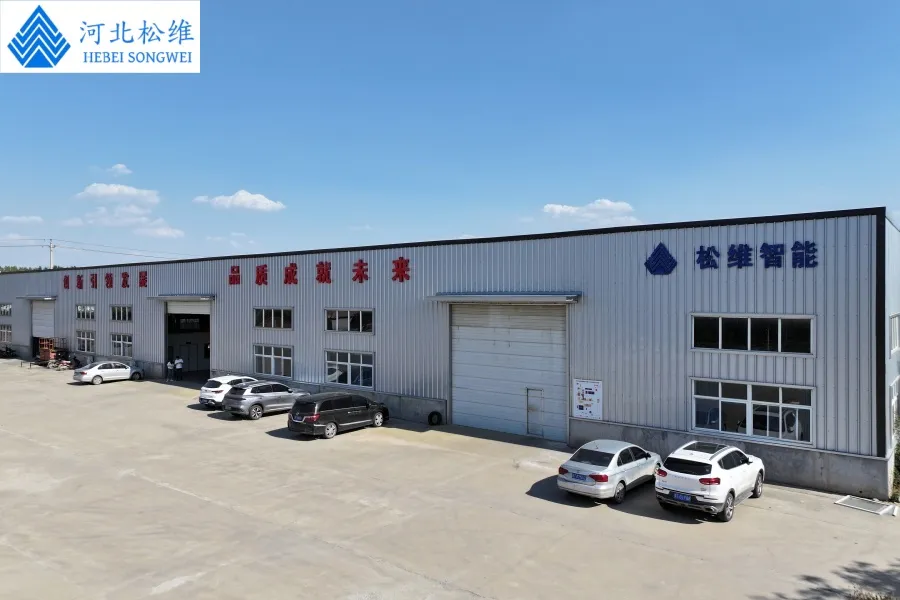

Currently, we operate 3 production factories with 8 specialized workshops, covering approximately 30,000 square meters. Our facilities include plasma welding, CNC lathes, and precision machining centers.
Our equipment is exported to more than 100 countries and regions including Romania, Turkey, Poland, Russia, Egypt, South Africa, Vietnam, India, and Brazil. We adhere to the tenet of "customer first, technology leading".
