Enhanced Cooling Water-Cooled Brake Systems - Wcb2, Wcbd, Wcb3 Series

1 / 5

Enhanced Cooling Water-Cooled Brake Systems - Wcb2, Wcbd, Wcb3 Series

Customization:	Available
Certification:	CCC, ISO
Condition:	New

Send Inquiry

Product Description

📊 Basic Information

Model NO.wcb brake

Working ModeContinuous

InstallationVertical

Power SourceHydraulic

Brake TypeDisc Brake, Water Cooled Brake

Cooling MethodWater Cooling, External Cooling

ActuationHydraulic / Pneumatic

HS Code8483600090

📝 Product Description

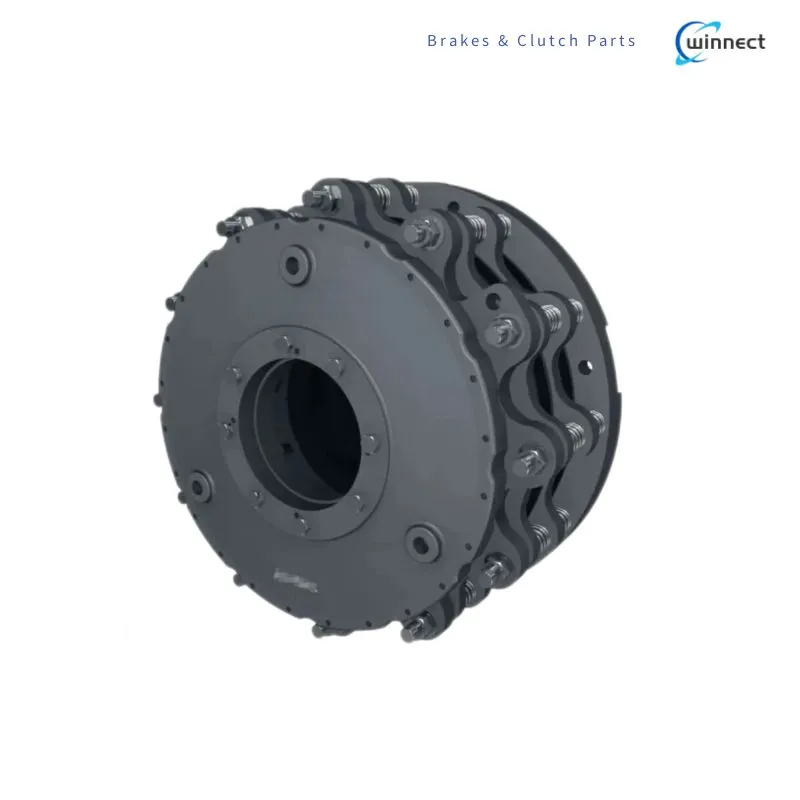

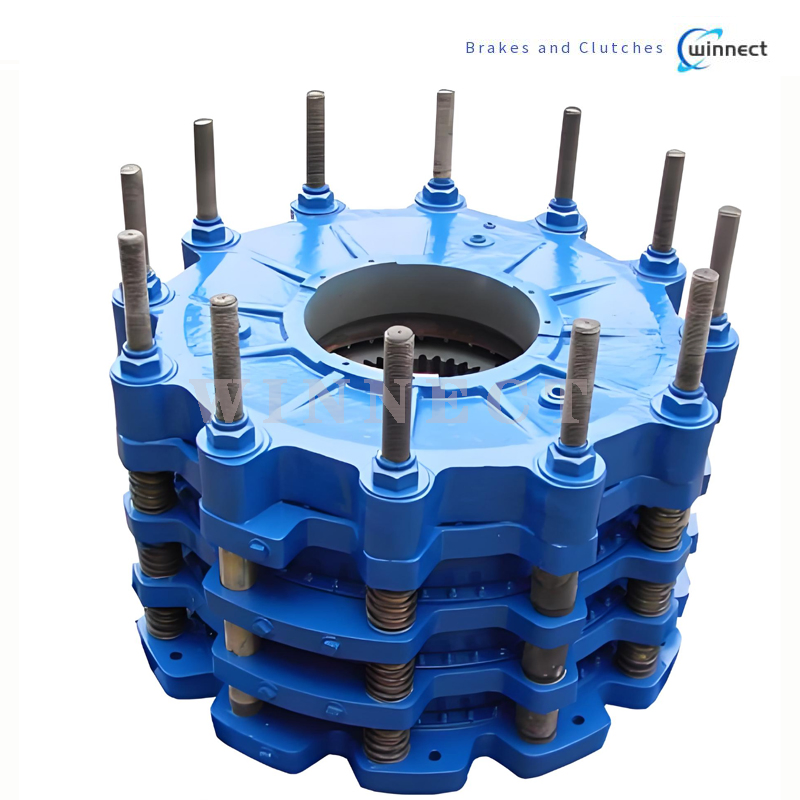

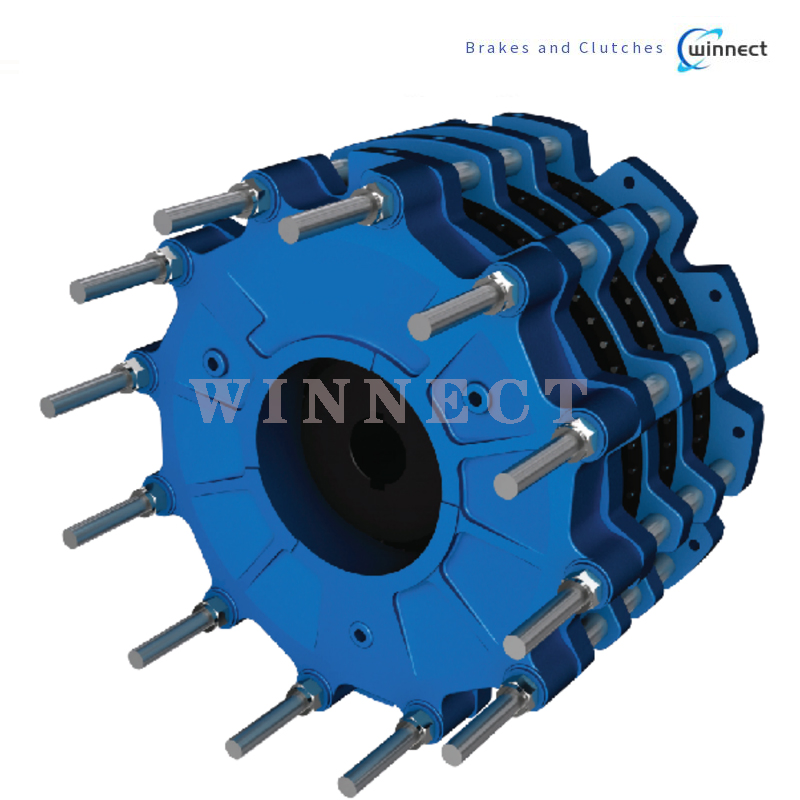

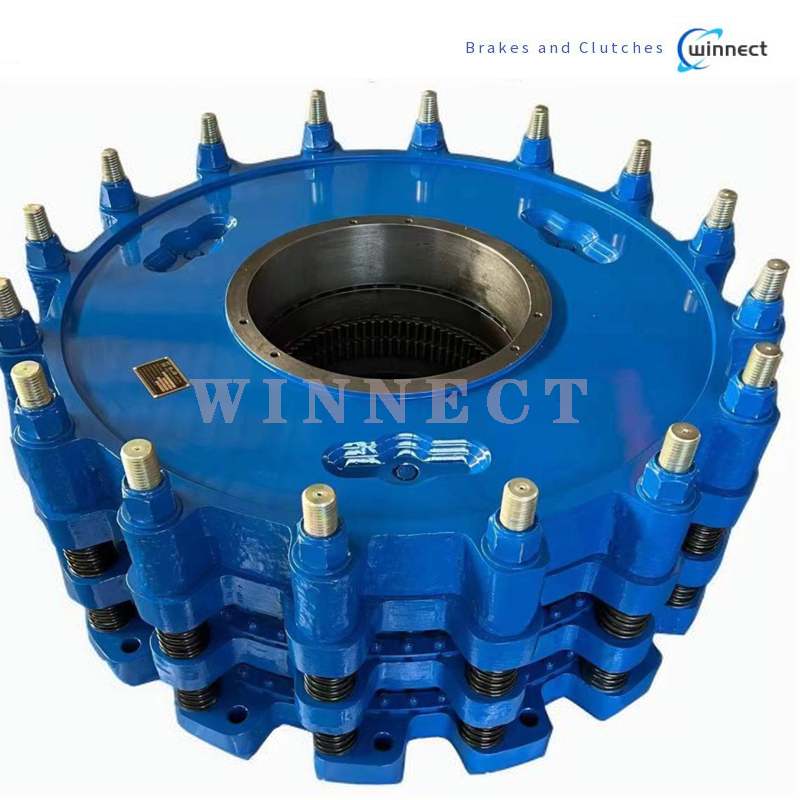

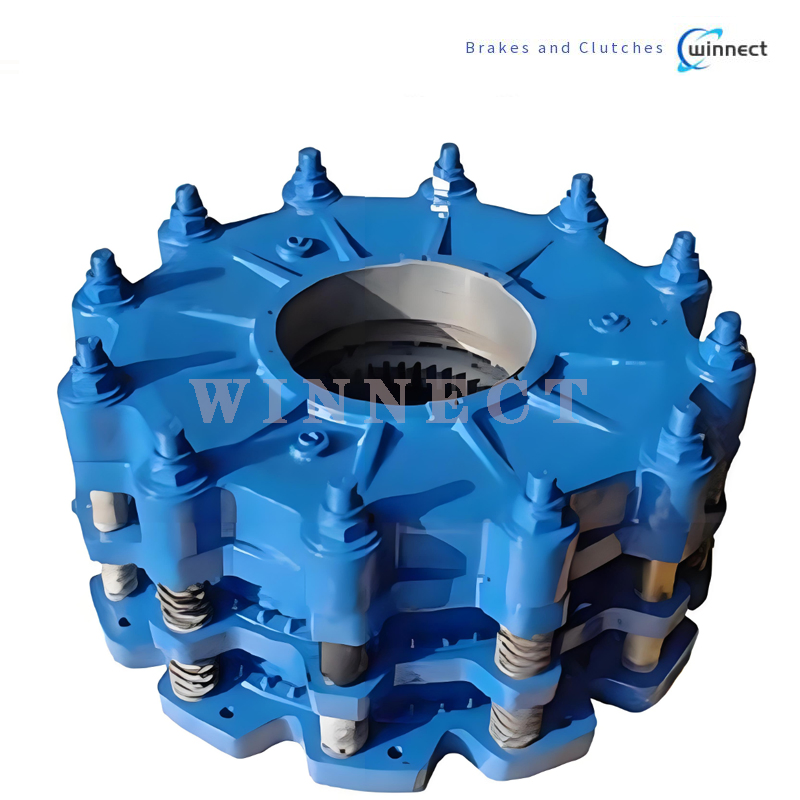

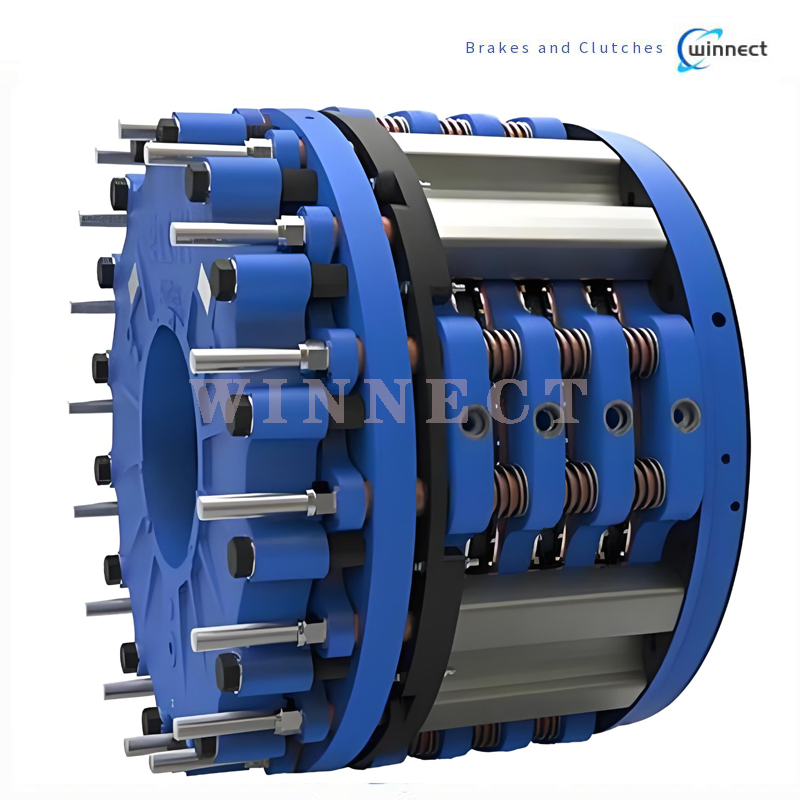

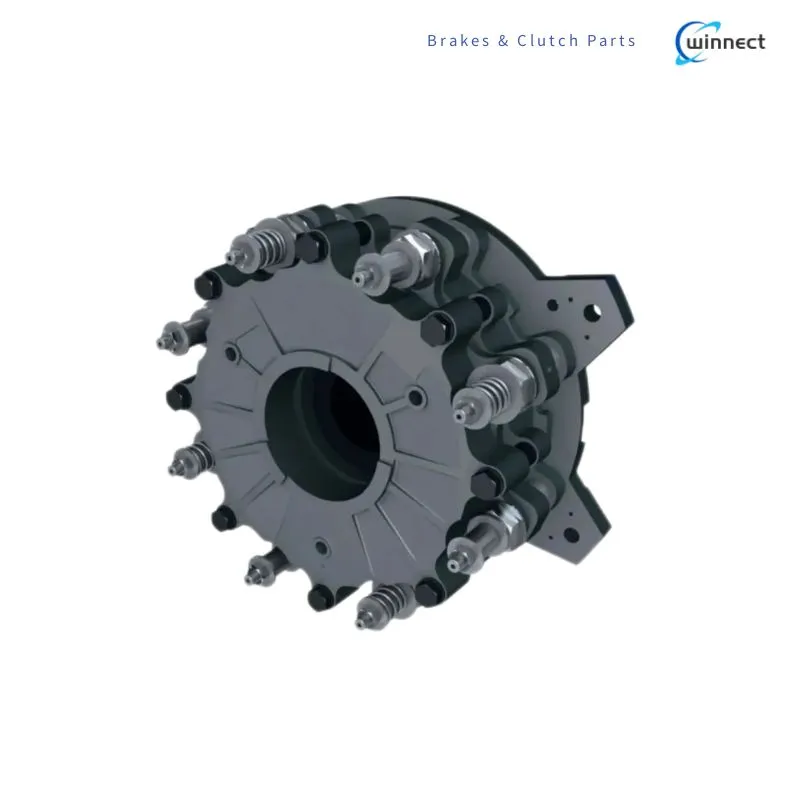

The Water Cooled Brake (WCB) series is designed for applications requiring high horsepower absorption. Its design incorporates copper alloy wear plates which transfer heat rapidly to the circulating water.

Available Series:

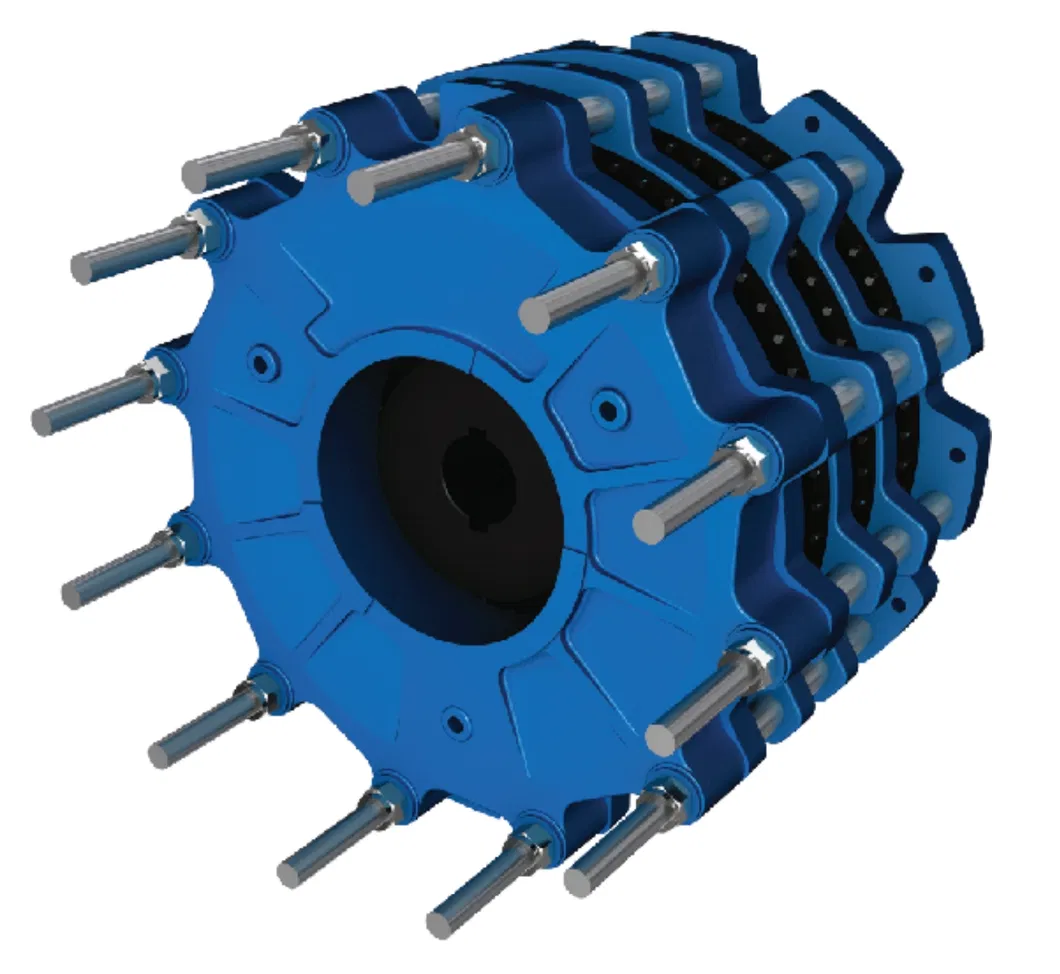

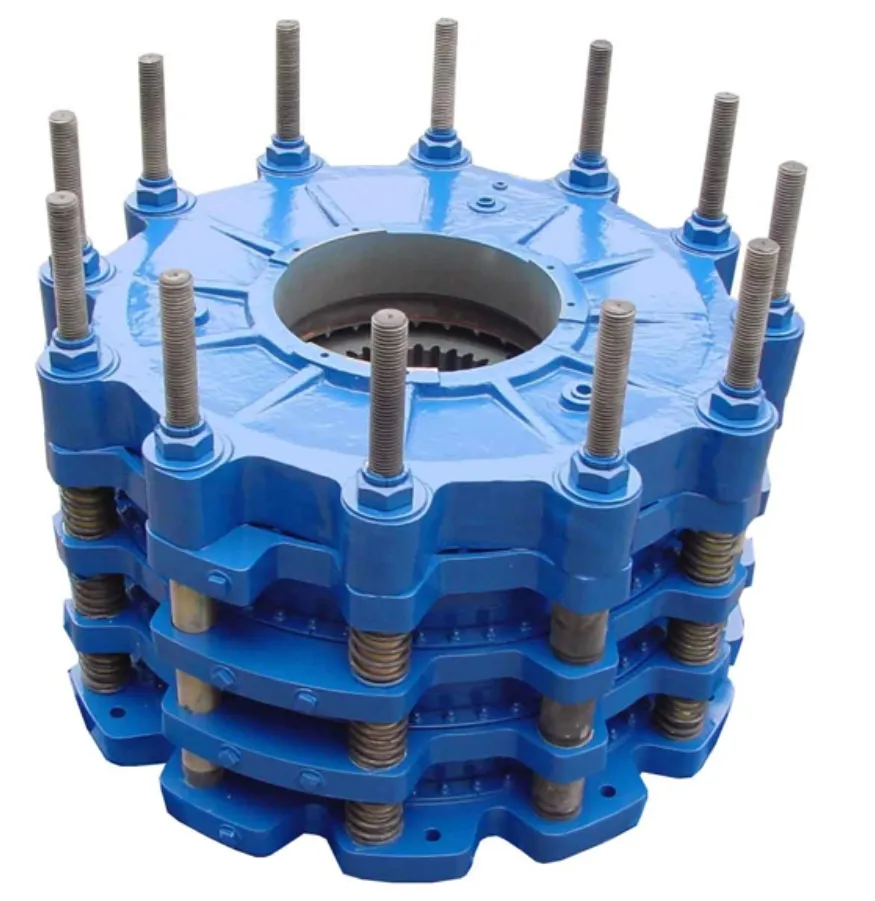

WCB Series: WCB2, WCBD, and WCB3 models with external cooling disc brakes.
WCS Series: Externally cooled, spring-applied brakes for emergency stops.
WCSB Series: Integrated design combining water-cooled and air-cooled functions.

⚙️ Product Features

High Coefficient Linings: Provides increased torque for demanding operations.
Dual Piston Design: Optional design for enhanced control capabilities.
Thermal Capacity: Up to 5,200 HP (3,878 kW).
Torque Capacity: Up to 5,548,000 lb-in (626,369 Nm).
Corrosion Protection: Full marine corrosion protection package available.
Certifications: Type approval certifications in DNV and ABS.

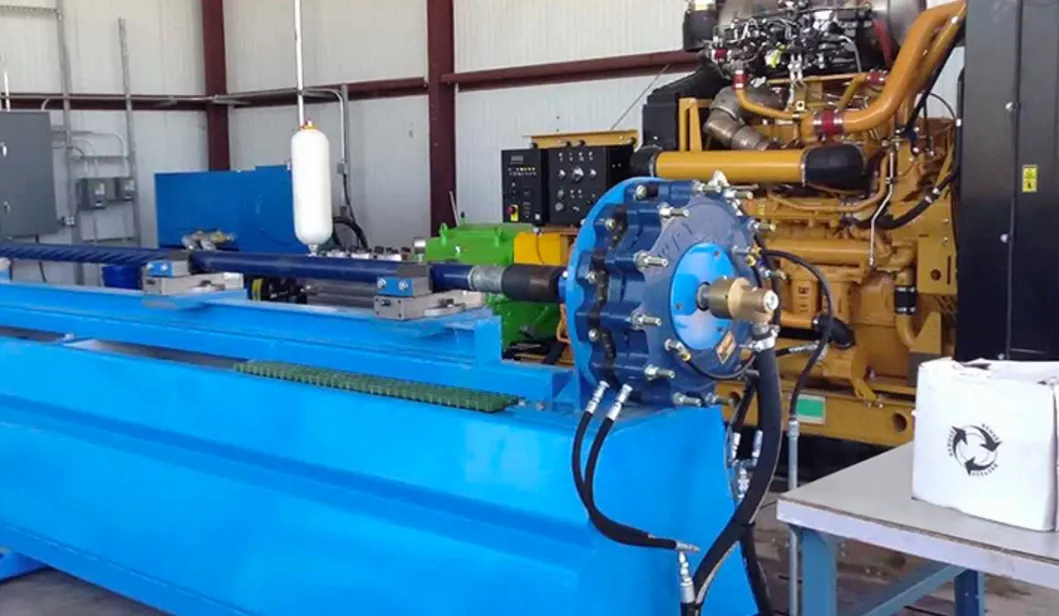

🚀 Product Application

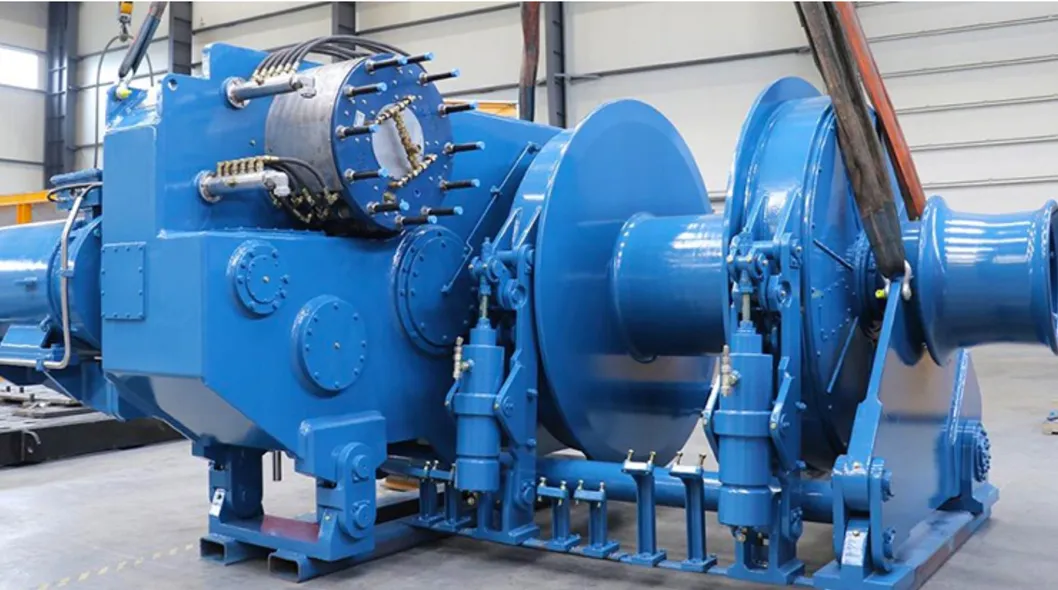

Drawworks & Mooring winches
Dynamometers
Paper mills & Unwind stands
Tension brakes for heavy machinery

🔧 Spare Parts & Components

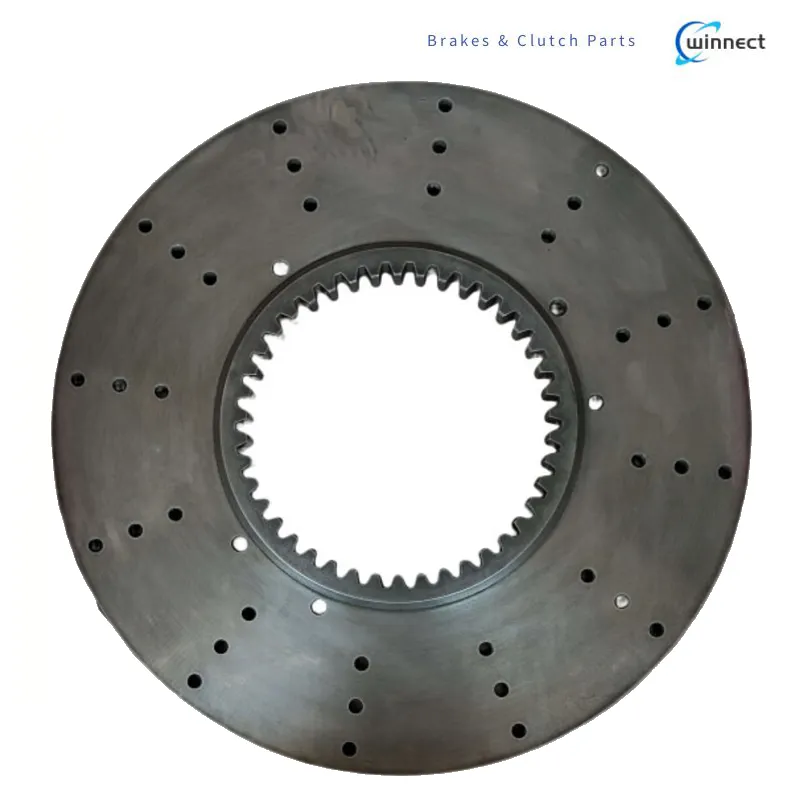

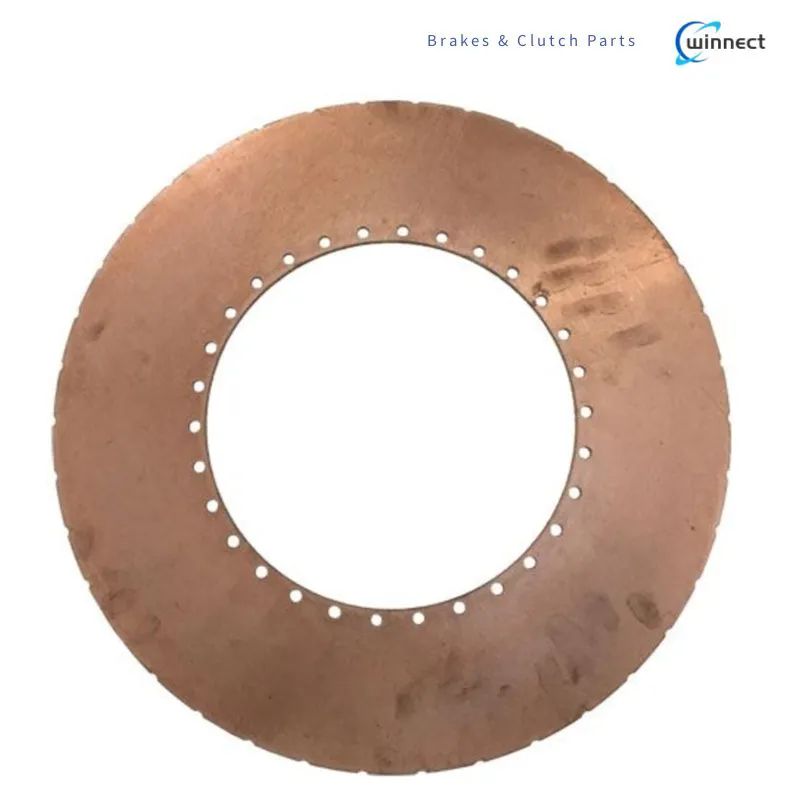

Key components include: Support ring segments, Backplate water jackets, Copper wear plates, Drive plates, Hubs, Friction discs, Airtubes, and Pressure plates.

📋 Product Parameters

Description	Part Number	Clutch Size	Description	Part Number	Clutch Size
Mounting Flange Assembly	R24-04-304	24WCB2	Mounting Flange Assembly	R36-04-307	36WCB2
Wear Plate	R24-11-307	24WCB2	Wear Plate	R36-11-301	36WCB2
Brake Disc Assembly	R24-08-304	24WCB2	Brake Disc Assembly	R36-08-303	36WCB2
Gasbag	R25-20-900	24WCB2	Gasbag	R36-20-901	36WCB2
Gear	W24-01-306	124WCB2	Gear	R36-01-303	36WCB2
Static Disk Core	W24-11-308	24WCB2	Static Disk Core	W36-11-313	36WCB2

❓ Frequently Asked Questions

Q1: What is the primary function of a Water-Cooled Brake (WCB)? A: WCB systems are designed to absorb and dissipate high levels of heat generated during braking by circulating water through internal chambers, preventing overheating in heavy-duty applications.

Q2: When should I choose water-cooled brakes over traditional air-cooled systems? A: Water-cooled brakes are necessary when air cooling is insufficient due to high heat loads or limited space. Water's higher density allows for faster heat transfer compared to air.

Q3: What are the torque and thermal capacities of these systems? A: Depending on the model, thermal capacity can reach up to 5,200 HP (3,878 kW) and torque capacity can go up to 5,548,000 lb-in (626,369 Nm).

Q4: Are these brakes suitable for marine environments? A: Yes, they offer a full marine corrosion protection package and hold type approval certifications from DNV and ABS.

Q5: What is the difference between WCB and WCSB series? A: The WCB series focuses on external water cooling, while the WCSB series integrates both water-cooled and air-cooled functions for dynamic tensioning and emergency stops in one unit.

Q6: What actuation methods can be used? A: These brake systems support both hydraulic and pneumatic actuation methods to suit different industrial requirements.
