Product Description

📊 Basic Information
Model NO.
JKISS57-P03A
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Integrated Servo Motor
Operate Mode
Integrated Stepper Motor
Type
Integrate Driver
Voltage
12V - 36V
Holding Torque
0.55nm - 3nm
Control Method
Pulse / RS485 / CANopen
Encoder Type
17bit / 1000PPR
Protection Level
IP30, IP54, IP65 Optional
Certification
ISO9001, RoHS, Reach, CE
⚙️ Product Description

Model naming rules for low voltage integrated DC servo motor:

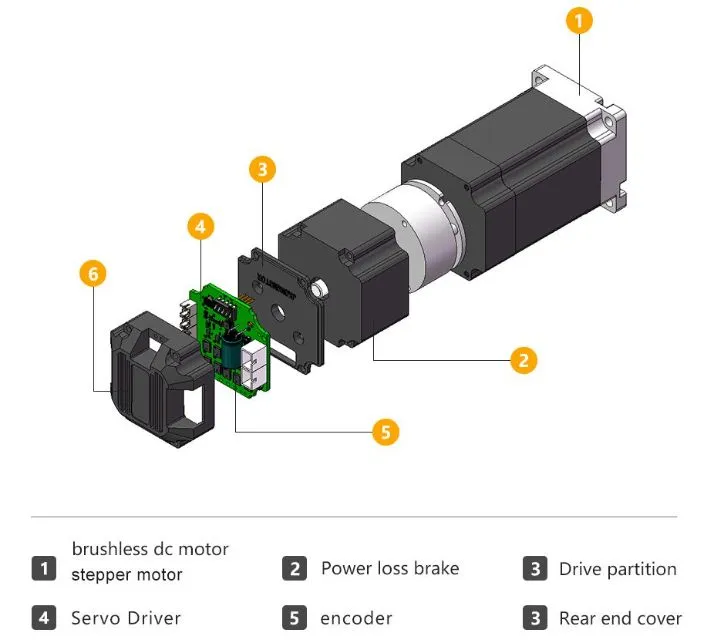

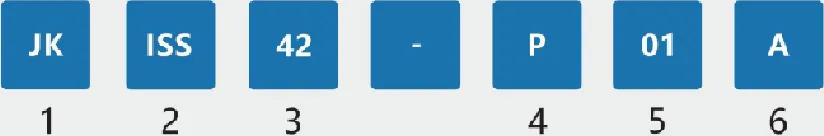

Model Naming Rules Motor Breakdown
  • Series Model: ISS series (Integrated Stepper Servo).
  • Frame Size: 42/57mm casing dimensions.
  • Control Methods: P (Pulse), R (RS485), C (CANopen).
  • Encoder Options: A (1000 lines), B (2500 lines), C (17-bit single turn absolute).
🌟 Characteristics
1. Compact Design
Integrated drive motor allows easy installation, small footprint, and simplified wiring.
2. Motion Control
Supports CiA402 standard protocol: Relative/Absolute position, Speed, Torque, and Origin regression modes.
3. Efficiency
Low internal resistance MOS ensures excellent torque utilization while reducing heat and power consumption.
4. Safety
Built-in alarm outputs for over-differential, over/undervoltage, and over-temperature protection.

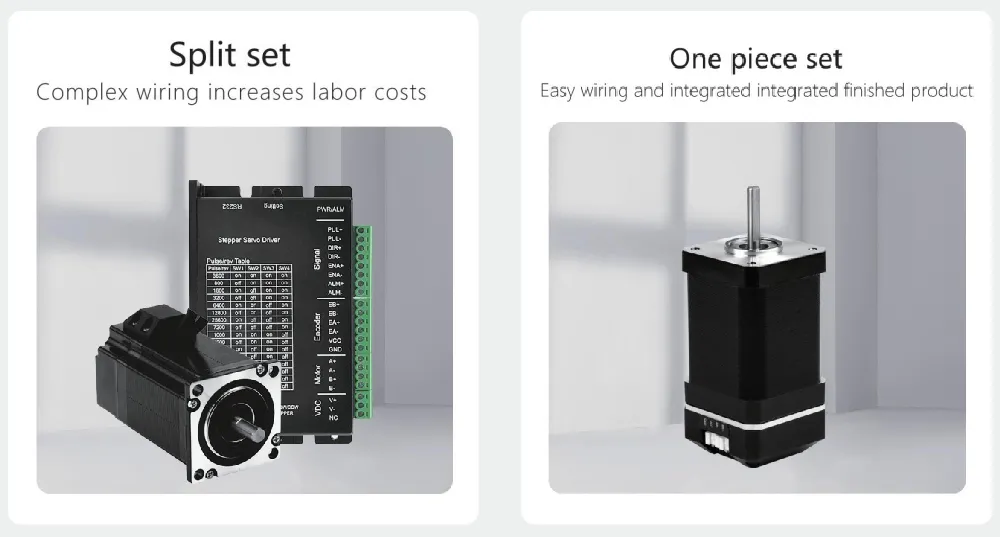

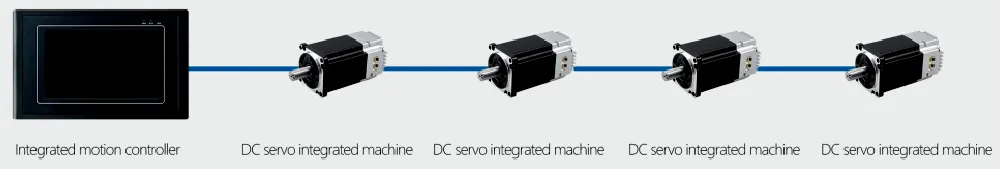

Integrated vs. Traditional Solutions:

Integrated Solution Traditional Solution
📋 Product Parameters (42mm Series)
Model Step Angle Phase Current (A) Resistance (Ω) Rated Torque (N.m) Height L (mm) Encoder Control Method
JKISS42-P01A1.8°1.32.10.22541000ppr/17bitPulse/RS485/CANopen
JKISS42-P02A1.8°1.681.650.42601000ppr/17bitPulse/RS485/CANopen
JKISS42-P03A1.8°1.681.650.55681000ppr/17bitPulse/RS485/CANopen
JKISS42-P04A1.8°1.730.8801000ppr/17bitPulse/RS485/CANopen

42mm Drawing & Gallery:

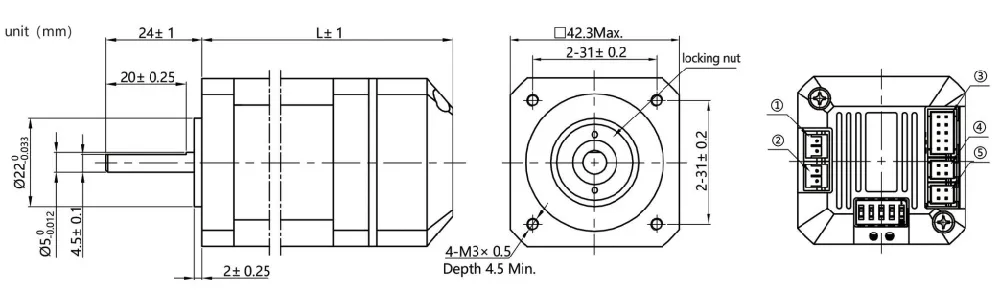

42mm Drawing

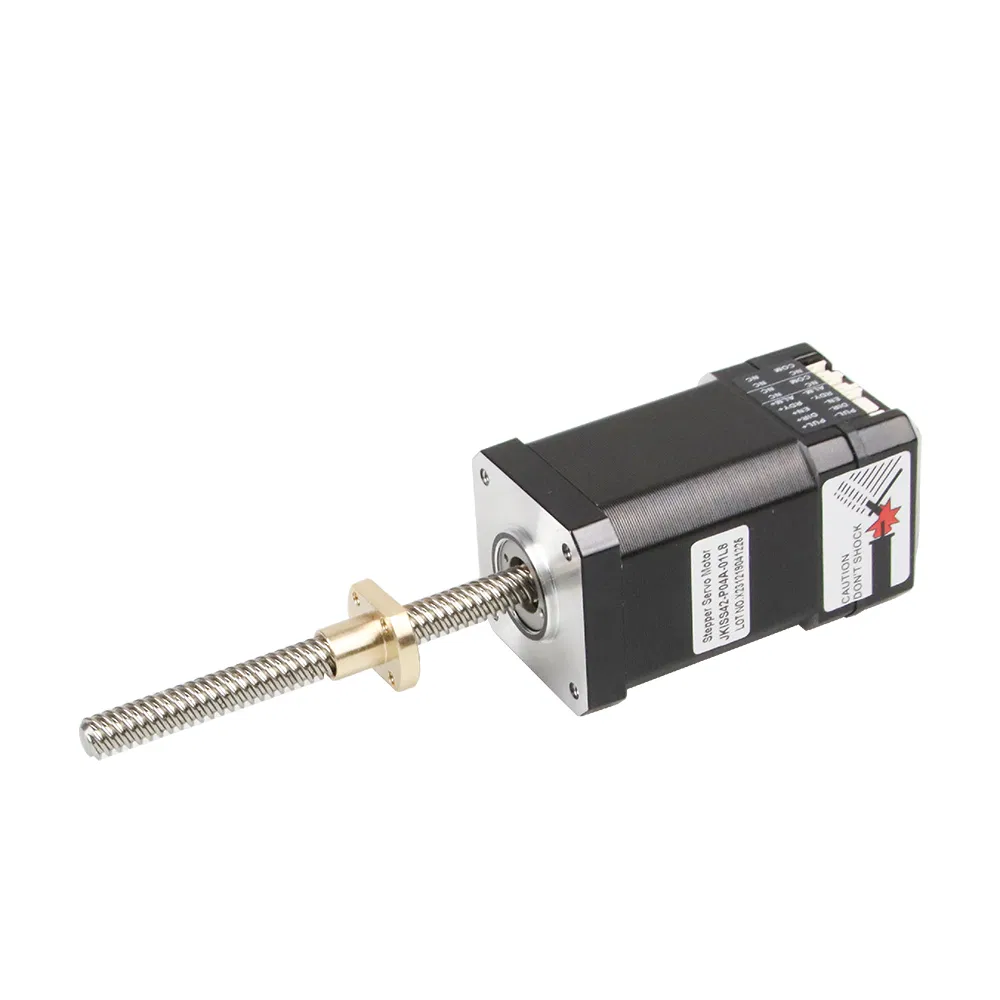

Motor View 1
Motor View 2

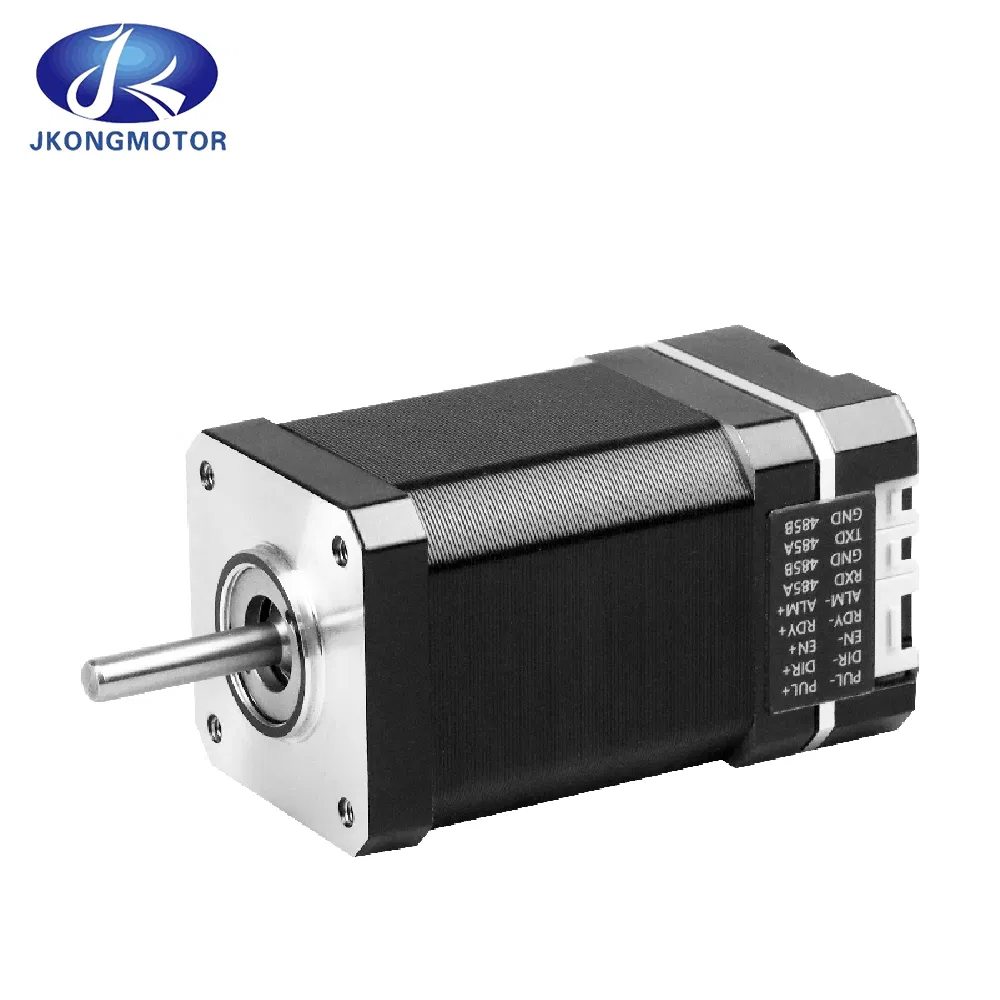

Motor View 3
📋 Product Parameters (57mm Series)
Model Step Angle Phase Current (A) Resistance (Ω) Rated Torque (N.m) Height L (mm) Encoder Control Method
JKISS57-P01A1.8°21.40.55651000ppr/17bitPulse/RS485/CANopen
JKISS57-P03A1.8°2.81.11.891001000ppr/17bitPulse/RS485/CANopen
JKISS57-P05A1.8°4.20.752.81241000ppr/17bitPulse/RS485/CANopen
JKISS57-P06A1.8°4.20.931361000ppr/17bitPulse/RS485/CANopen

57mm Drawing & Gallery:

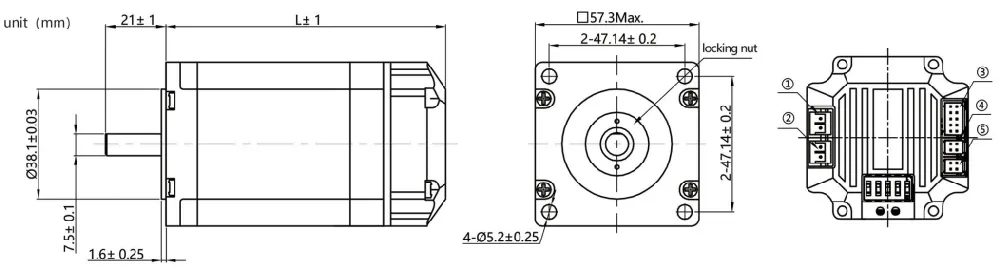

57mm Drawing

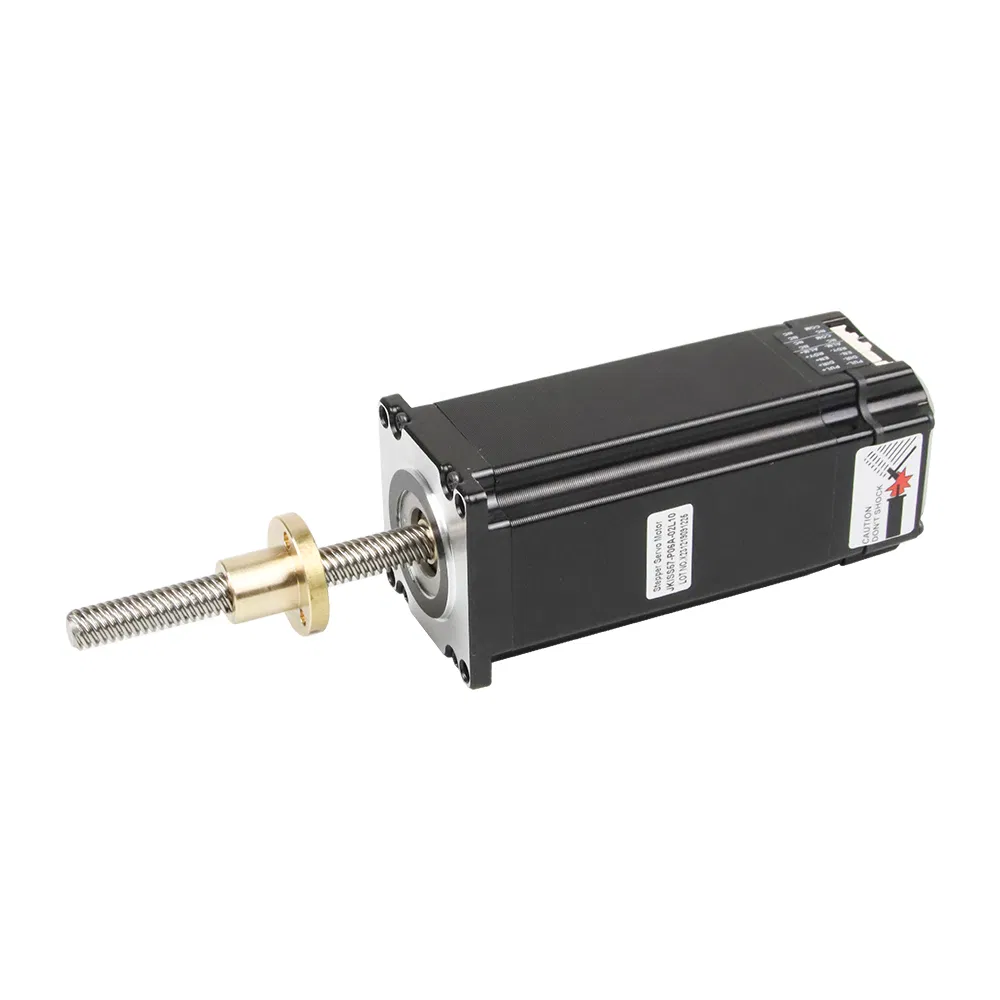

57mm View 1
57mm View 2

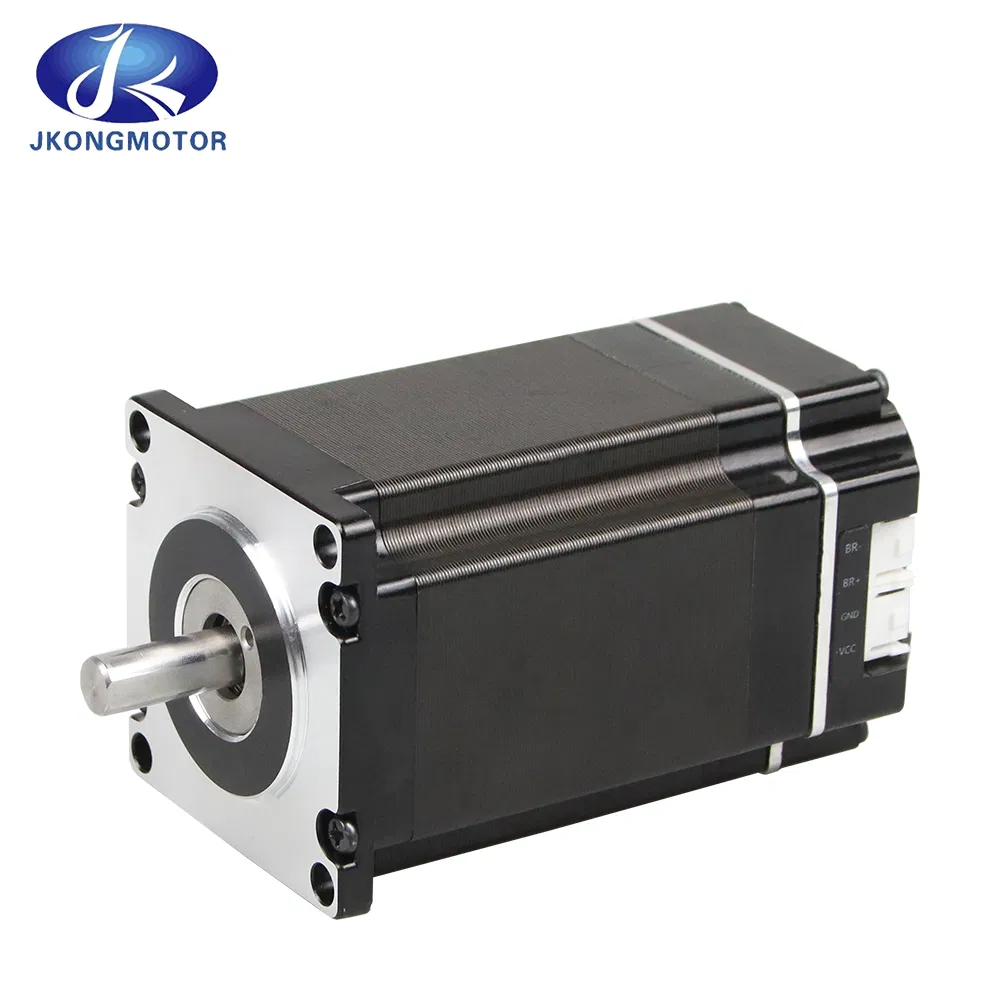

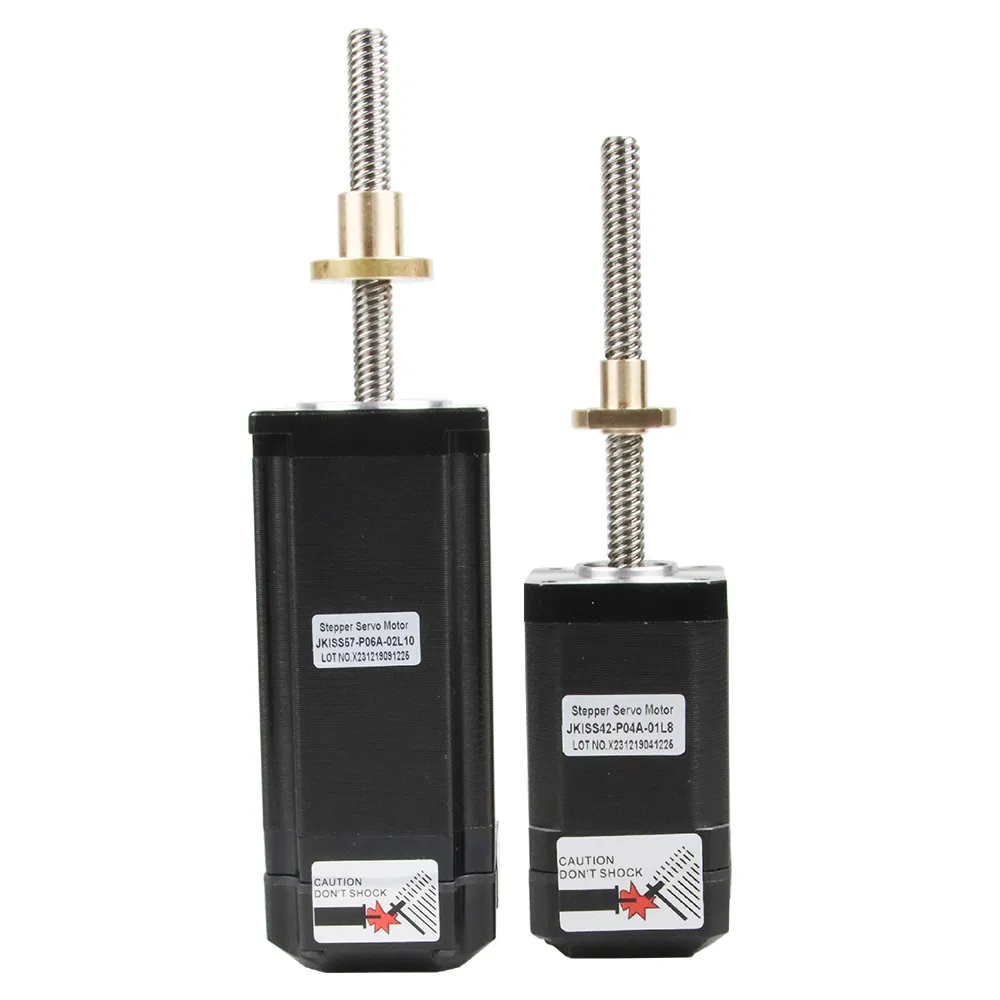

57mm View 3
Detailed Specs
🏢 Company Profile

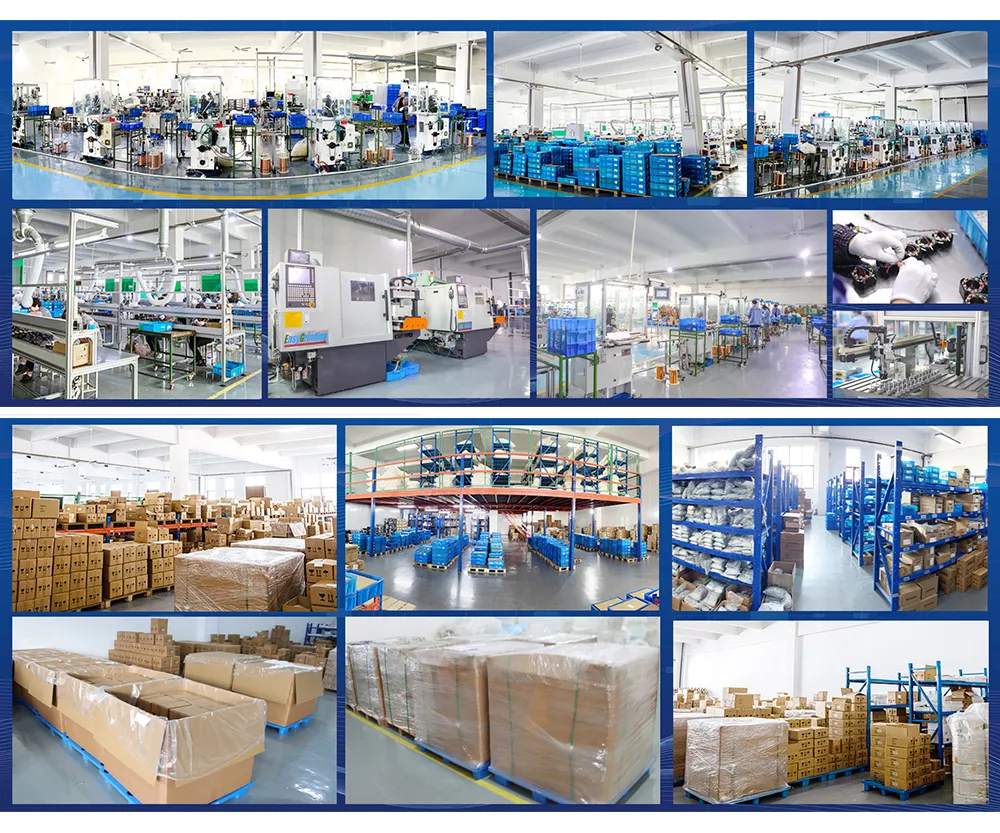

Factory Exterior Office Environment

We are located in a high-technology industry zone. Our products are widely utilized in 3D printers, CNC machines, medical equipment, and textile printing systems. We welcome OEM and ODM collaborations to establish long-term partnerships.

Equipment & Production:

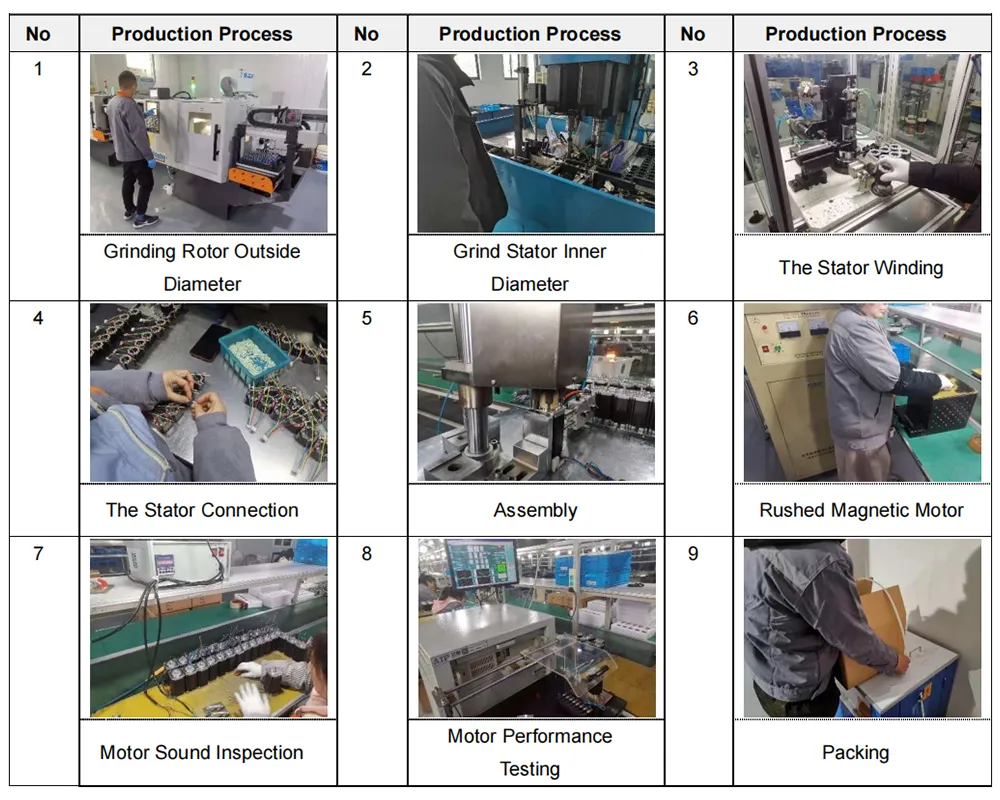

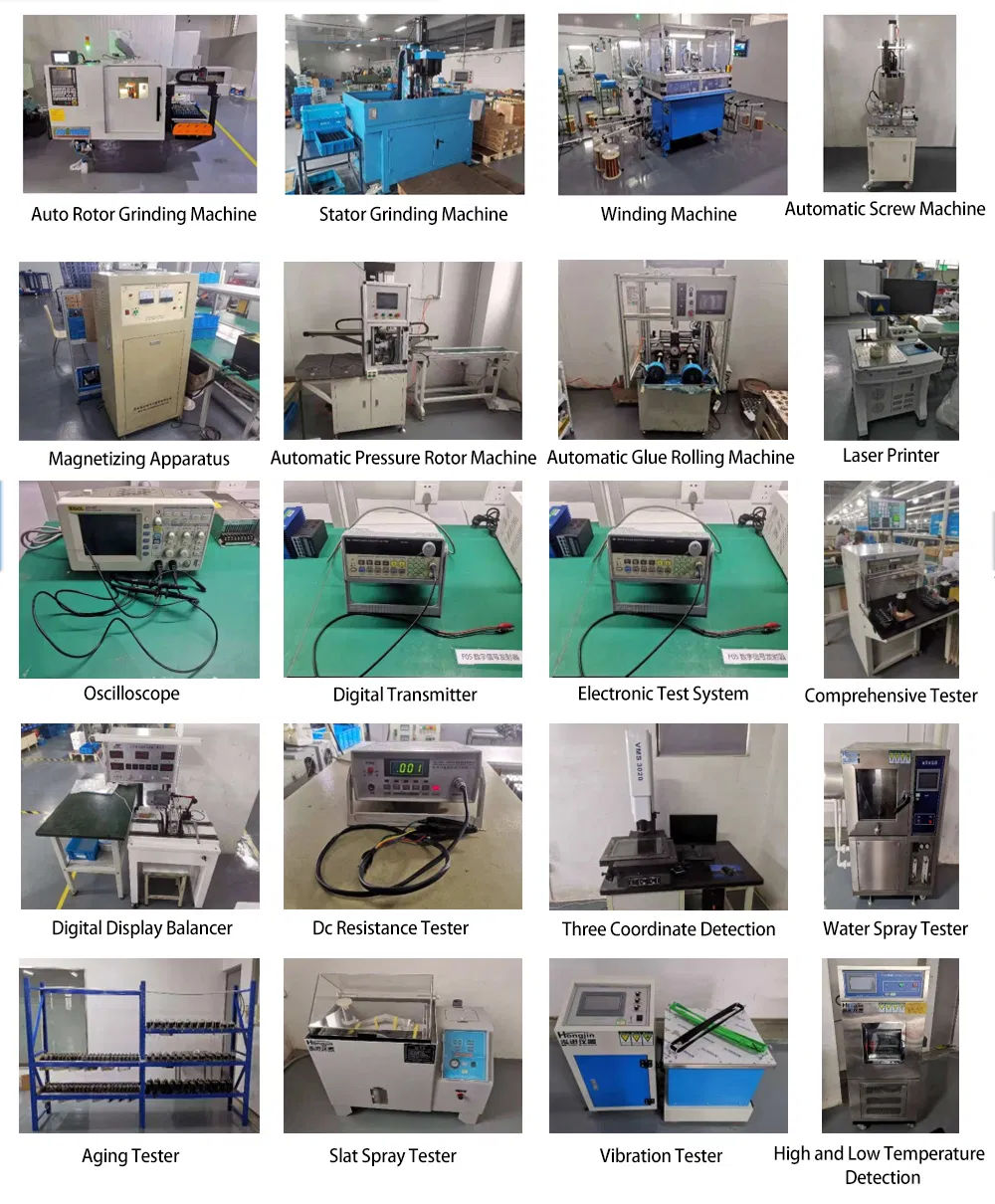

Equipment Show Production Flow

Certifications:

Certificates
❓ Frequently Asked Questions
What are the primary control methods supported?
The motors support three optional control methods: Pulse type, RS485 Modbus RTU network type, and CANopen network type.
What is the benefit of the integrated design?
The integrated design combines the motor and drive into one unit, saving space, simplifying wiring, and ensuring perfect compatibility between the motor and the driver.
What encoder resolution is provided?
Our integrated servo motors are equipped with either a 1000PPR incremental encoder or a 17-bit single-turn absolute encoder for high precision.
Are these motors protected against environmental factors?
Yes, we offer multiple protection levels including IP30, IP54, and IP65 waterproof types as optional upgrades.
What protection functions are built into the driver?
The driver includes built-in protection against overcurrent, overvoltage, over-temperature, and over-differential errors to ensure safe operation.
In which industries are these motors typically used?
They are ideal for medical equipment, logistics transportation, industrial automation, textile machinery, and laser cutting equipment.
