TDS250 Top Drive System 500kw 600V for Oilfield Operations

1 / 5

TDS250 Top Drive System 500kw 600V for Oilfield Operations

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

JJT

Process

Casting

Surface Treatment

Spray-Paint

Material

Cast Steel

Application

Oil and Gas Well Drilling

Specification

250-500 tons

Brake

Manual & Hydraulic Operated Band Brake

Origin

China

✓

Product Description

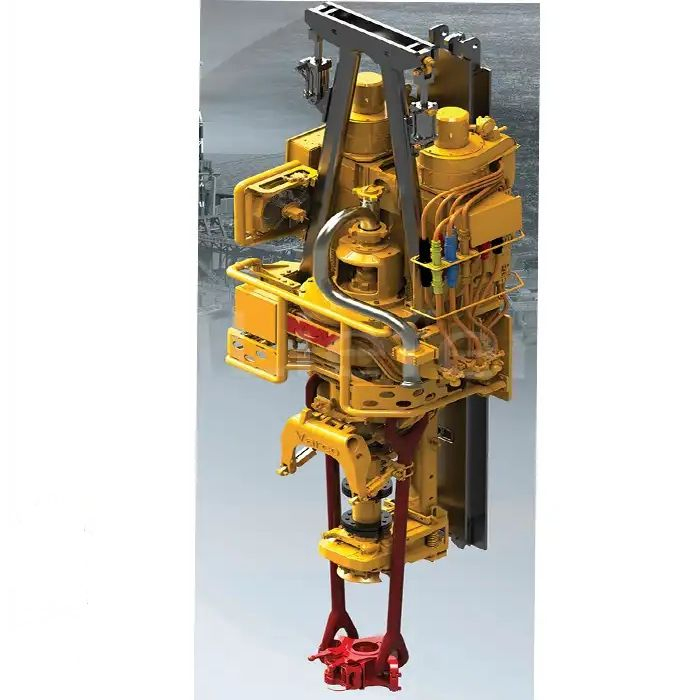

Our electric top drive drilling system is a high-performance, intelligent core solution designed for demanding onshore and offshore drilling operations. This system integrates mechanical, hydraulic, electrical, and digital control technologies into one seamless platform—fully compliant with API Spec 8C and CNPC standards.

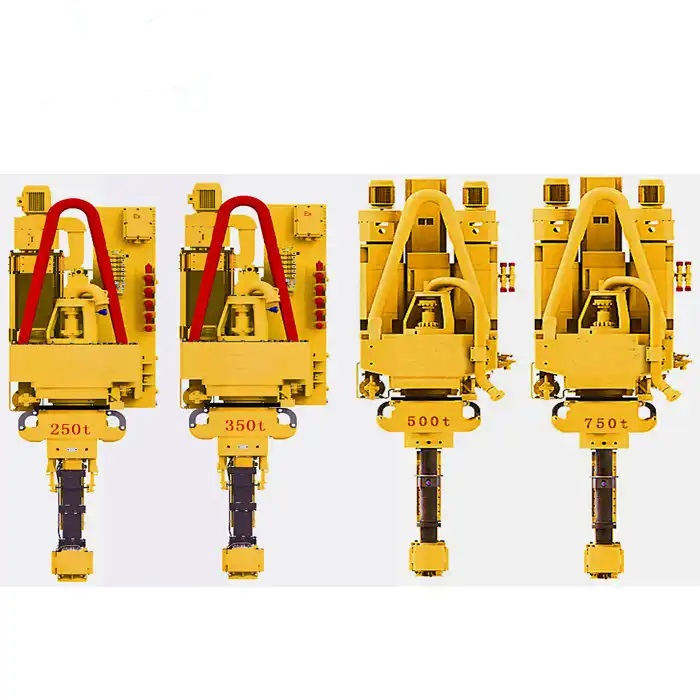

Available in four depth-rated models (DQ30BS, DQ40BS, DQ50BS, DQ70BS) covering 3000m to 7000m, our top drives are compatible with standard land rigs and have been successfully deployed globally.

⚙

Technical Specification

Model Series	DQ40BS / DQ50BS / DQ70BS
Max Hole Depth	4000m / 5000m / 7000m
Drive Type	AC variable frequency electric drive
Control System	Digital HMI + PLC + Remote diagnostics
Certifications	API Spec 8C, CNPC, ISO 9001
Operating Modes	Local, remote (driller cabin), wireless handheld
Safety Features	Emergency stop, torque limit, anti-collision, fault self-diagnosis

▣

Core Components

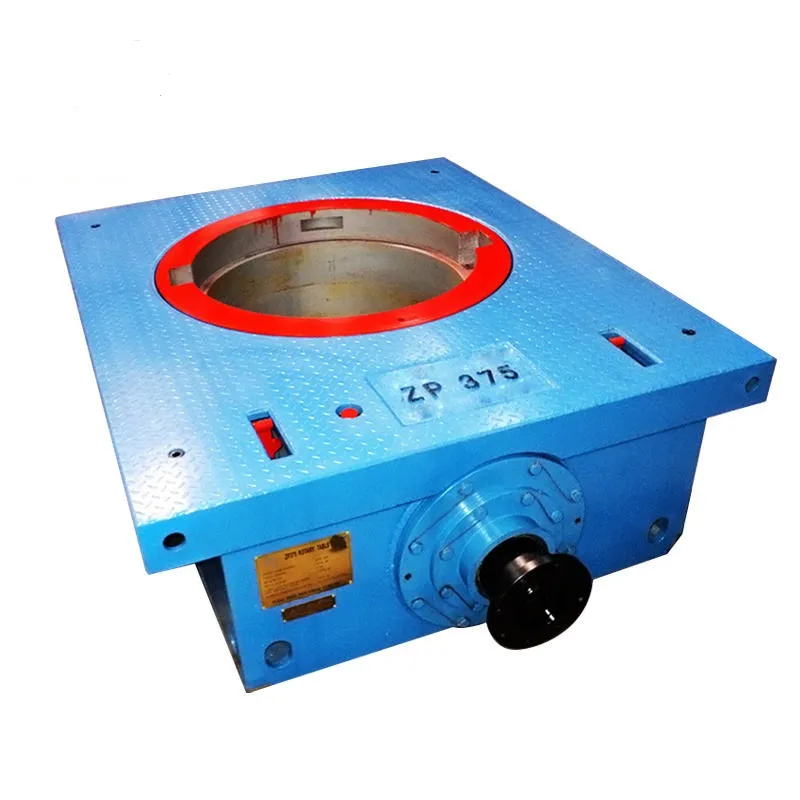

Rotary Table

The rotary table slows down a pair of bevel gear pairs during drilling operation to provide speed and torque output. Meet API 7K requirements and SY/T5531 standards. Features spiral bevel gear drive for higher loading capacity and smooth running.

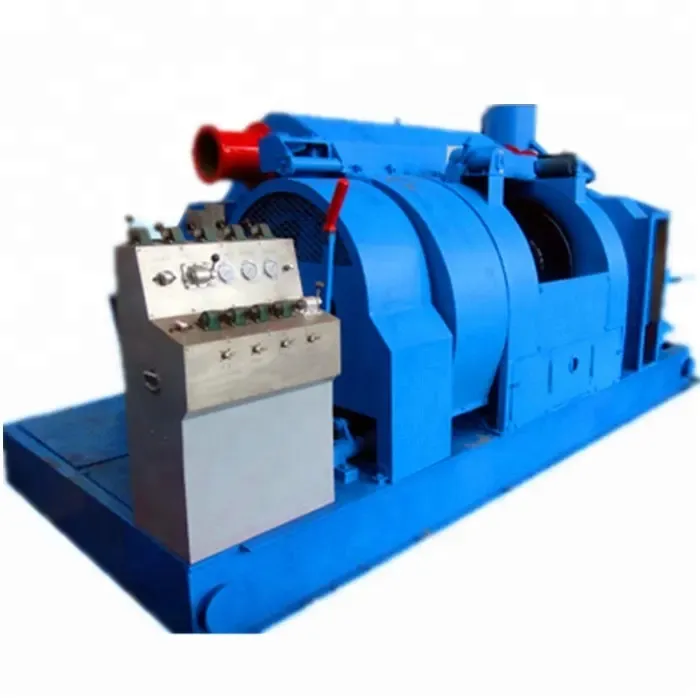

Drawworks

A large winch mechanism that spools drilling line to raise or lower the drill stem. Features alloy steel shafts, pressure-lubricated high-strength chains, and a water-cooled brake system (band or disc brake) for long service life.

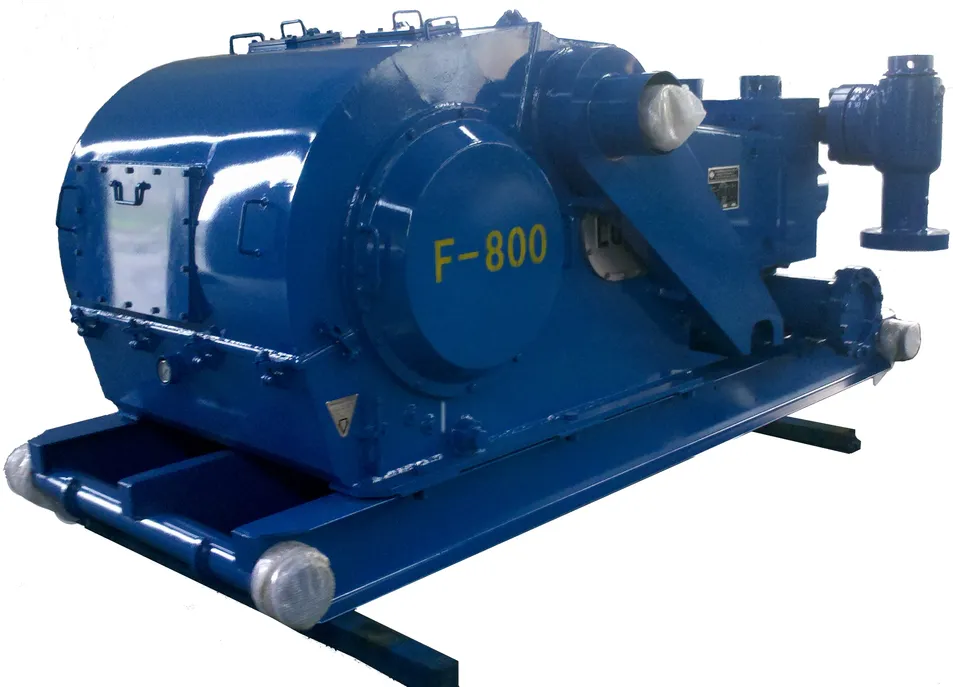

Mud Pumps (F Series)

API Spec 7k standard products including F-500 to F-1600 series. Compact structure with reliable performance for high pump pressure and large displacement. Optimized for lower strokes to extend the life of fluid end consumables.

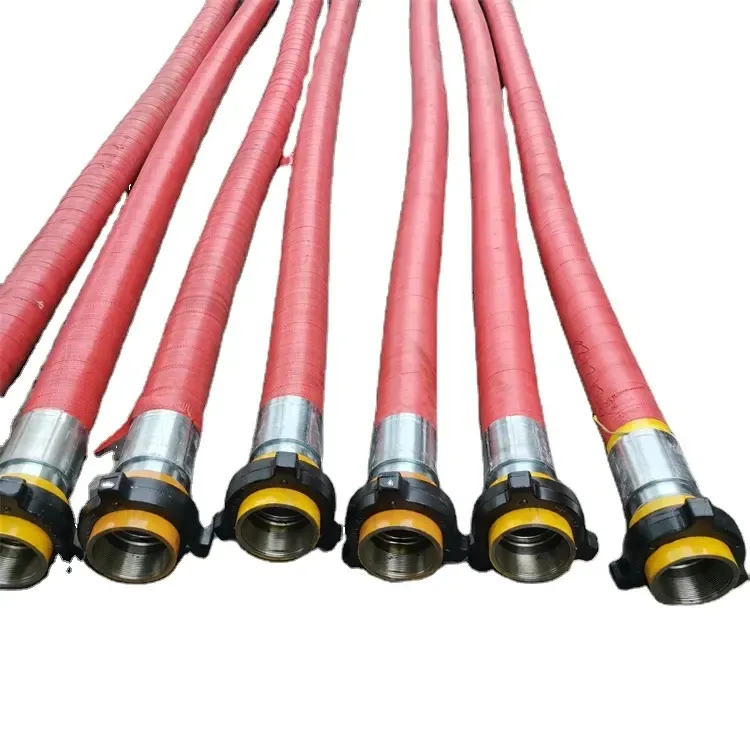

Rotary Drilling Hose

Designed for flexible connections between the riser and water faucet. Resists corrosion from hydrogen sulfide (H2S) and handles high-pressure water-based or oil-based mud. Reinforced with steel wire or steel link lines.

Frequently Asked Questions

1. What is the maximum drilling depth for your Top Drive Systems? Our systems are available in different models (DQ30BS to DQ70BS) capable of handling hole depths from 3,000 meters up to 7,000 meters.

2. Are the equipment parts compliant with international standards? Yes, all systems and components are fully compliant with API Spec 8C, API Spec 7K, and ISO 9001 standards to ensure safety and quality.

3. What drive technology is used in the TDS? The system utilizes AC variable frequency electric drive technology for precise control and efficiency.

4. How is the Top Drive system controlled? It features an integrated digital HMI (Human-Machine Interface), PLC control, and remote diagnostics capabilities, operable from the driller's cabin or via wireless handheld.

5. Does the rotary hose support H2S environments? Yes, our rotary drilling hoses are specifically designed to resist corrosion from hydrogen sulfide and are suitable for high-pressure borehole operations.

6. What safety features are integrated into the drilling system? Safety features include emergency stops, torque limiting, anti-collision systems, and automated fault self-diagnosis to ensure operational security.
