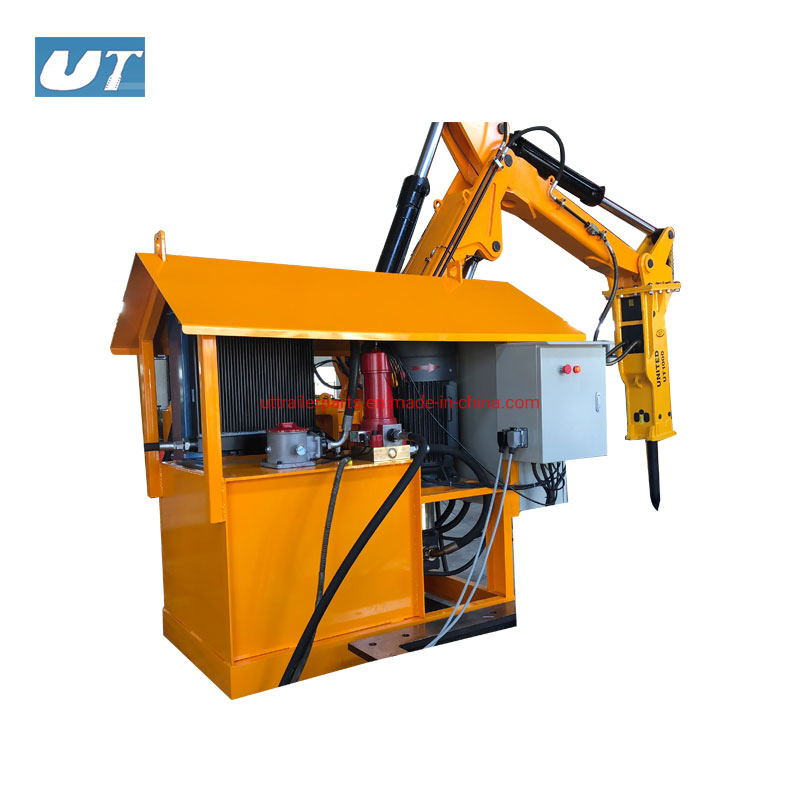

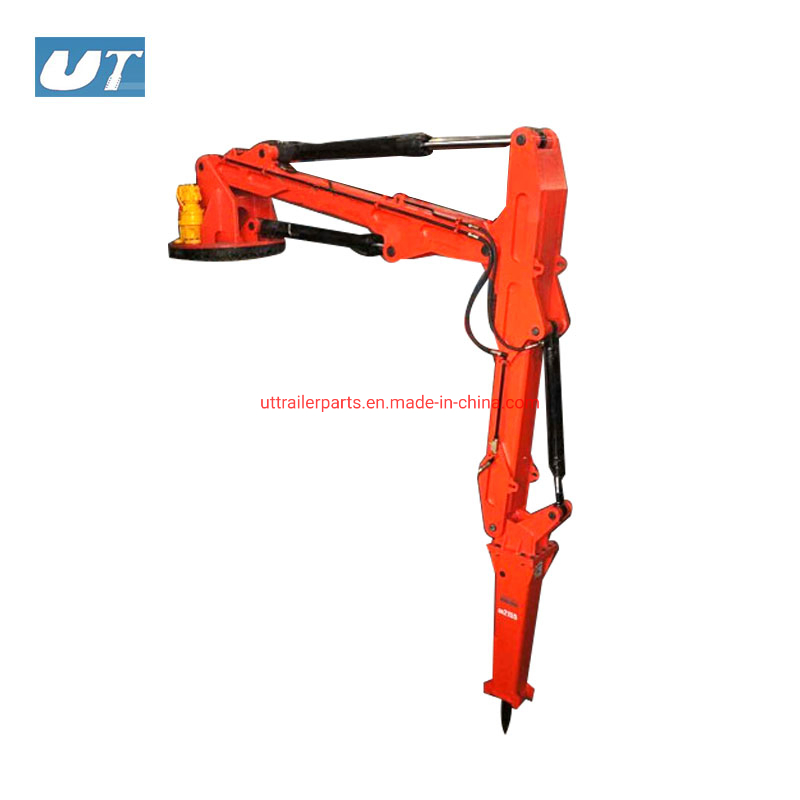

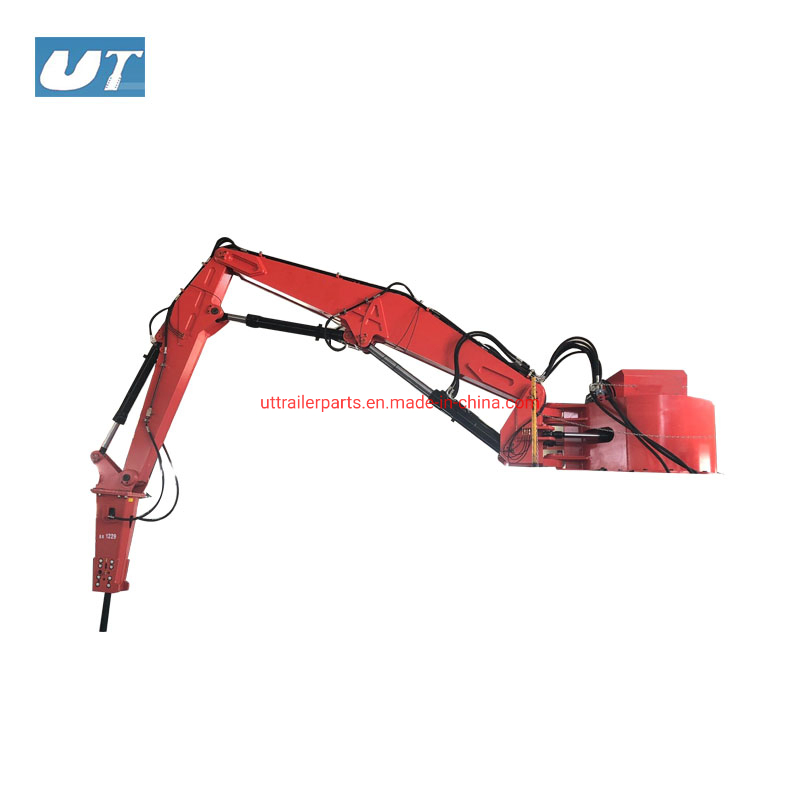

Hydraulic Brake Boom Pedestal Breaker Boom System

1 / 5

Hydraulic Brake Boom Pedestal Breaker Boom System

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Information

Model NO.

UTBH300

Type

Boom System

Application

Mine

Certification

CE, ISO9001: 2000, CCC

Condition

New

OEM/ODM

Yes

Weight

5520kgs

Power of Motor

37kw

Max Coverage

4.9m

Swing

170°

Control System

Wired and Wireless Remote Control

Production Capacity

10000PCS/Month

📦

Packaging & Delivery

Package Size

490.00cm * 340.00cm * 330.00cm

Gross Weight

6000.000kg

Packing

Seaworthy Packing

📝

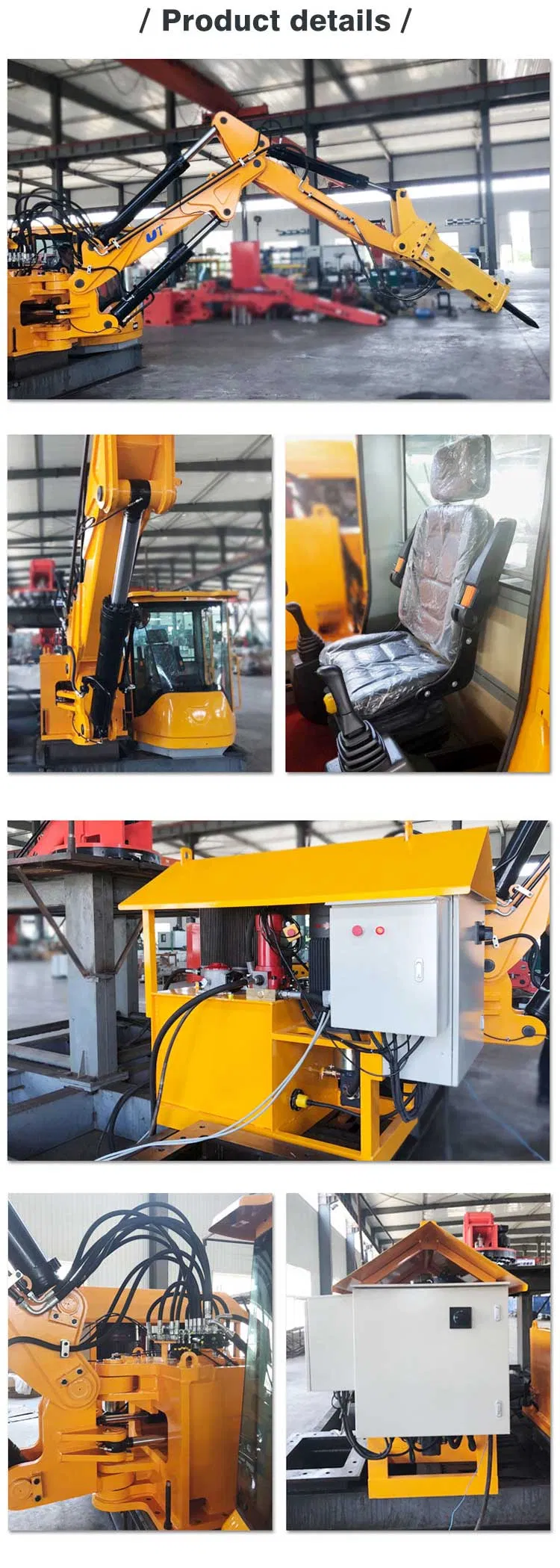

Product Description

⚙️

Product Parameters

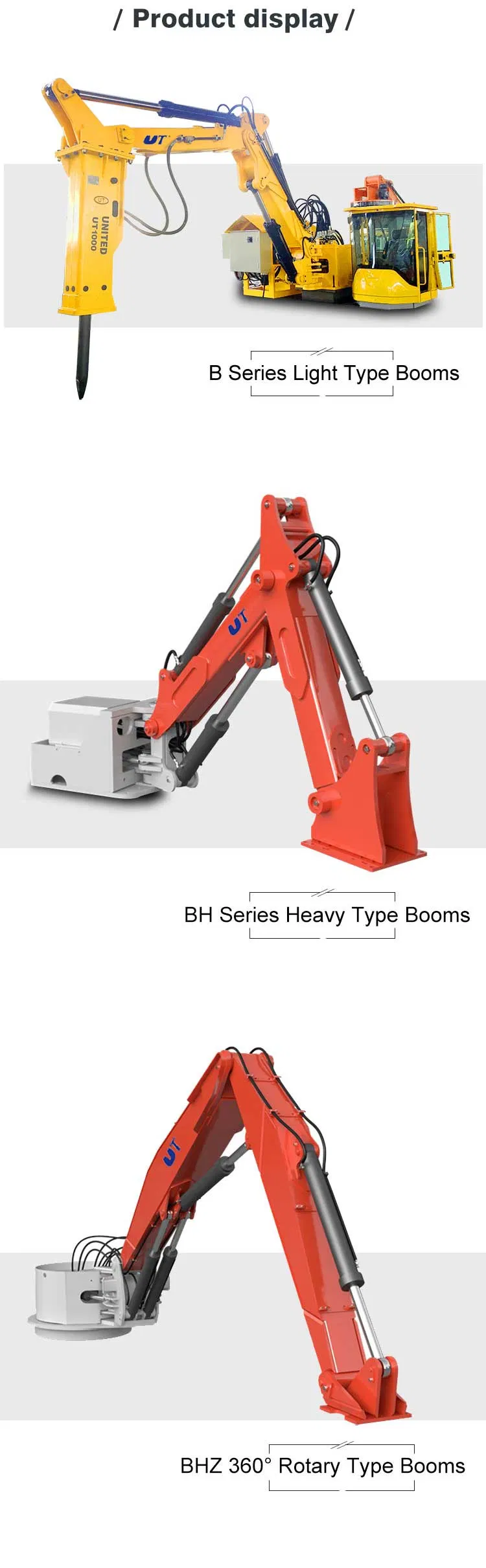

B Series Light Type Booms

Item/Model	Unit	UTBB300	UTBB400	UTBB500	UTBB550	UTBB600
Weight	Kg	2880	3550	3750	3900	4000
Power of motor	KW	18.5	30	30	35	35
Max. coverage	M	4.7	5.8	7	7.5	8
Swing	°	170	170	170	170	170

BH Series Heavy Type Booms

Item/Model	Unit	UTBH300	UTBH500	UTBH630	UTBH700	UTBH850
Weight	Kg	5520	6450	6850	7350	7750
Power of motor	KW	37	45	45	45	45
Max. coverage	M	4.9	6.7	7.5	9.3	11
Breaker Weight	KG	1000-2000	1000-2000	1000-2000	1000-2000	1000-2000

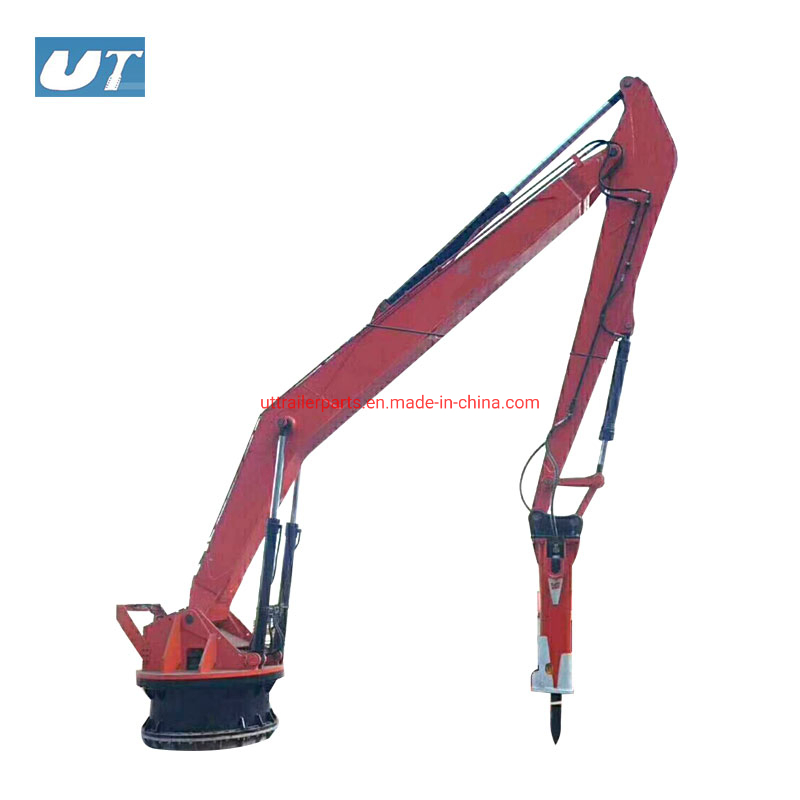

BHZ 360° Series Rotary Type Booms

Item/Model	Unit	UTBHZ300	UTBHZ400	UTBHZ500	UTBHZ600	UTBHZ960
Weight	Kg	4520	5930	6750	7300	8350
Swing	°	360	360	360	360	360
Control System	Hydraulic operating rod (wired/wireless remote optional)

🏗️

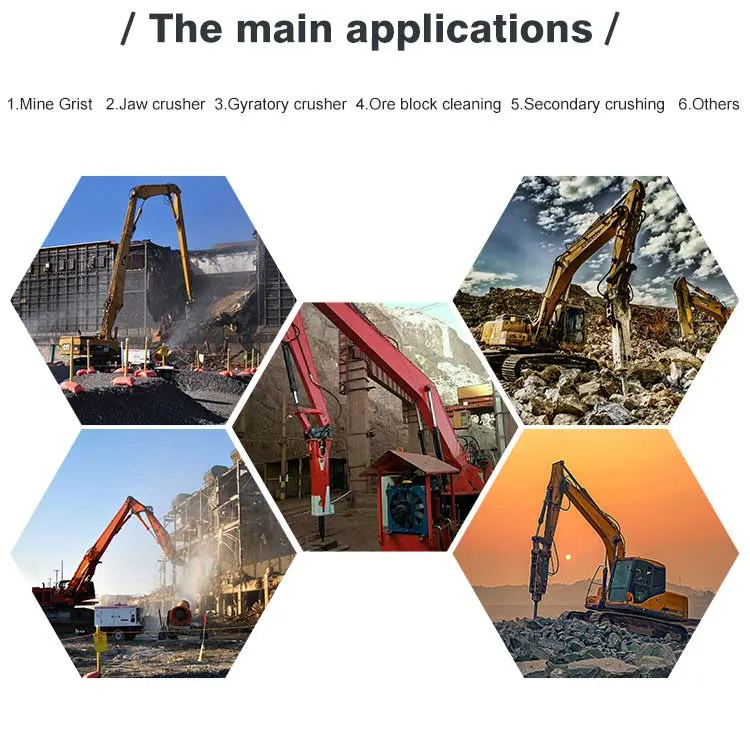

Product Application

A. USES FOR PRIMARY JAW CRUSHERS AND IMPACT CRUSHERS: Lighter types are used to break extremely hard and abrasive large rocks or to free up transport routes to the crusher.

B. USES FOR PRIMARY GYRATORY CRUSHERS: Large and powerful systems constructed for continuous heavy operation to break oversized pieces or free up vaults.

C. USES FOR MOBILE CRUSHER: Small systems fitted directly to the structure of the mobile crusher.

D. USES FOR CRUSHING ON GRID (GRIZZLY): Massive structures with powerful hammers to crush rock on horizontal grids with defined opening sizes.

🏢

Facility & Production

🔗

Related Products

Frequently Asked Questions

❓ What is the primary function of the Rock Breaker Boom System?

It is designed to break up oversized rocks in crushers or on grizzly grids, ensuring a continuous flow of material and preventing blockages in mining and quarrying operations.

❓ Can the system be operated remotely?

Yes, the system supports both wired and wireless remote control options, allowing operators to manage the boom from a safe distance.

❓ What are the differences between the B, BH, and BHZ series?

The B series is a light-type boom for smaller crushers; the BH series is a heavy-duty type for large-scale operations; and the BHZ series features a 360° rotary base for maximum coverage.

❓ Is the equipment compatible with mobile crushers?

Absolutely. We offer compact rock breaker boom systems specifically designed to be fitted directly onto the structure of mobile crushing units.

❓ What certifications does the product hold?

Our boom systems are certified under CE, ISO9001:2000, and CCC standards, ensuring high quality and safety for international markets.

❓ Does the system support OEM/ODM customization?

Yes, we provide full OEM and ODM services to customize the boom system's specifications, colors, and features according to your specific project requirements.
