Product Description

Basic Specifications
Model NO.ZL
Torque>80N.M
Bore Diameter19mm
Speed4000r/M
StructureFlexible
MaterialHigh-Strength Steel Body with Elastomeric Spider
TypeElastic Coupling
Product NamePrecision Engineered Zl Type Elastic Column Coupling
ApplicationPower Transmission with Integrated Braking
FunctionConnects Shafts, Provides Braking
Braking CapacityHigh-Torque, Reliable Brake Engagement
Max Rotational SpeedDesigned for Medium to High-Speed Operations
Misalignment CompensationAccommodates Angular and Parallel Offsets
FinishAnti-Corrosion Treatment for Durability
Production Capacity500,000 Pieces/Year
ZL Type Elastic Column Coupling Banner
Product Description

Zl Type Elastic Pin Gear Coupling: The ZL type elastic pin gear coupling is a professional-grade mechanical transmission component designed to connect two shafts effectively while transmitting high torque.

Structural Composition of ZL Coupling
1
Structural Composition: It is composed of two half-couplings, elastic pins, and baffles. Half-couplings are forged from high-quality steel. Elastic pins are made of durable non-metallic materials like nylon, distributed between tooth grooves.
2
Working Principle: Power is transmitted through pins placed in the mating holes between half-couplings and the inner surface of the outer ring, ensuring stable torque transmission.
3
Key Features: Smaller volume and lighter weight compared to traditional gear couplings; Simple structure for easy manufacturing; Convenient maintenance with long service life; Self-lubricating nylon pins.
Core Advantages
Technical Parameters 1
✓
Dual Safety Assurance: Combines mechanical transmission and braking to prevent machinery failure.
✓
Installation Flexibility: Designed for easy alignment and quick mounting into existing systems.
✓
Noise Reduction: Engineered to minimize operational noise for a better working environment.
✓
Long-term Reliability: Maintains consistent performance under continuous industrial use.
Detailed Product Gallery

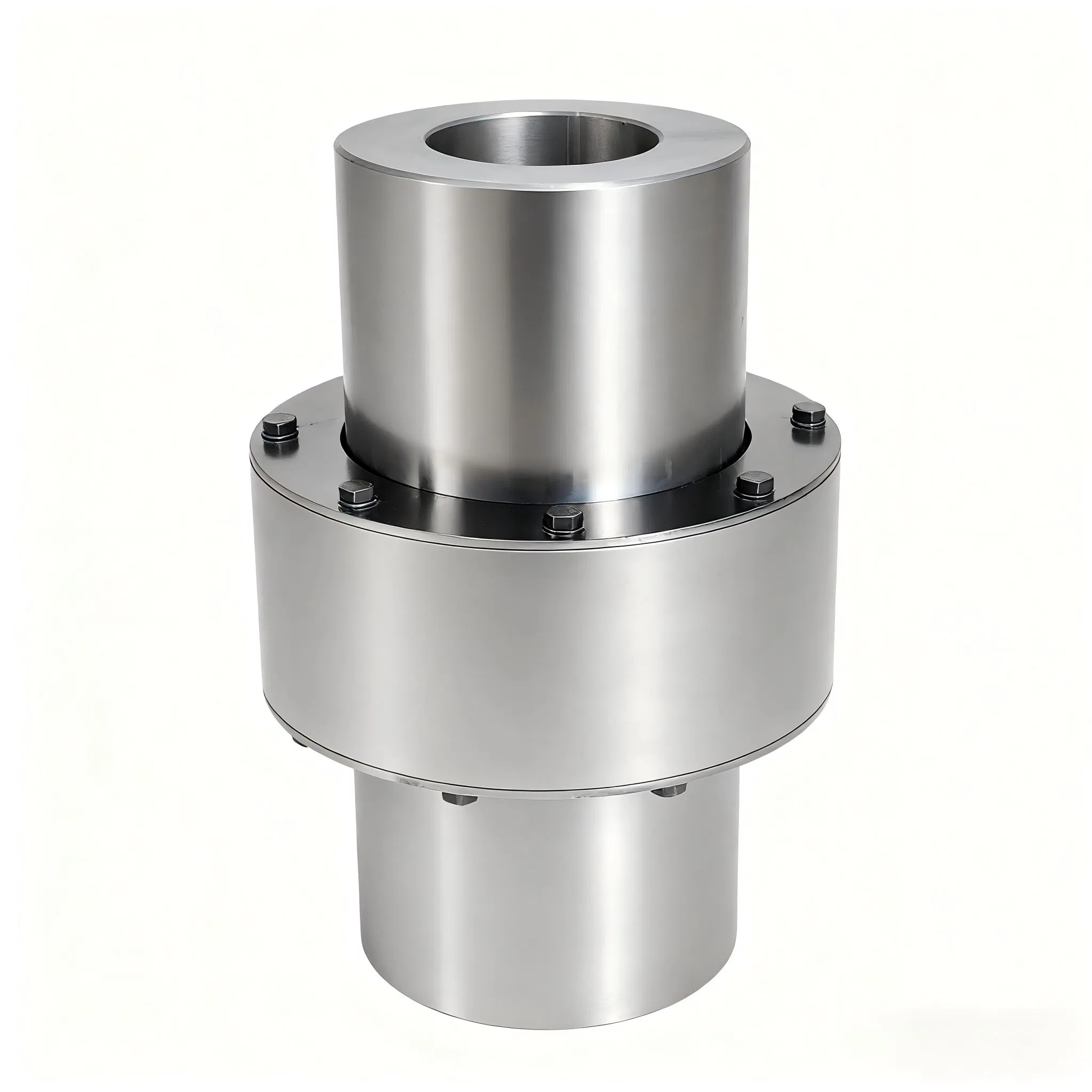

Coupling View 1

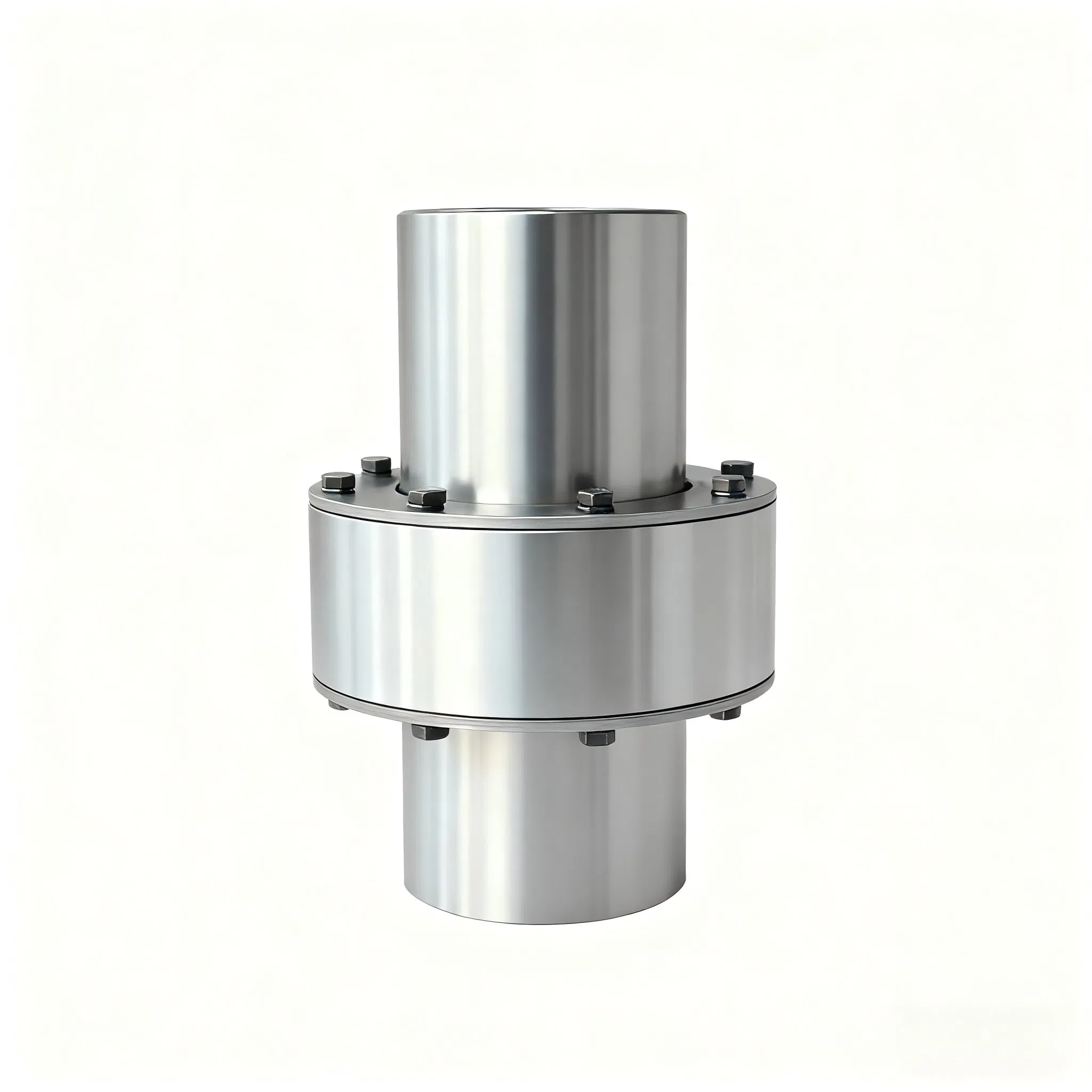

Coupling View 2

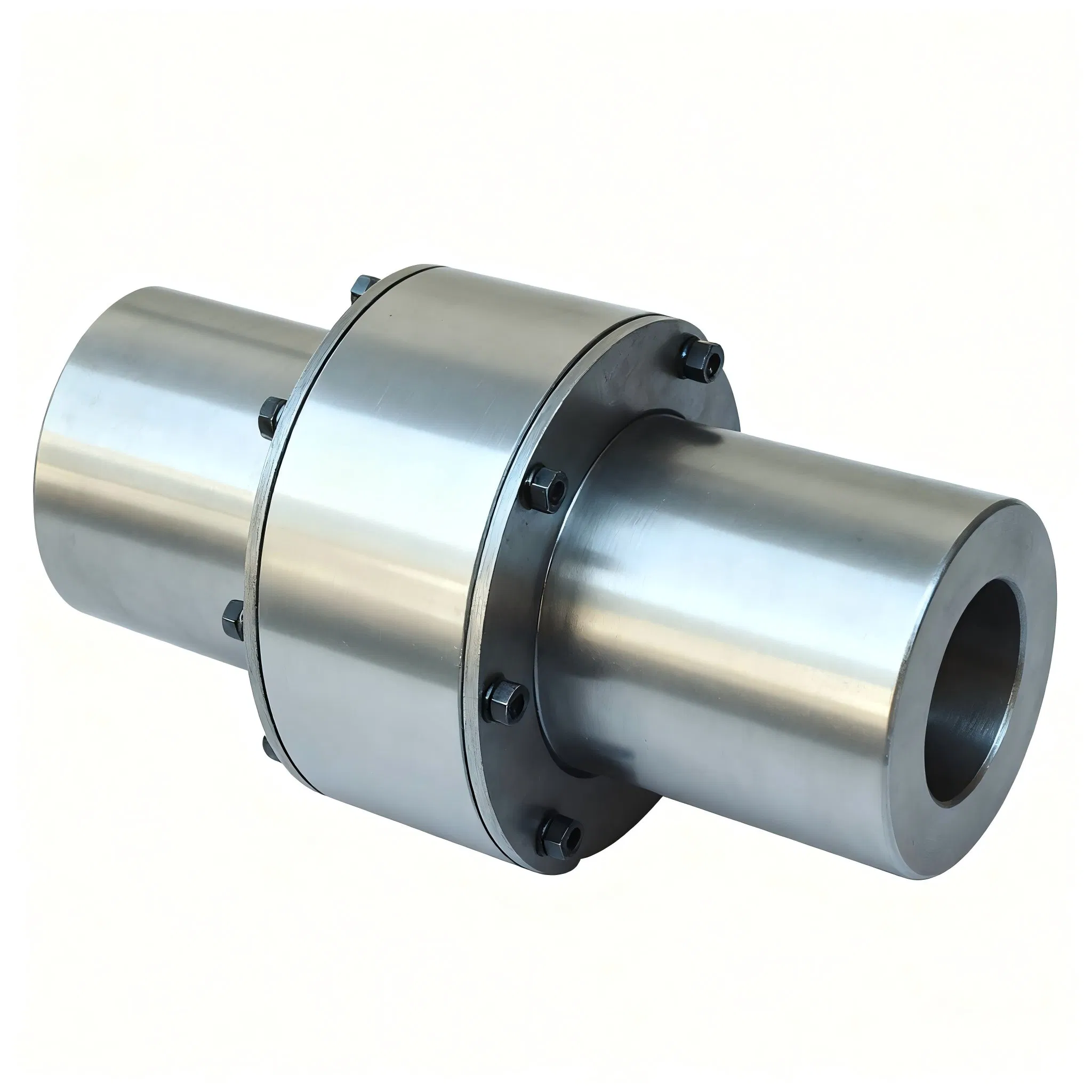

Coupling View 3
