Specializing in the manufacturing of high-performance brake tubing systems, we offer a complete range of products to meet the diverse needs of the global automotive industry. Our commitment to precision engineering, stringent quality control, and exceptional durability ensures optimal safety and reliability for every vehicle. We excel in providing customized production services to tailor each solution to your specific technical requirements and application standards.
| Category | Type | Material & Construction | End Fittings | Standard Dimensions | Min. Pressure | Customization |
|---|---|---|---|---|---|---|

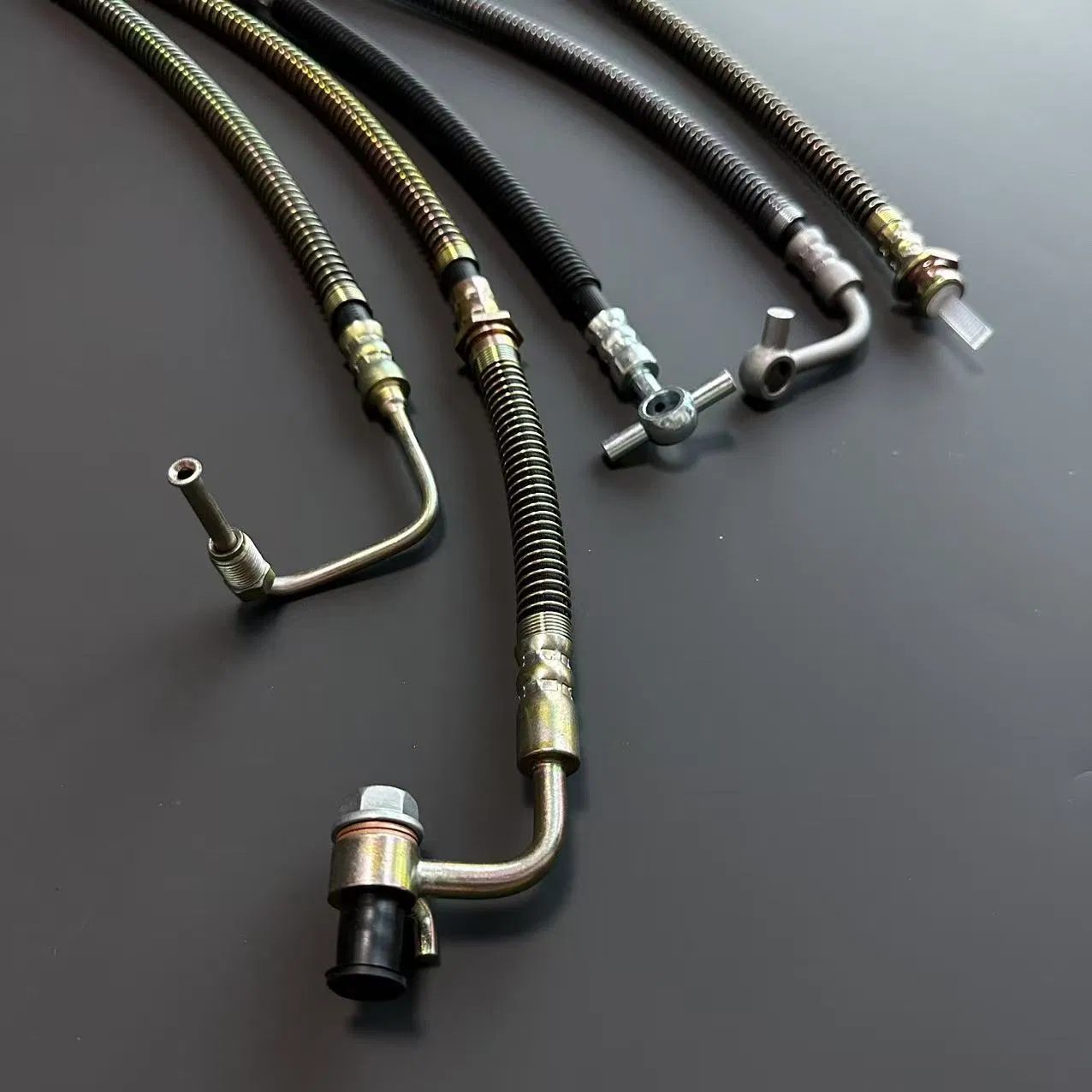

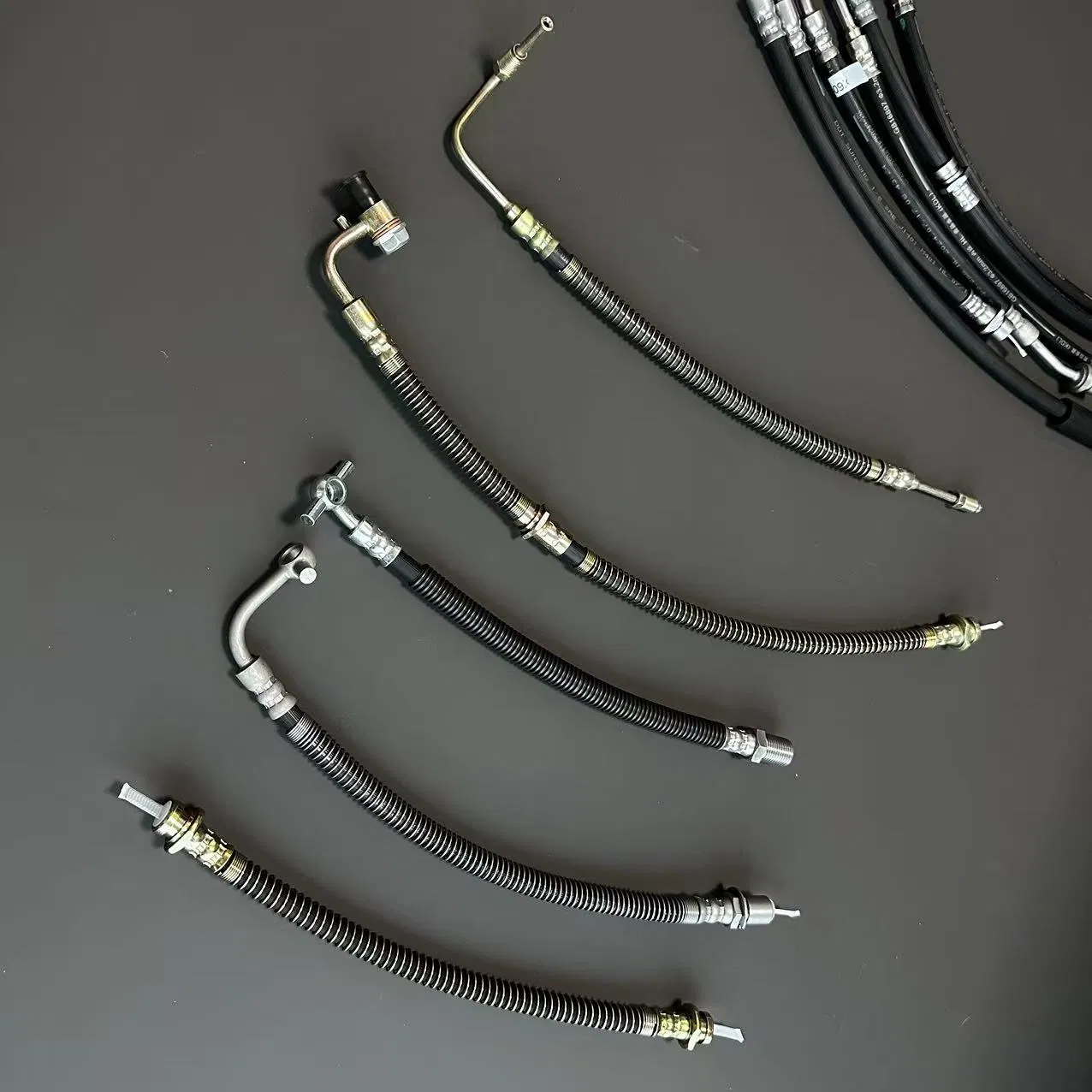

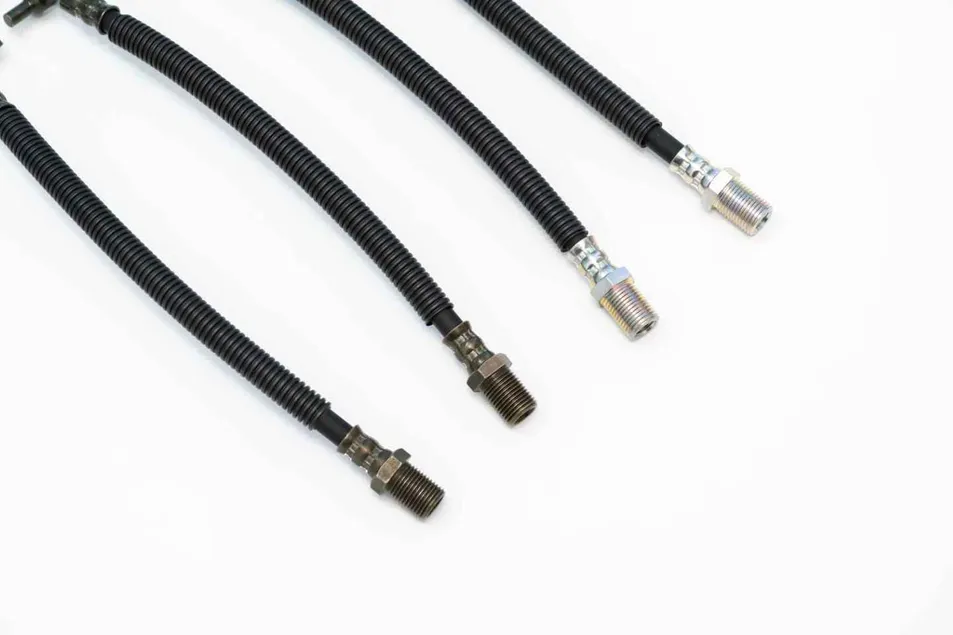

| Brake Hose | Hydraulic Brake Hose | ECE R90 synthetic rubber, Textile/steel reinforcement | M10×1.0, M12×1.0, 3/8-24 UNF; Zinc-plated/Stainless steel | ID: 3/16" (4.75mm); Length: 12-60" | 2,500 PSI | Any length, fitting combinations |
| PTFE Braided Hose | PTFE inner, 304/316 SS braid, PVC/Nylon cover | AN Fittings: -3AN, -4AN; Metric: M10, M12 | ID: 0.19-0.25"; Length: Custom | 4,000+ PSI | Braid density, cover materials | |
| Air Brake Hose | Oil-resistant synthetic rubber, Weather-resistant cover | 1/4" NPT, 3/8" NPT, M22×1.5; Camlock | ID: 1/4", 3/8" | 150 PSI | Special lengths | |

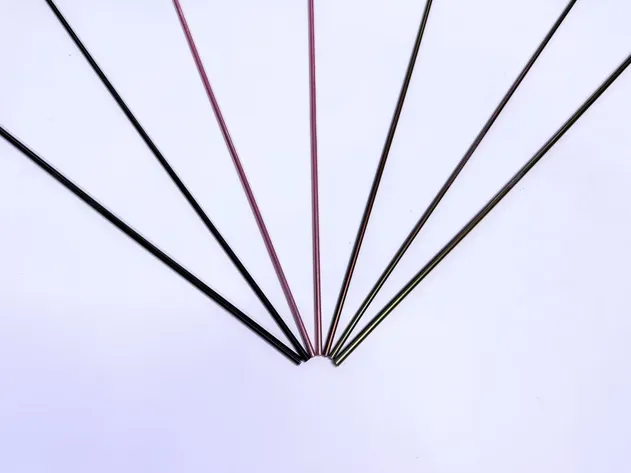

| Metal Brake Line | Steel Brake Line | Double-wall galvanized, SAE J1047, Zinc/Yellow plating | 45° inverted (SAE), bubble (ISO); M10×1.0 | OD: 3/16", 1/4"; Wall: 0.028-0.035" | 3,000 PSI | Pre-made lines with specific bends |
| Copper-Nickel Line | CuNiFe alloy (Kunifer), Corrosion resistant | 45° inverted, bubble flare | OD: 3/16", 1/4" | 3,000 PSI | Complex bend patterns | |
| Stainless Steel Line | 304/304L stainless steel, High strength | AN Fittings; Metric/SAE Flare | OD: 3/16", 1/4" | 4,000+ PSI | Medical-grade polish, coatings |

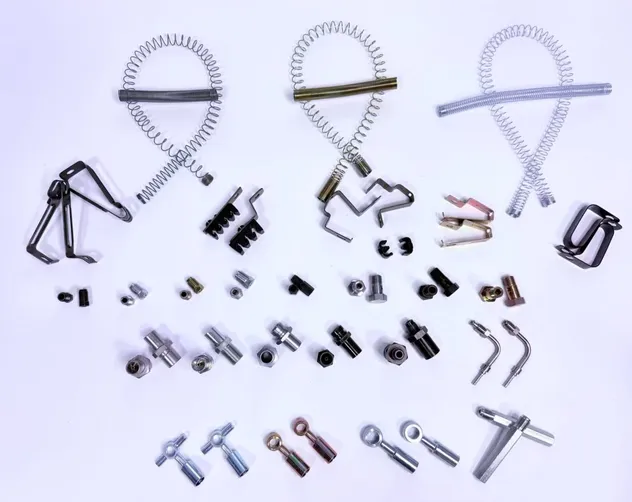

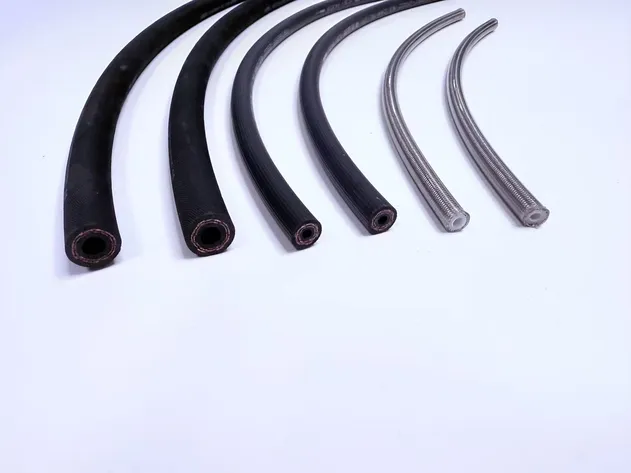

We provide highly flexible custom brake tubing solutions designed to meet exact specifications. Our capabilities cover a wide range of materials including rubber, PTFE, stainless steel, and copper-nickel, available in both metric and imperial sizes. We offer an extensive variety of end fittings with multiple options for threads (UNF, NPT, Metric), angles (straight, 45°, 90°, 135°, banjo), and materials (steel, stainless steel, brass).

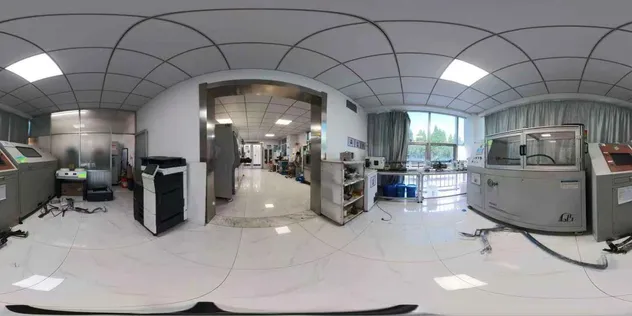

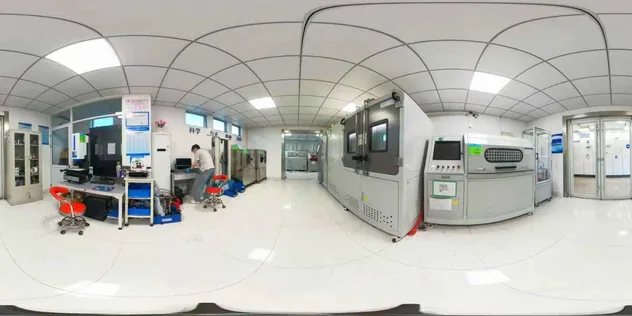

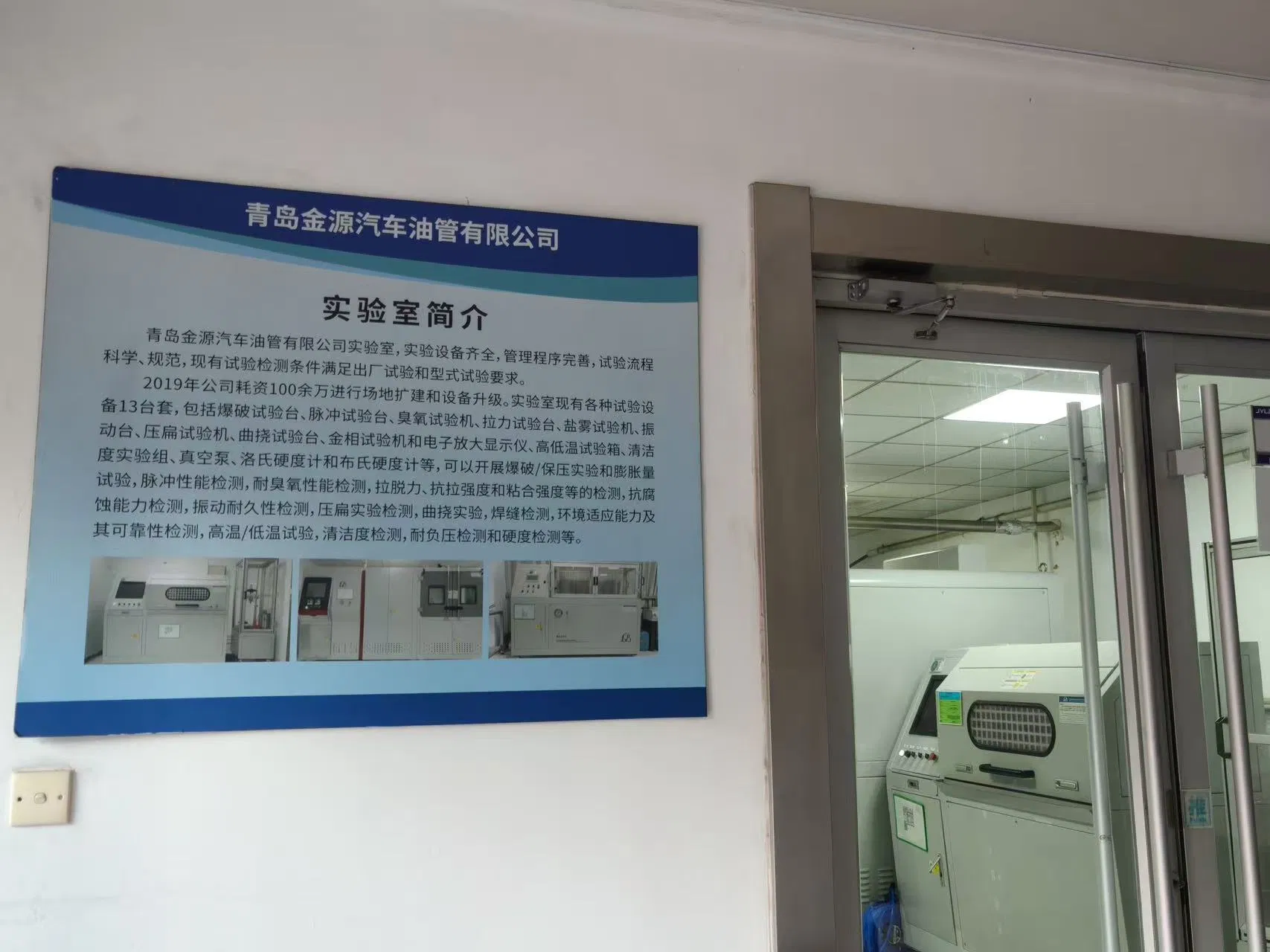

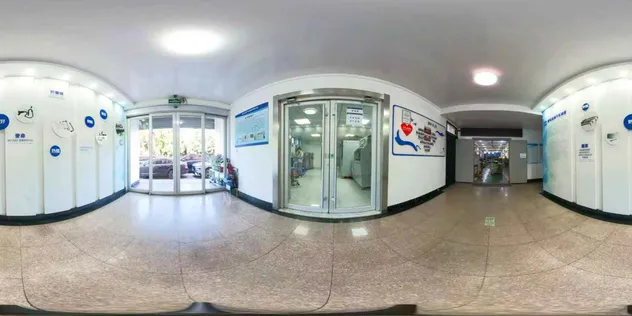

Ensuring product excellence through advanced in-house testing and a quality system certified to IATF 16949:2016. Our Quality Assurance Center utilizes state-of-the-art equipment to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements.
2D/3D CAD drawings, Technical specifications, SAE / ISO / ECE R90 standards.
OE part number support, Physical sample matching and validation.
High performance data (pressure/temp), Space limit solutions, 3D modeling.
