Premium Heavy-Duty Fops Cockpit Brake System for Mining Equipment

Customization:	Available
After-sales Service:	Remote Maintenance
Warranty:	1 Year

Overview & Basic Info

Model NO.

WJ-1.5

Dimensions

7300*1540*2050 mm

Motor Power

84kw

Turning Radius

6100mm

GVW

12t

Traction Force

100kN

Breakout Force

80kN

Rated Load

3t

Production Capacity

200 Units

Origin

Shandong, China

Product Description

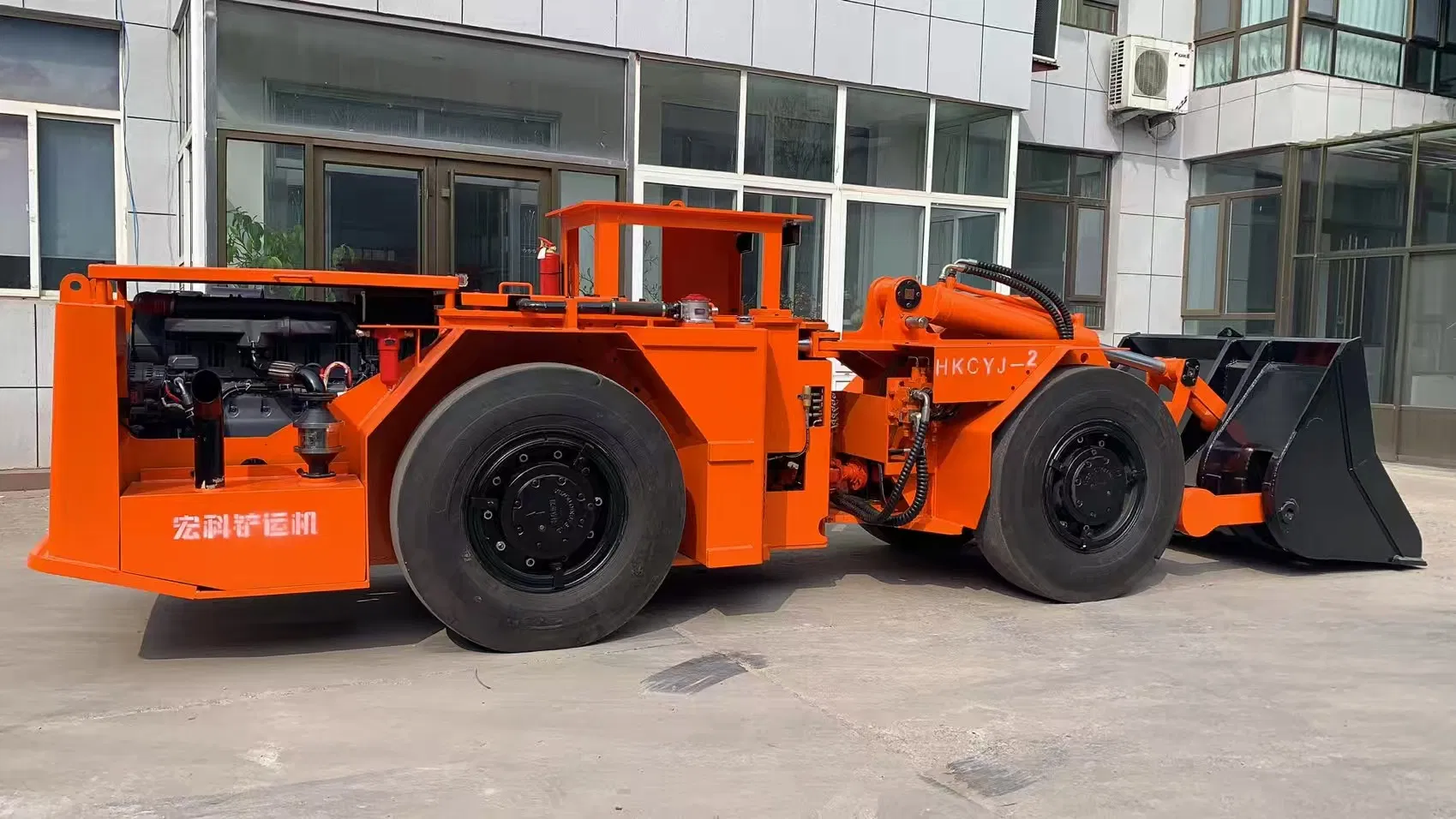

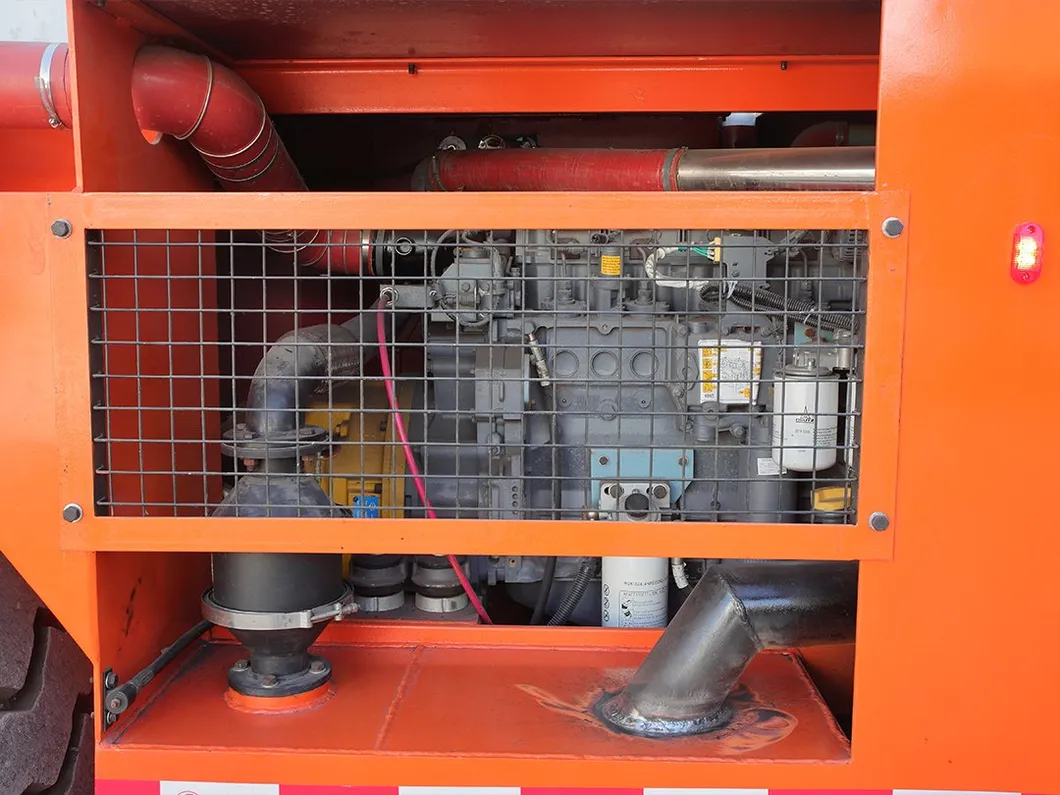

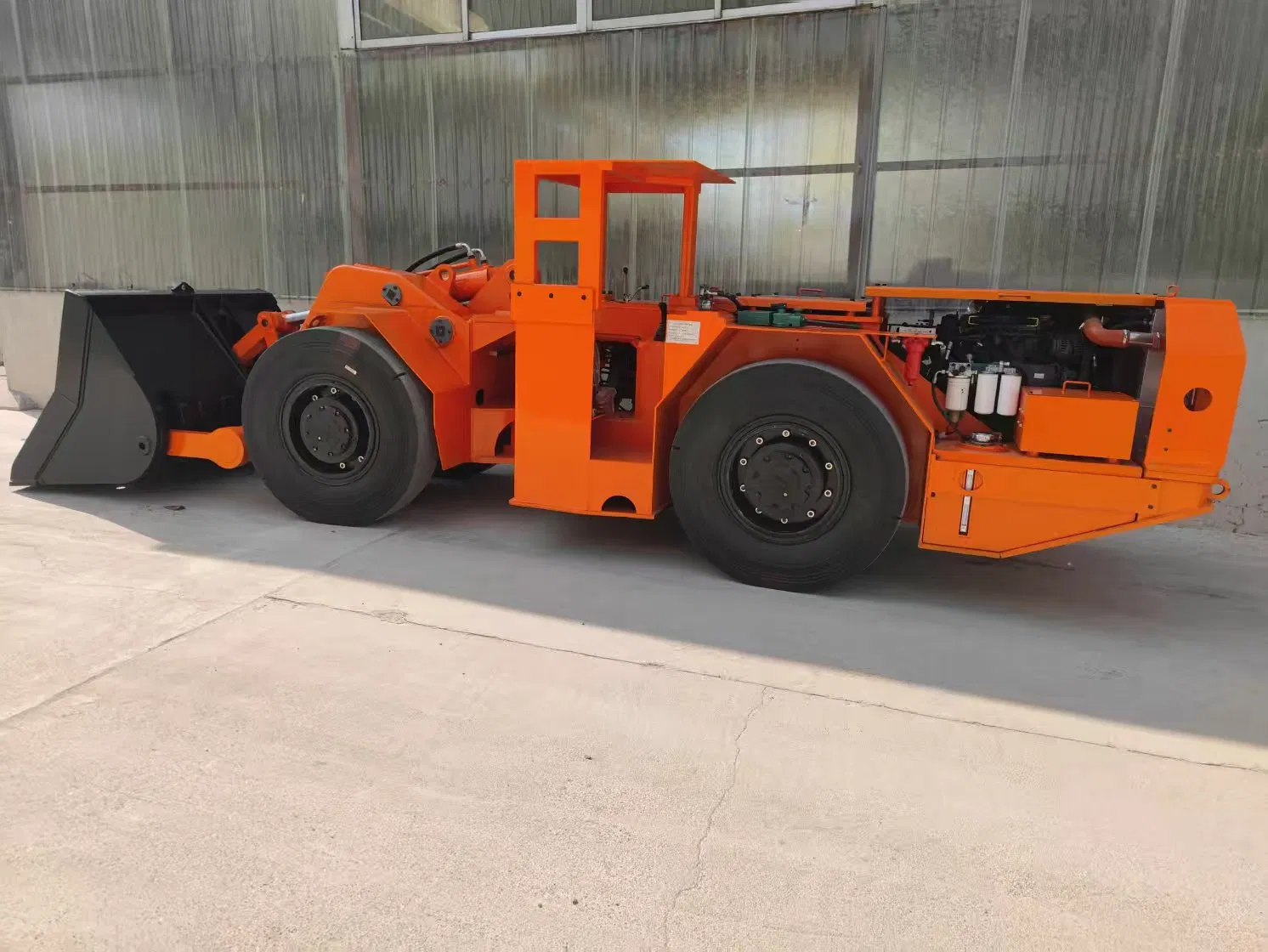

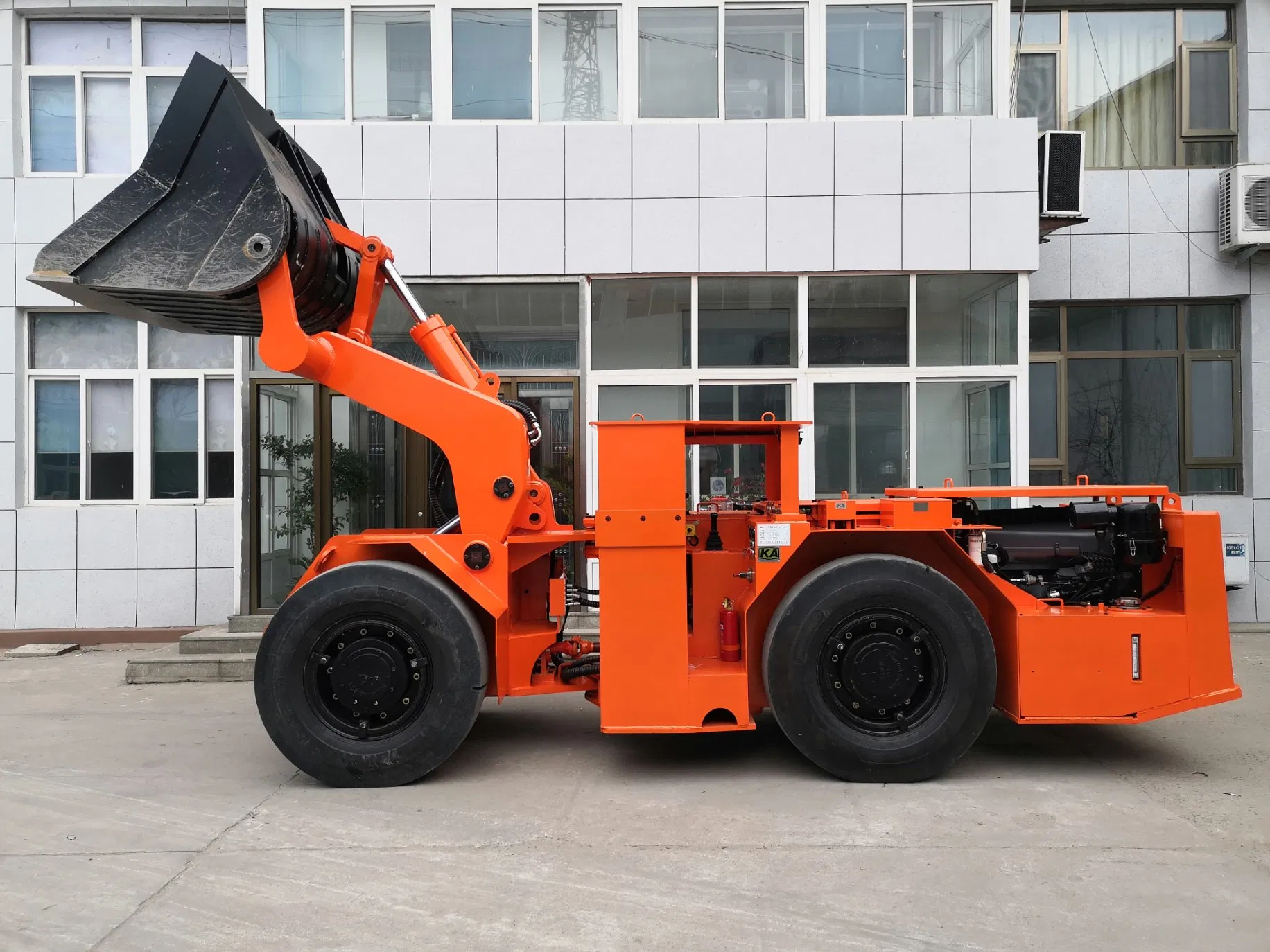

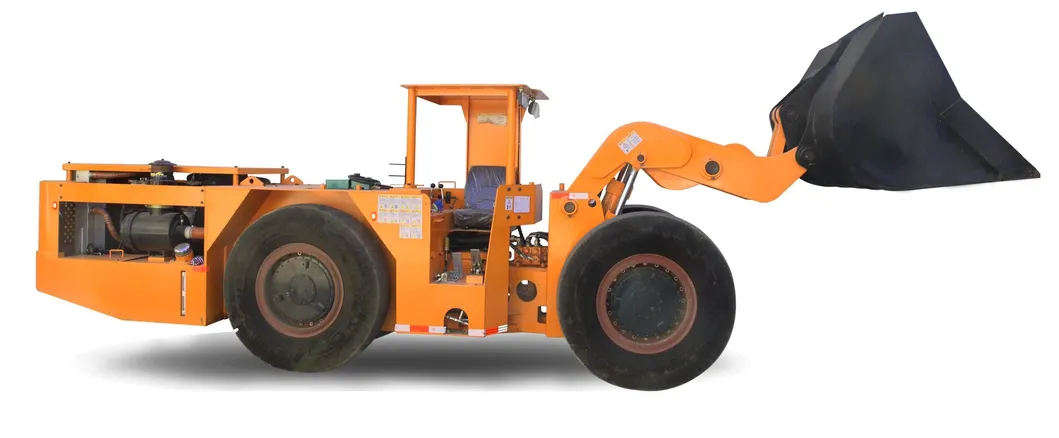

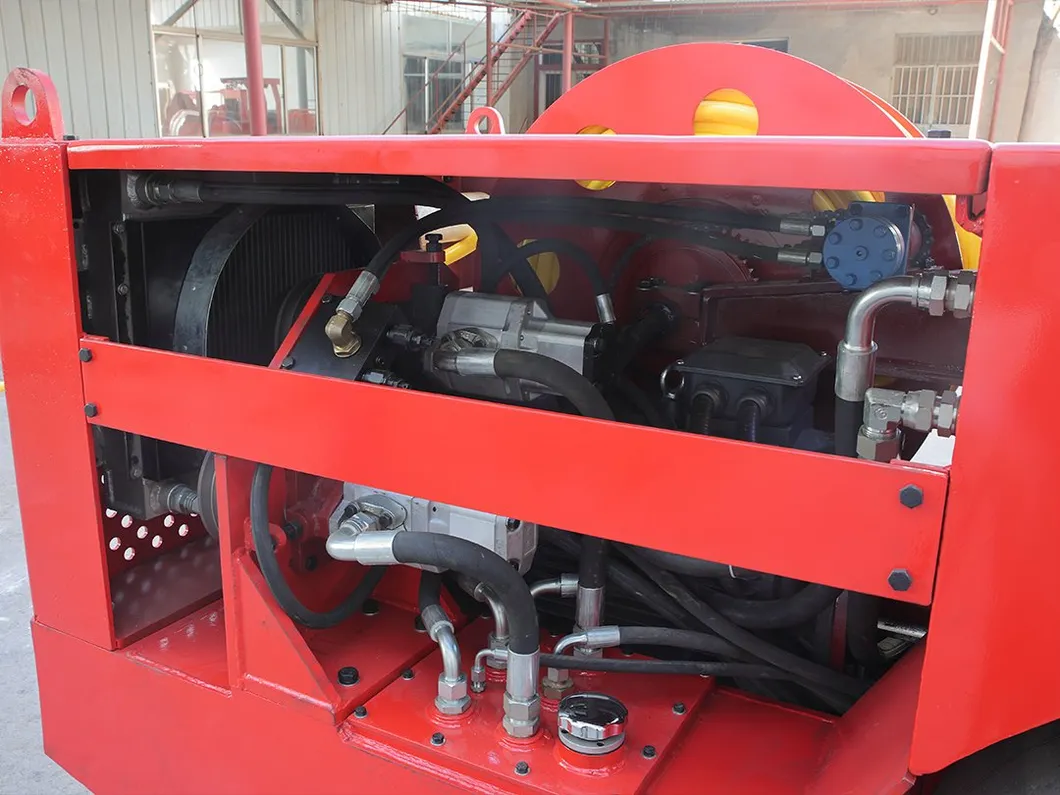

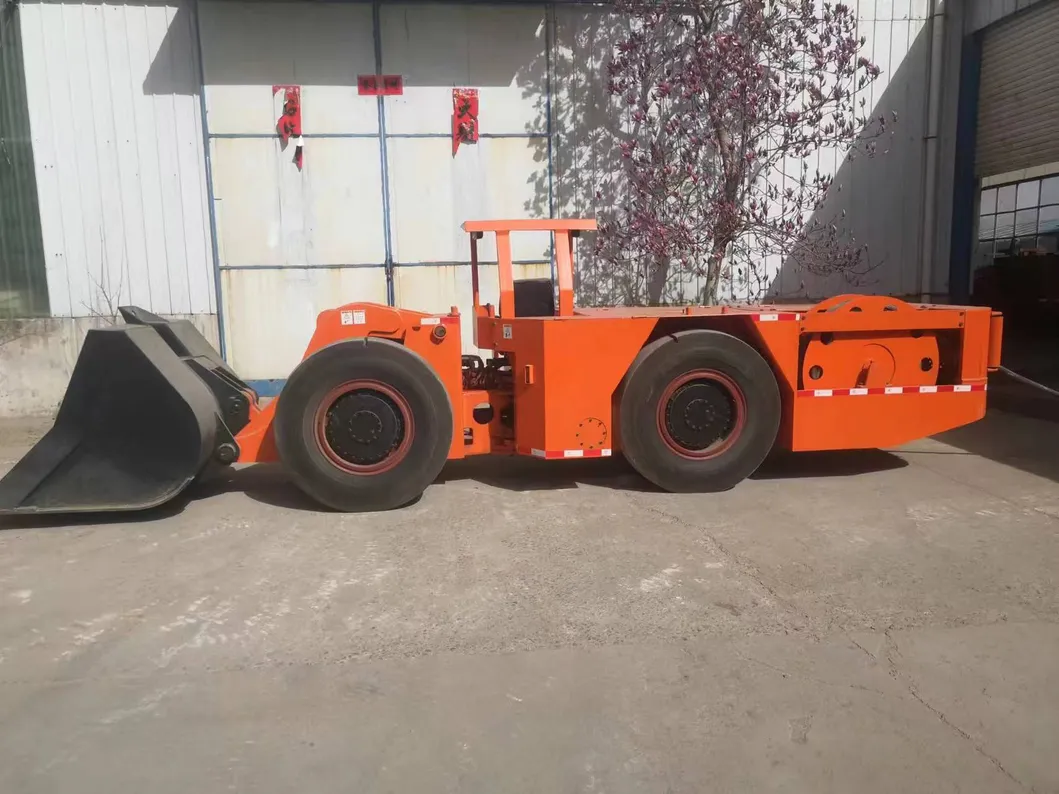

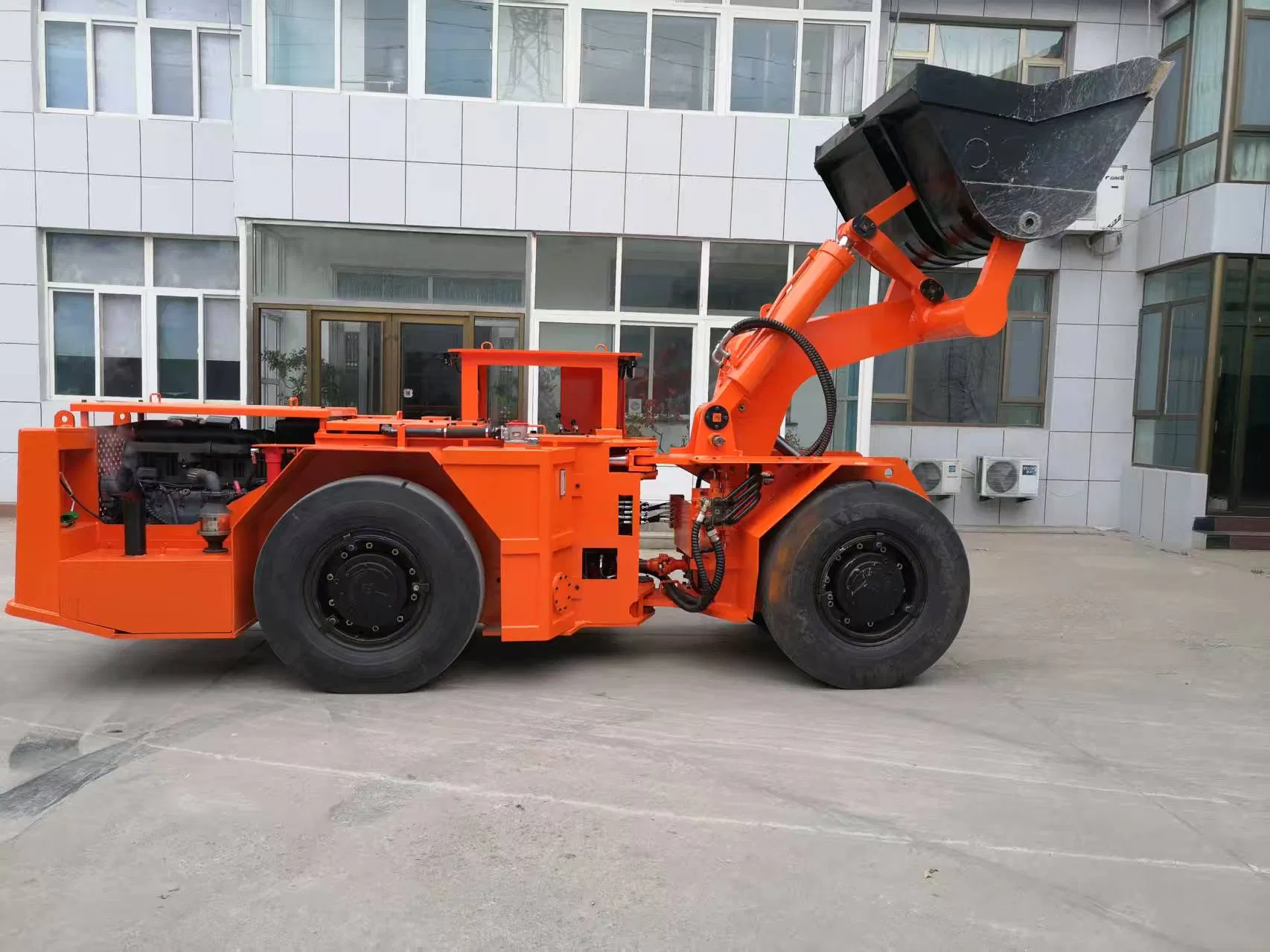

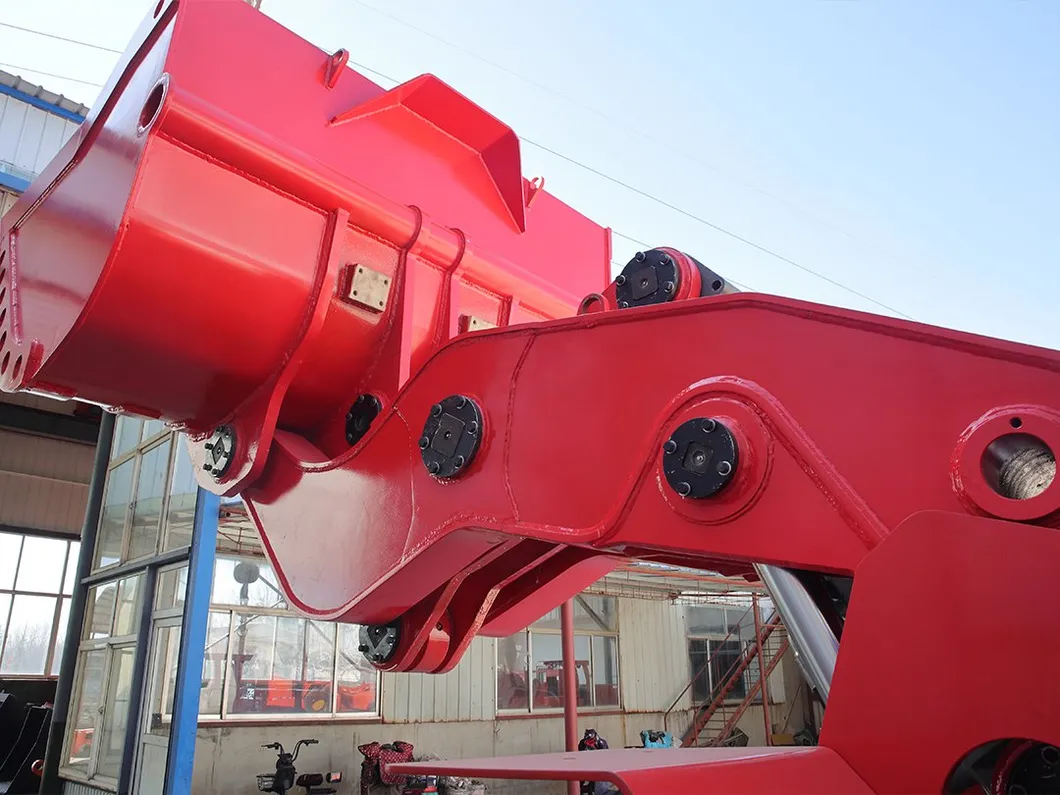

The main pump and motor of the WJ-1.5 diesel scooptram are all original imported parts, using the German original DEUTZ engine as the output power, making it characterized by low emissions and low pollution. The whole vehicle adopts rotary support hinge, which changes the layout of the old model swing frame and three-point suspension hinge, overcomes the defects of high failure rate, difficult maintenance, and significant safety hazards, and greatly reduces the investment of manpower and material resources.

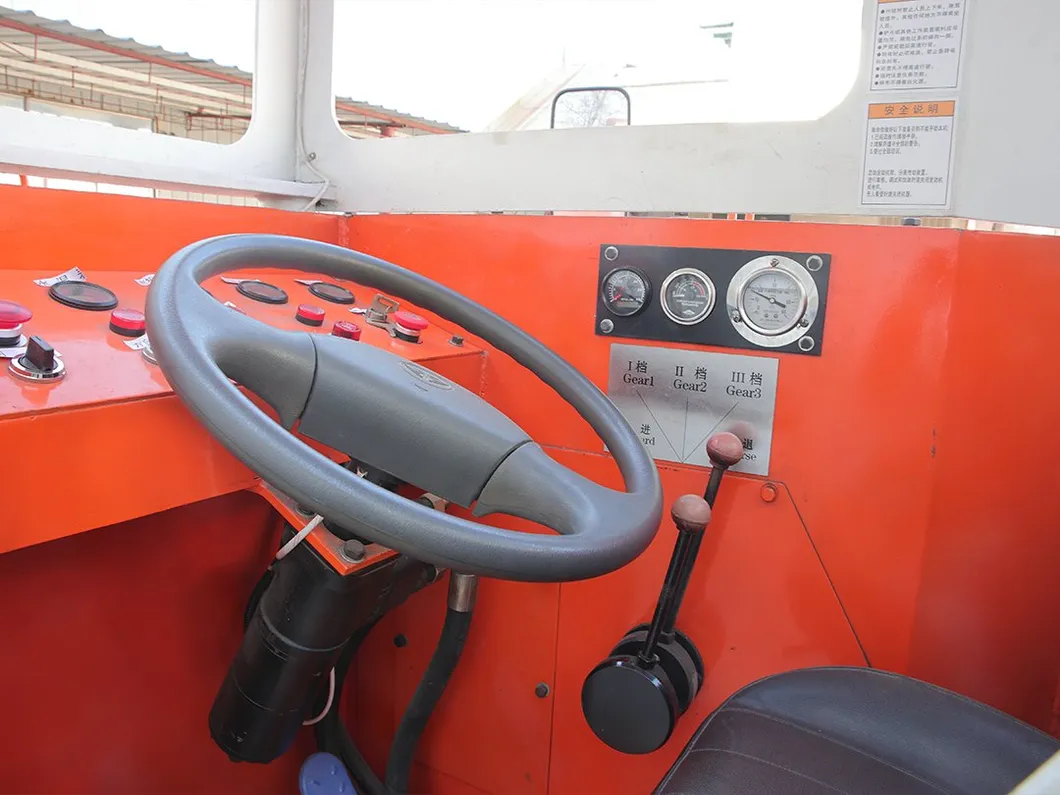

Advanced Control: Fully hydraulic control walking system for sensitive operation and improved work efficiency.

Safety Integrated: Integrates work braking, parking braking, and emergency braking with spring braking and hydraulic release.

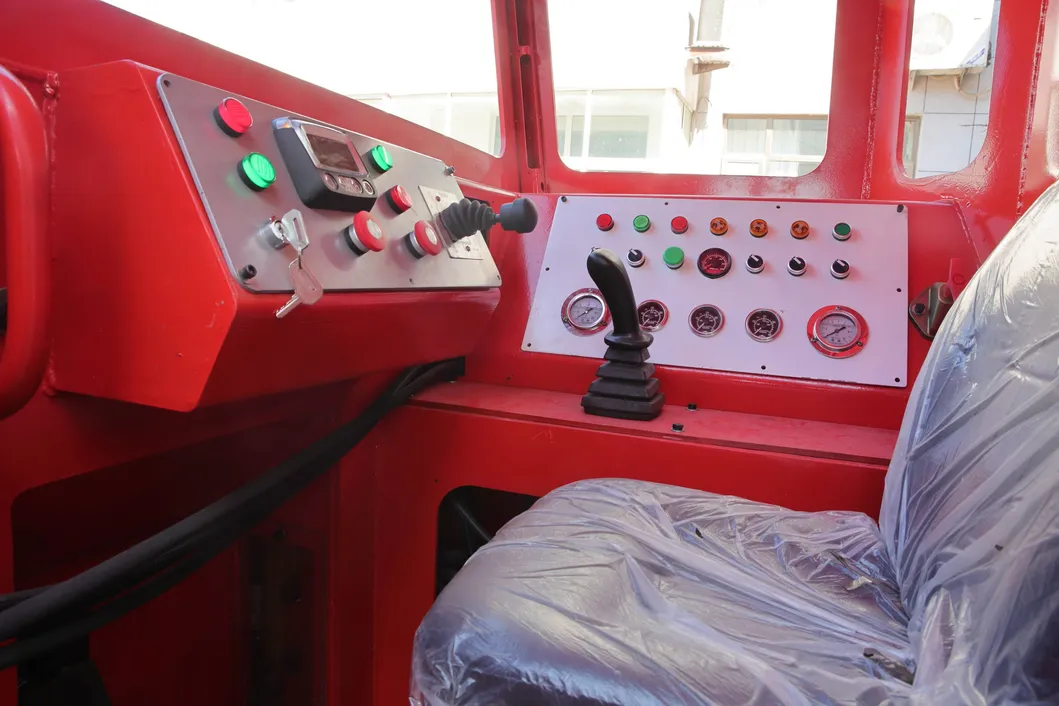

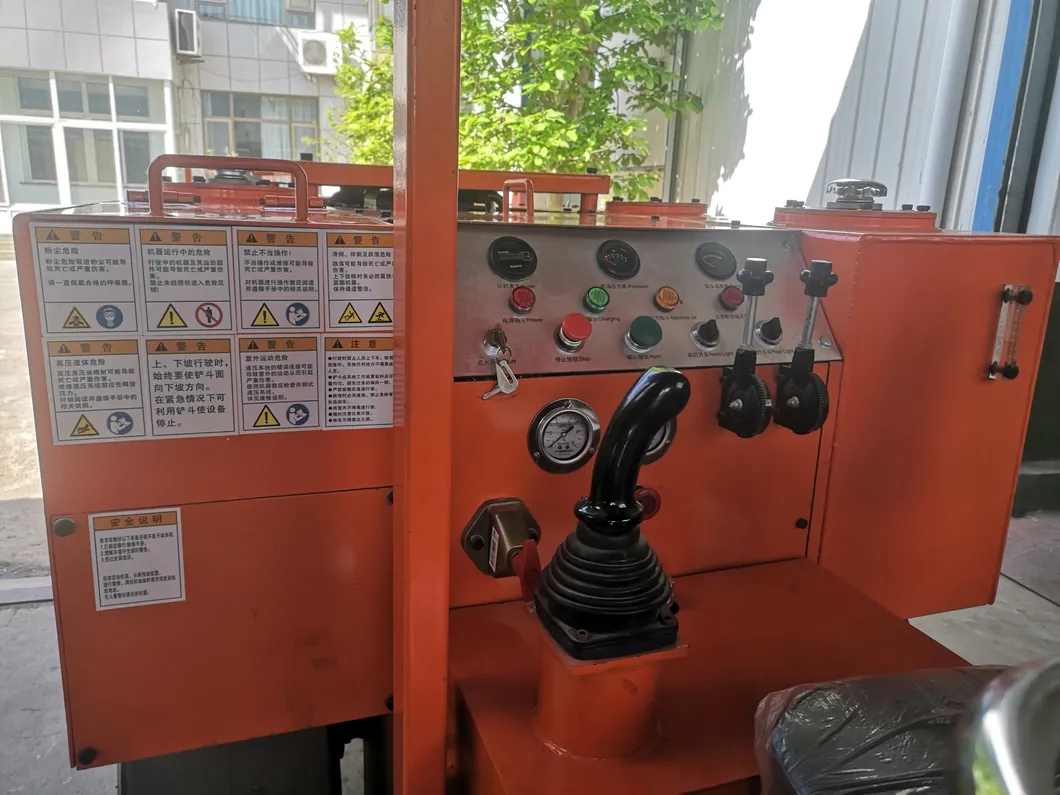

Standardized Operation: Multi-functional standardized table for easy use, safe mining, and energy saving.

Technical Parameters

Parameter Item	Specified Value	Unit
Bucket Capacity (Heaped)	1.5	m³
Rated Load Capacity	3	t
Maximum Traction Force	100	kN
Maximum Breakout Force	80	kN
Maximum Unloading Height	1400±50	mm
Maximum Lift Height	3740±50	mm
Minimum Ground Clearance	250±10	mm
Maximum Gradeability	12	°
Gross Vehicle Weight (GVW)	12	t
Motor Power	84	KW

Company Profile & Certifications

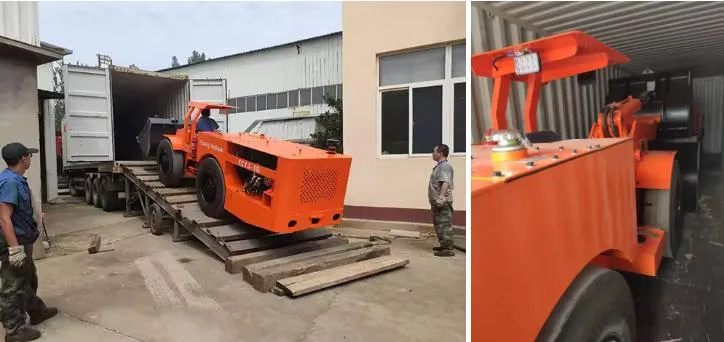

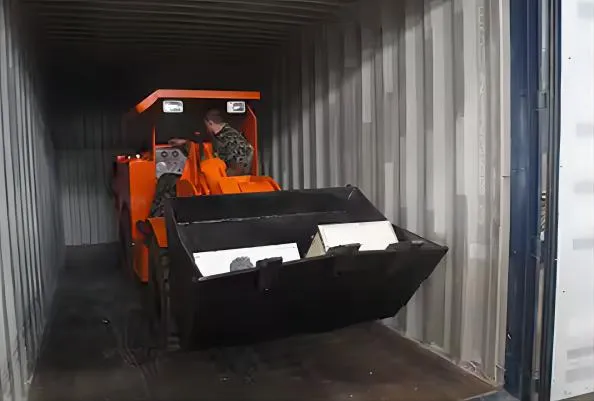

Packaging & Shipping

After Sales Service

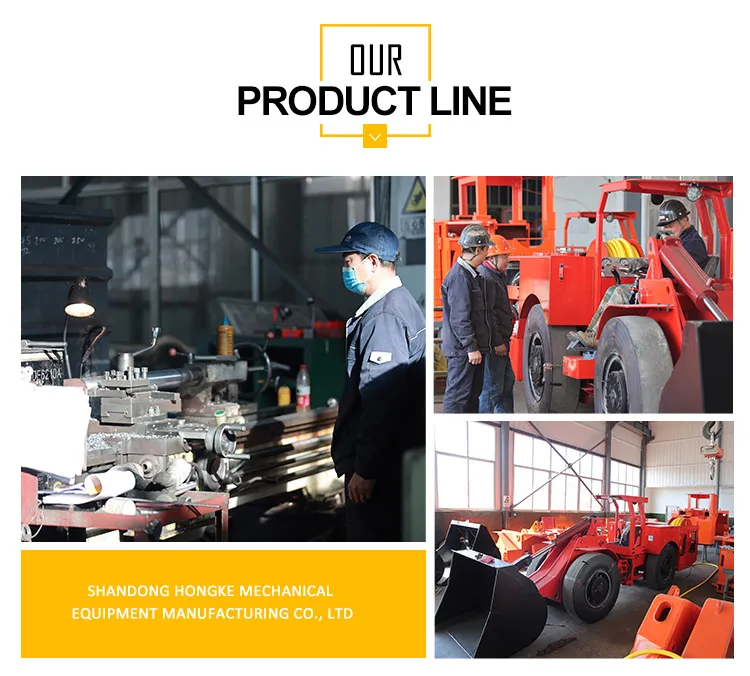

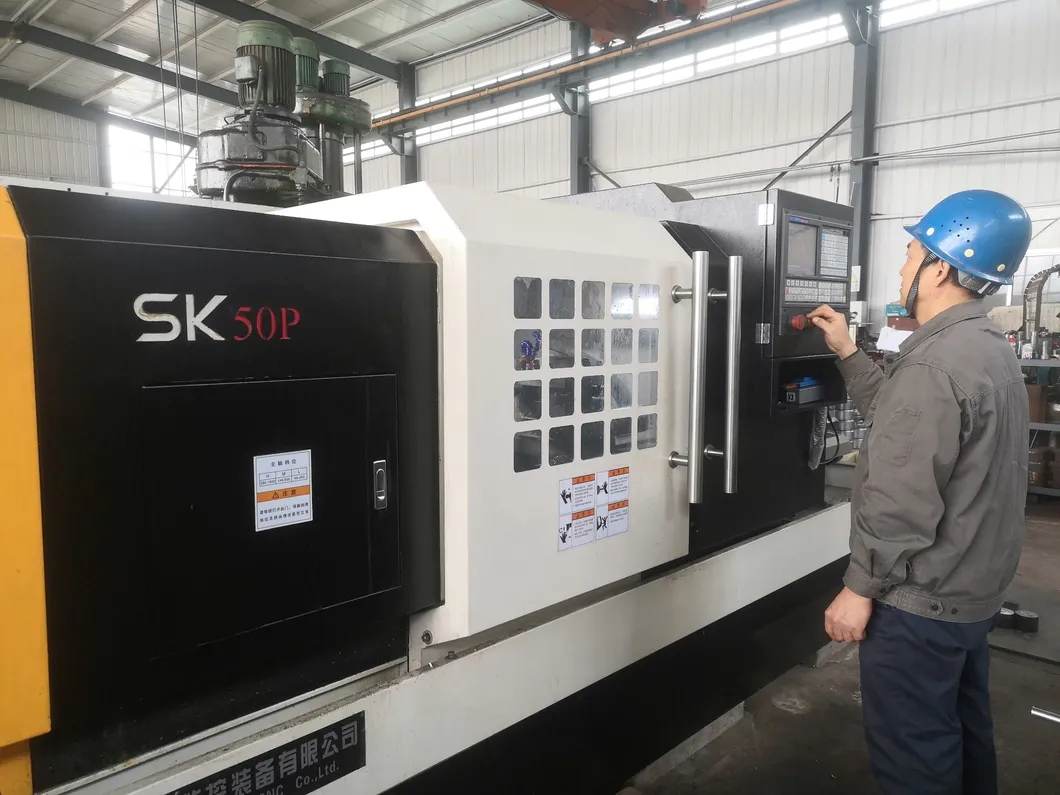

The factory is located in Shandong, China. We sincerely invite you to visit our production facilities. Additionally, we offer a comprehensive 2-year after-sales warranty and dedicated remote maintenance support for all our machinery products.

Frequently Asked Questions

1. Who are we?

We are source factory manufacturers specializing in heavy-duty mining equipment.

2. Will you provide wearing parts?

Yes, we provide essential wearing parts along with our products to ensure continuous operation.

3. How about product quality?

Our products have passed ISO and KA certifications, aligning with both national and international standards.

4. What payment services do you provide?

We accept L/C, T/T, and D/P. Standard T/T terms involve a 30% advanced payment upon order confirmation.

5. Can the products be customized?

Yes, we offer customization options to meet specific operational requirements.

6. What is the warranty period?

We offer a 2-year after-sales warranty and remote maintenance support for our products.
