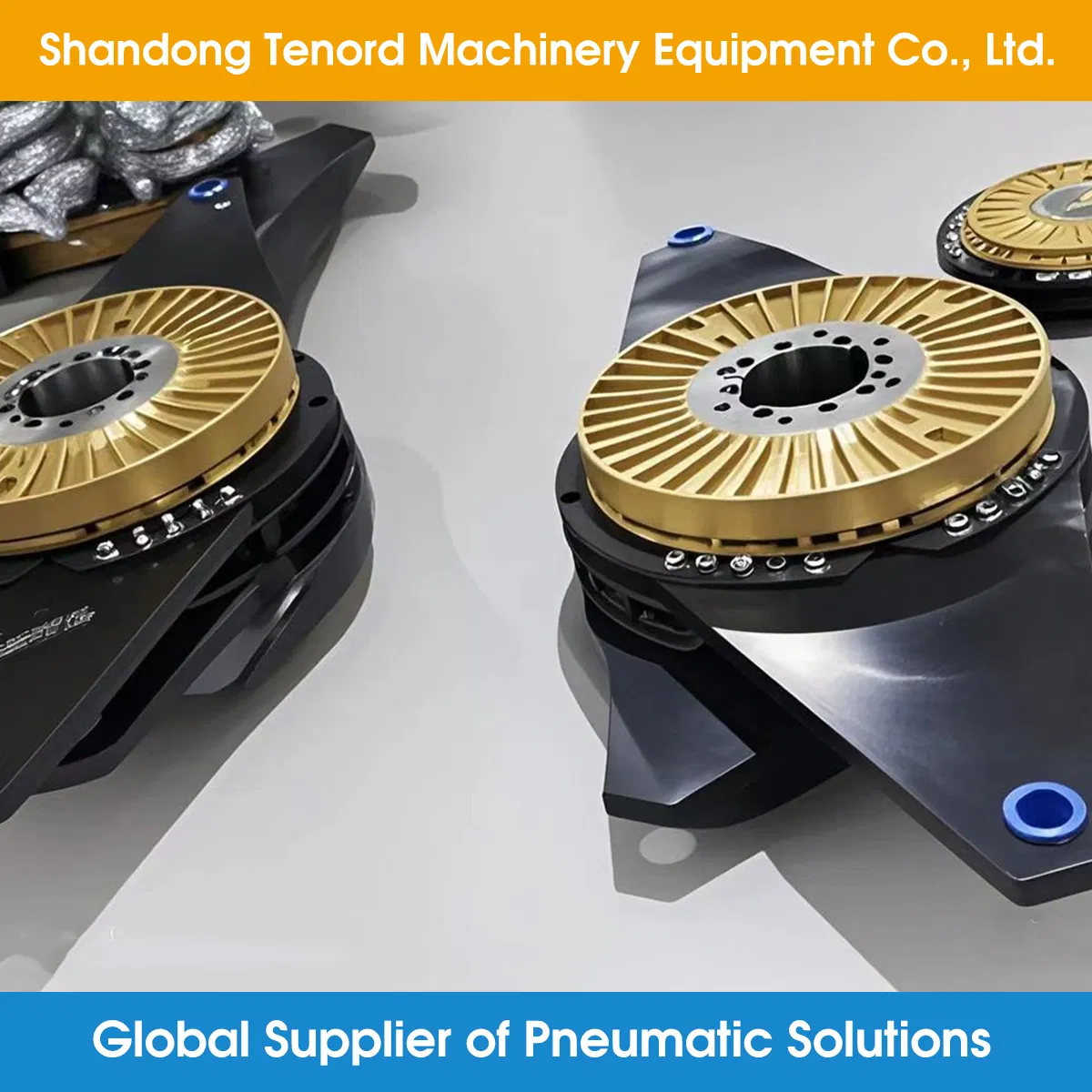

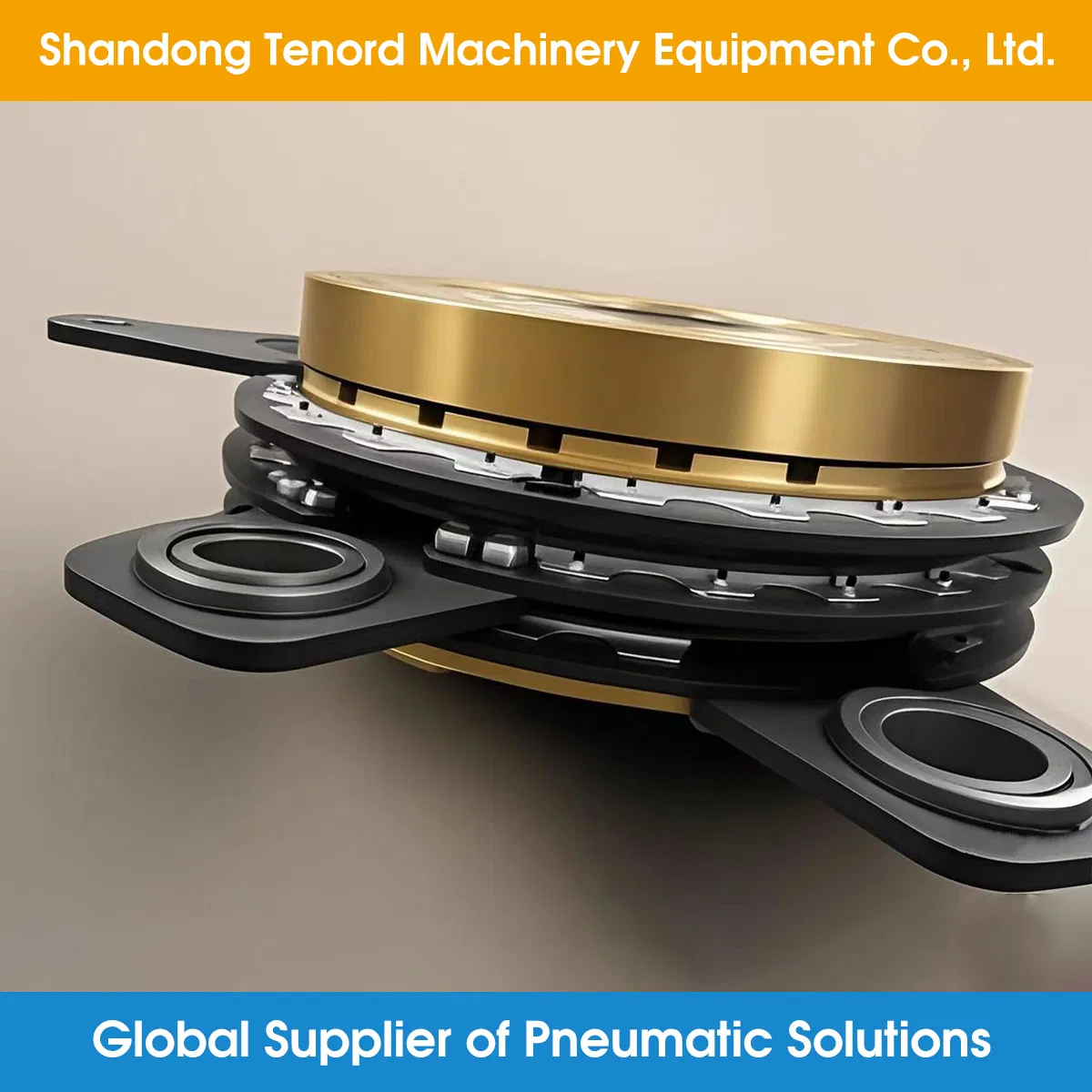

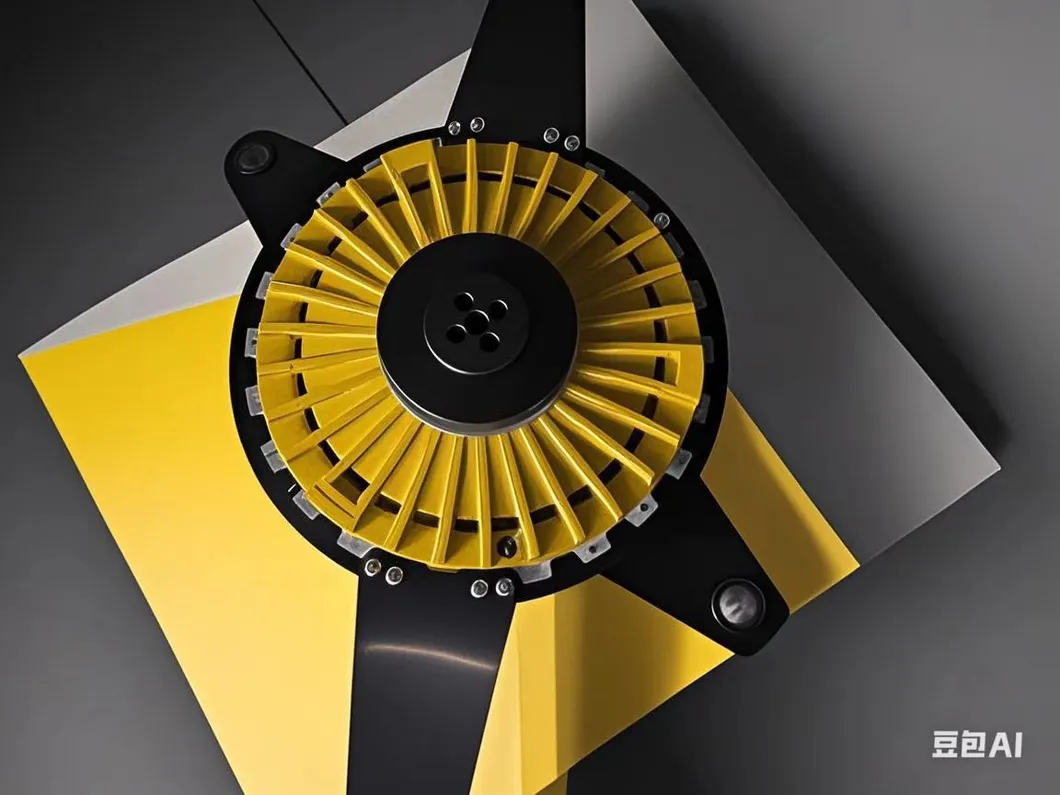

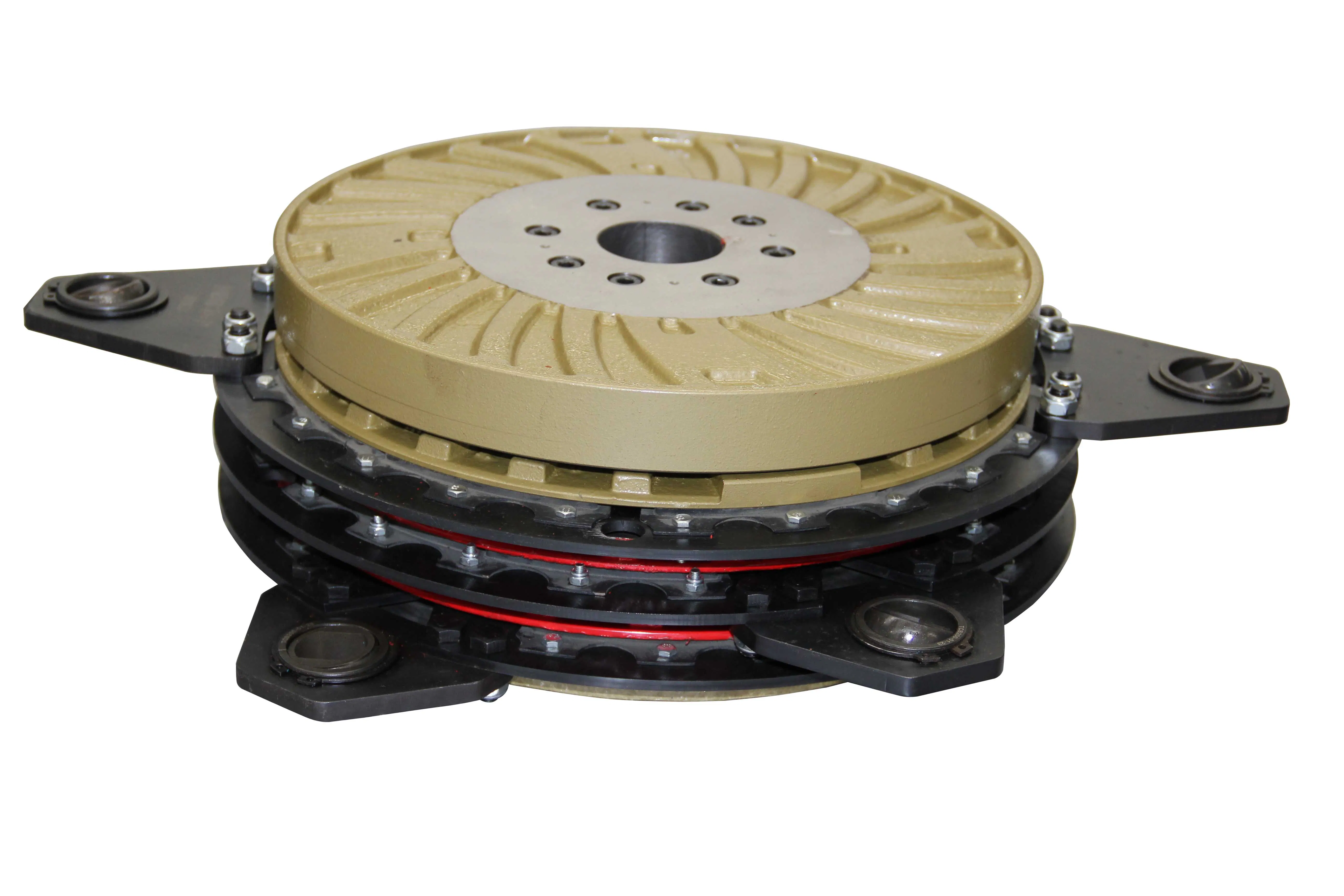

The KB Series Thin-Type Pneumatic Clutch Brake is a sophisticated spring-brake combination that integrates clutch and brake functionalities. Its cutting-edge design provides exceptional adaptability and reliability across various heavy-duty industrial sectors.

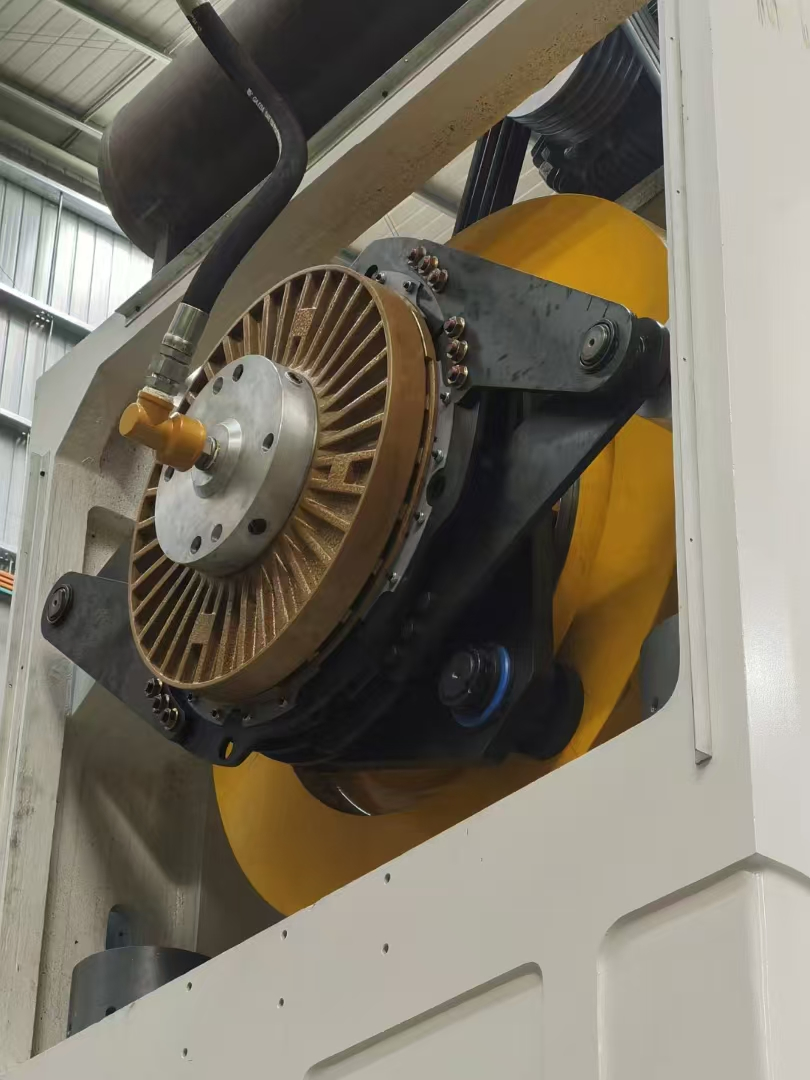

Performance Highlight: The KB500 model features a compact 497mm outer diameter, specifically engineered for 110-125 ton pneumatic power presses. It delivers a formidable 7300N·m transmission torque and 3800N·m braking torque at 6.0 bar pressure.

• Compact Structure: Minimized axial size and light weight reduce rotational inertia and equipment volume.
• Safe and Reliable: Uses Asbestos-Free friction materials to meet environmental and safety standards.
• Easy Maintenance: Effortless friction pad replacement without disassembling the entire clutch.

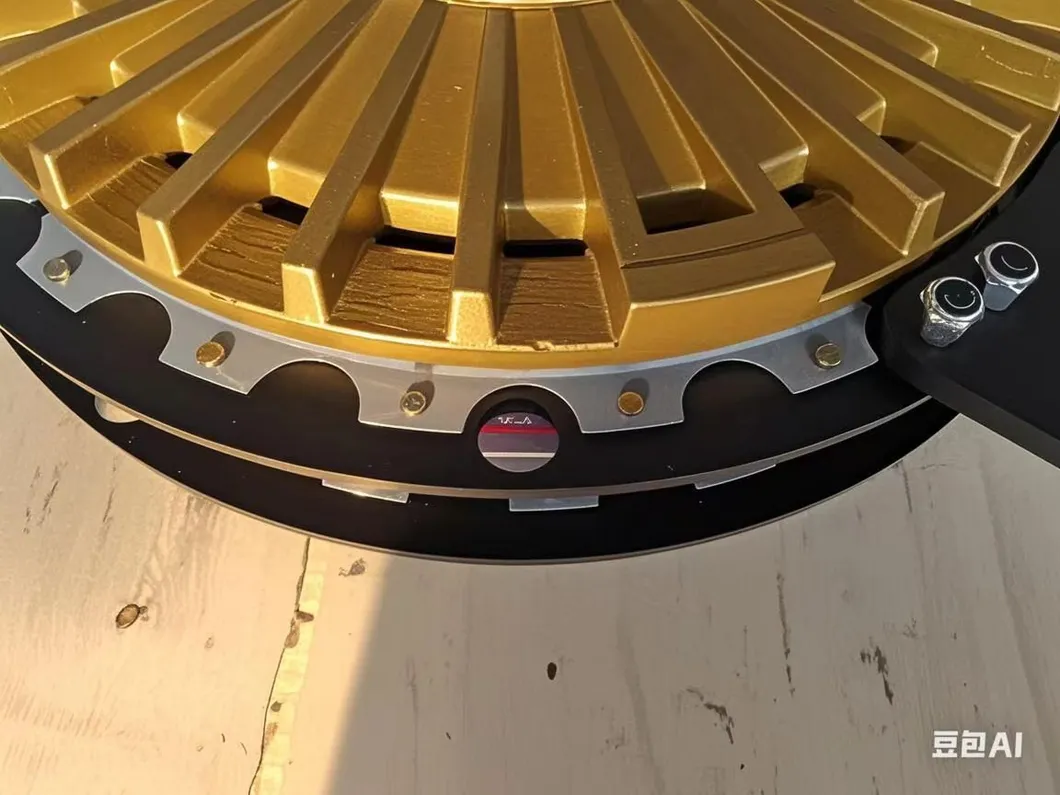

• Superior Heat Dissipation: Unique Disc Arc design enhances cooling during high-load operations.
• Rapid Response: Engagement and disengagement achieved in under 30 milliseconds.

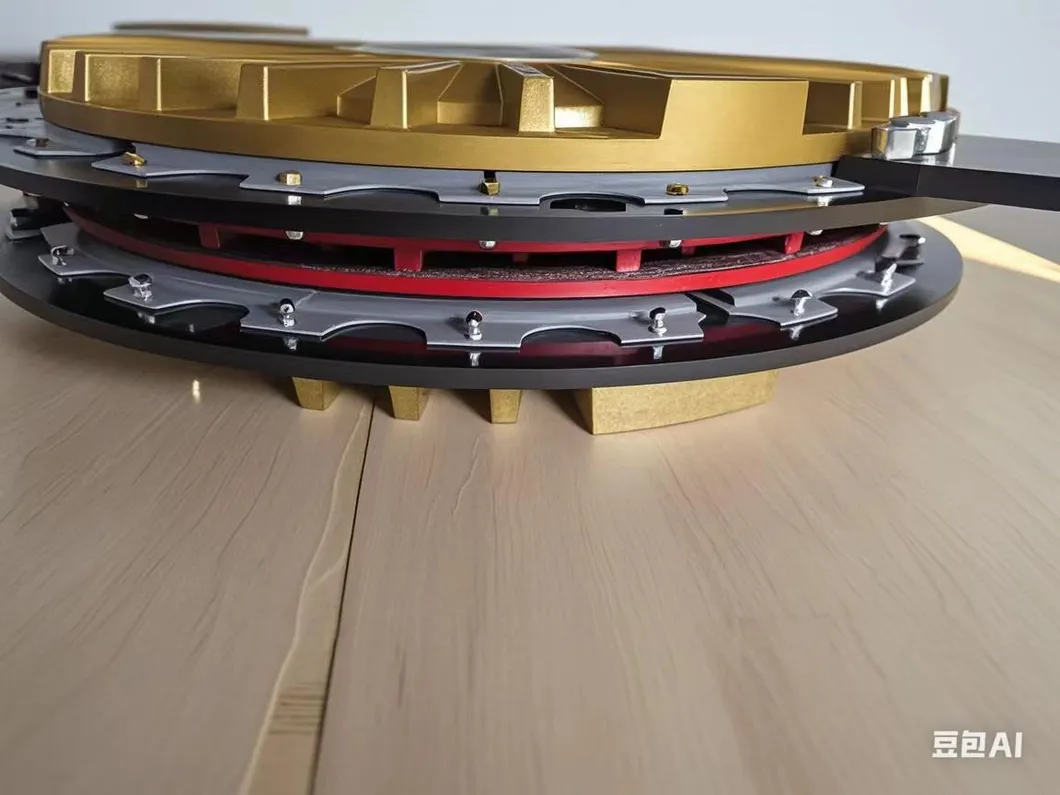

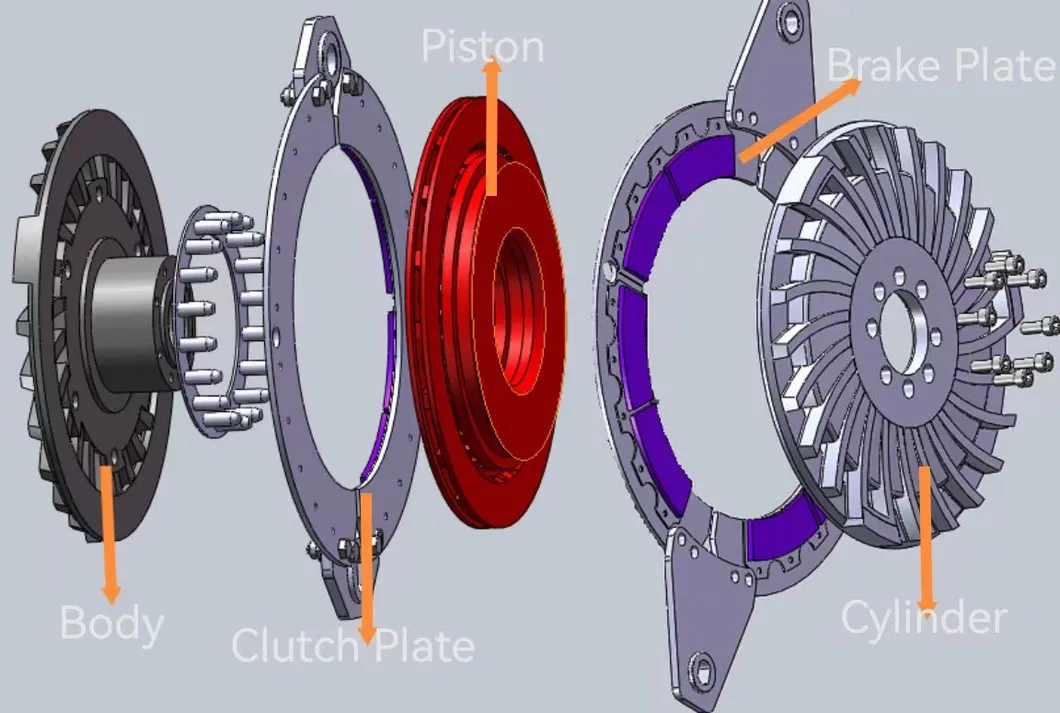

Clutching: Compressed air enters the cylinder, propelling the piston to engage the clutch body via friction pads for seamless power transmission.

Braking: When air supply stops, the piston retreats via spring force, halting the equipment within 0.01 - 0.02 seconds.

• High-Speed Safety: Never touch the rotating clutch or allow contact with external objects.
• Temperature Care: Allow 30 minutes for cooling before performing maintenance to avoid burns.

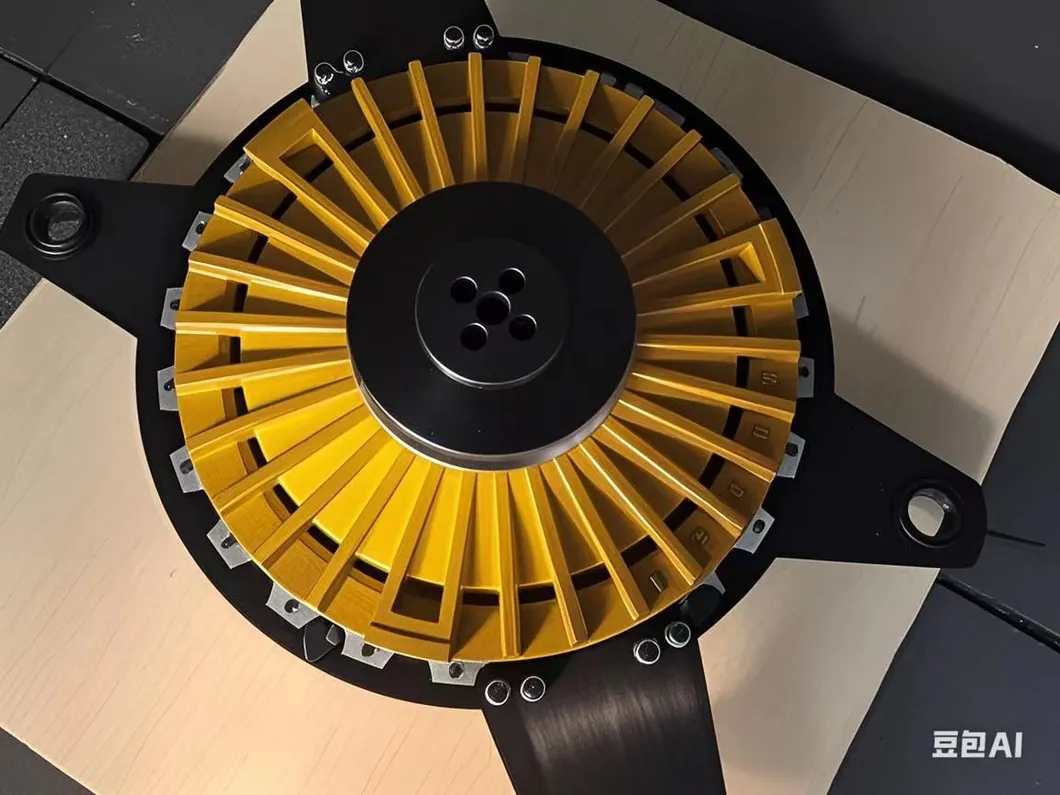

• Pad Replacement: Replace friction pads when wear exceeds half of the original thickness.
• Pro-Tip: Use square pins to rectify installation size discrepancies and address thermal deformation.
