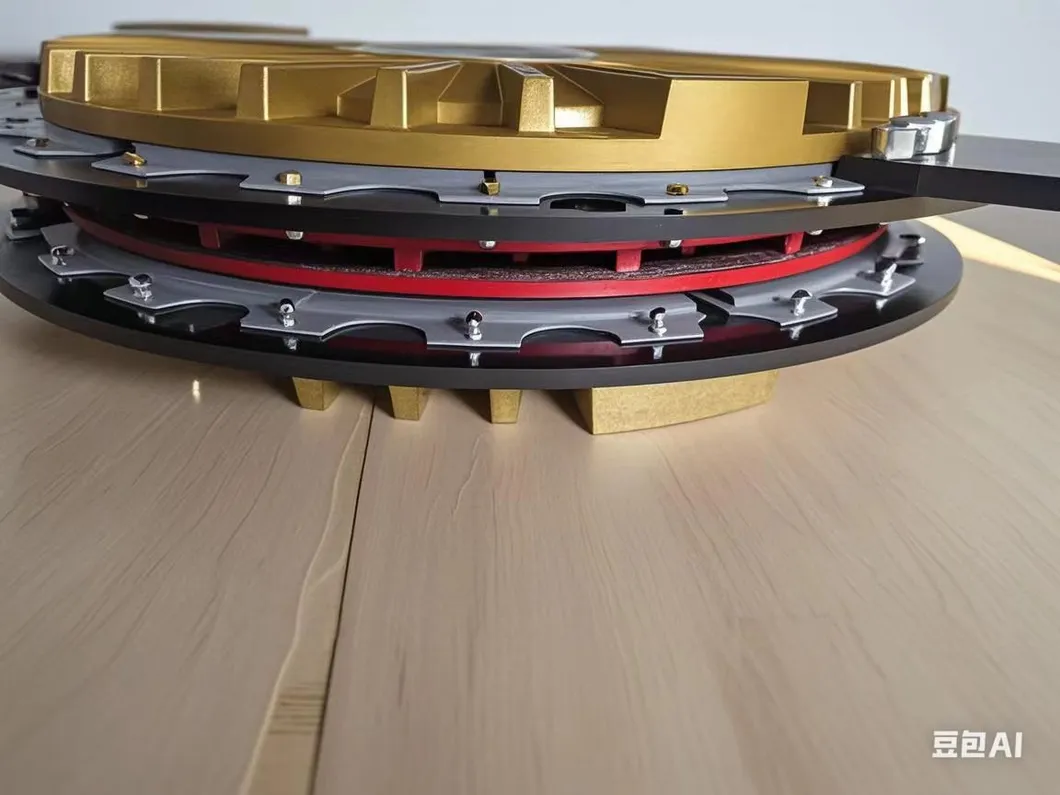

The KB500 Dry Pneumatic Clutch Brake stands as the cornerstone model. Boasting a streamlined outer diameter of 497mm, it is meticulously designed for 110-125 ton pneumatic power presses, bench-type presses, and 120 ton powder compacting presses.
| Model | Clutch Torque (Nm) | Brake Torque (Nm) | Max RPM | Air Pressure (bar) | Weight (kg) |
|---|---|---|---|---|---|
| KB25 | 260 | 180 | 3000 | 5-7 | 15 |
| KB50 | 520 | 360 | 3000 | 5-7 | 25 |
| KB100 | 1040 | 720 | 2500 | 5-7 | 40 |
| KB200 | 2080 | 1440 | 2500 | 5-7 | 65 |
| KB400 | 4160 | 2880 | 2000 | 5-7 | 95 |
| KB500 | 5200 | 3600 | 2000 | 5-7 | 110 |
| KB600 | 6240 | 4320 | 1800 | 5-7 | 125 |
| KB800 | 8320 | 5760 | 1800 | 5-7 | 145 |
| KB1200 | 12480 | 8640 | 1500 | 5-7 | 175 |
| HT1500 | 15600 | 10800 | 1200 | 5-7 | 200 |
| HT2150 | 22360 | 15480 | 1200 | 5-7 | 245 |
| HT2900 | 30160 | 20880 | 1000 | 5-7 | 300 |
Operation Safety: Never touch the clutch during high-speed rotation. Use protective covers to prevent injury from debris ejection.
Thermal Safety: Allow the unit to cool for 30 minutes before maintenance to avoid burns.
Internal Springs: Do not attempt unauthorized disassembly of internal spring structures.
