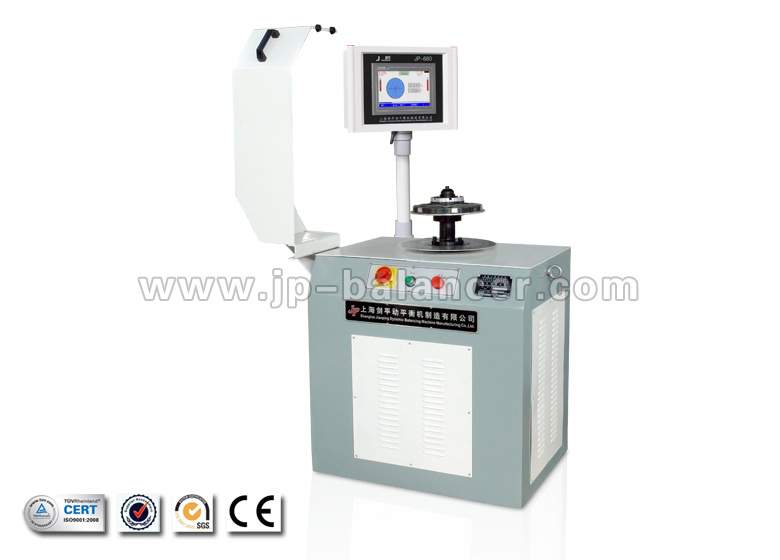

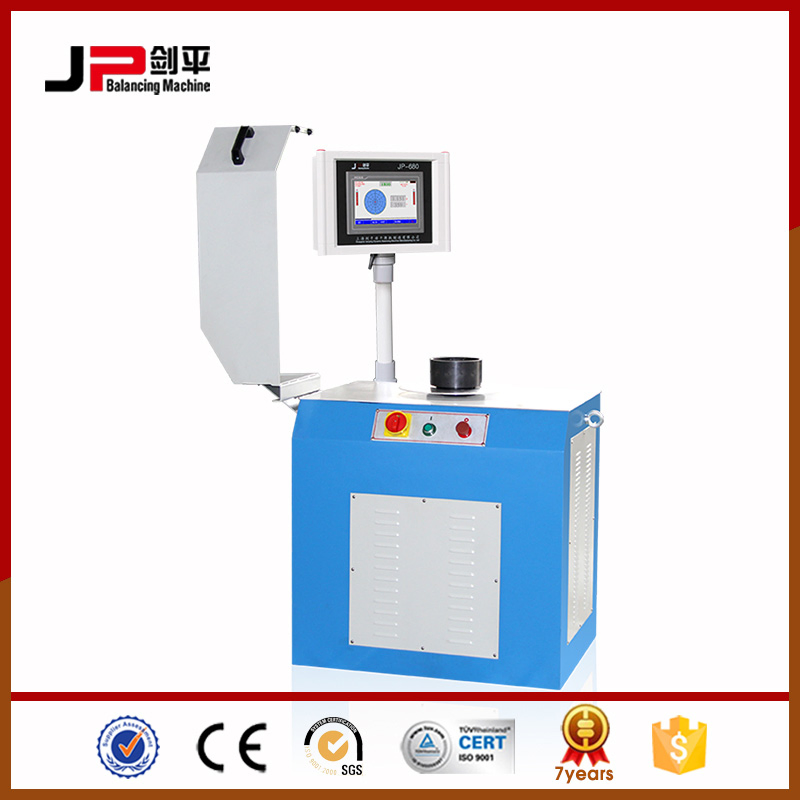

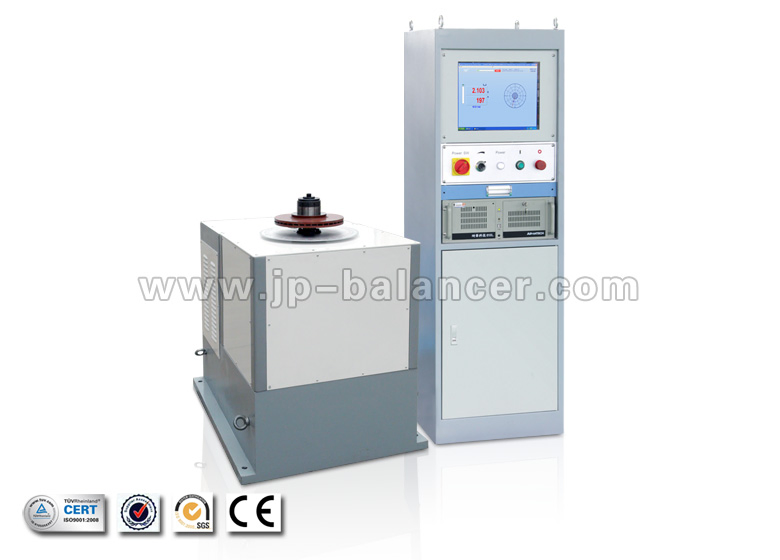

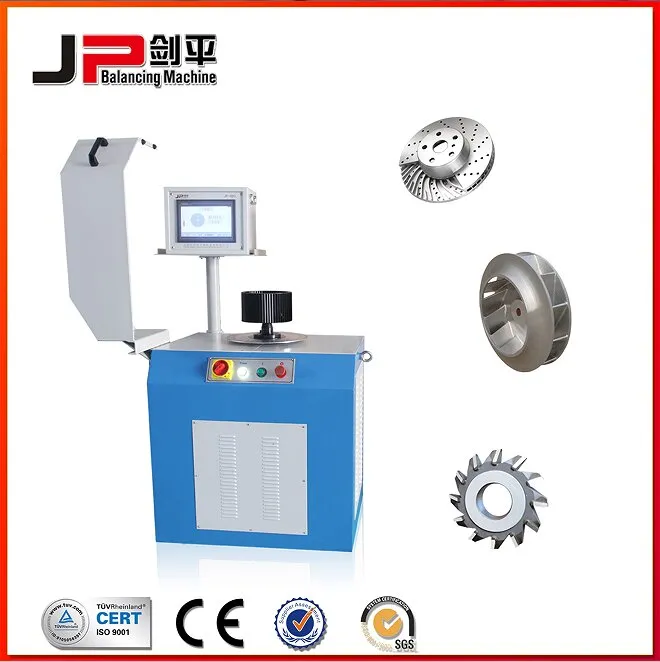

Vertical Balancing Machine PHLD-16 (JP 680)
Applicable to medium workpieces
| Technical data at a glance | PHLD-42 | PHLD-65 | PHLD-100 | PHLD-150Q | PHLD-200 |
|---|---|---|---|---|---|
| Max Mass of Workpiece (kg) | 42 | 65 | 100 | 150 | 200 |
| Max Diameter of Workpiece (mm) | 510 / 800 | 510 / 800 | 600 / 1000 | 600 | 600 / 1000 |
| Height of workpiece (mm) | 160 | 160 | 200 | 300 | 200 |
| Spindle speed (r/min) | 800 | 700 | ~600 | ~500 | ~600 |
| Motor power (kw) | 1.5 | 2.2 | 3 | 3 | 4 |
| Min Achievable Residual Unbalance (emar) | 3g·mm/kg | 3g·mm/kg | 5g·mm/kg | 5g·mm/kg | 5g·mm/kg |
* Frequency conversion supported on specific models. Hood options available for diameter adjustments.

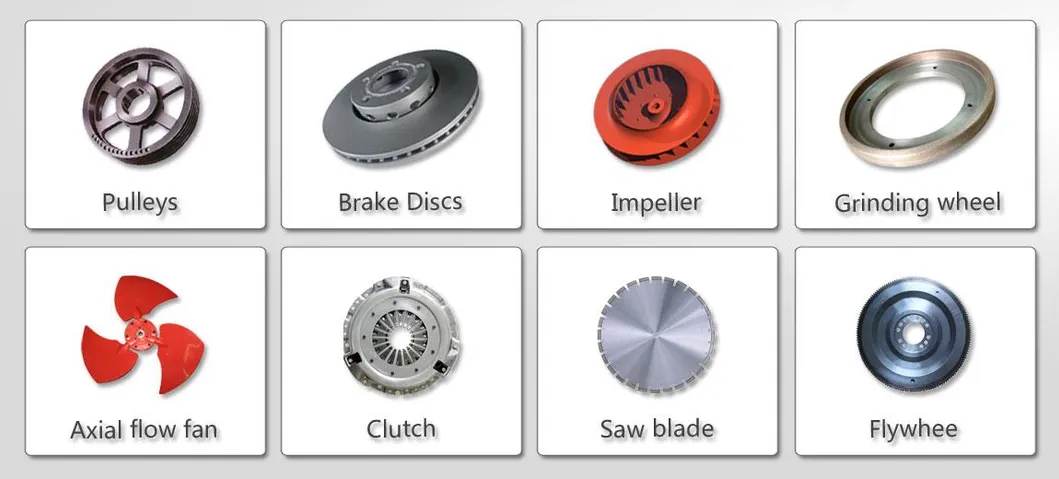

This balancing machine is designed for discoid parts and widely used in various industrial sectors. Key applications include:
Special Features:

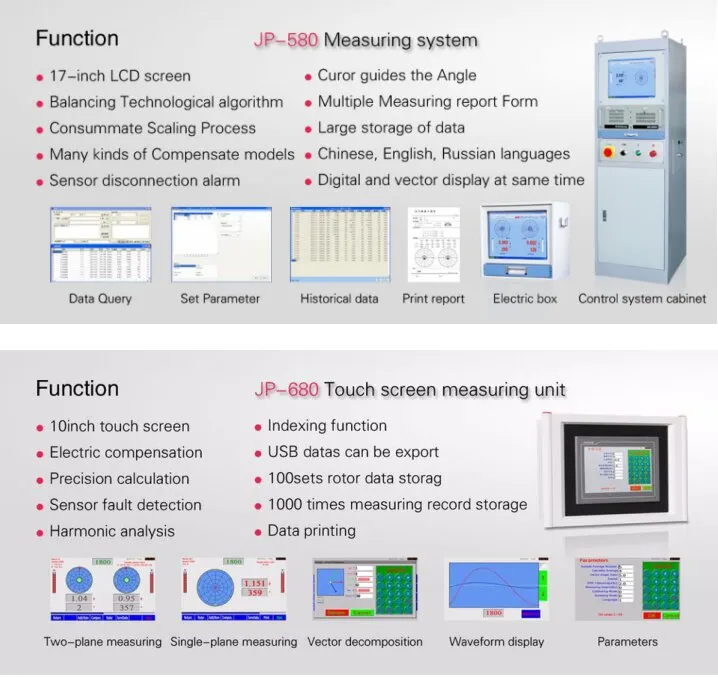

The unit employs the JP-580 Electrical Measuring System, a top-tier functional system for high precision. It supports both single and double plate balancing for hard/soft bearing machines.

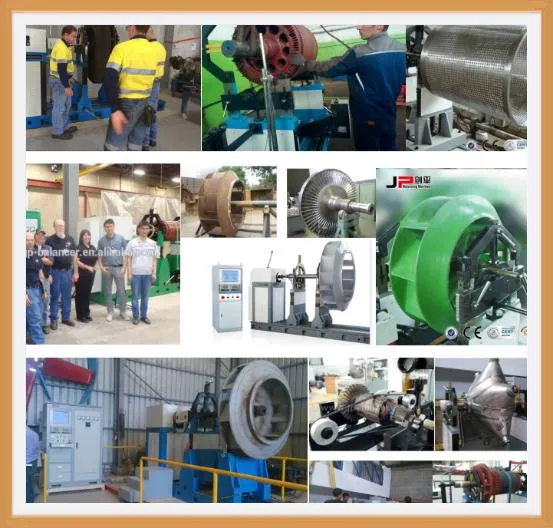

Customer Use Display:

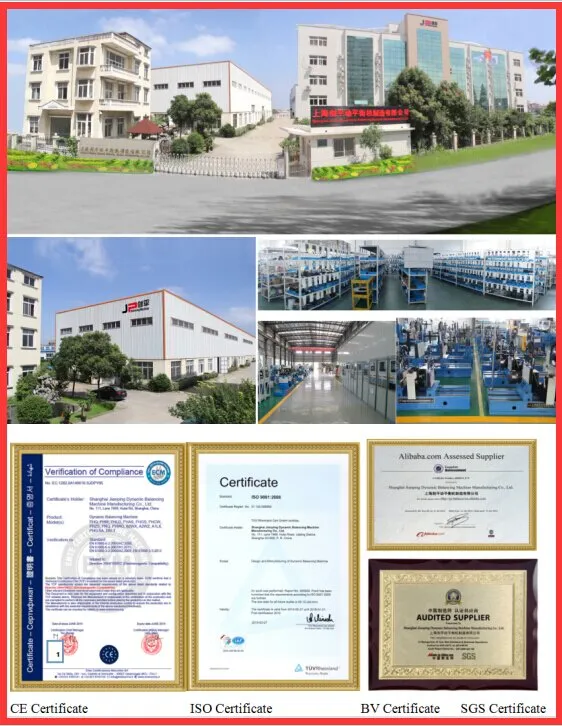

Manufacturing Excellence:
As a professional balancing machine manufacturer, we offer ten series and over 40 models, including belt drive, universal joint drive, vertical, and automatic balancing machines. Our facilities cover 10,000 square meters to ensure high-quality production standards.
