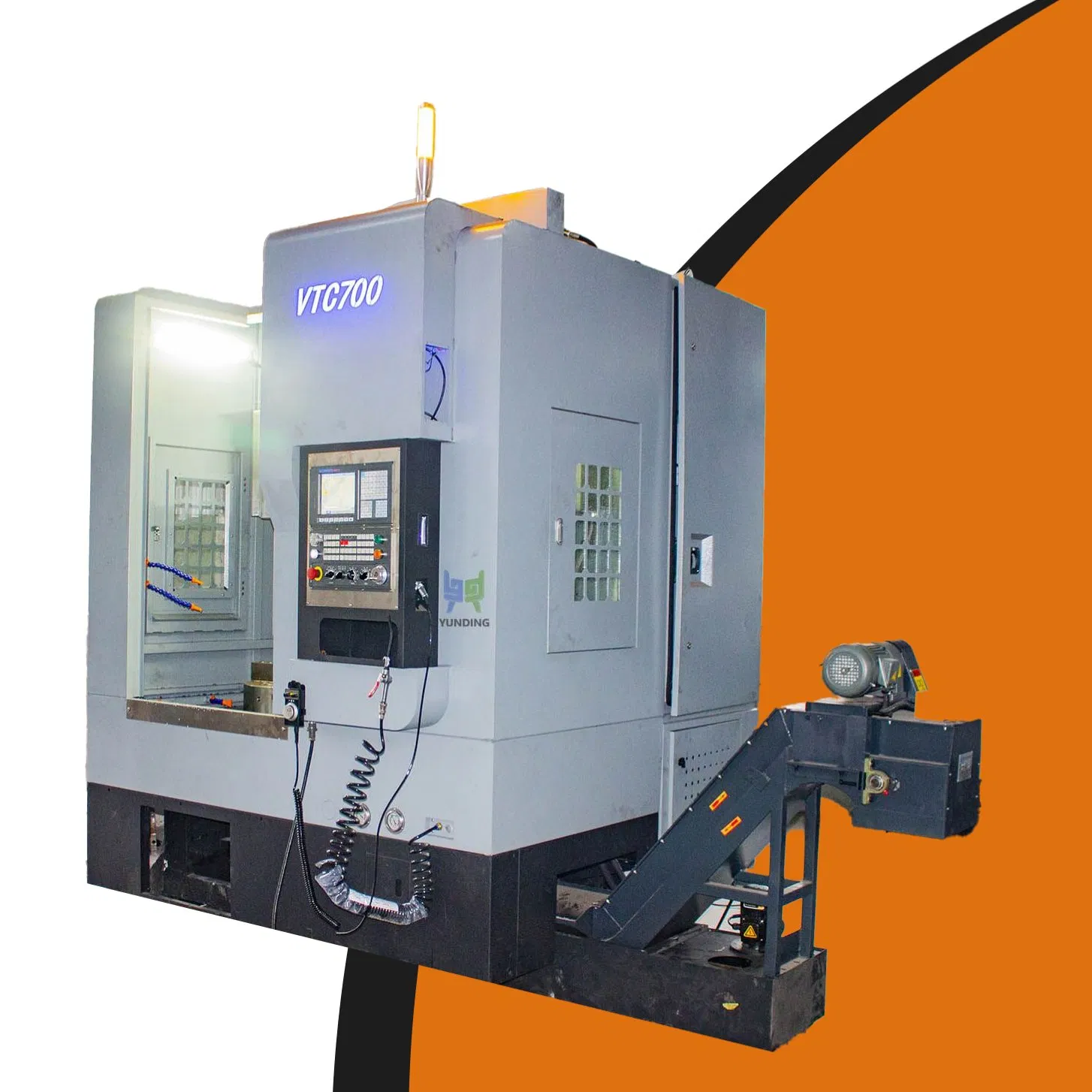

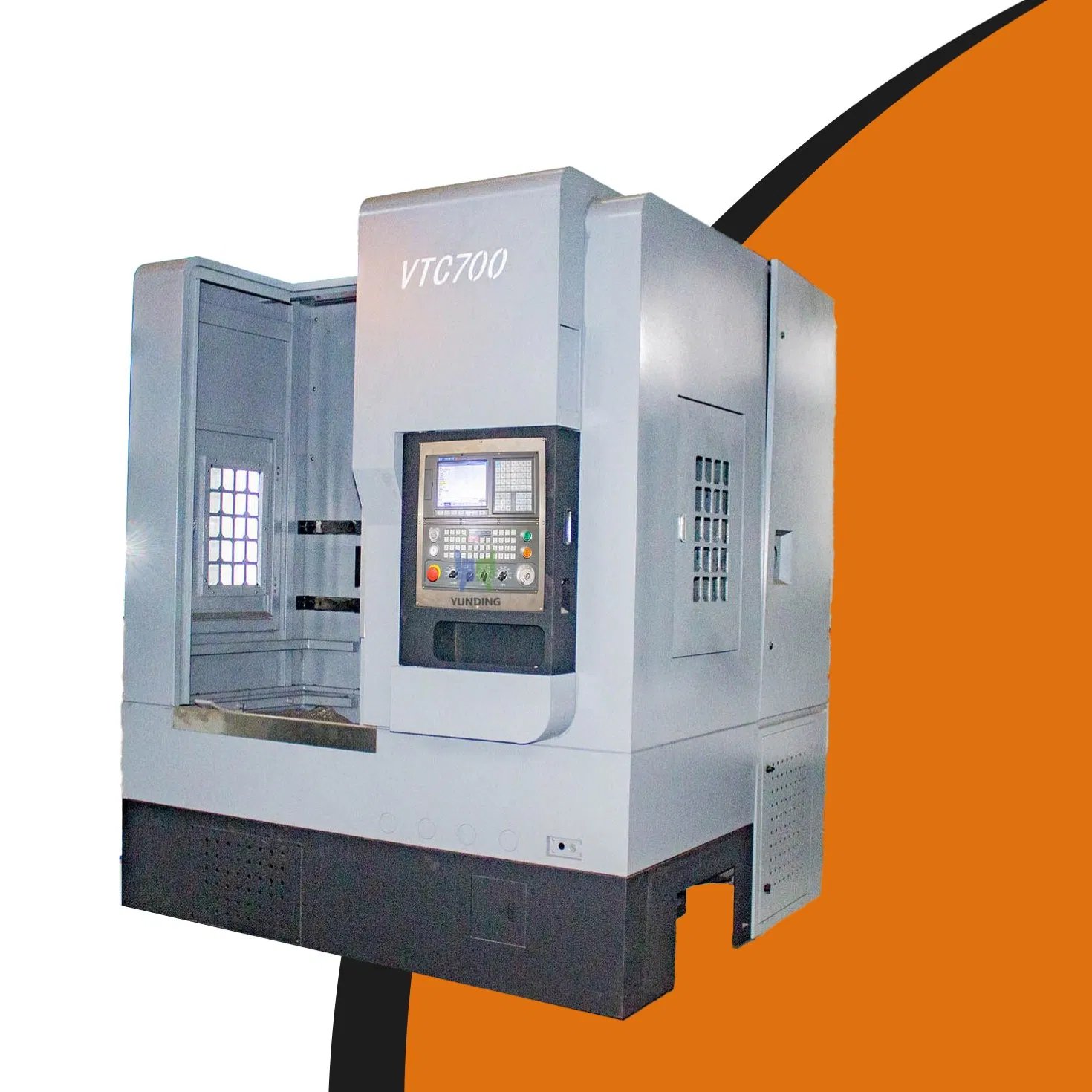

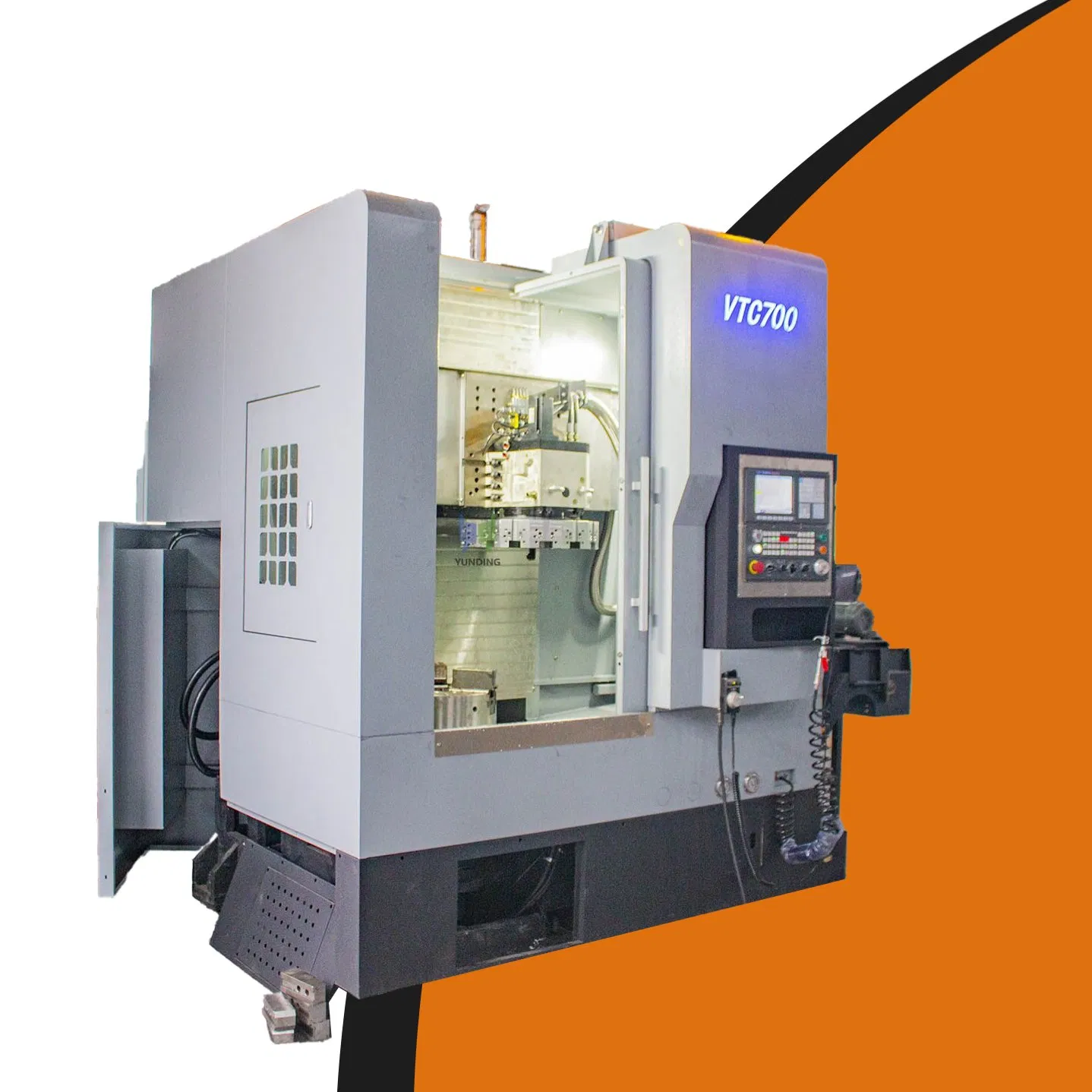

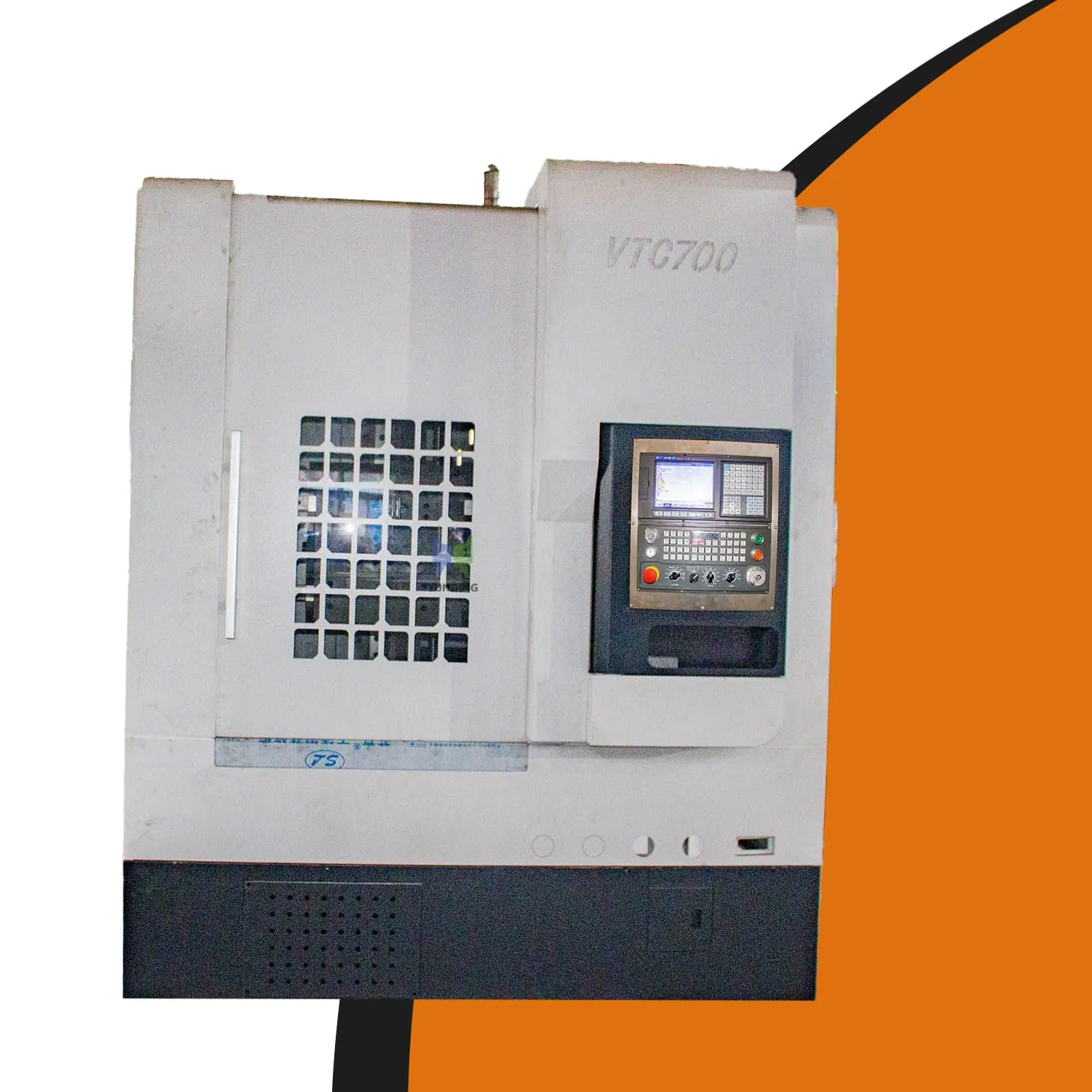

Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
1 / 5
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub
Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub

Space Saving Vtc700 CNC Vertical Lathe Machine Siemens System for Auto Brake Hub

Customization: Available
After-sales Service: Online After-Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model:VTC700
Application:Metal Cutting
Numerical Control:CNC/MNC
Max Swing Diameter:700mm
Max Turning Diameter:650mm
Processing Precision:0.01~0.02(mm)
Spindle Chuck:500mm Hydraulic
Weight:5800kg
Certification:GS, CE, RoHS, ISO 9001

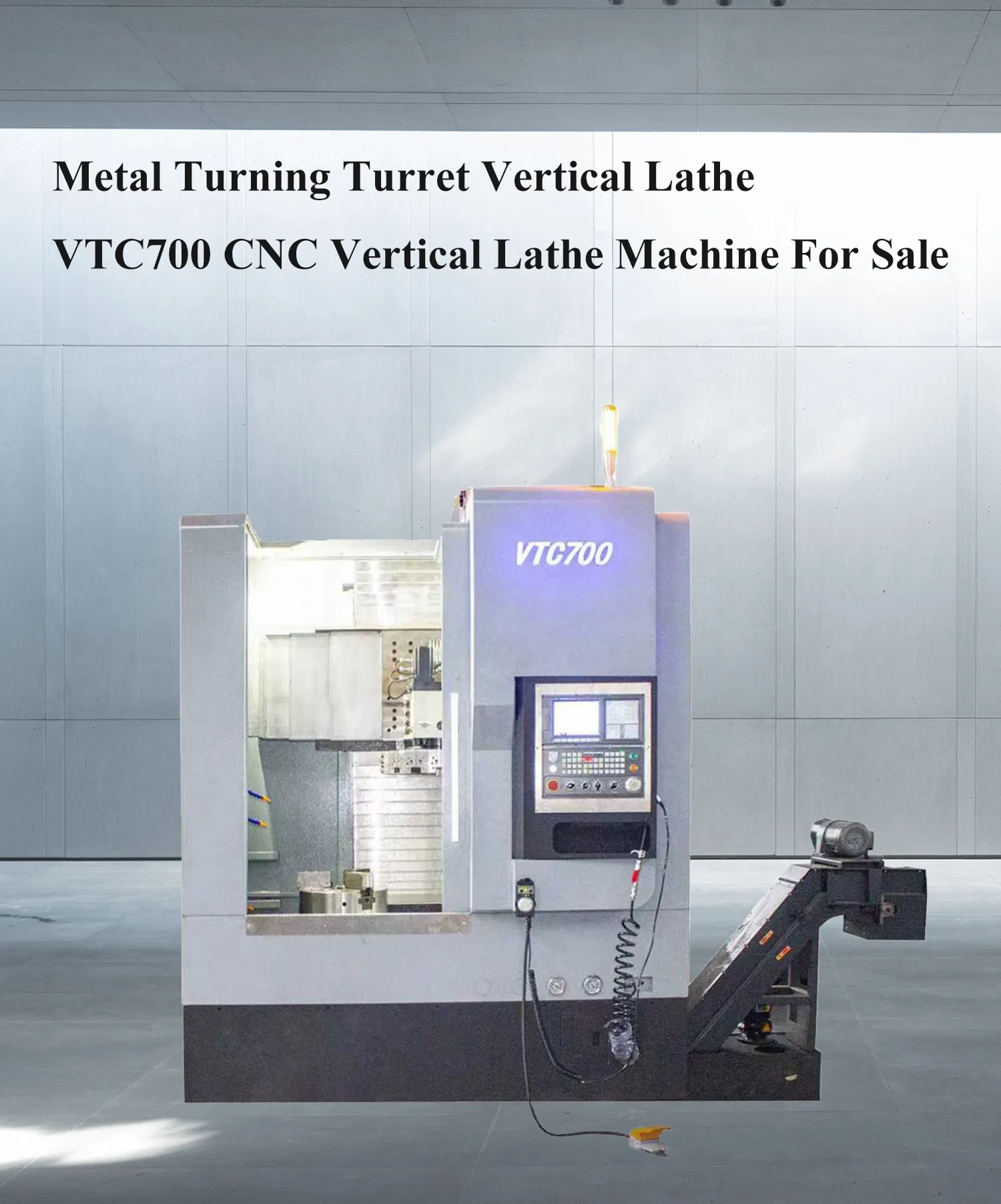

VTC700 CNC Vertical Lathe Overview
CNC Vertical Lathe System
Product Description

Professional CNC Vertical Lathe Solutions

Vertical CNC lathes are engineered for processing large, heavy workpieces with significant radial dimensions and complex shapes. This equipment is ideal for machining cylindrical surfaces, end faces, conical holes, and various disc or wheel components.

Key Advantages vs. Horizontal Lathes:

✓ High Stability: Workpiece weight aids clamping, ensuring a tight fit and reducing gravitational inertia for high-precision results.
✓ Specialized Parts: Easier handling for thin-walled, irregular, or difficult-to-grip components.
✓ Space Efficient: Occupies only 1/2 the floor area of a horizontal lathe with similar specs.
✓ Automation Ready: Designed for easy integration into automated assembly lines.
Technical Specifications
Specifications Unit VTC700 Data
Max. turning diametermm700
Max. rotating diametermm650
Hydraulic chuck diametermm500
Spindle speedrpm500-1000
Cutting feed speedmm/min0.1-1000
Tool post vertical travelmm550
Tool post horizontal travelmm420
X/Z axis fast traversemm/min15000 / 12000
Main motor powerkW11/15 (210NM Torque)
Positioning accuracymm0.03
Repeat positioning accuracymm0.015
Machine Dimensionmm2250 × 1960 × 2650

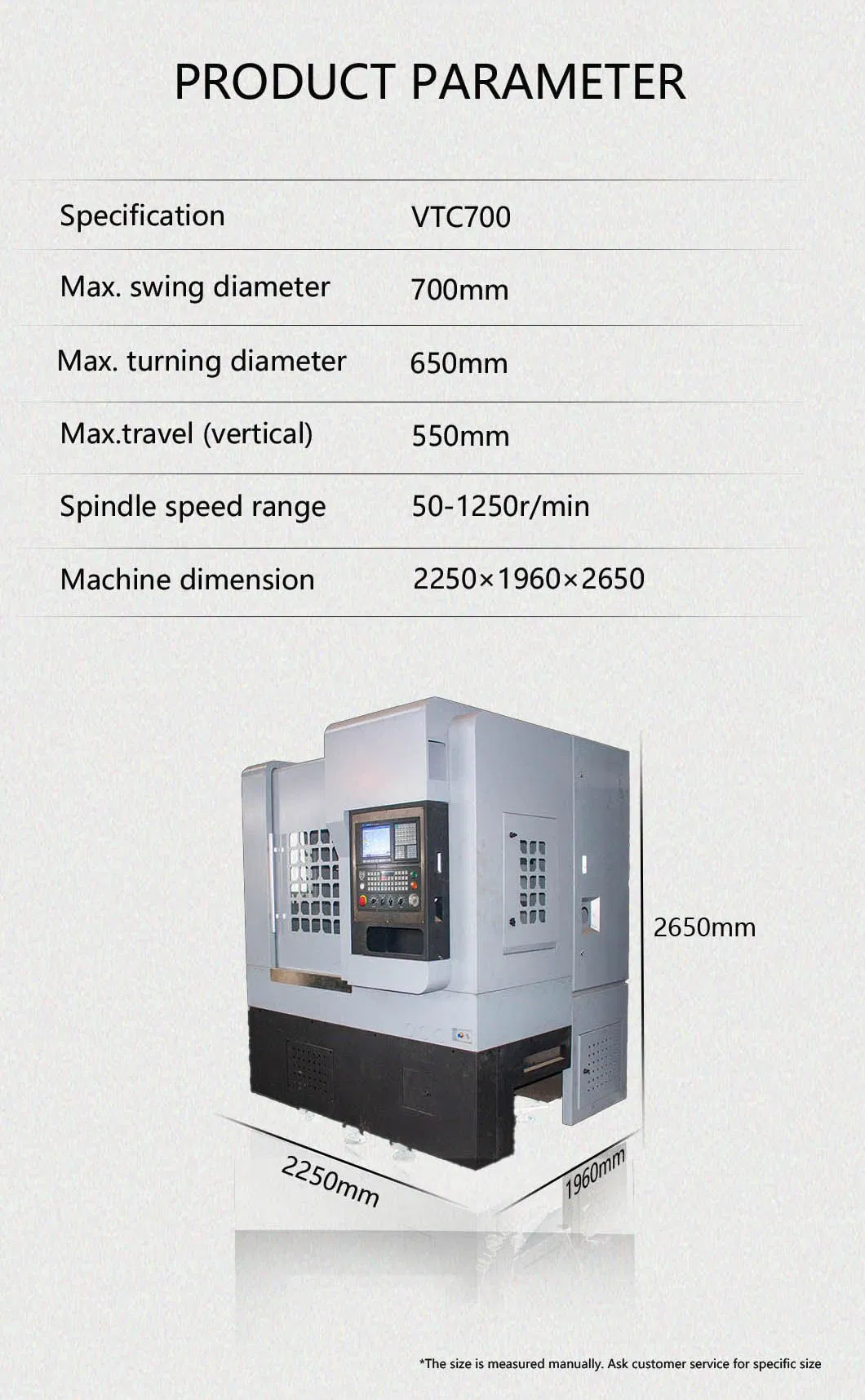

VTC700 Construction

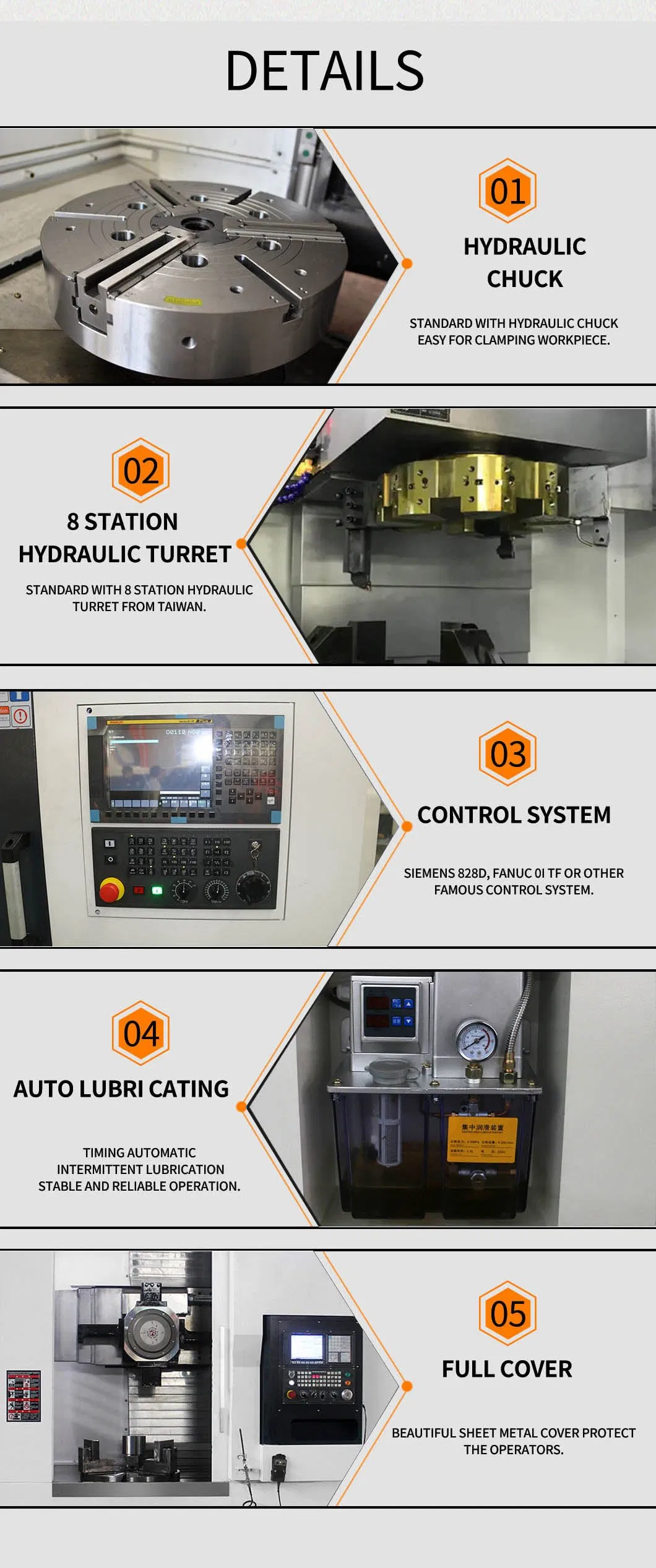

VTC700 Internal View

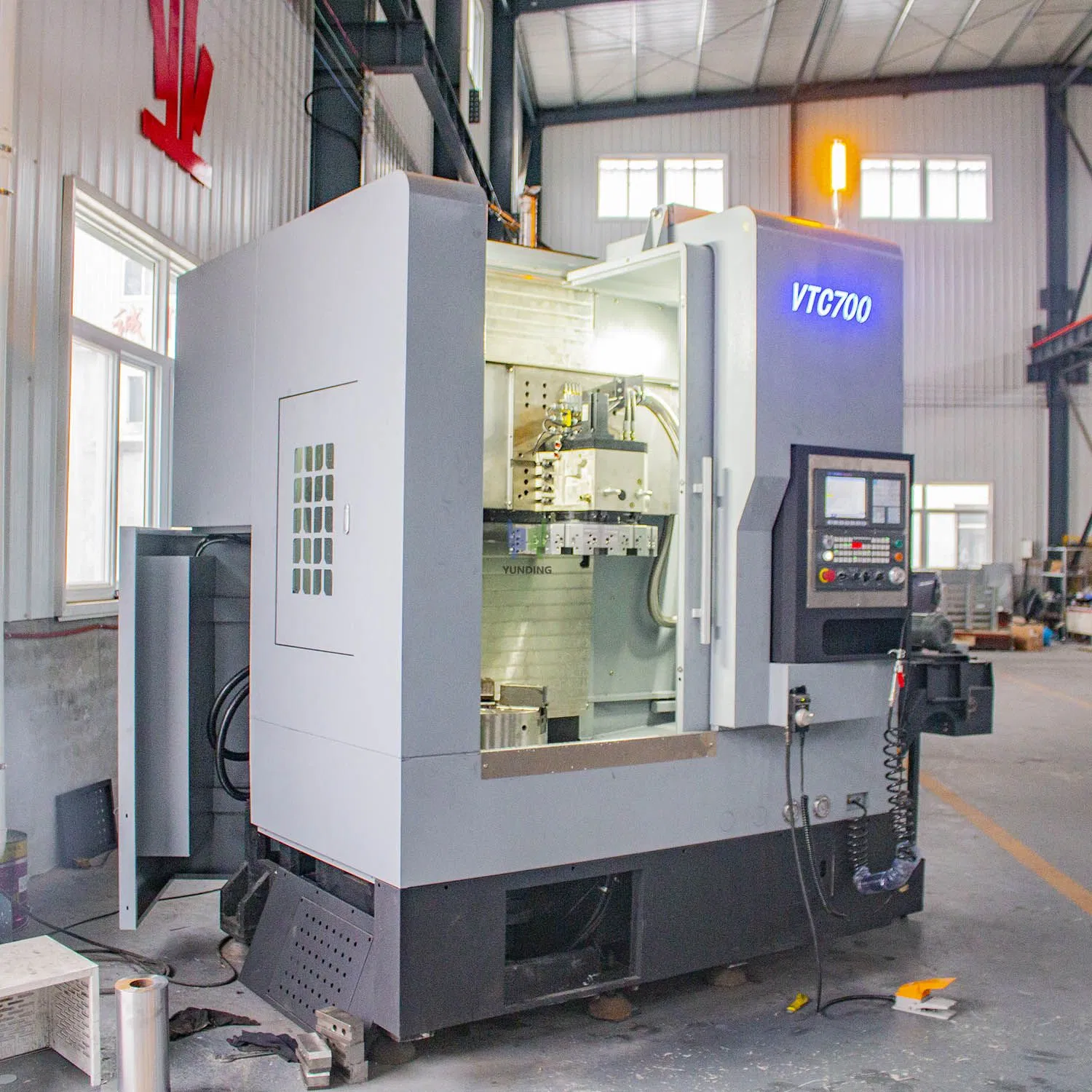

Lathe Component

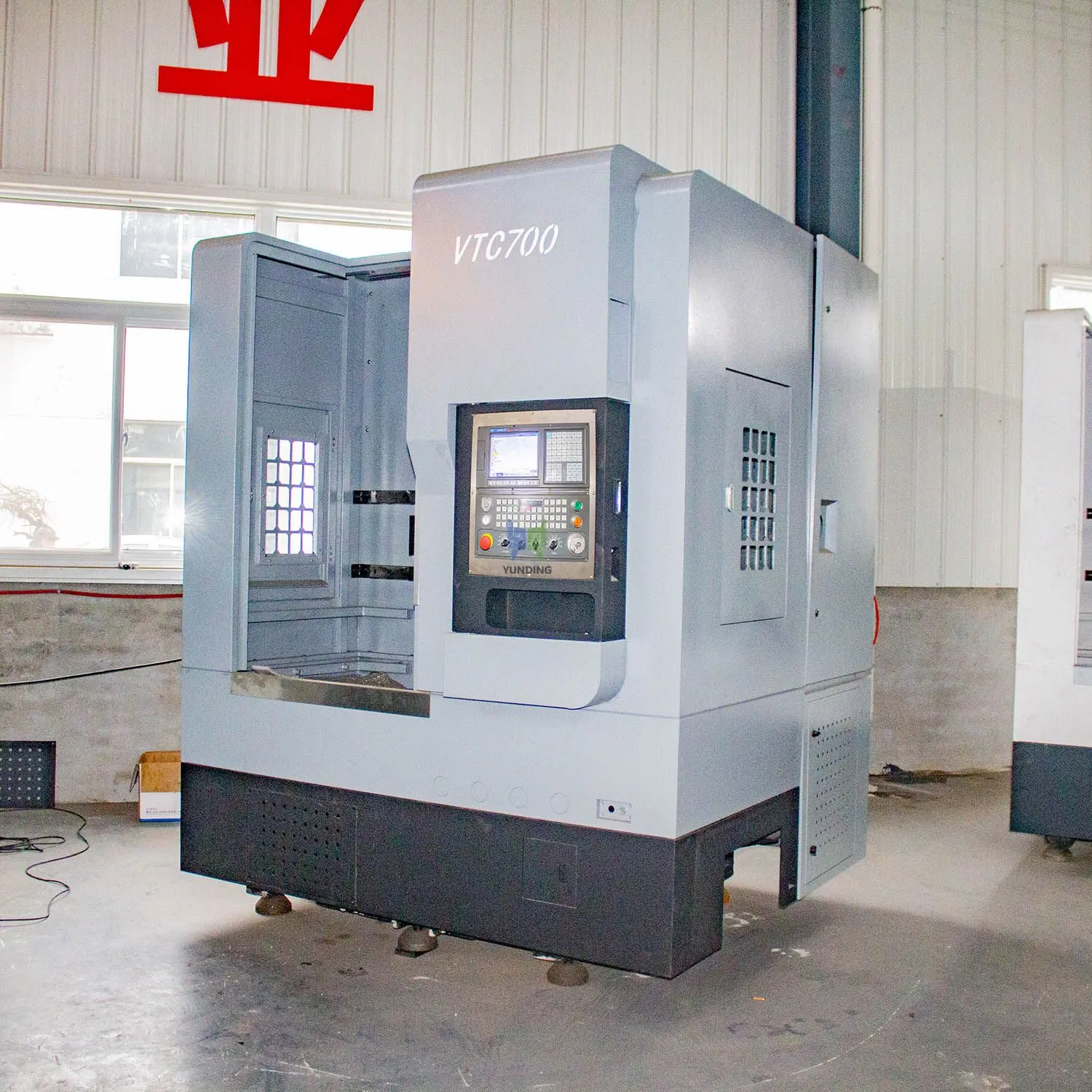

CNC Precision Detail

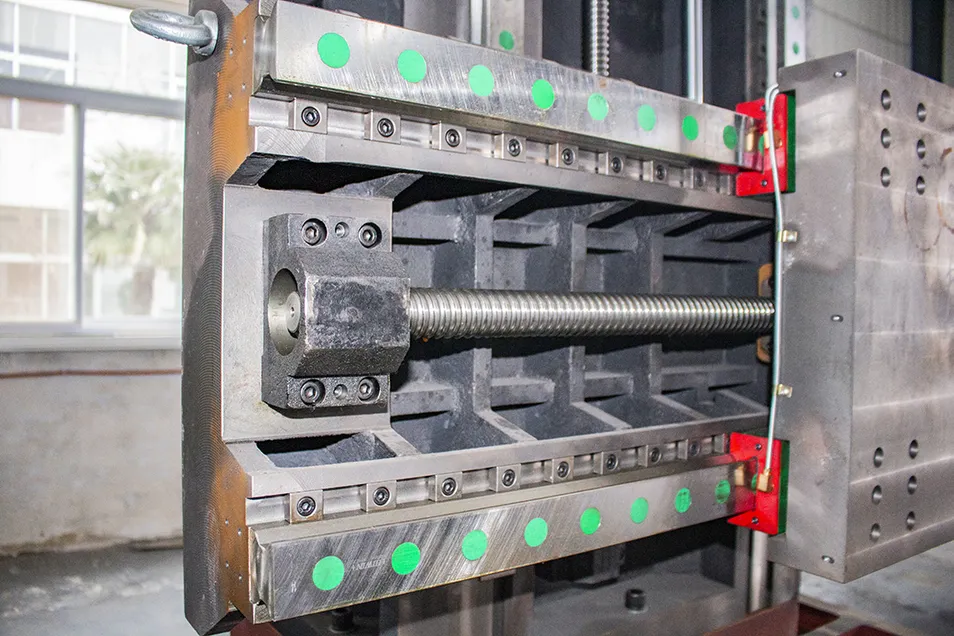

Workpiece Sample

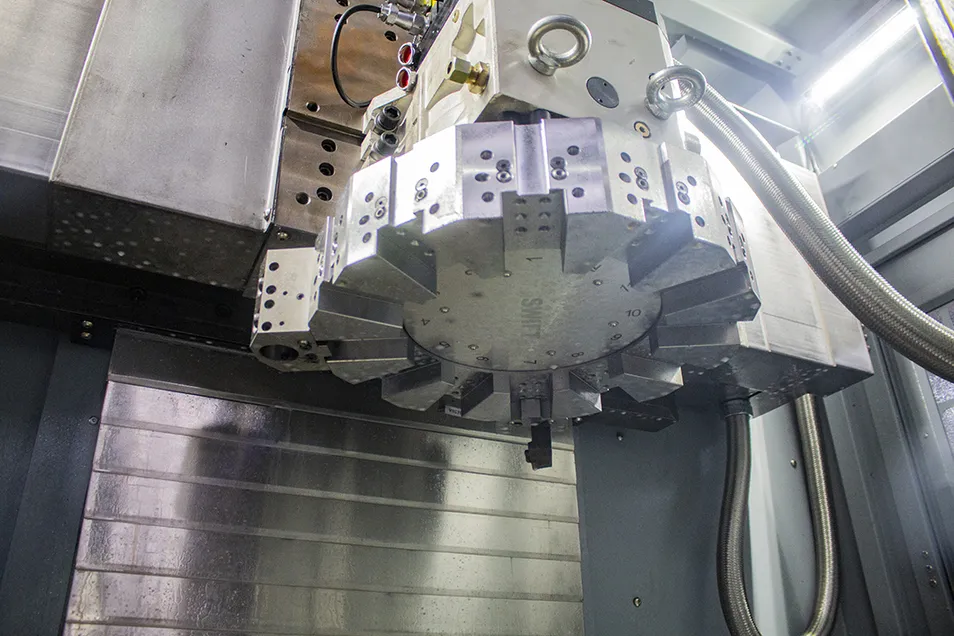

Machining Process
Packaging & Delivery
Package Size:225.00cm * 196.00cm * 265.00cm
Gross Weight:5800.00kg
Package Type:Plywood Case for Export

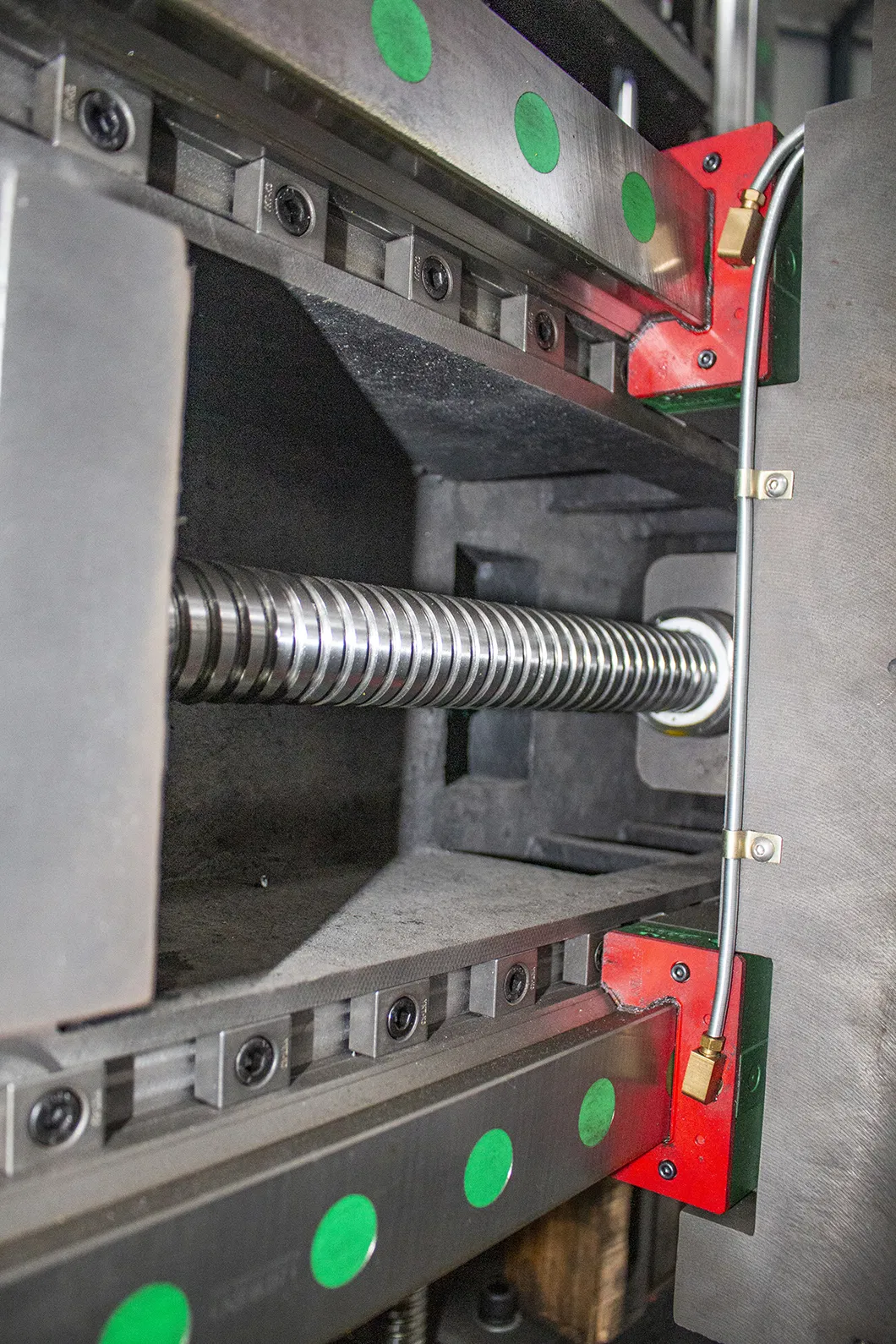

Technical Layout
Control Panel and System
Full Machine Specs
Frequently Asked Questions
1. How can I choose the most suitable machine?
Please provide your technical specifications or workpiece drawings. Our engineering team will evaluate your needs and recommend the best model for your specific production requirements.
2. What are the main products available?
We specialize in a wide range of industrial equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.
3. What are the accepted trade and payment terms?
We accept FOB, CFR, and CIF terms. Payment typically requires a 30% initial deposit via T/T, with the remaining 70% balance due before shipment. Irrevocable LC at sight is also accepted.
4. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. For certain low-cost auxiliary machines, the MOQ might be higher, but for all primary CNC equipment, we support single-unit orders.
5. What information is needed for a quote?
To provide an accurate evaluation, please specify your industrial voltage, the material and dimensions of your workpiece, and your destination port if you require CIF pricing.
6. How is the machine precision guaranteed?
The VTC700 features a positioning accuracy of 0.03mm and repeat positioning accuracy of 0.015mm, supported by high-torque motors and a rigid vertical structure.
