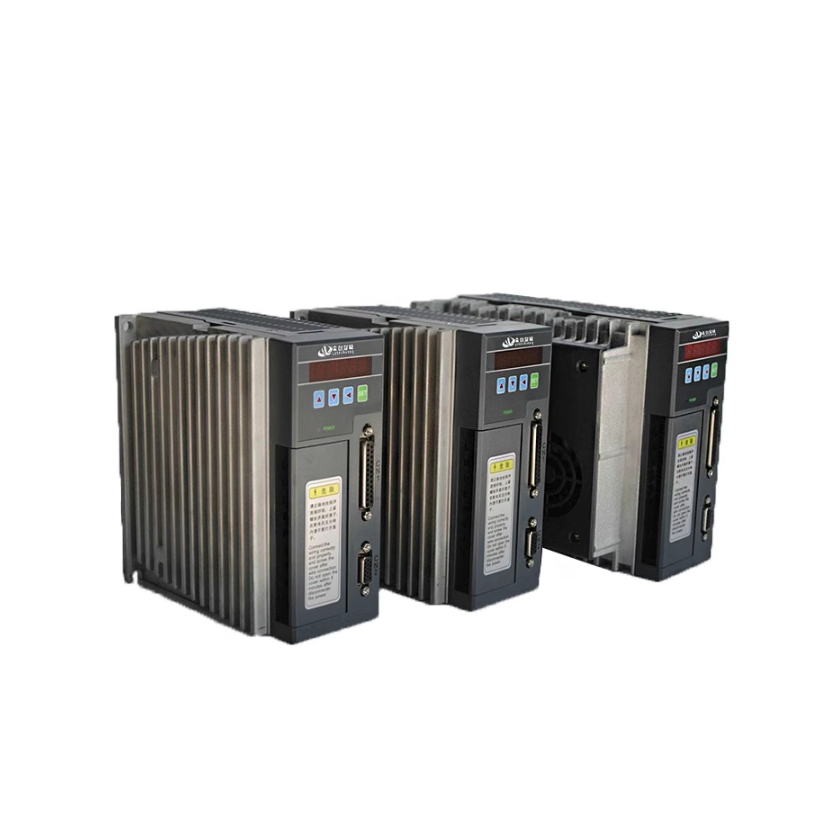

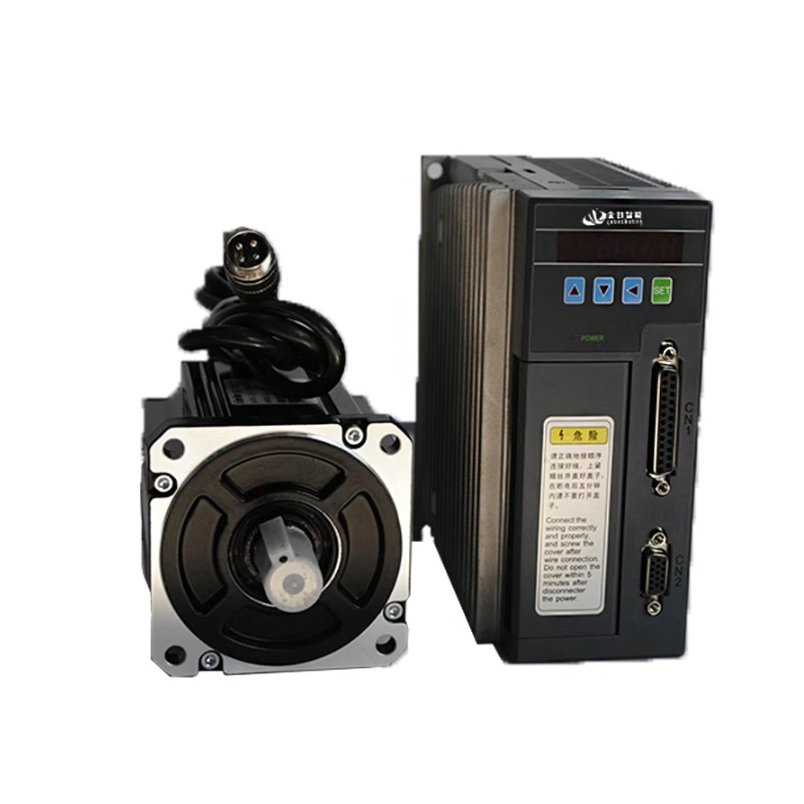

Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
1 / 5
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake
Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake

Economical Model B2series 220V/380V Outdoor Stepper Servo-Driver AC Servo System with Brake

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
850W
Mathematical Model
Linear
Signal
Continuous
Function
Automatic Control, Protection
Certification
CCC, ISO: 9001, CE
Material
Aluminum Alloy
Control Type
PWM Sine Wave Vector Control
Feedback Mode
2500PPR Incremental Encoder
Condition
New
Origin
China
🚀 Product Description
B2 Series Universal Servo Driver & Motor
✔ Control mode: Position, Speed, Torque, Internal speed control
✔ Adaptive feedback: 2500PPR incremental/wire-saving encoder; 17-bit absolute encoder
✔ Communication: RS485 Modbus
✔ Hardware: Latest IPM module, small size, strong overload capacity
✔ Optimization: Enhanced brake unit for frequent start/stop
✔ Operation: Easy 4-key parameter setting and monitoring
✔ Power range: 0.1~5.5KW

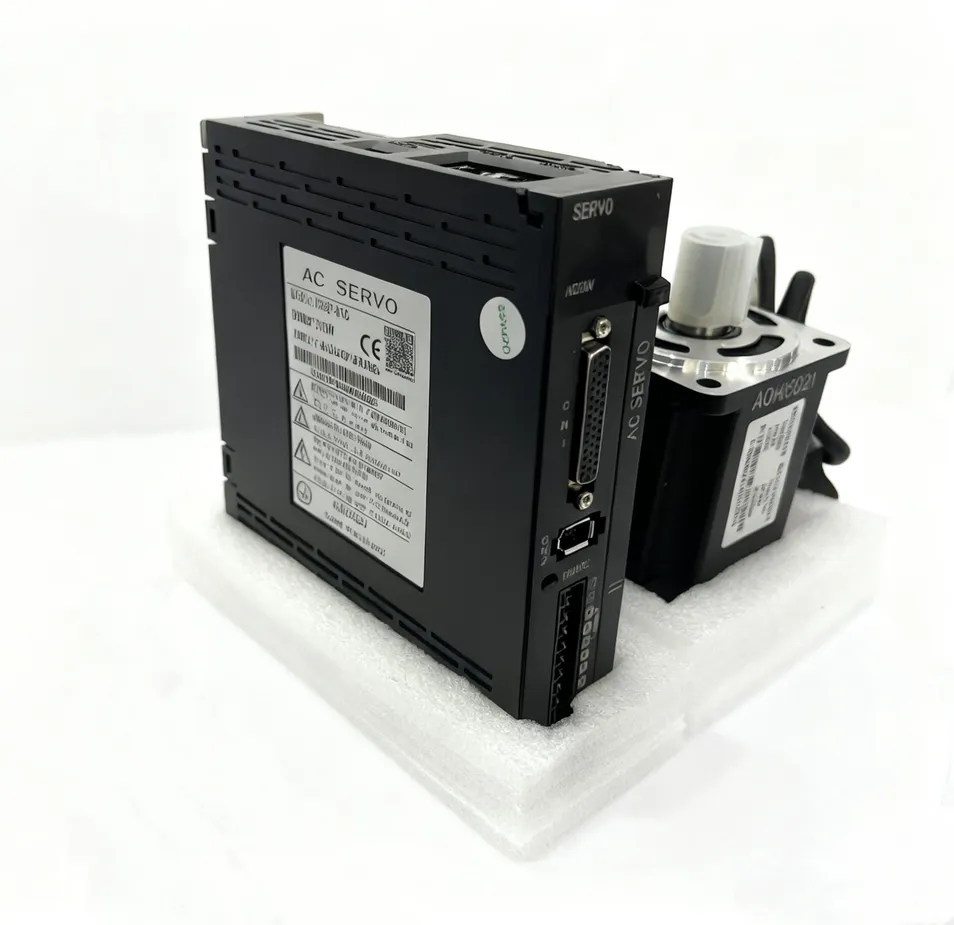

Servo Driver System
📐 Technical Specification

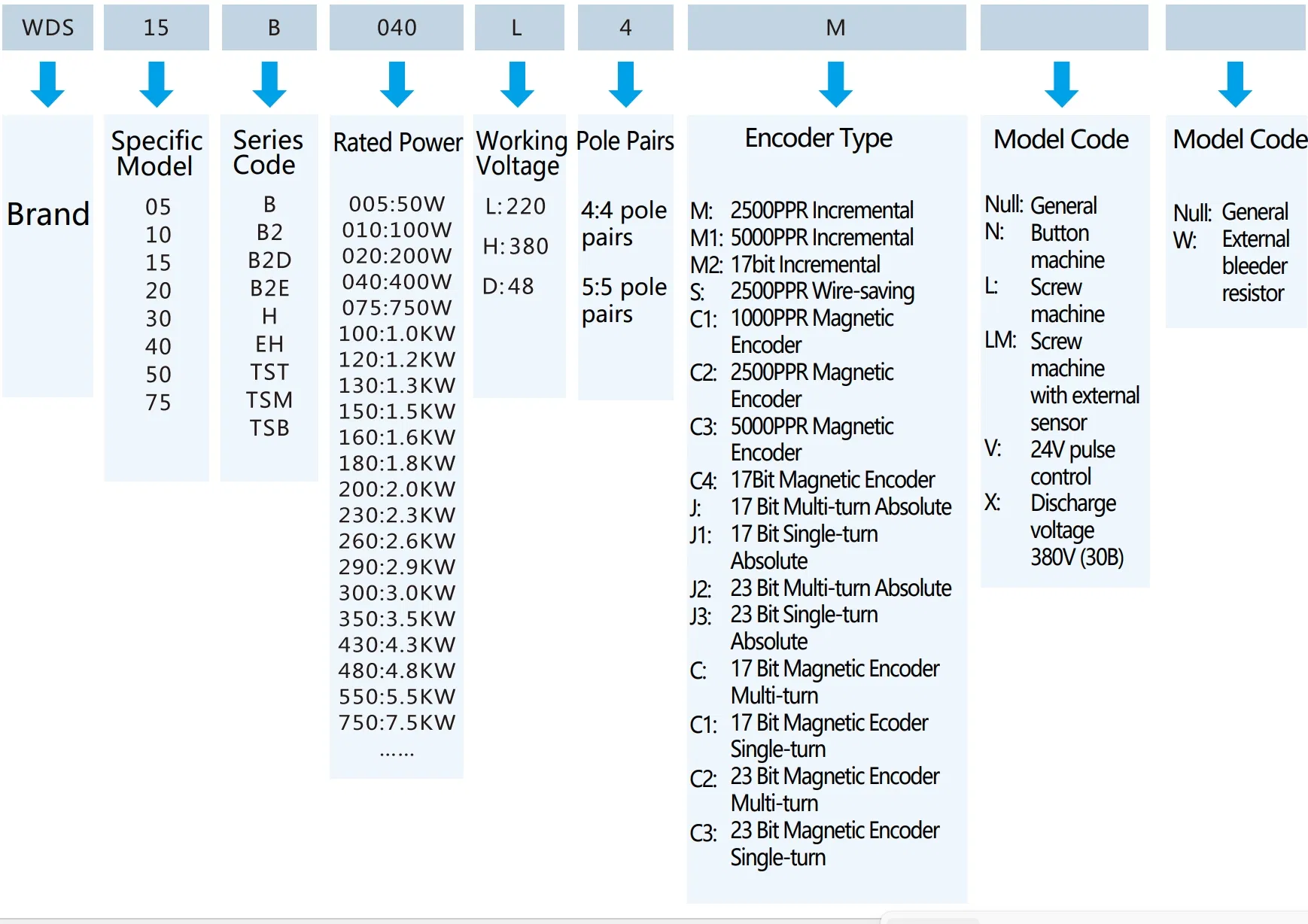

Model Naming
Model No. 10B 15B 20B 30B
Output Power(KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque(N.m) 0.01-1.3 1.9-4 4-10 6-15
Input Power Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Control Mode PWM sine wave vector control
Feedback Mode 2500PPR incremental encoder
Digital Input SRV-ON/A-CLR/CCWL/CWL/E-STOP/Electronic Gear/etc.
Protection Overspeed, overvoltage, overcurrent, overload, abnormal braking, etc.

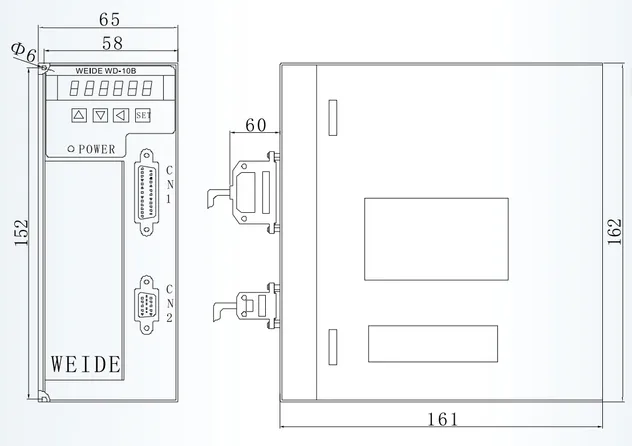

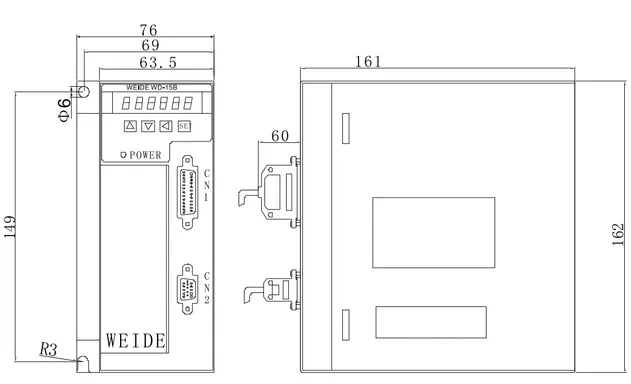

Driver Dimension Drawings
Dimension 1
Dimension 2

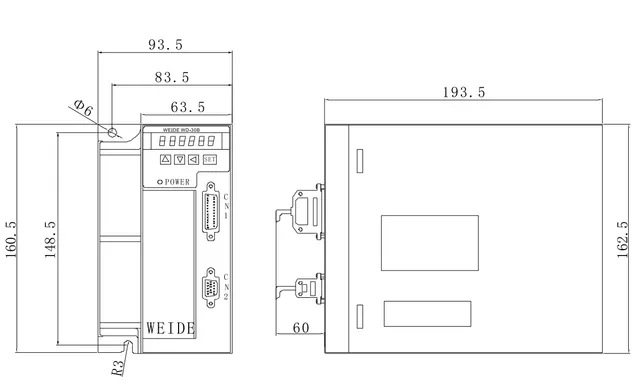

Dimension 3

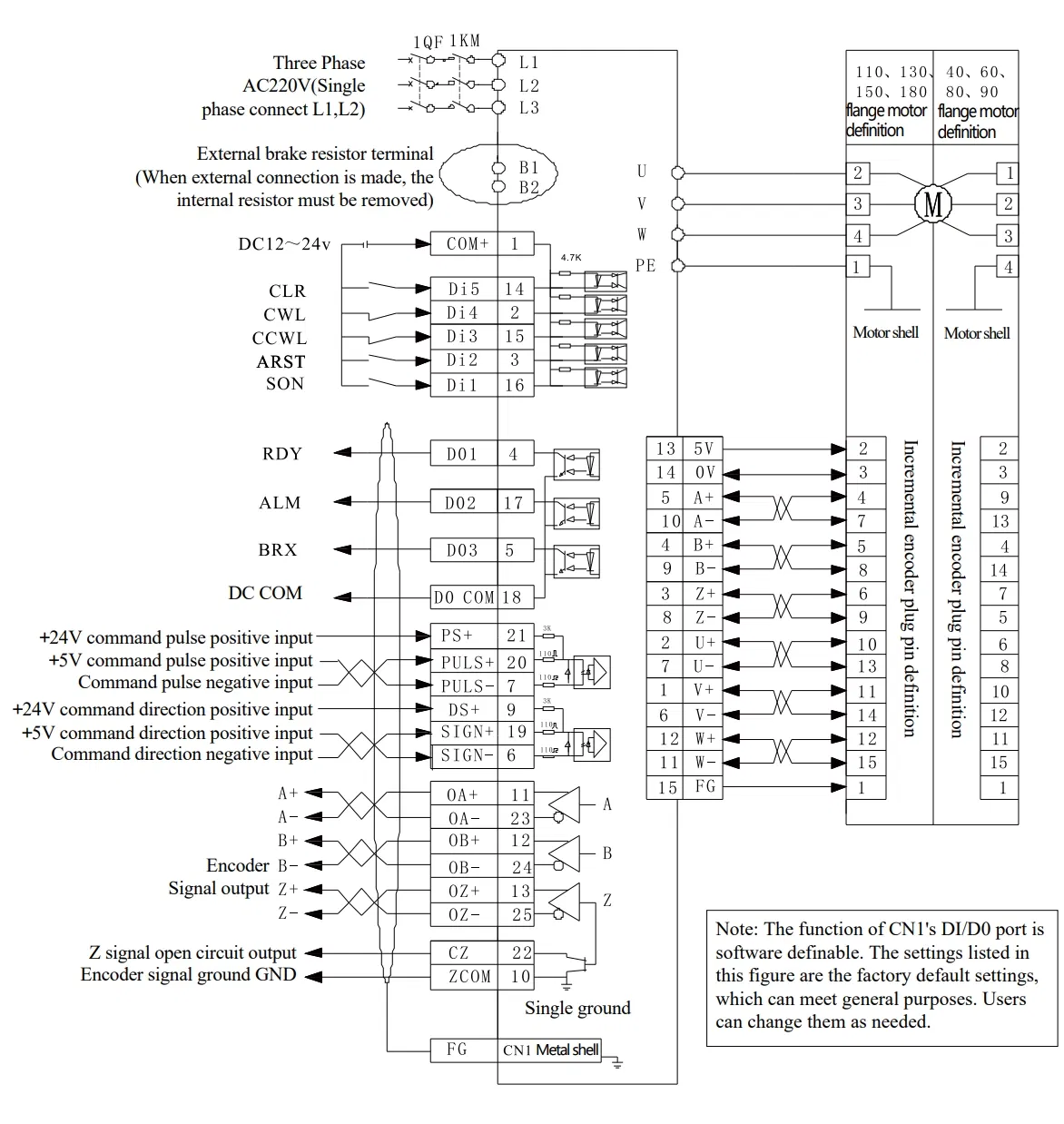

Wiring Diagram (Position Control)
Wiring Diagram
📜 Certifications
Cert 1
Cert 2
Cert 3
Cert 4
Cert 5
Cert 6
🏭 Industry Applications
Textile

Textile Machines

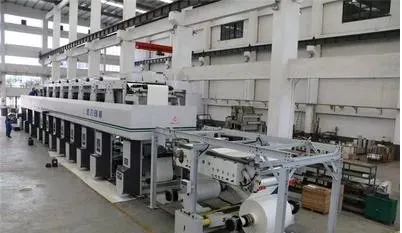

Printing

Printing Machines

Metal

Metal Processing Machines

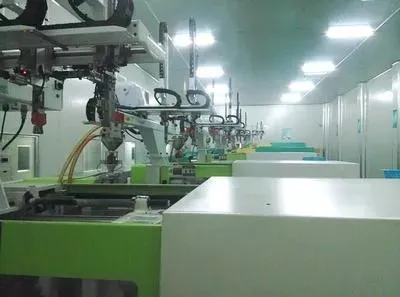

Injection

Injection Machines

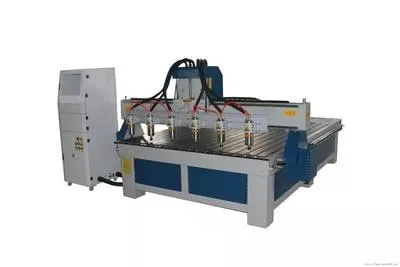

Wood

Wood Machines

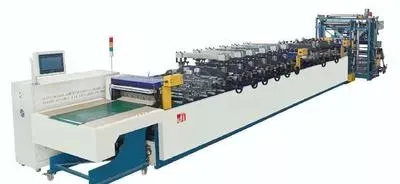

Other

Other Precision Machinery

📦 Packing & Delivery
Package Size
10.00cm * 6.00cm * 12.00cm
Gross Weight
3.500kg
Packaging 1
Packaging 2
❓ Frequently Asked Questions
Q: Which control modes does the B2 series servo driver support? A: It supports Position control, Speed control, Torque control, and Internal speed control modes.
Q: What types of encoders are compatible with this system? A: The system is compatible with 2500PPR incremental encoders, wire-saving encoders, and 17-bit absolute encoders.
Q: Can this servo system be used for high-frequency start and stop applications? A: Yes, the brake unit has been optimized specifically to adapt to frequent start and stop occasions.
Q: Does the driver support industrial communication protocols? A: Yes, it features RS485 Modbus communication for easy integration into automated systems.
Q: What protective functions are built into the driver? A: It includes protection against overspeed, overvoltage, overcurrent, overload, abnormal braking, and encoder abnormalities.
Q: What is the main material used in the construction? A: The product is primarily constructed using a high-quality Aluminum Alloy for durability and heat dissipation.
