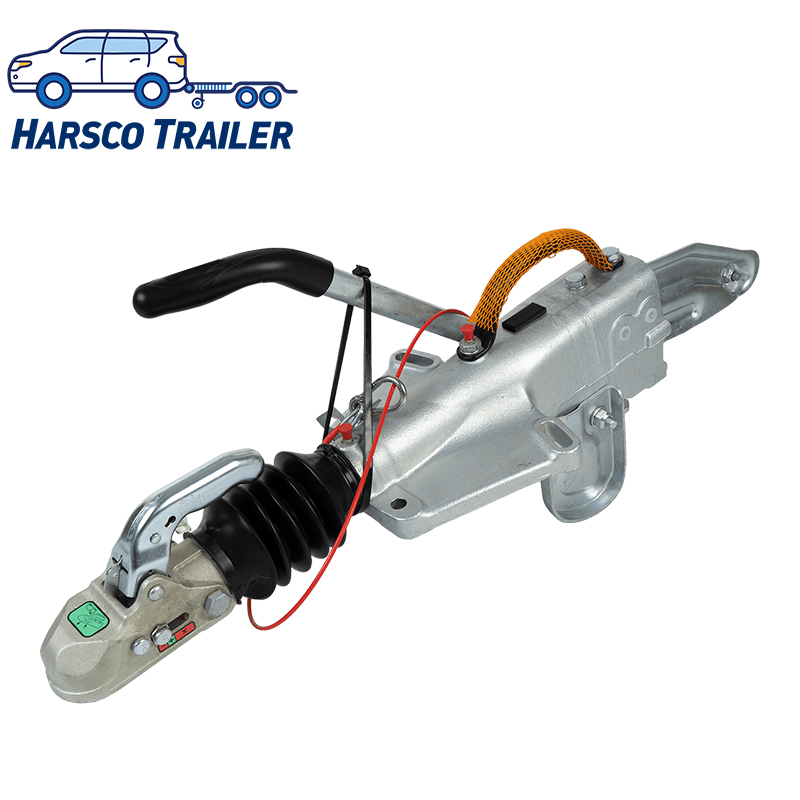

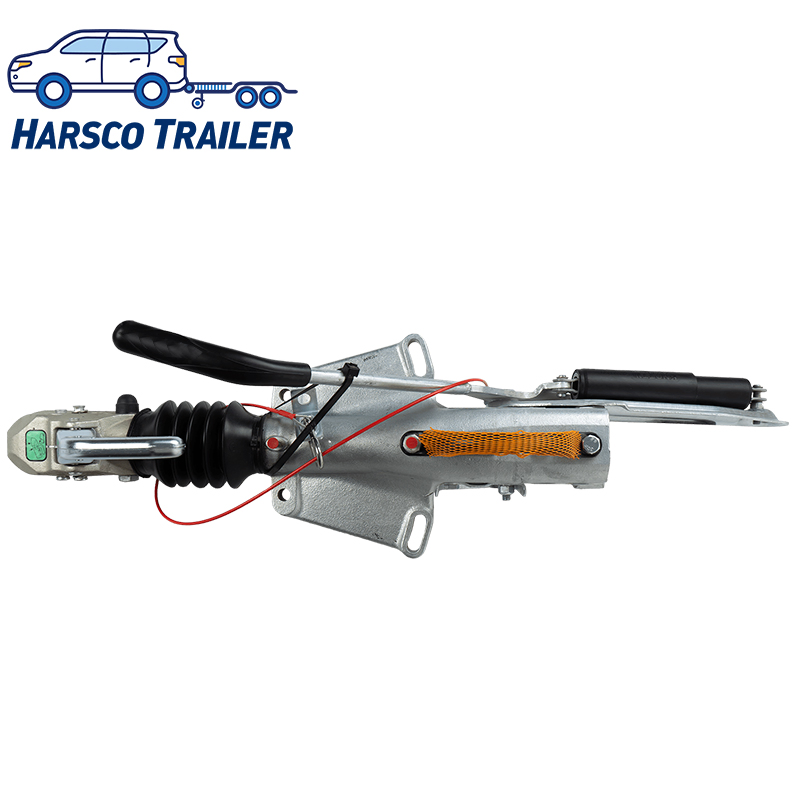

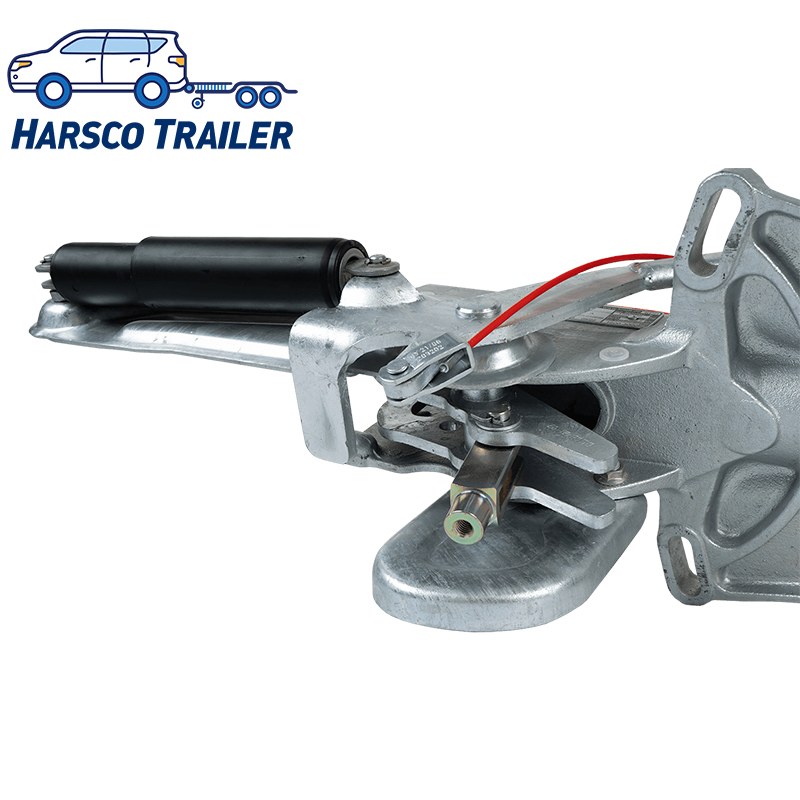

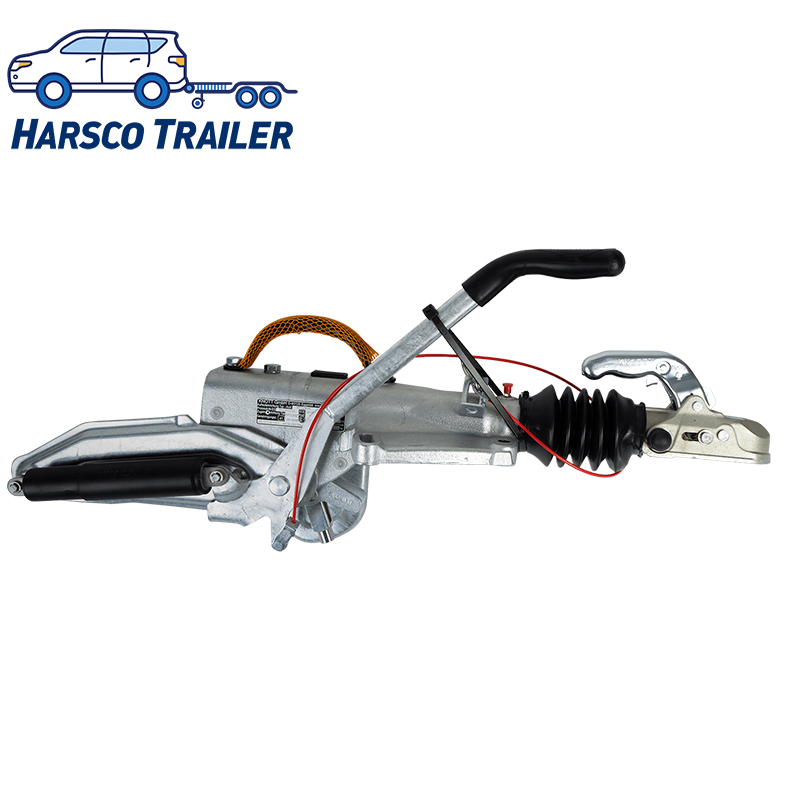

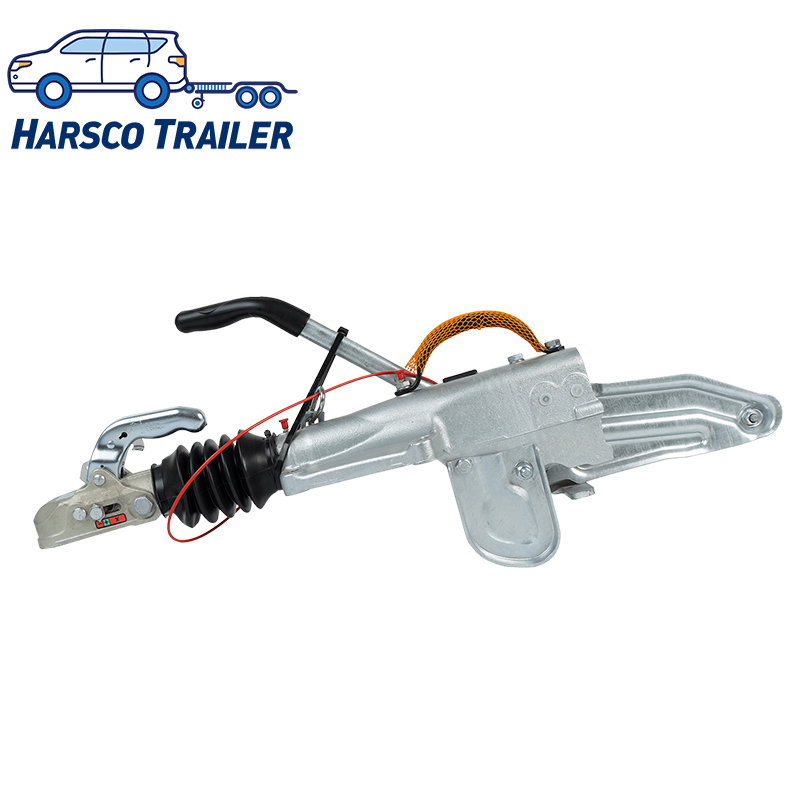

KNOTT KFG30A Overrun Brake System with K35A Hitch for 3000kg V-Drawbar Trailers

1 / 5

KNOTT KFG30A Overrun Brake System with K35A Hitch for 3000kg V-Drawbar Trailers

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TOB037

Type

Overrun device

GVW

1600 - 3000 kg

Drawbar Profile

Type V

Nose Load

150 kg

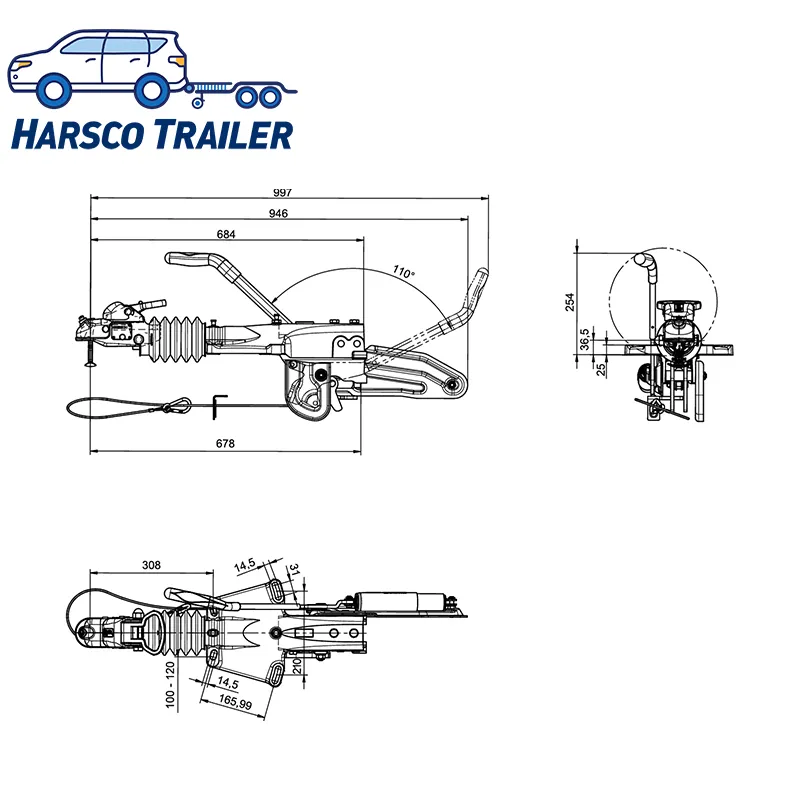

Mounting Hole

166 mm / 14.5 mm

Wear Indicator

Yes

Trademark

HARSCO

Product Description

KFG30A Overrun Device with K35A Hitch

The KFG30A Overrun Brake System is engineered for heavy-duty trailers with V-type drawbars, supporting a total weight range of 1600kg to 3000kg. Equipped with the K35-A Ball Hitch made of durable cast iron, it ensures a robust and secure connection to the towing vehicle, featuring a coupling wear indicator for real-time monitoring. The system's hot-dip galvanized steel housing provides superior corrosion resistance.

Key Parameters:

Drawbar Type: V-profile
GVW Range: 1600-3000kg
Nose Load: 150kg
Mounting: 166mm spacing, 14.5mm diameter
Protection: Hot-dip galvanized steel housing
Hitch Compatibility: K35-A Ball Hitch

Product Name	Drawbar Profile	Capacity
Trailer Overrun Device	Type V	3000kg

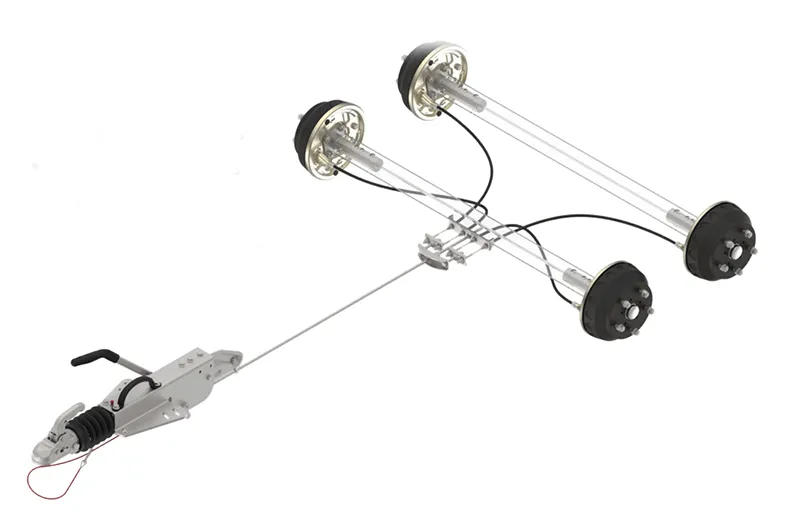

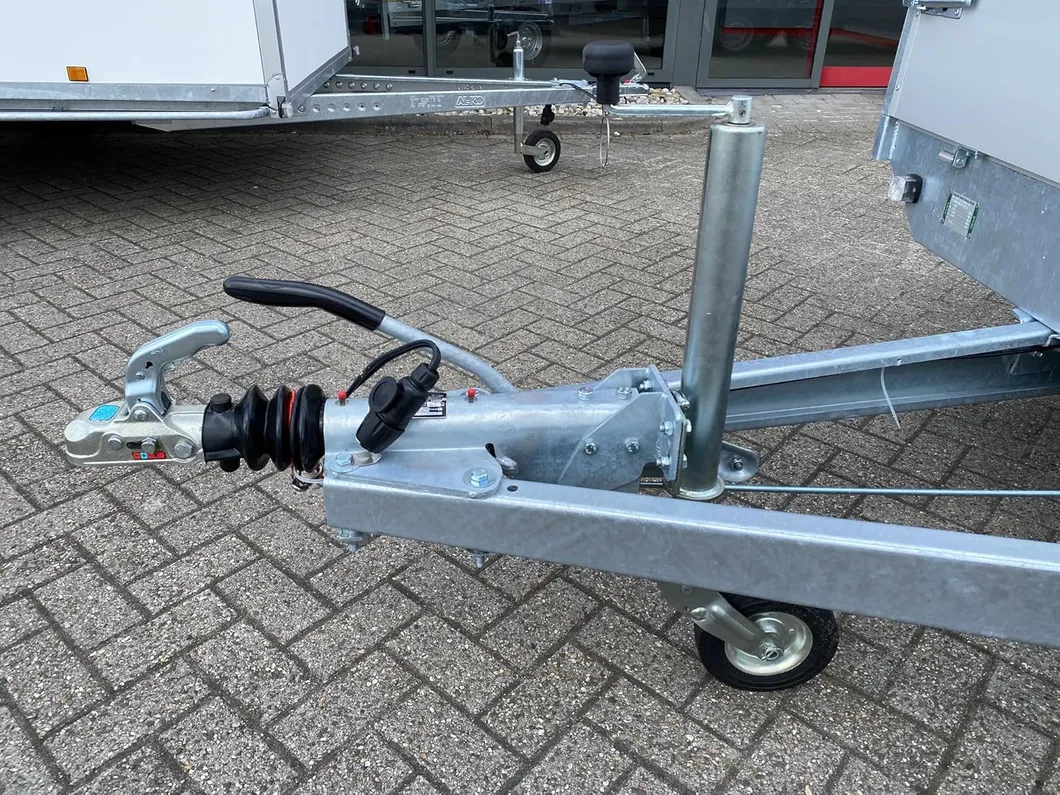

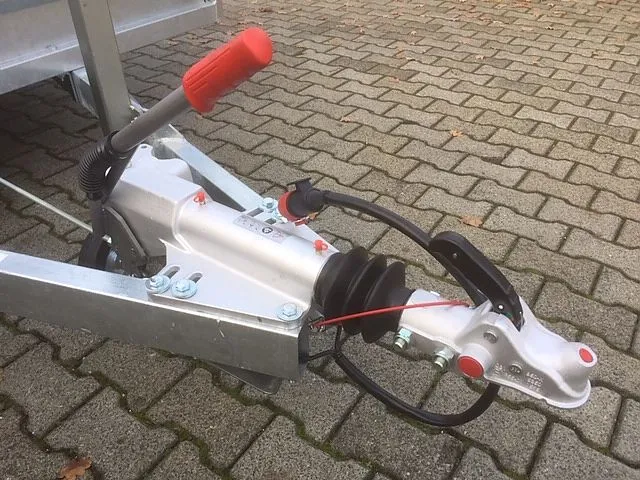

Application & Details

Manufacturing & Services

Comprehensive Trailer Solutions

We provide a wide range of trailer parts including Towbars, axles, brake drums, hubs, brake discs, bearings, springs, suspension kits, couplings, mudguards, Jockey Wheels, and more.

OEM Service

Utilize your own brands or ours. Our professional team helps you design the packing according to your requirements.

Quality Control

A dedicated QC team ensures every product is checked before packing and shipping.

Warranty

We provide full support for technical issues. Products are tracked from production to delivery.

Frequently Asked Questions

Q1: What is the maximum GVW for this overrun device?

The KFG30A is designed for trailers with a Gross Vehicle Weight (GVW) ranging from 1600kg to 3000kg.

Q2: Can I customize the product with my own logo?

Yes, we support OEM services and can print your logo on the products based on your exact specifications.

Q3: How is the product protected against rust?

The housing is made of hot-dip galvanized steel, providing superior protection against corrosion, road salt, and mechanical damage.

Q4: What is the typical lead time for shipping?

For express delivery (DHL/UPS/FedEx), it usually takes 3-5 days. Airline and sea shipping options are also available for bulk orders.

Q5: Is there a wear indicator on the coupling?

Yes, the system is equipped with a coupling wear indicator for real-time monitoring of the component condition.

Q6: What mounting options are available?

The device offers dual mounting options (top or bottom of the drawbar) with a maximum drawbar height of 100mm for bottom mounting.
