Hybrid Power System with 5kw Wind Generator and 5kw Solar Panels

1 / 5

Hybrid Power System with 5kw Wind Generator and 5kw Solar Panels

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

DMWT-10KW

Output Type

AC Three Phase

Number of Blade

Three Blade

Rotating Shaft

Vertical

Stress Way

Resistance

Power

＞100kW

Certification

CE, ISO, RoHS

Package

Wooden Case

On Grid Wind Turbine System

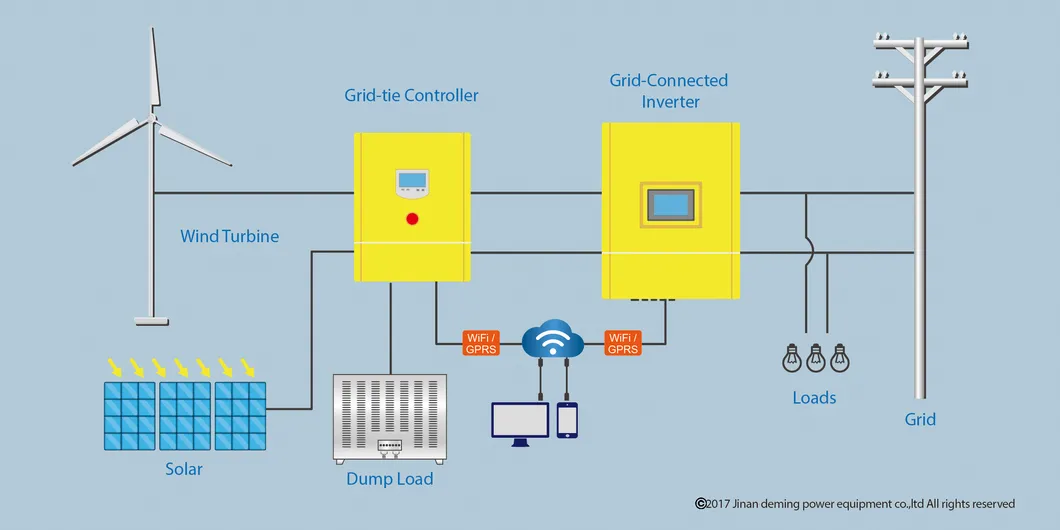

The On Grid Wind Turbine System is a reliable and efficient solution for harnessing wind energy. It consists of a wind turbine, on-grid controller, on-grid inverter, metering device, and power distribution system.

💎 Key Features of Wind Turbine

✔ Designed for harsh and extreme environments with high-quality components.
✔ Electric brake and overcharging protection for low wind speed safety.
✔ High efficiency with low mechanical resistance energy loss.
✔ Excellent heat dissipation via aluminum alloy frame.
✔ 20-year operational life design with anti-corrosion materials.

Core Components & Details

1. Imported NSK Bearing: Ensures smooth operation for the generator's lifetime.

2. Pure Copper Wire: High-temperature resistance ensures stable power generation.

3. NdFeB Magnet: N35SH grade magnetic steel, resistant to demagnetization up to 150°C.

4. Pure Copper Slip Ring: Over 85% copper content, maintenance-free design.

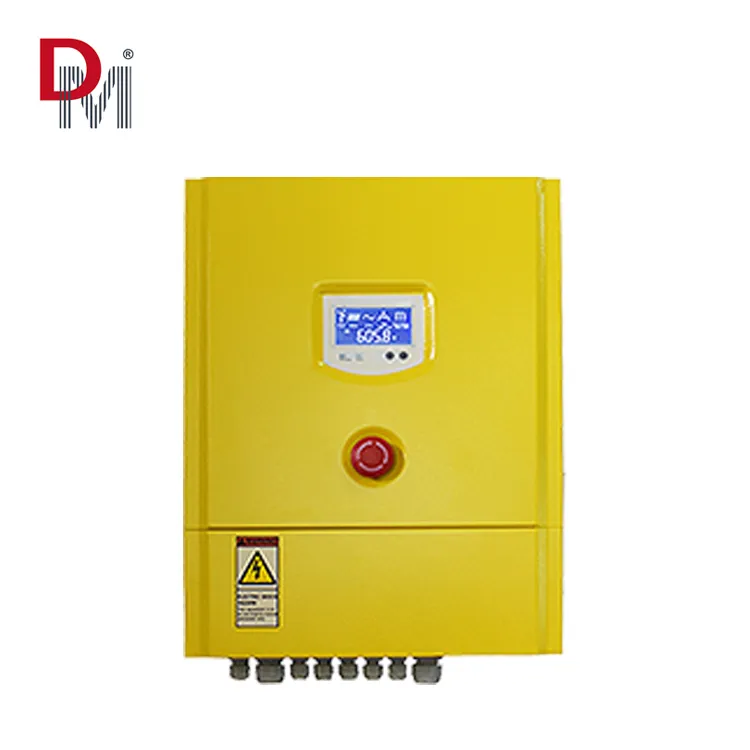

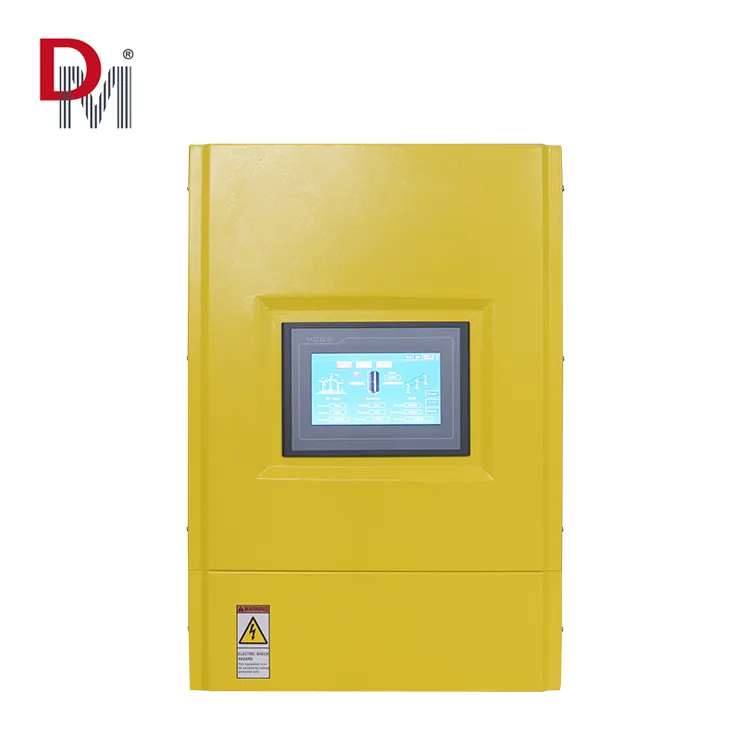

Inverter Performance Characteristics

⚡ Main circuit uses TI DSP chip and Infineon IGBT modules.
⚡ SPWM technology for pure sine wave output and synchronous grid tracking.
⚡ Maximum Power Point Tracking (MPPT) for optimal wind energy capture.
⚡ 7-inch color touch screen for real-time data monitoring and parameter setting.
⚡ High efficiency of ≥98% with wide input DC voltage range.
⚡ Supports RS485, WiFi, GPRS, and Ethernet for remote mobile monitoring.

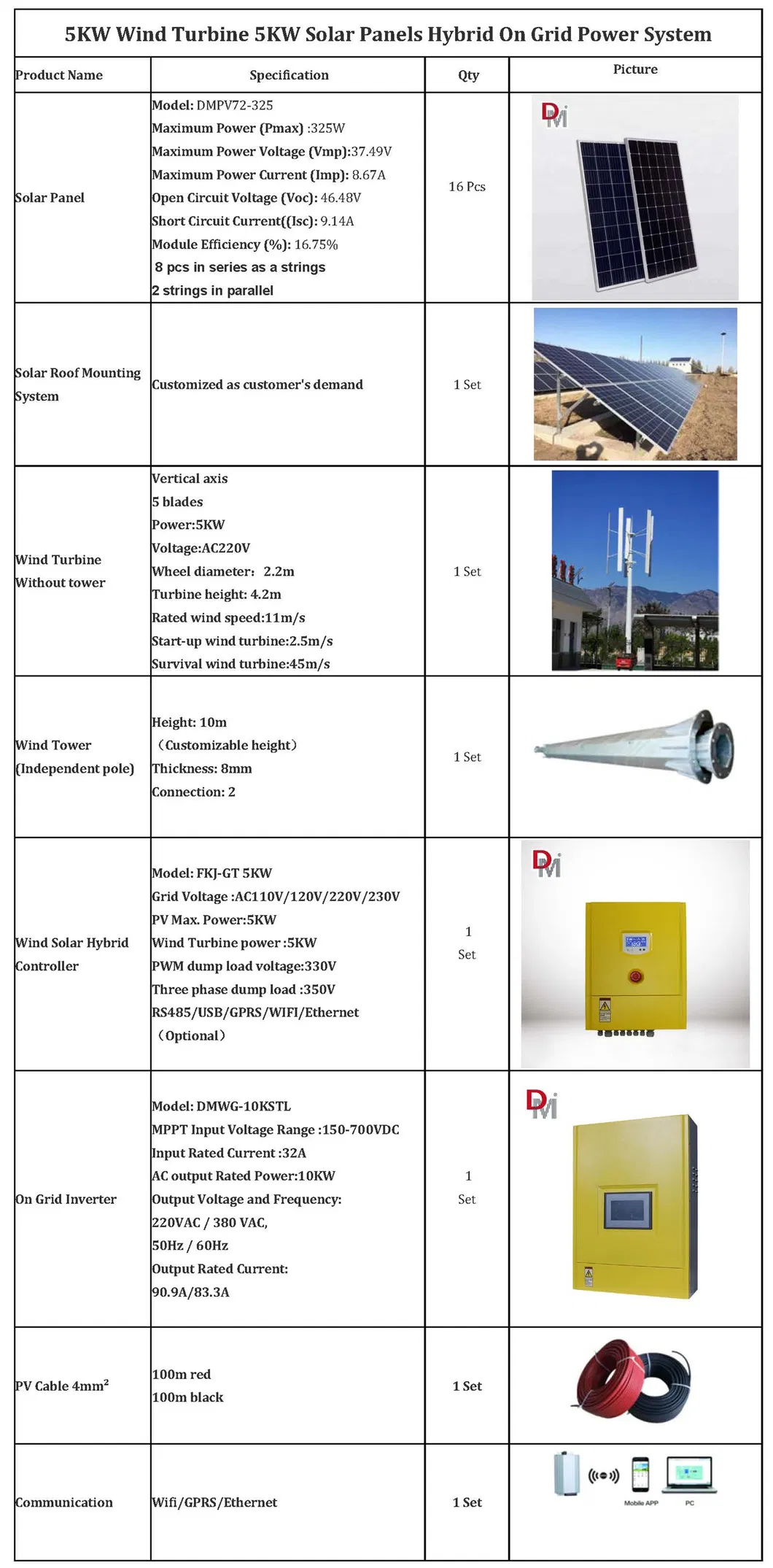

Technical Parameters (5KW Model)

Wind Turbine Technical Specification
Rated Power	5KW
Max Power	6KW
Rated Speed	380 r/min
Rated Voltage	220Vac
Start-up Wind Speed	2m/s
Rated Wind Speed	9m/s
Generator Material	Aluminium body, Copper wire, Nd-Fe-B
Blades Material	Reinforced fire glass steel
Braking System	Electromagnetic braking control

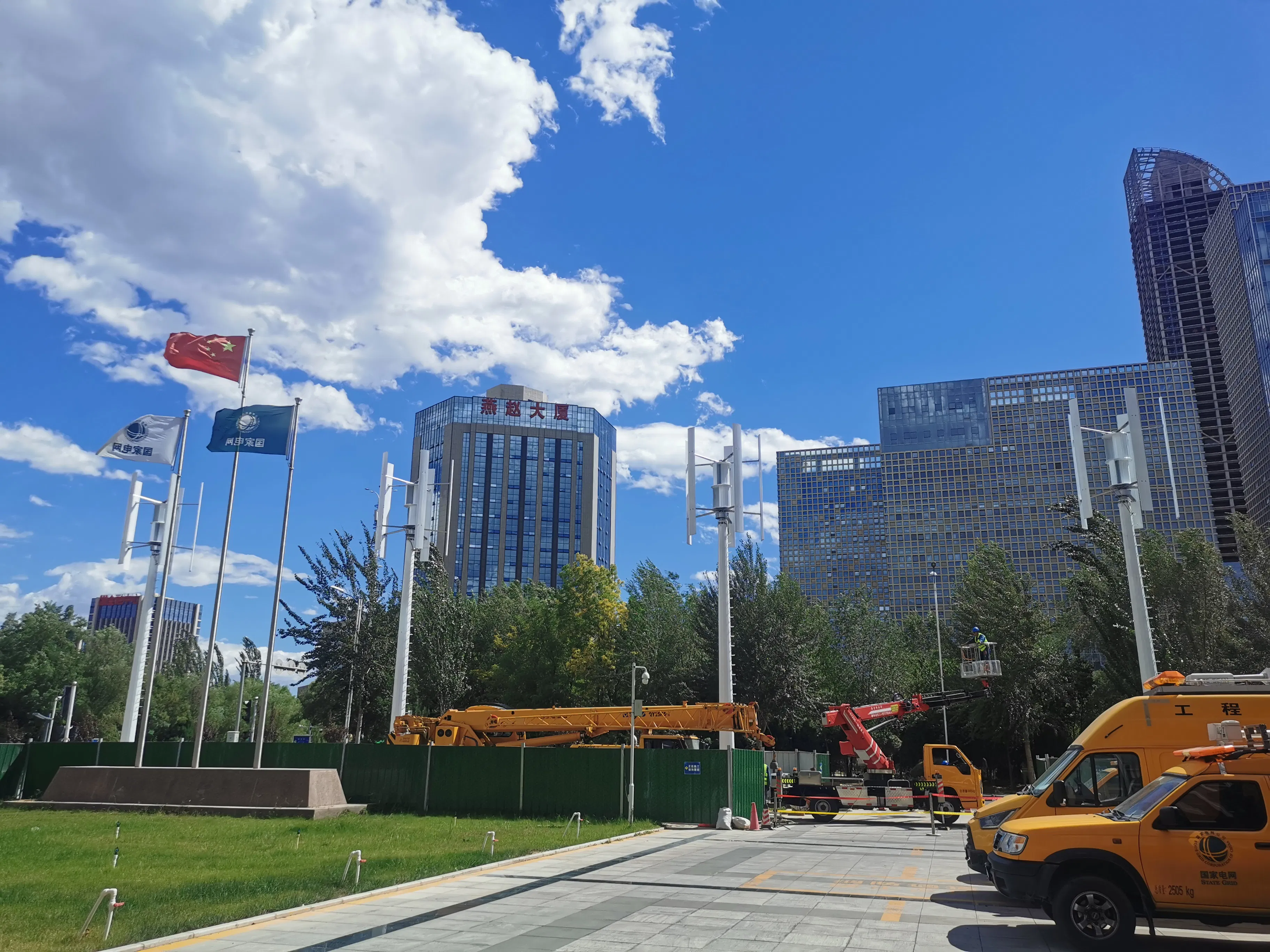

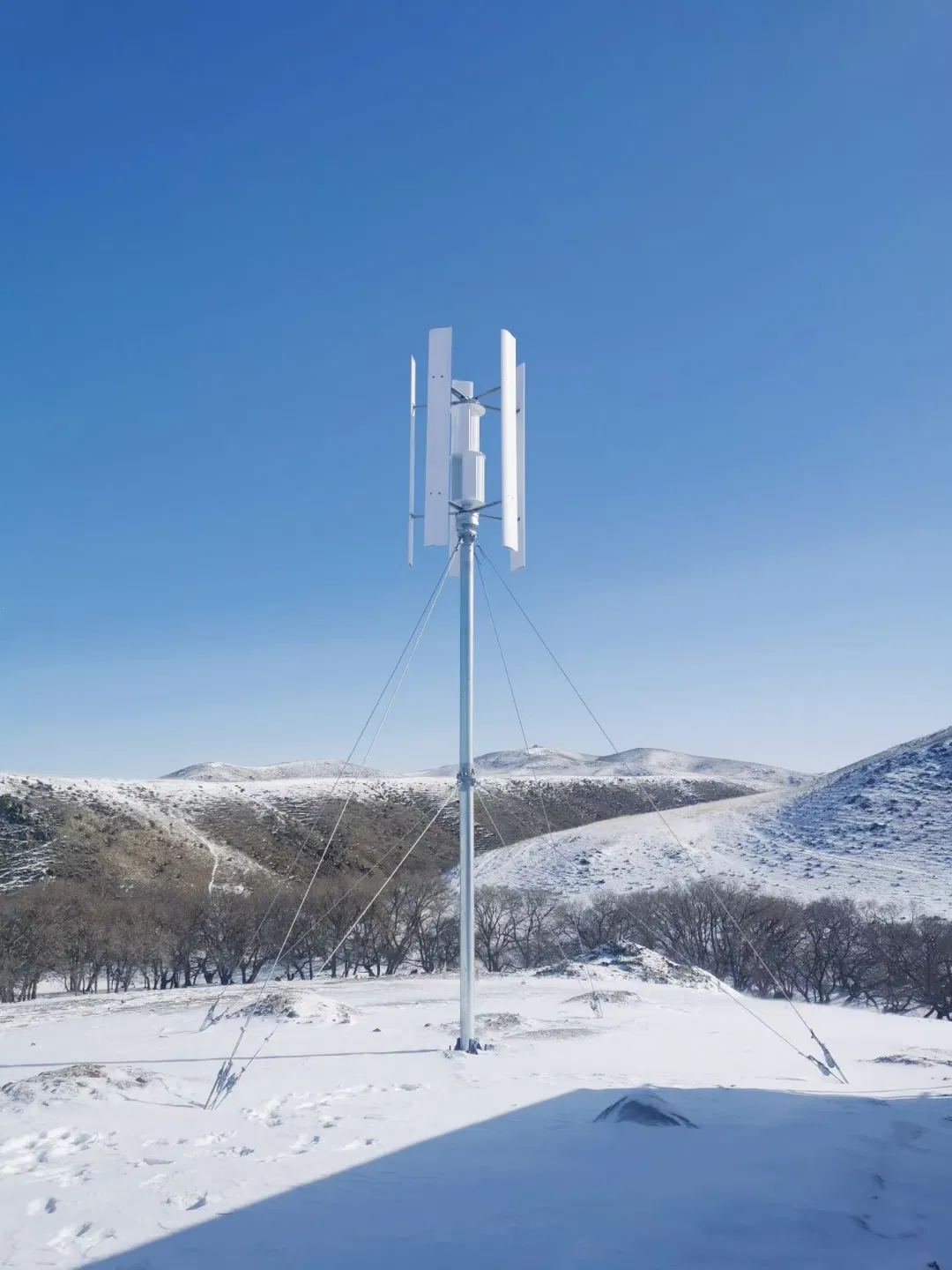

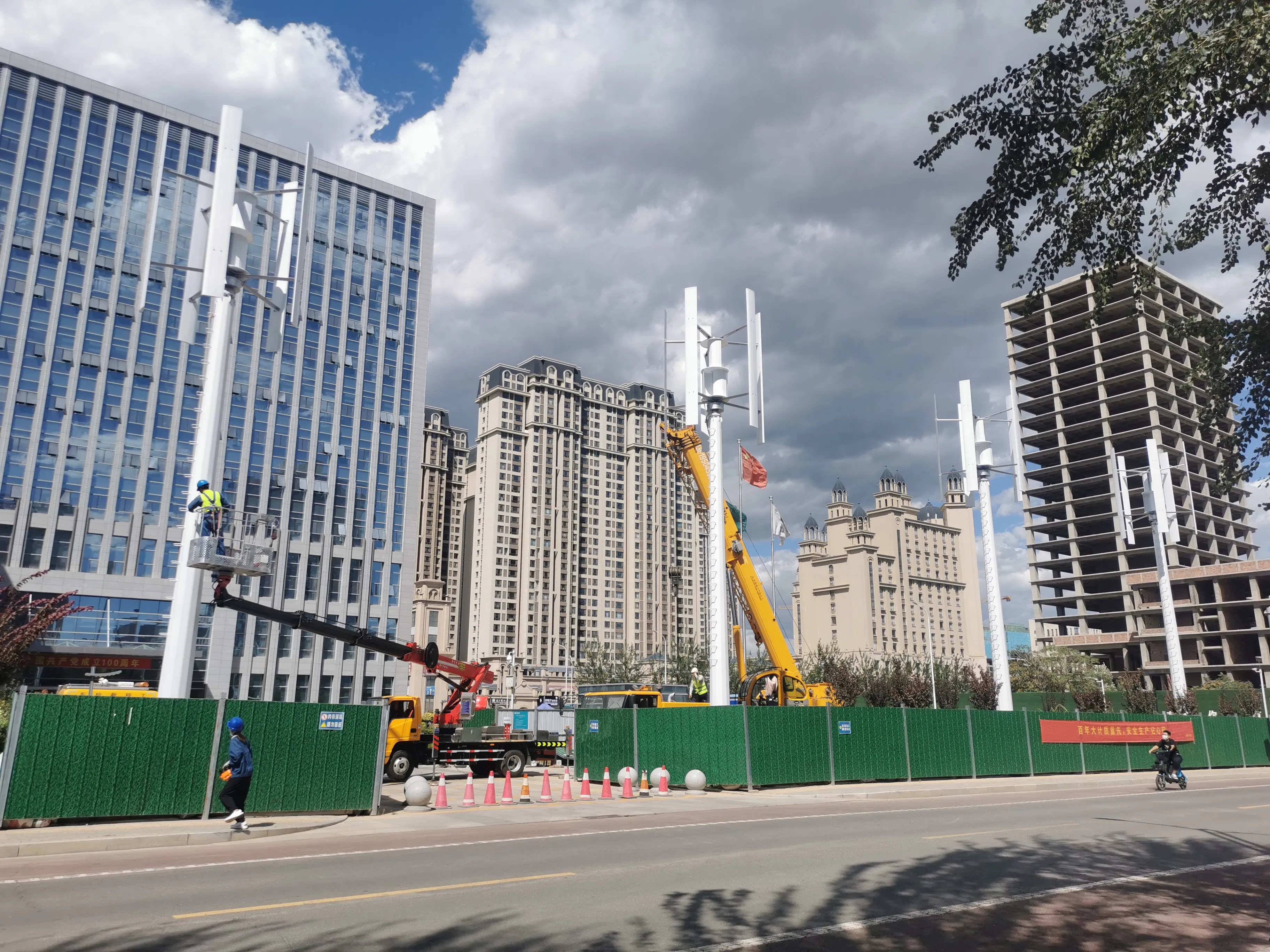

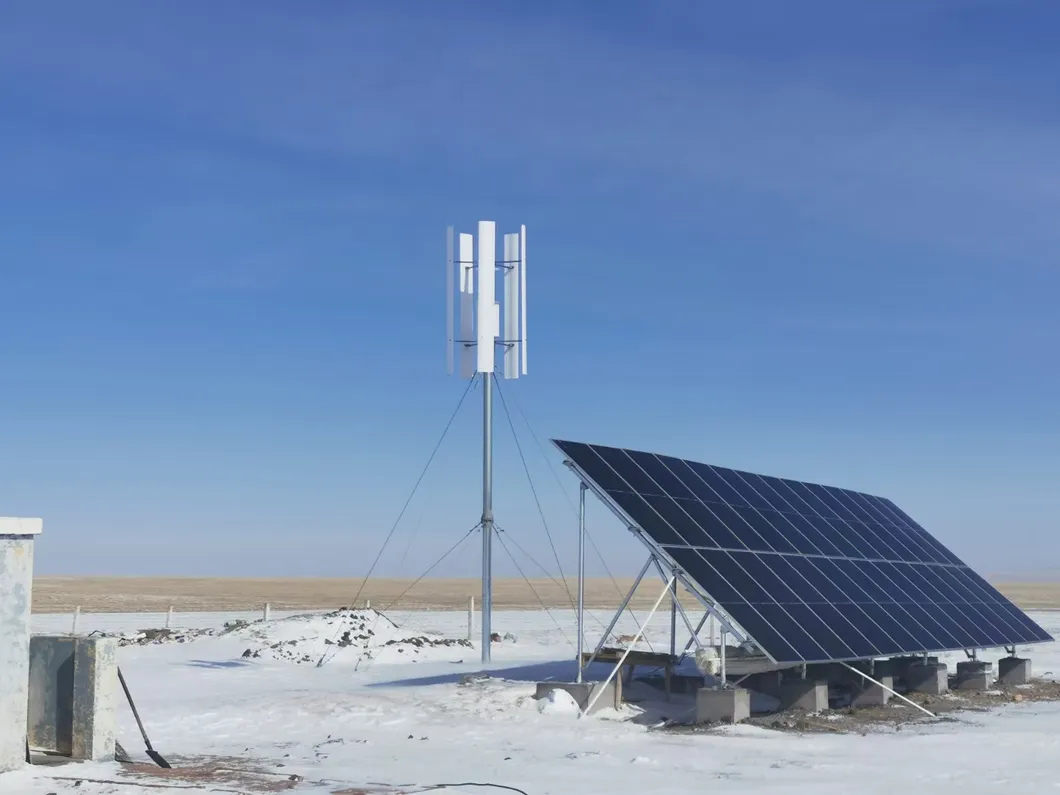

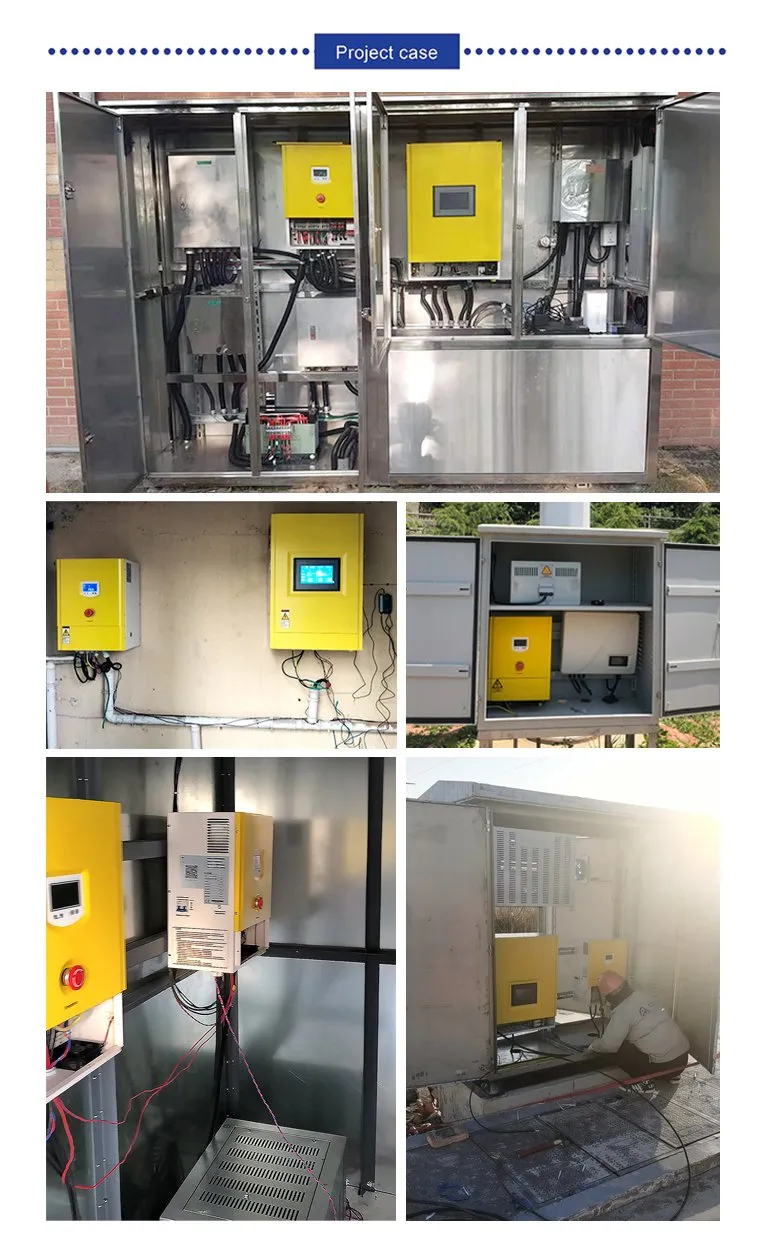

Applications & Global Reach

Our Advantages

Frequently Asked Questions

🔹 What components are included in the On Grid Wind Turbine System?

The complete system includes the wind turbine unit, an on-grid controller, an on-grid inverter, a metering device, and a power distribution system.

🔹 How long is the expected lifespan of the system?

The wind turbine is designed for a 20-year operational life, utilizing anti-corrosion and weatherproof materials to withstand long-term outdoor exposure.

🔹 Does the system have protection against high wind speeds?

Yes, the system features multiple safety mechanisms including an electromagnetic braking system, electric brakes, and overcharging protection.

🔹 Can I monitor the power generation from my phone?

Absolutely. The on-grid inverter supports RS485, WiFi, GPRS, and Ethernet, allowing real-time monitoring via PC or mobile applications.

🔹 What makes your generator more efficient?

We use N35SH NdFeB magnets (the "king of magnetism"), high-purity copper windings, and imported NSK bearings to minimize energy loss and mechanical resistance.

🔹 Is the system suitable for corrosive environments?

Yes, the outer frame is made of fully heat-treated aluminum alloy, and the generator internals are treated with special materials to resist corrosion and oxidation.
