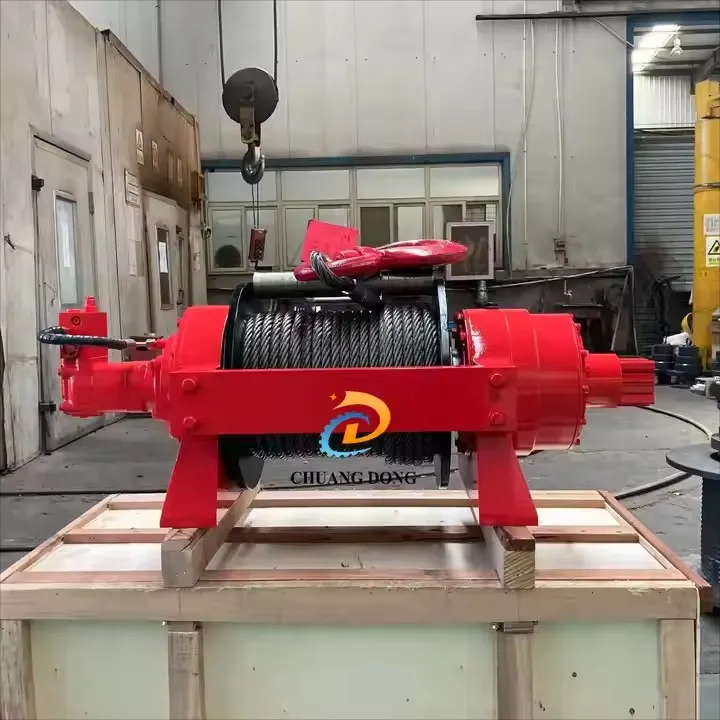

Intelligent Hydraulic Winch System with Load Cell Monitoring - Real-Time Tension Display & Data Logging

i

Basic Information

Model NO.

CDHW

Type

Construction Winch

Driven Type

Hydraulic

Speed

Slow

Tonnage

30T

Certification

CE

Rope Material

Steel

Rope Capacity

50m-250m

Line Pull

7.8-70K N

Origin

China

★

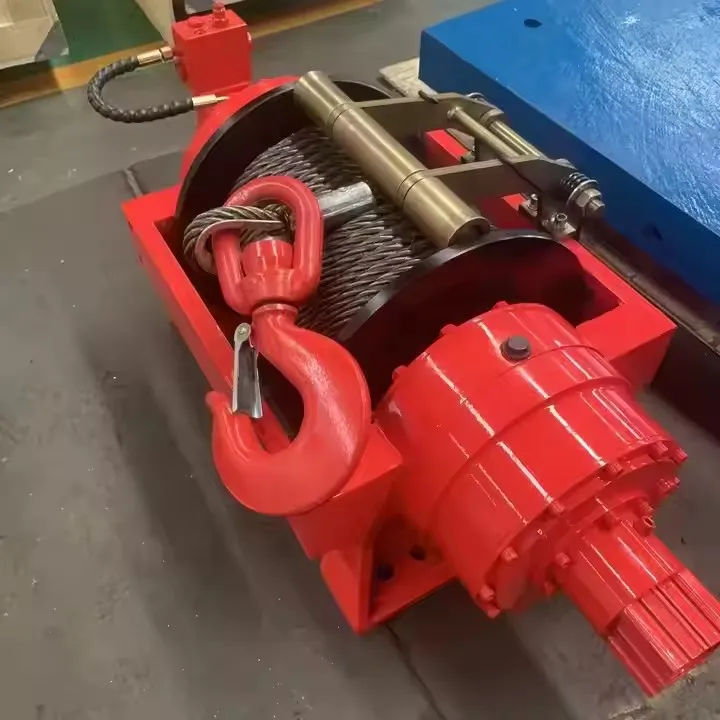

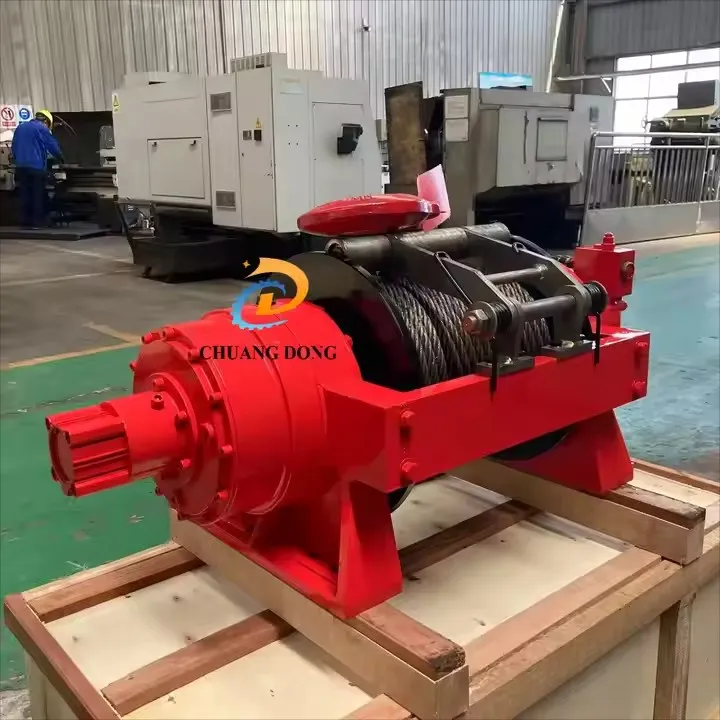

Product Description

Hydraulic planetary winches are designed with working capacities of 7500kg (16535Ibs) to 49000 (108027Ibs), satisfying most demands of the towing and lifting, rescue and road clearance, utility, forestry, oil & gas, and mining & construction applications, etc. The hydraulic winches can be both horizontally and vertically installed, standard air clutch, providing fast ling output, limiting time in the danger zone, reducing wear on components, and increasing efficiency and productivity on the job.

⚙

Product Parameters

Product Name	Hydraulic Winch
Rated Line Pull	40 KN
Torque	2400 Nm
Rope Capacity	24 m
Rope Diameter	11 mm or customized
Application	Wrecker, crane, truck crane, aerial truck, etc
Winch Power	Hydraulic Motor
Clutch	Air

✔

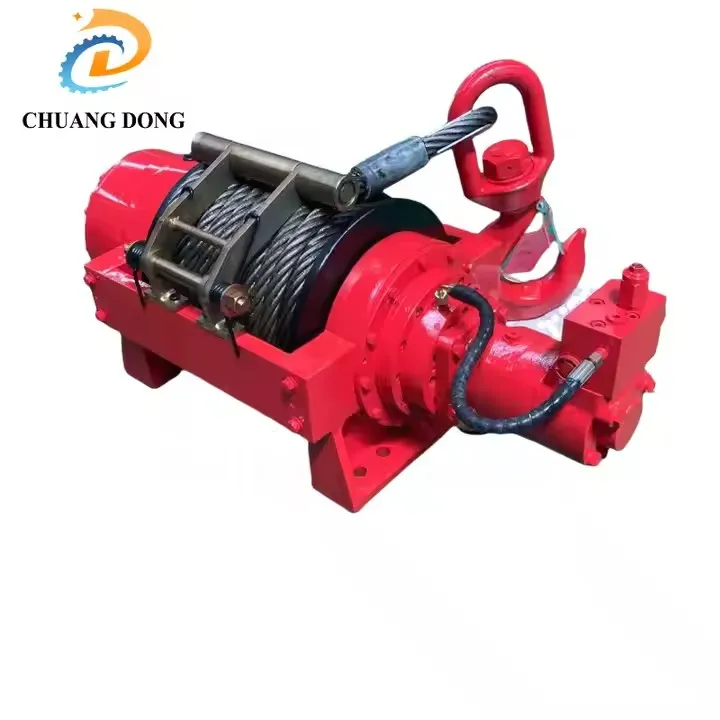

Our Advantages

1) Compact size
2) Low noise
3) High transmission efficiency
4) Good working condition under lower speed
5) Customized hydraulic motors and brakes
6) One year warranty from reception
7) Free components for replacement in warranty
8) Professional and tailored solutions
9) Free technical support at any time
10) Customer training available

📦

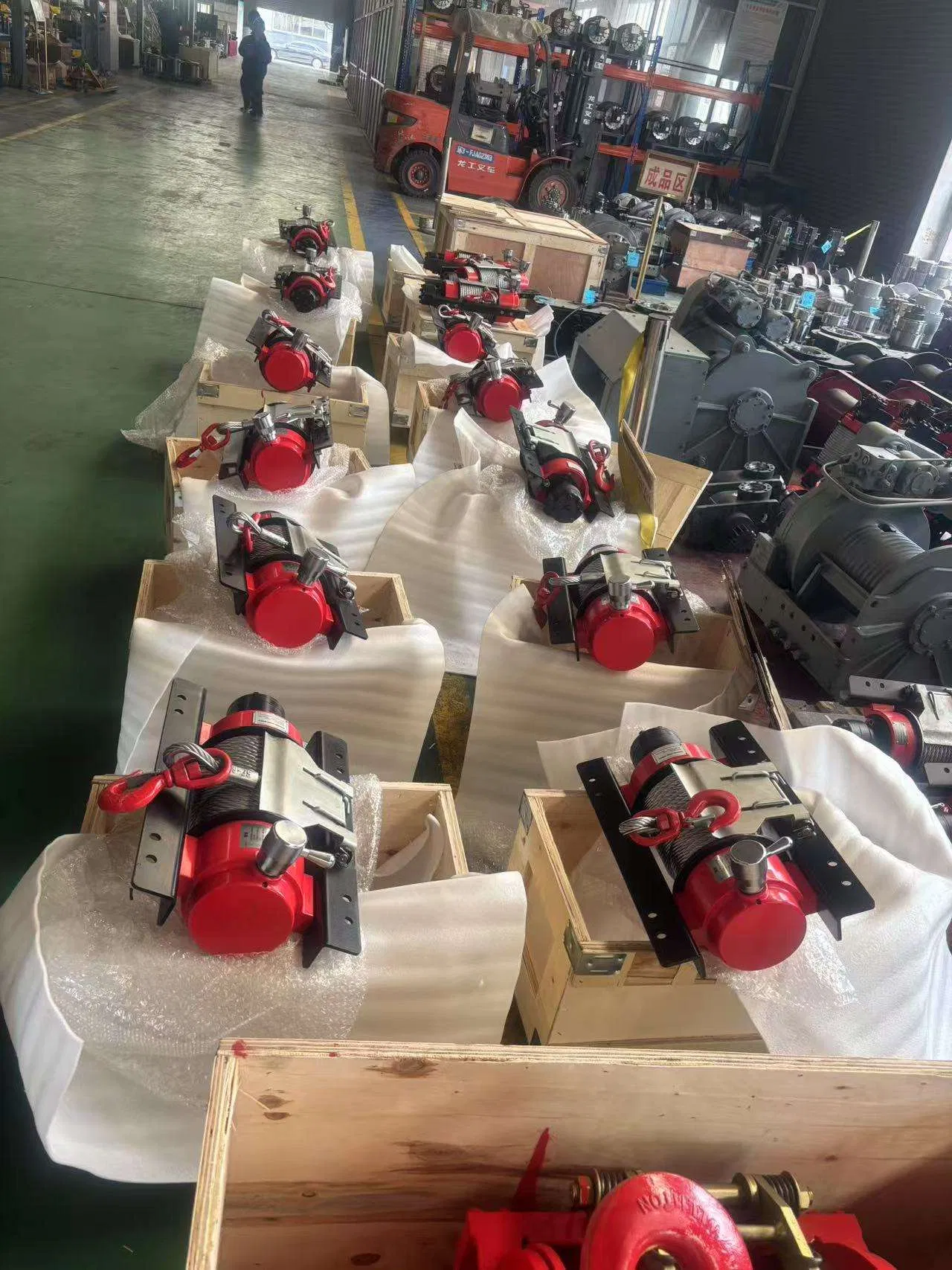

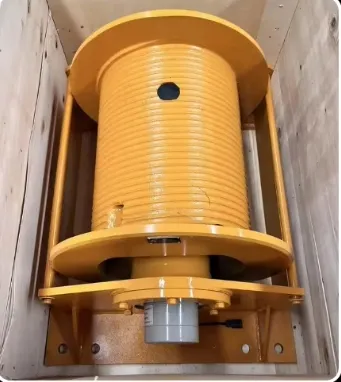

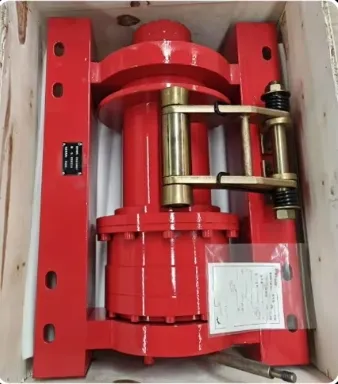

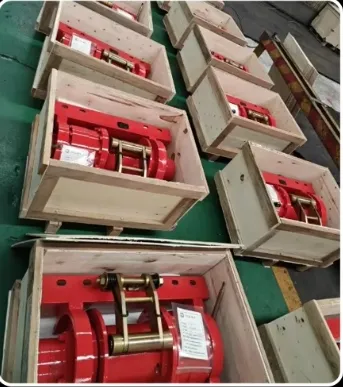

Packaging & Shipping

🏢

Company Profile

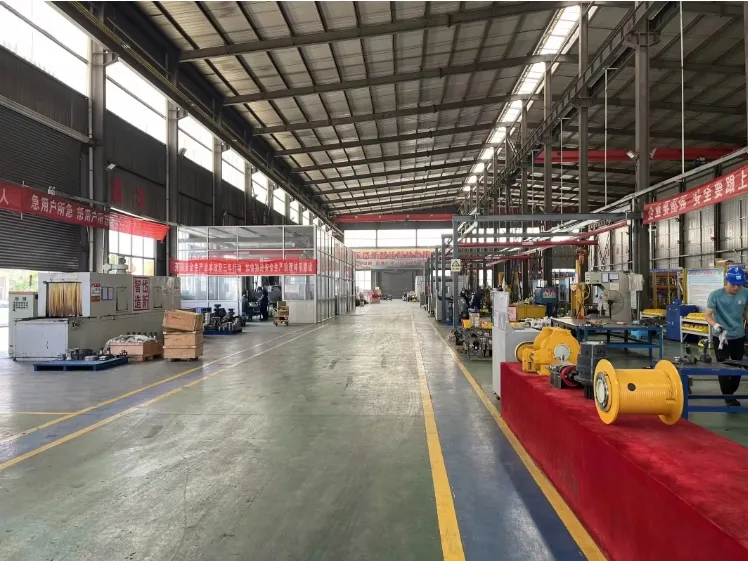

The factory was established in 2008 and specializes in the research and development of planetary transmission technology products. The facility has complete equipment and strong processing capabilities, including boring machines, machining centers, gear shapers, CNC lathes, drilling machines, and other processing equipment. In addition, the inspection and testing equipment is complete, with main inspection methods such as metallographic and physicochemical examination, gear inspection, and finished product loading experiments. A series of planetary transmission mechanisms have been developed in the fields of lifting machinery, exploration machinery, obstacle clearance machinery, aerial work vehicle machinery, marine machinery, petroleum machinery, and truck mounted cranes. Main products include 8-100 ton hoisting and slewing mechanisms, 16-100 ton walking mechanisms for crawler cranes, and 1.5-30 ton hydraulic winches widely used in various industrial applications.
