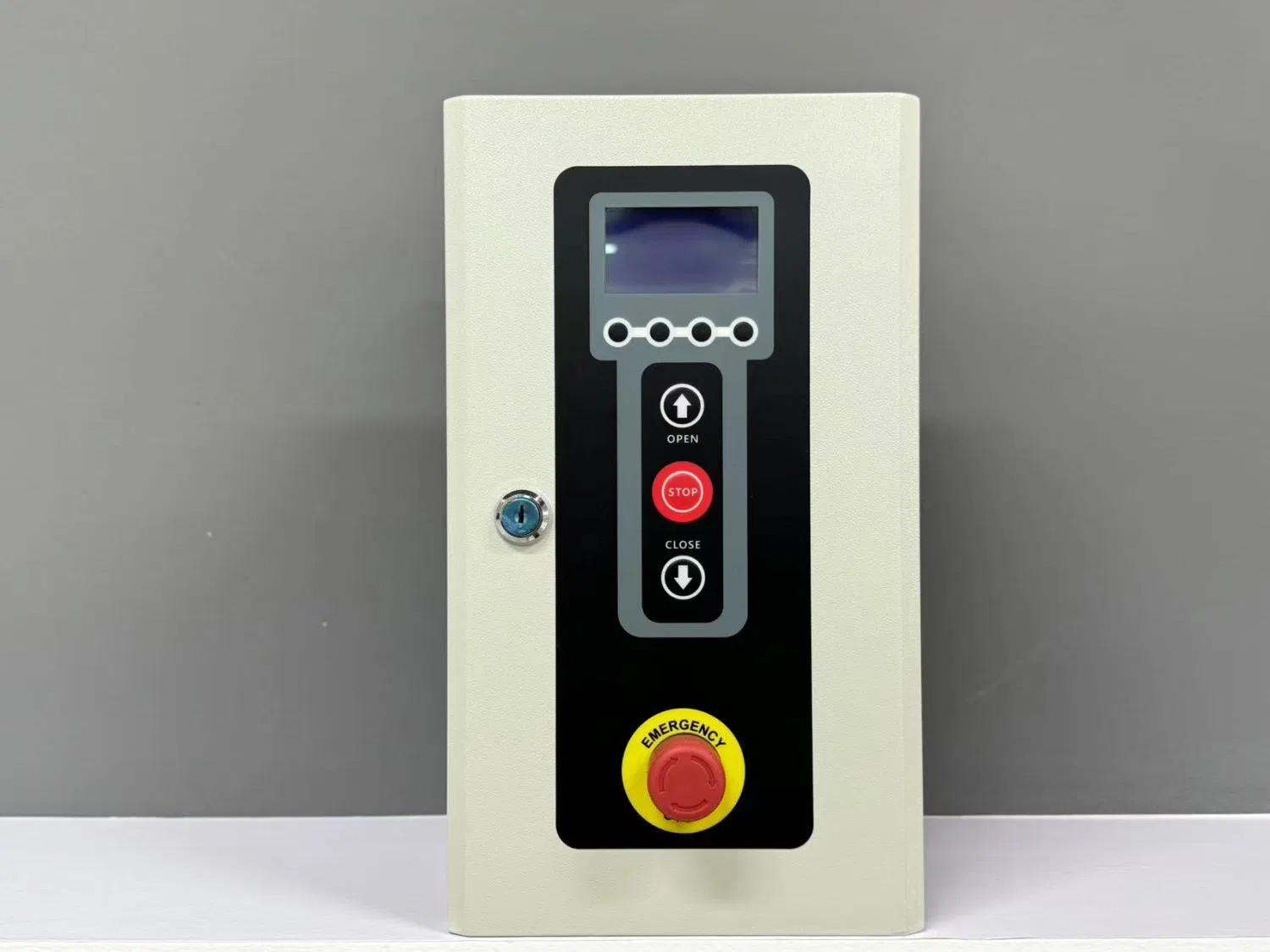

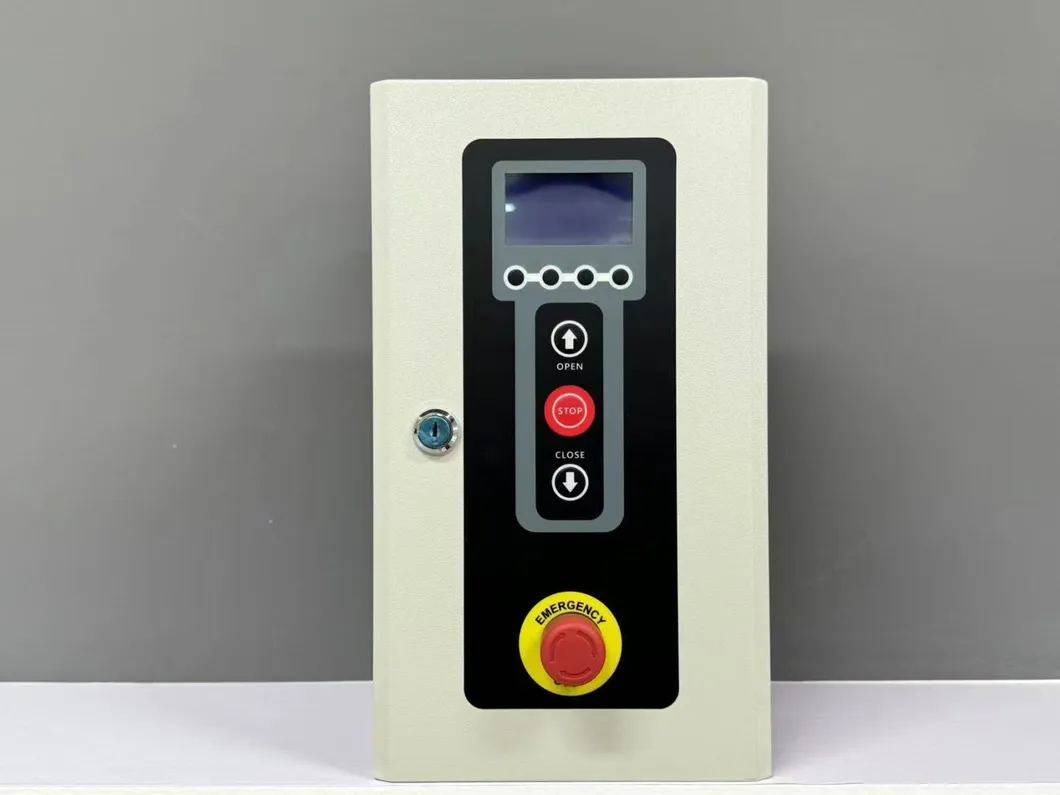

Sophisticated Control Box: Experience unparalleled precision and seamless control with our state-of-the-art system.
Advanced Configuration: A0 Series PE201 - Elevate your garage door operations with cutting-edge technology.
Dynamic Power: 0.75KW for Smooth, Fast Operations - Ensures swift and efficient performance every time.

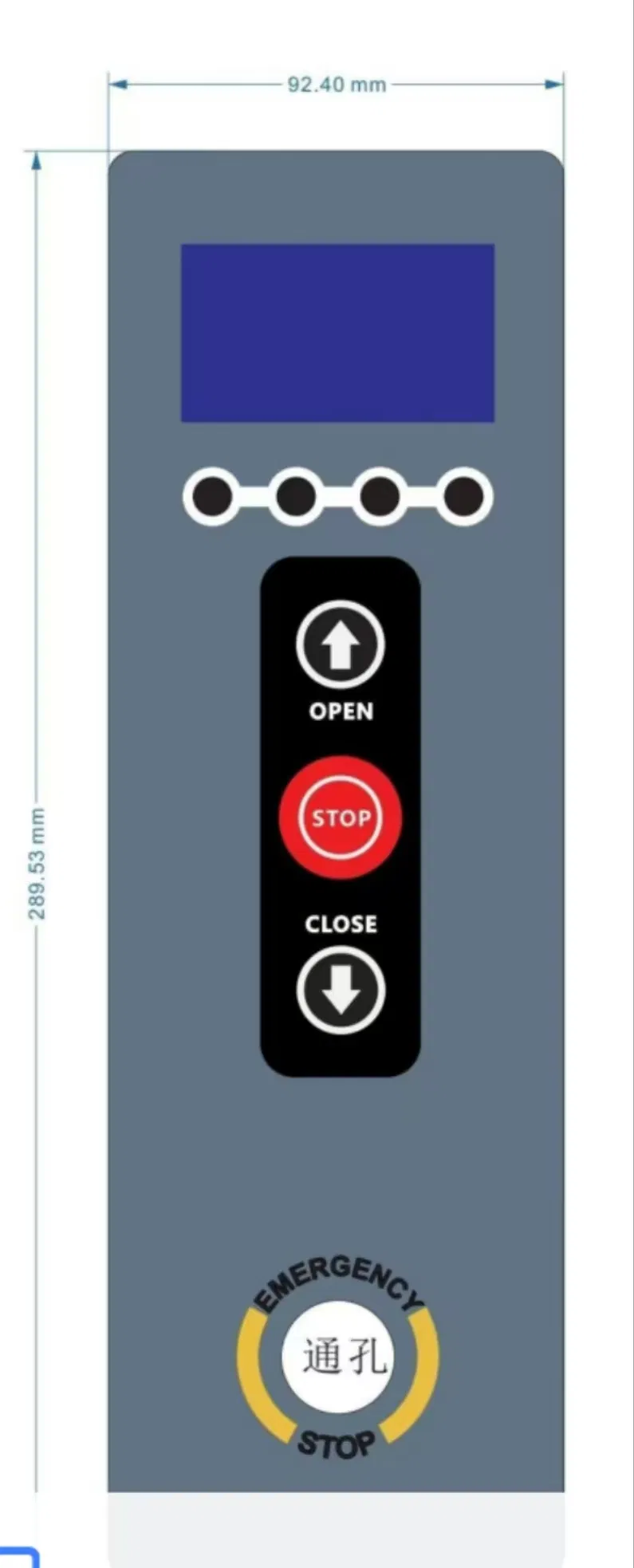

Dual Language Support: LCD Screen with Chinese & English for Seamless Display.
Technical Diagrams (mm)

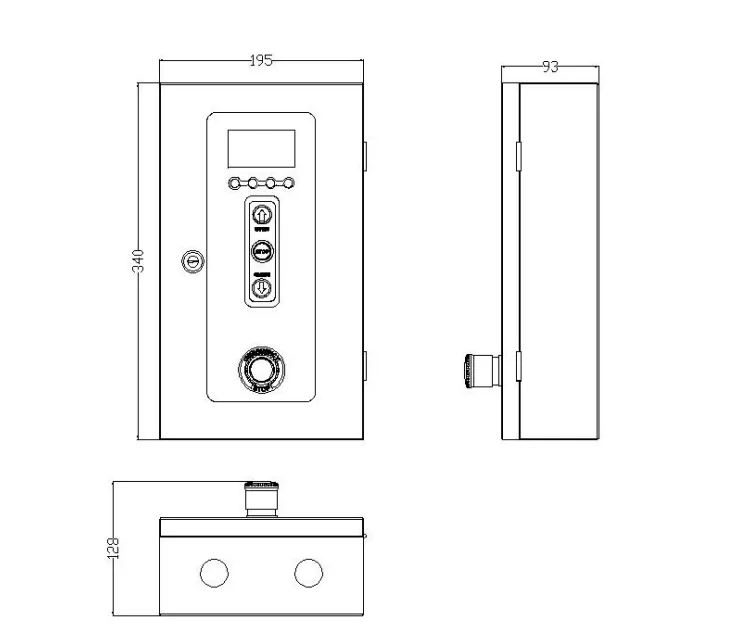

1. A0 Control Box Size Line Diagram
2. A0 Electric Unit Size Line Diagram
Operation Notes:
1. The rated power functions optimally in temperatures ranging from -10 to +40ºC, while derating operates smoothly between -20 to +50ºC.
2. For usage within -30 to -20ºC, a customized special low-temperature reducer is required for optimal performance.
Frequently Asked Questions
What is the maximum door area this servo system can handle?
The 0.75KW A0PE201 system is designed to control doors with a maximum area of less than 16 square meters.
What are the power requirements for this motor system?
The system operates on a nominal voltage of 220V with an input supply voltage range of Single-Phase AC200-240V.
Does the control box support English display?
Yes, the system features a dual-language LCD screen that supports both Chinese and English for easy configuration and monitoring.
What kind of braking and limit system does it use?
It utilizes an electronic brake for self-locking and a built-in encoder for precise limit mode management.
Can this system operate in extremely cold environments?
Standard operation is rated for -10 to +40ºC. For temperatures between -30 to -20ºC, a customized special low-temperature reducer is necessary.
What is included in the net weight of 7.5kg?

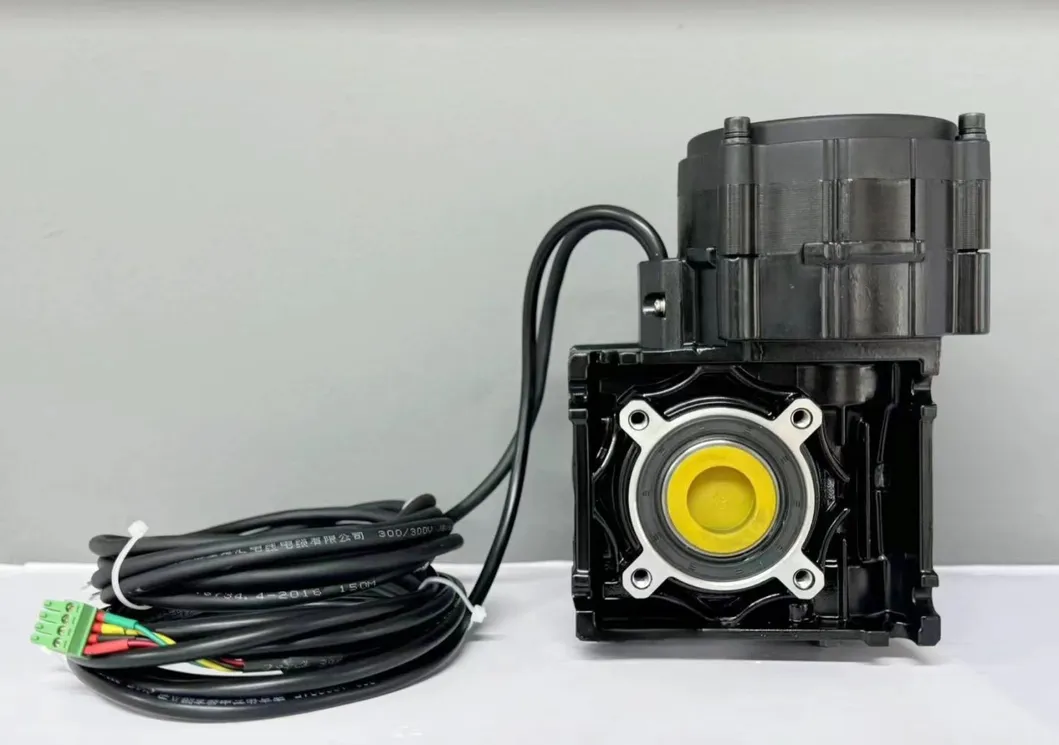

The 7.5kg net weight includes the core motor unit equipped with an RV50 Reducer.
