📦 Product Description

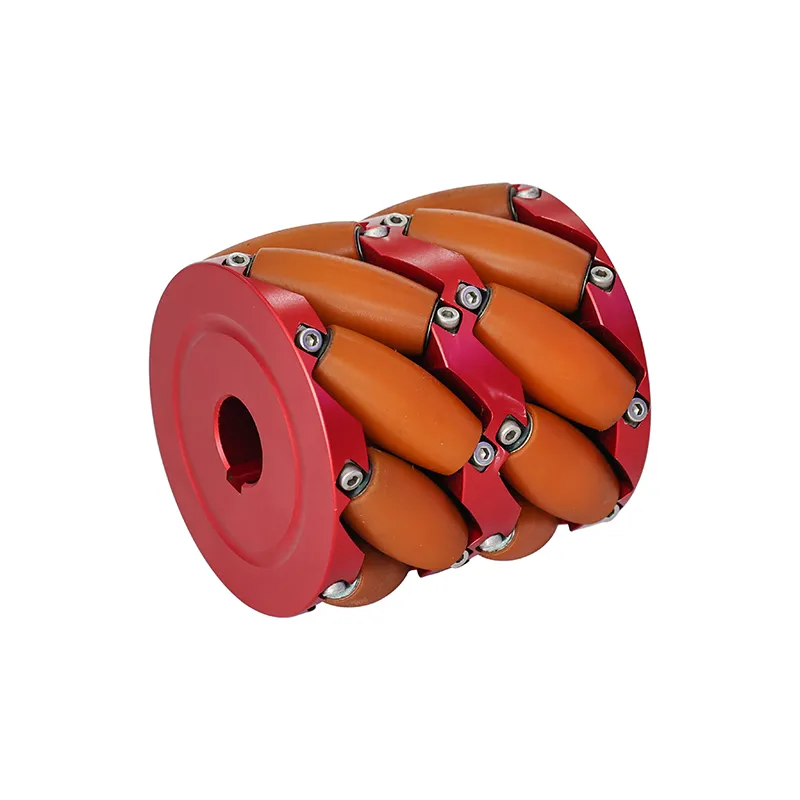

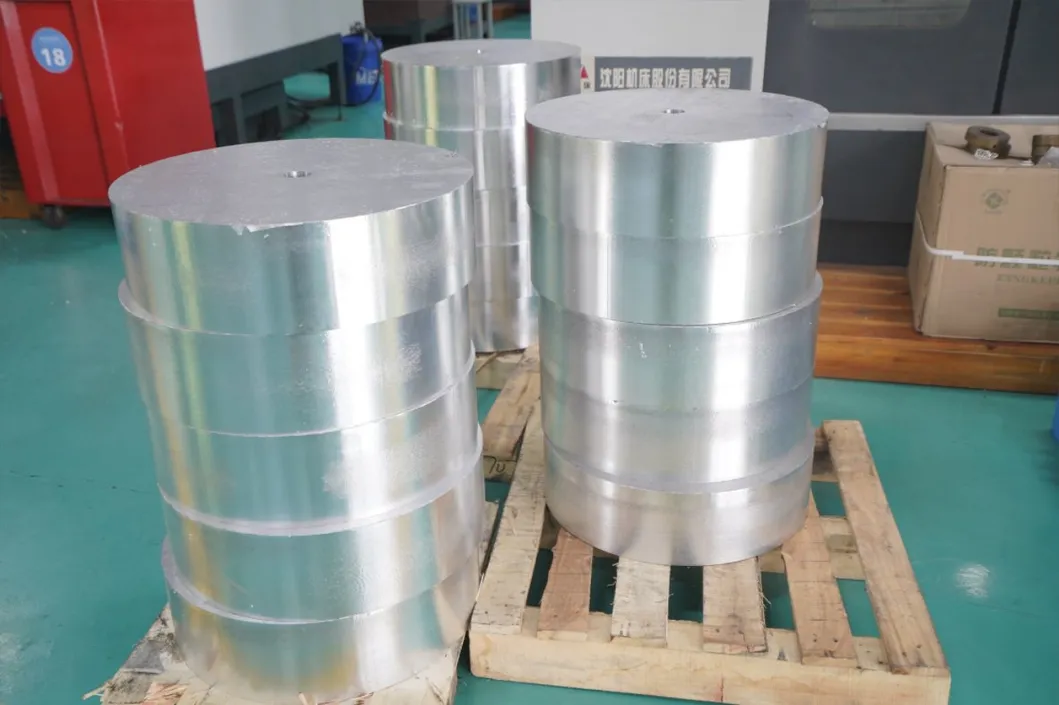

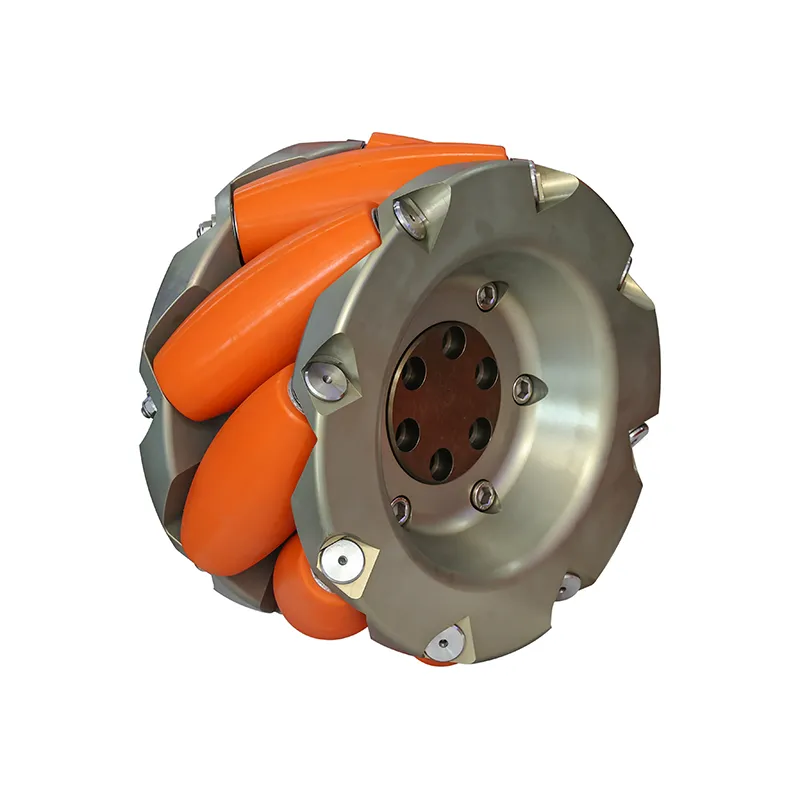

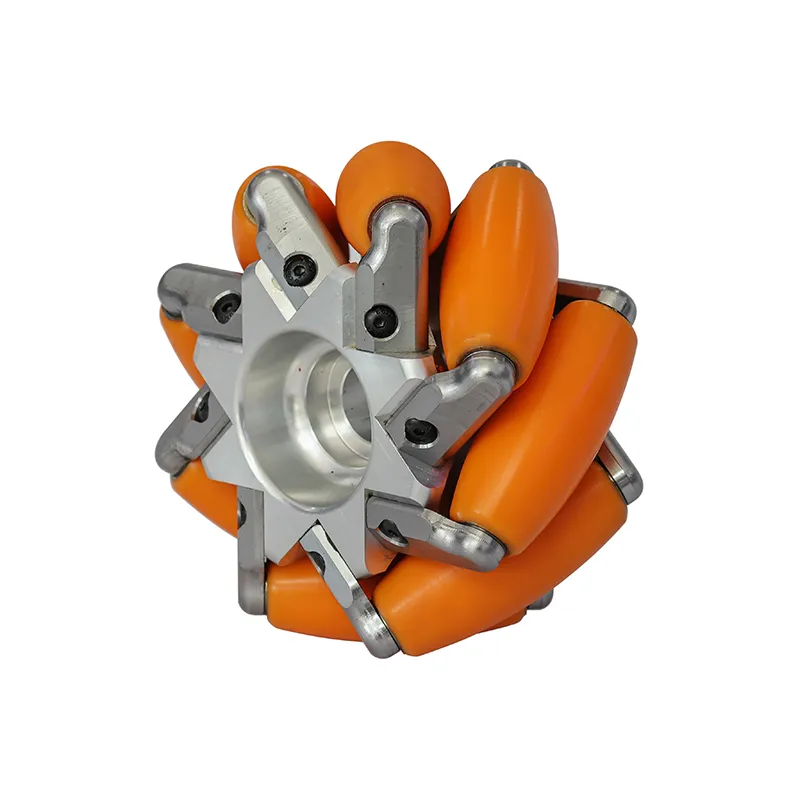

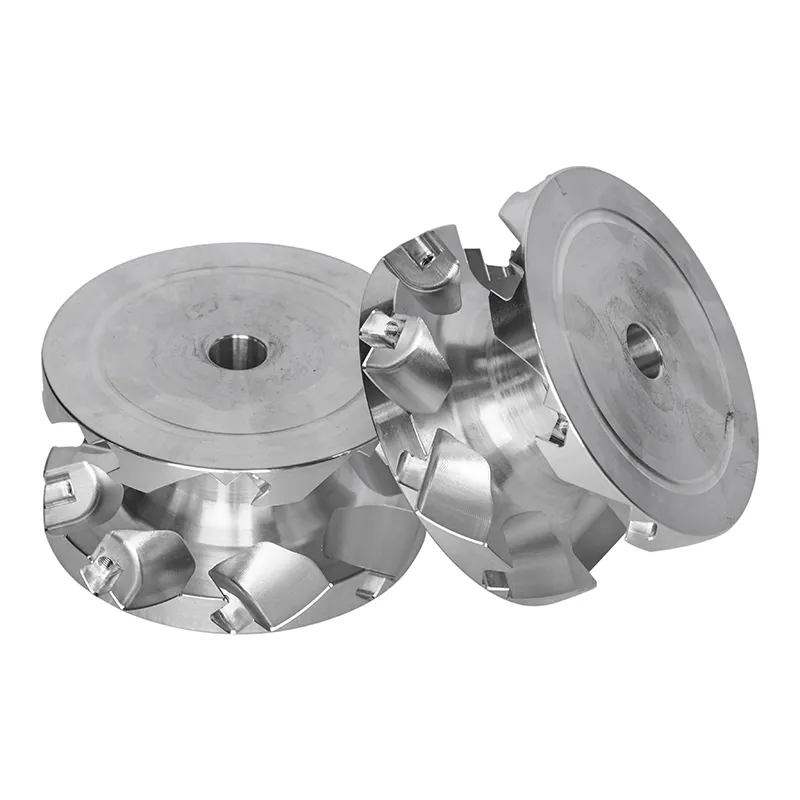

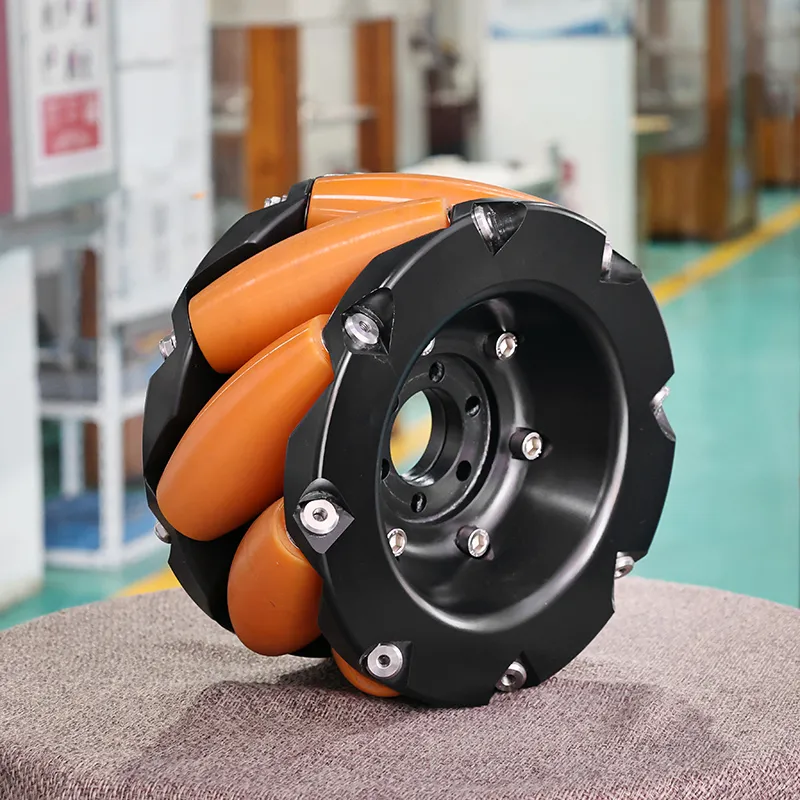

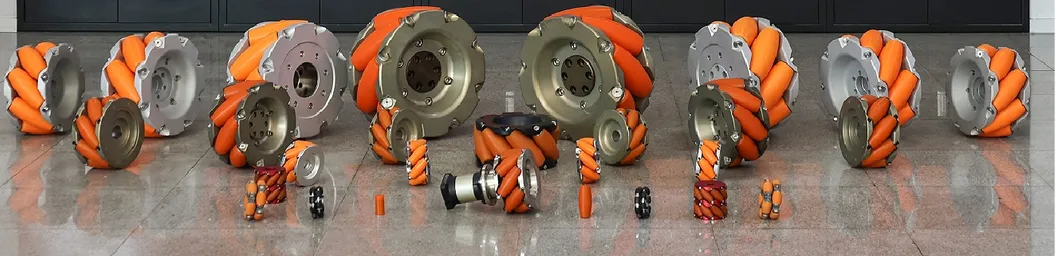

The Mecanum wheel series is processed by a five-axis machining center using a whole piece of raw materials, which maximizes the strength and accuracy of the whole wheel. According to different loads, different matching forms of bearing design are selected.

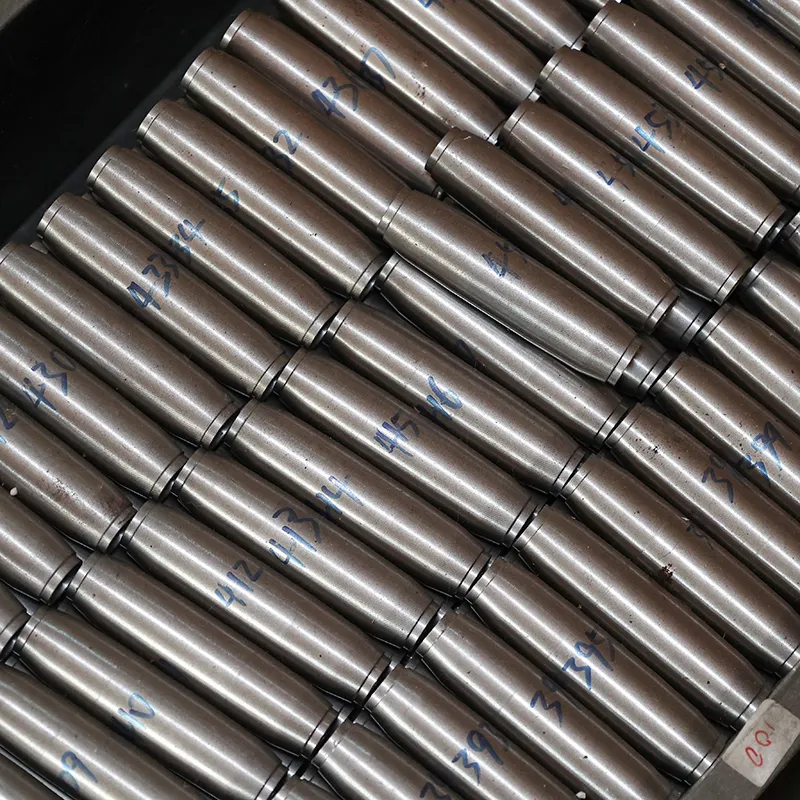

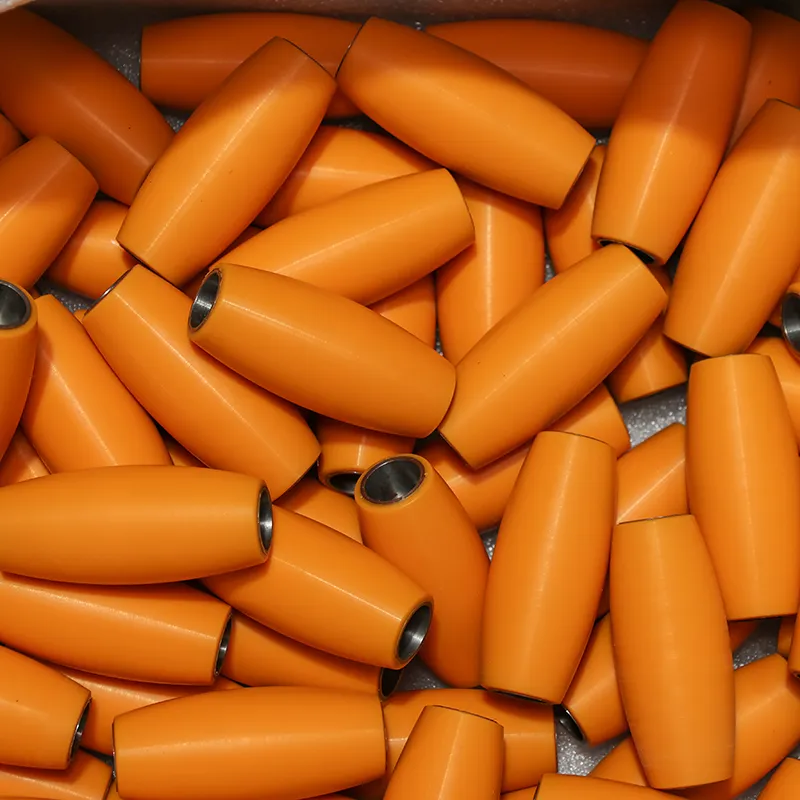

The thickness of the shaft center is 4mm thicker than that of the products in the same industry, ensuring the bearing capacity and durability. The driven wheel is made of polyurethane materials imported from Germany, and the advanced all-in-one rubber covering process. Each driven wheel is processed by secondary numerical control lathe to ensure the size and secondary detection, eliminate the bubble in the colloid, and have stronger bearing capacity.

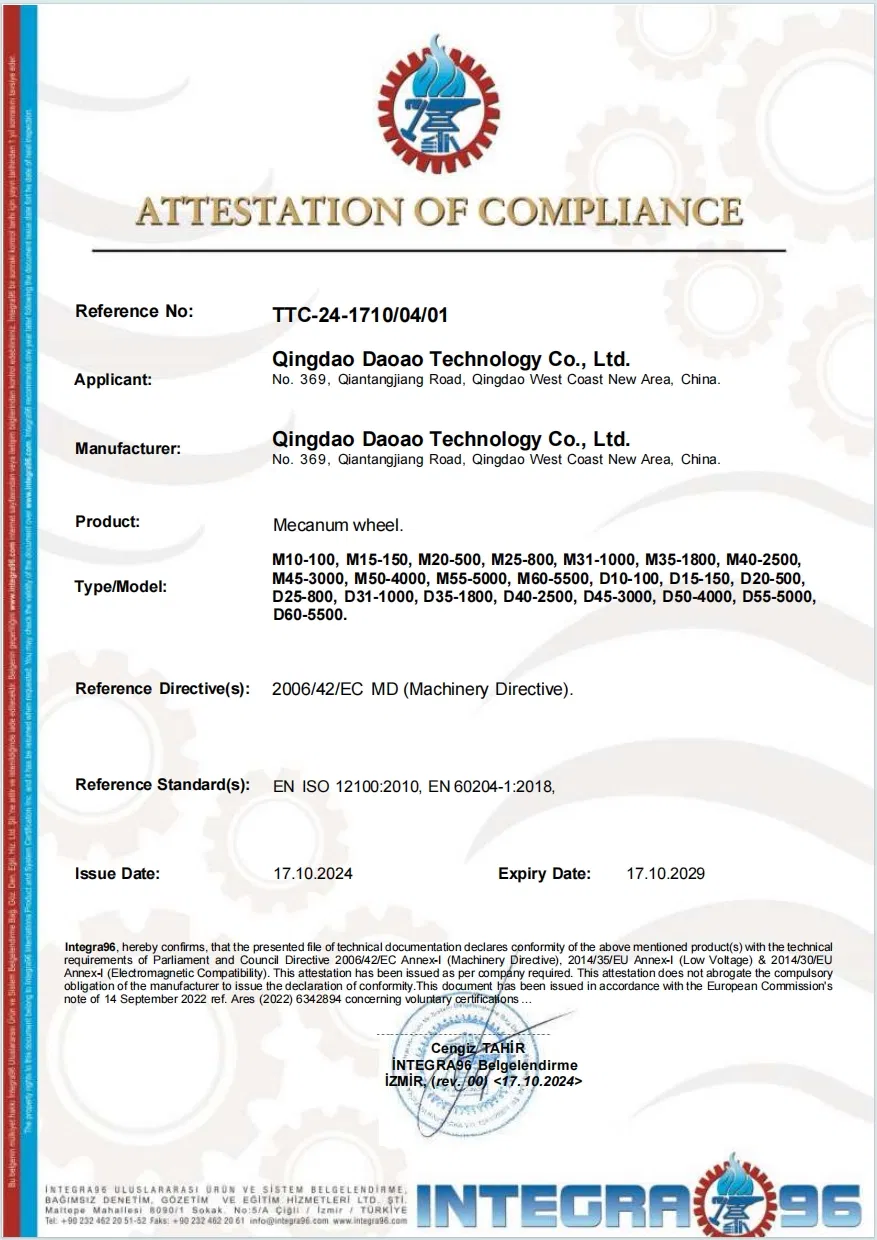

The product has passed the 2006/42/EC MD (Machinery Directive) certification, making it more reliable!
| Mecanum Wheel Specifications |
| Type |
M10-100 | M15-150 | M20-500 | M25-800 | M31-1000 | M35-1800 | M40-2500 | M45-3000 | M50-4000 | M55-5000 |
| Outer Diameter (inch) |
4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| Width (inch) |
2.1 | 3.0 | 4.1 | 5.0 | 6.2 | 7.0 | 8.0 | 9.1 | 10.0 | 11.1 |
| Single Wheel Load (Kg) |
100 | 150 | 500 | 800 | 1000 | 1800 | 2500 | 3000 | 4000 | 5000 |

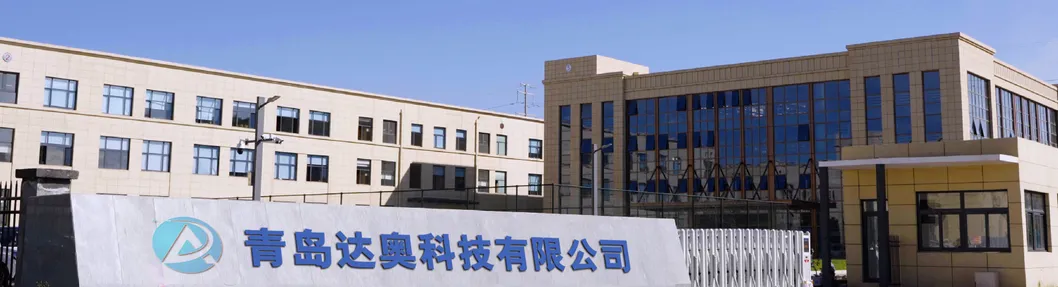

🛠️ Expertise & Capabilities

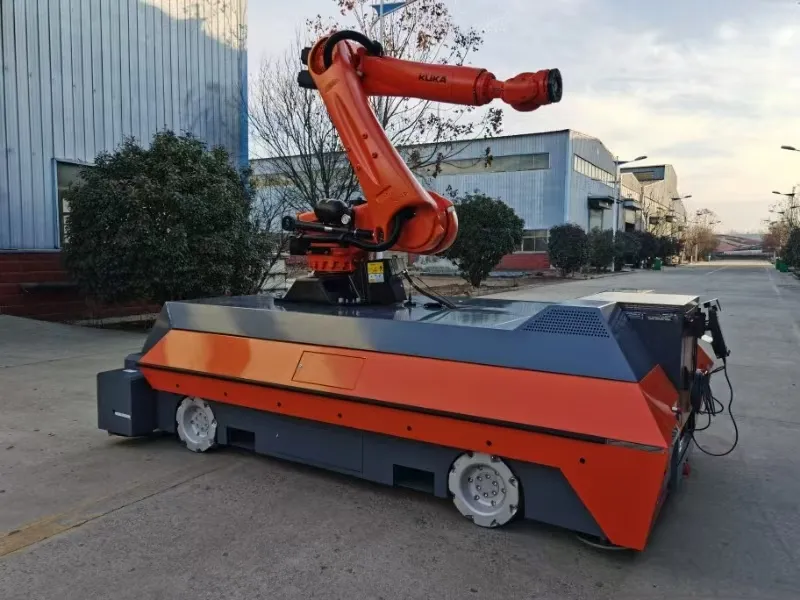

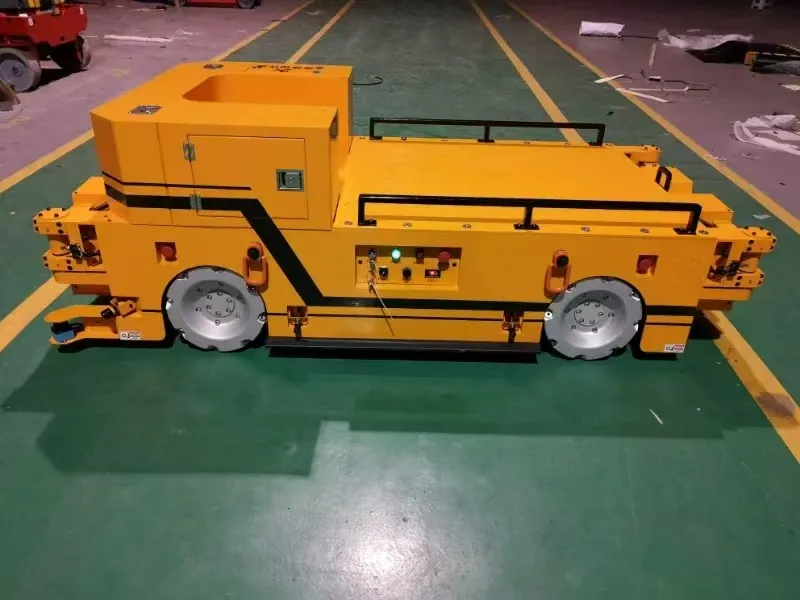

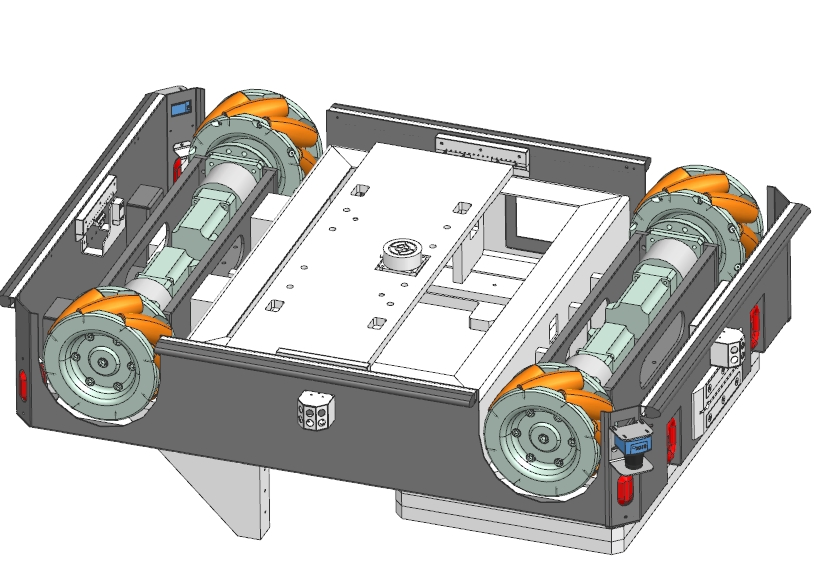

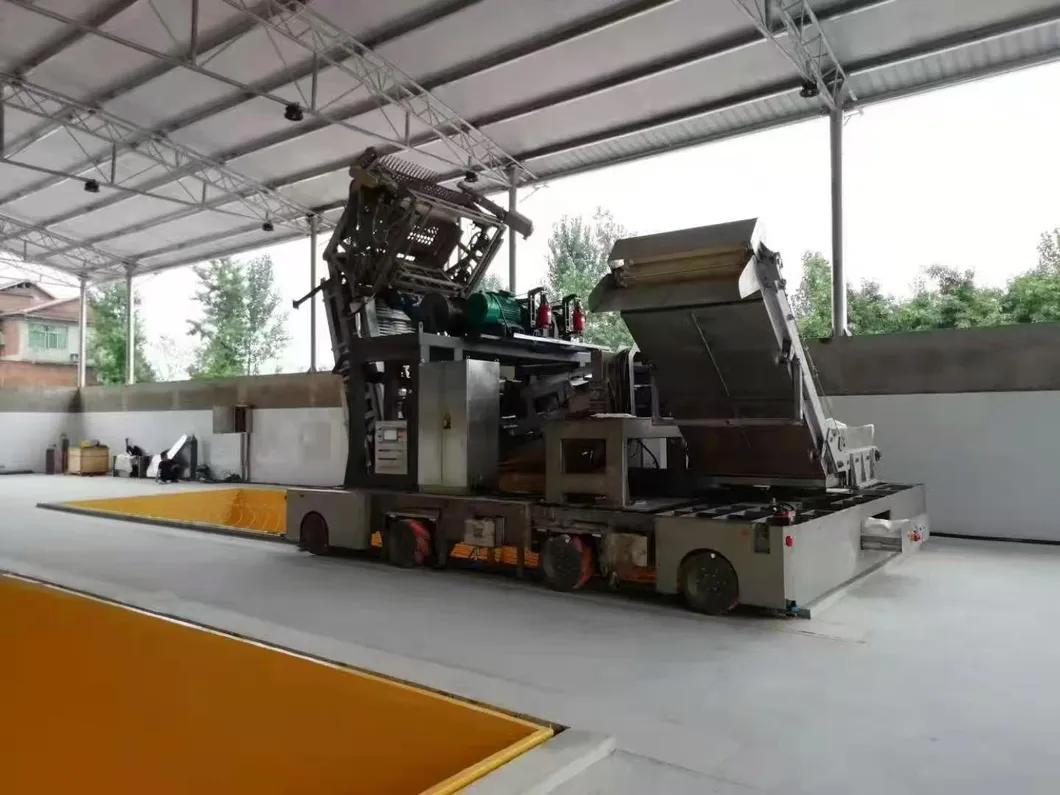

Specializing in the design and manufacturing of Mecanum wheels and Automated Guided Vehicle (AGV) systems. Delivering cutting-edge solutions tailored to meet the diverse needs of automated logistics and material handling systems.
- 10 years of design and manufacturing experience with rich solution accumulation.
- OEM & ODM range: Custom interface and detail adjustments for Mecanum wheels.

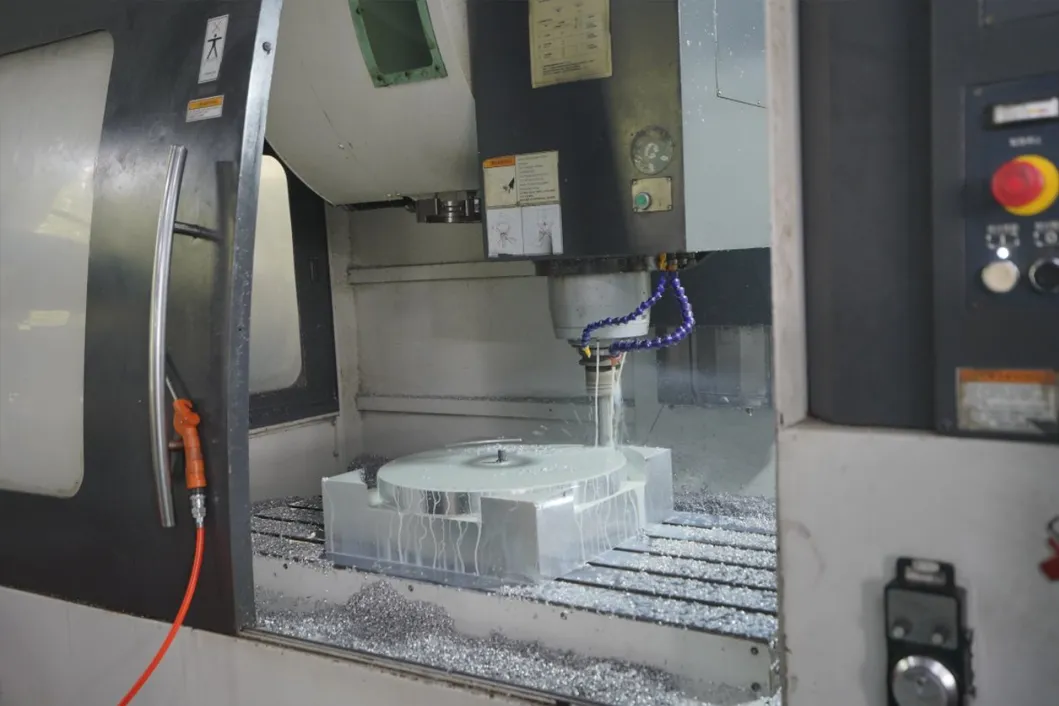

- Advanced Processing: Milling, Turning, Drilling, CNC machining, Grinding, and Honing.
- High-end Equipment: Pentahedron gantry, CNC Machining Centers (MAZAK), DMG Turning Milling Compound centers.
- Surface Treatment: Anodic oxidation and nickel plating.
- Capacity: 40,000 pcs/year with ISO9001 & ISO 16949 compliance.
❓ Frequently Asked Questions
What are the main advantages of your Mecanum wheels?
Our wheels are processed by five-axis machining from a single piece of raw material, ensuring maximum strength. We use German-imported polyurethane and a shaft center that is 4mm thicker than industry standards for superior durability.
What is the maximum load capacity available?
We offer a wide range of sizes from 4 to 22 inches, with a maximum single-wheel load capacity of up to 5000kg.
Do you provide customized solutions or OEM services?
Yes, we provide full OEM and ODM services. We can adjust interfaces, dimensions, and materials based on your specific technical drawings or project requirements.
What certifications do your products hold?
Our products have passed the 2006/42/EC MD (Machinery Directive) certification, and our manufacturing processes comply with ISO9001 and ISO 16949 standards.
What is the typical delivery time for orders?
For products in stock, delivery is within 15-20 days. For custom orders, the lead time is approximately 20-35 days after all details are confirmed.
What kind of quality testing do you perform?
We conduct 100% inspection during production using professional equipment, including Optical Spectrum Analyzers, CMM, Hardness testers, and Tensile testing machines.
