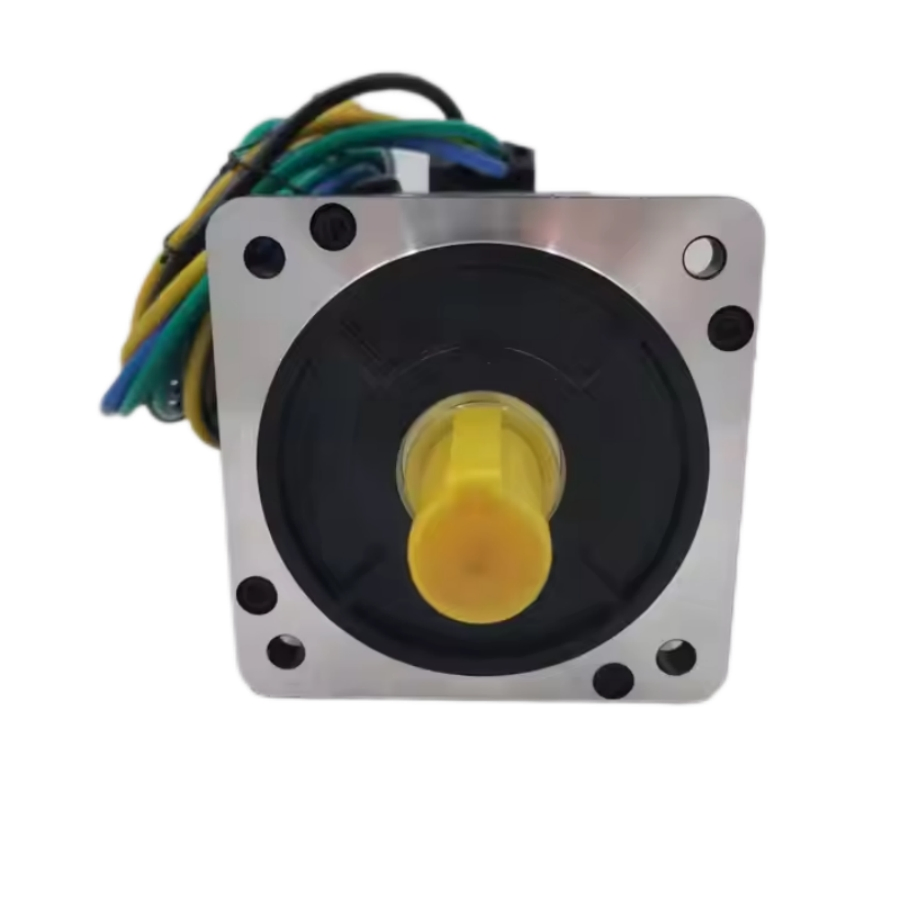

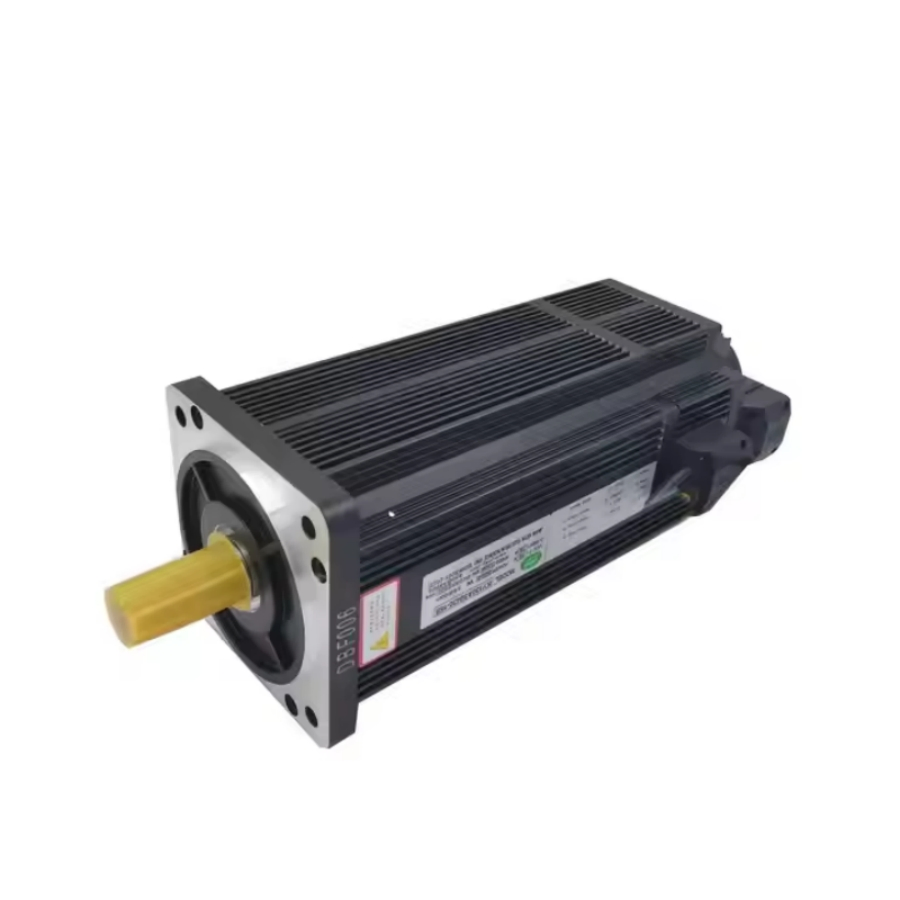

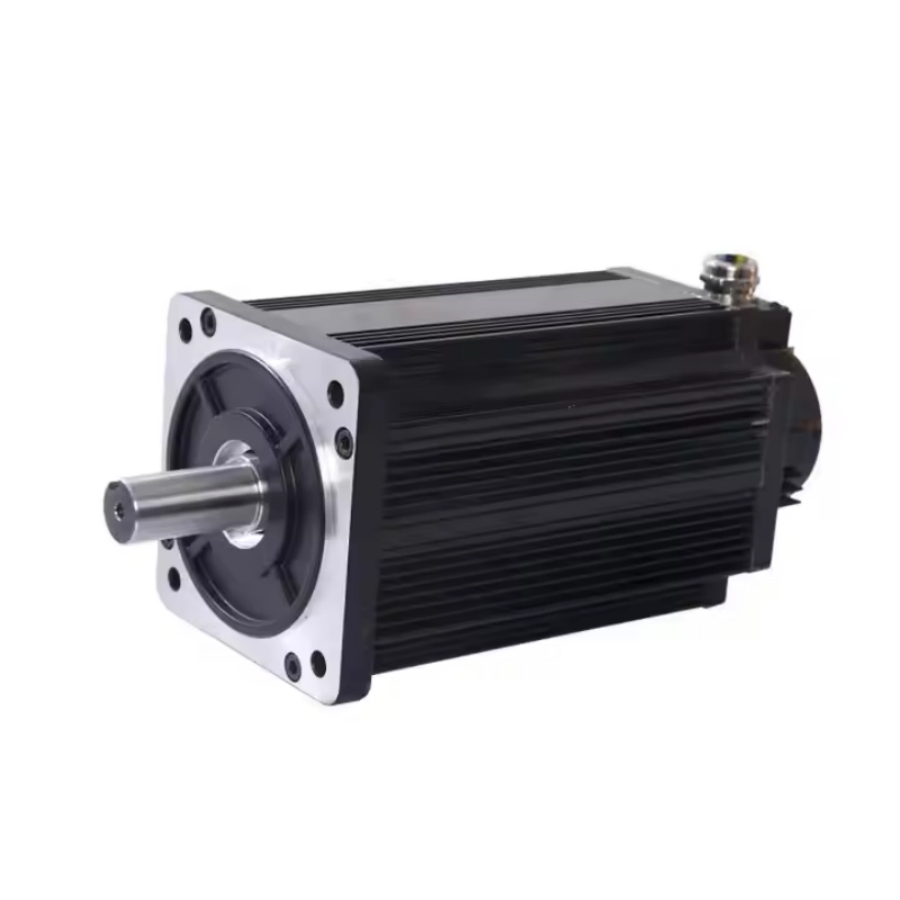

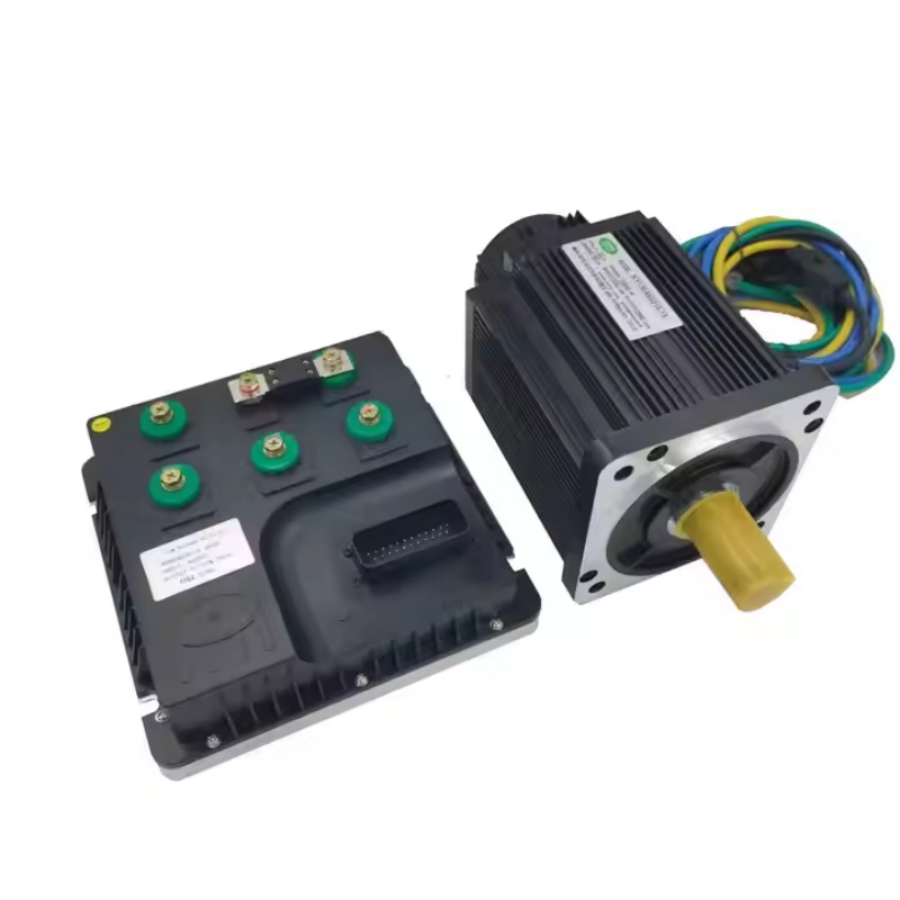

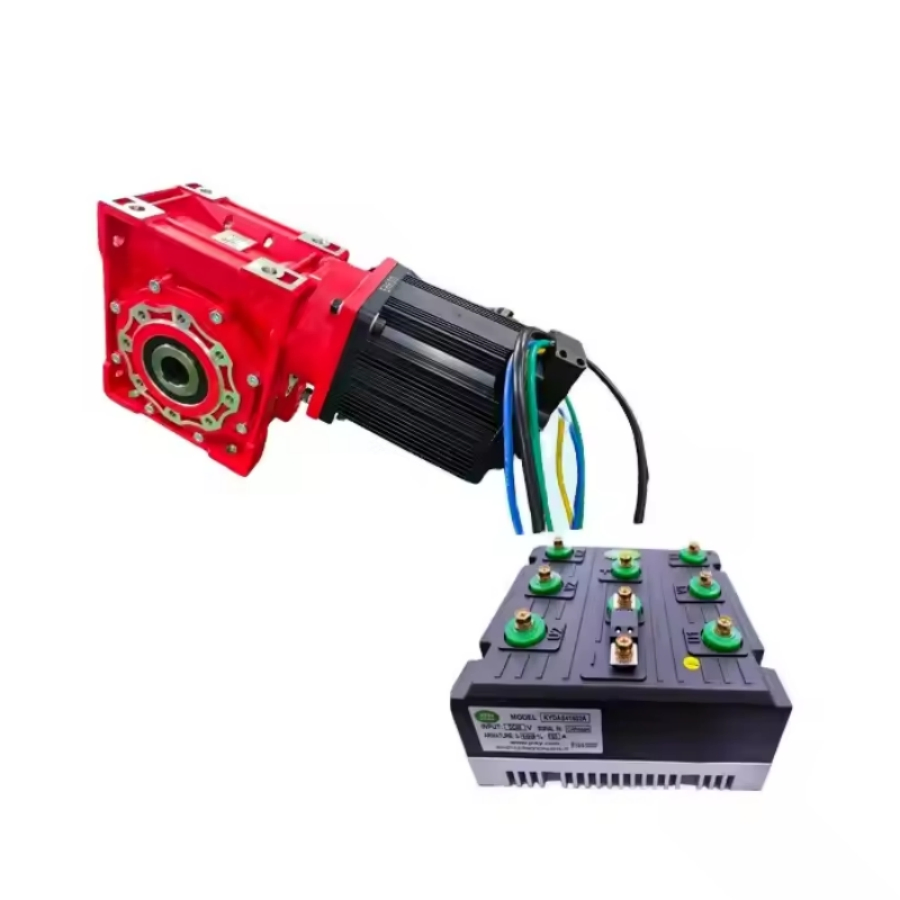

BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
1 / 5
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot
BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot

BLDC Motor 24V 48V 200W 400W 500W 800W 1000W 1200W 1500W 2000W 3000W DC Servo System for Mobile Robot

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🌐 Basic Info.
Model NO.
KY80AS0204-15
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
10
Structure
Brushless
Certification
ISO9001, CE
Voltage
24V
Power
200W
Speed
1500r
Feedback Part
Incremental Encoder
Brake
Power Loss Brake
Protection Level
IP 55
Warranty
1 Year
Package Size
20.00cm * 25.00cm * 25.00cm
Gross Weight
3.000kg
📦 Product Description

DC Servo Motor with Hall Sensor and Encoder

High-performance BLDC motor designed for AGV robots and industrial automation, featuring a 2500ppr encoder and support for 24V/48V power systems.

  • High Torque to inertia ratio & up to 25000Nm/kgm²
  • Fast dynamic response, time constant < 20ms
  • Wide speed adjusting & feedback up to 1000:1
  • Steady speed precision up to 0.5%
  • High overload: 2N.m/30s, 3.5N.m/10s
  • Silent operation, noise as low as 45dB(A)
  • IP65 Protected, Class F insulation
Work Environment:

1. Altitude less than 1000M.
2. Environment temperature: +5ºC ~ +40ºC
3. Humidity: Average relative humidity < 90%, average lowest temperature < 25ºC.

📊 Technical Parameters
Model Rated Power Rated Volt Rated Speed Rated Current Rated Torque
KY80AS0202-15200W24V/48V1500rpm9.4A/4.7A1.27N.m
KY80AS0204-15400W24V/48V1500RPM21.3A/15.6A2.55N.m
KY80AS0204-30400W24V/48V3000RPM18.8A/9.4A3.8N.m
KY110AS0405-15500w48V1500rpm14A3.1N.m
KY110AS0408-15800w48V1500rpm22A5.0N.m
KY110AS0410-151000w48V1500rpm28A6.3N.m
KY110AS0412-251200w48V2500rpm33A4.5N.m
KY110AS0415-151500w48V1500rpm37.5A9.5N.m

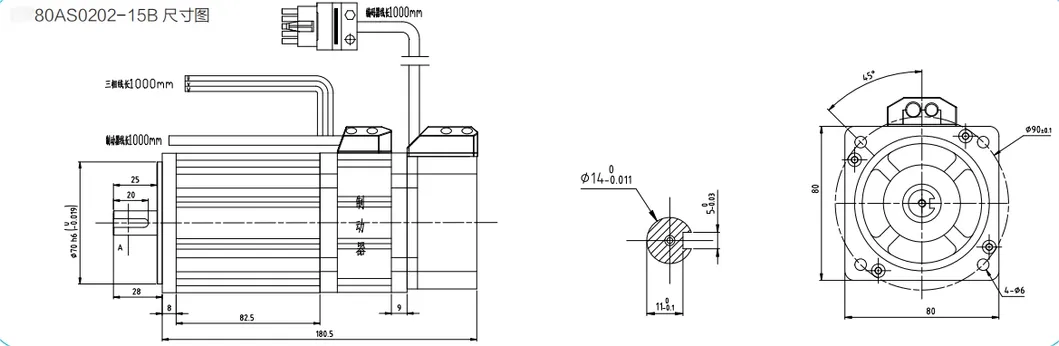

DC Servo System Specifications
🔍 Detailed Photos

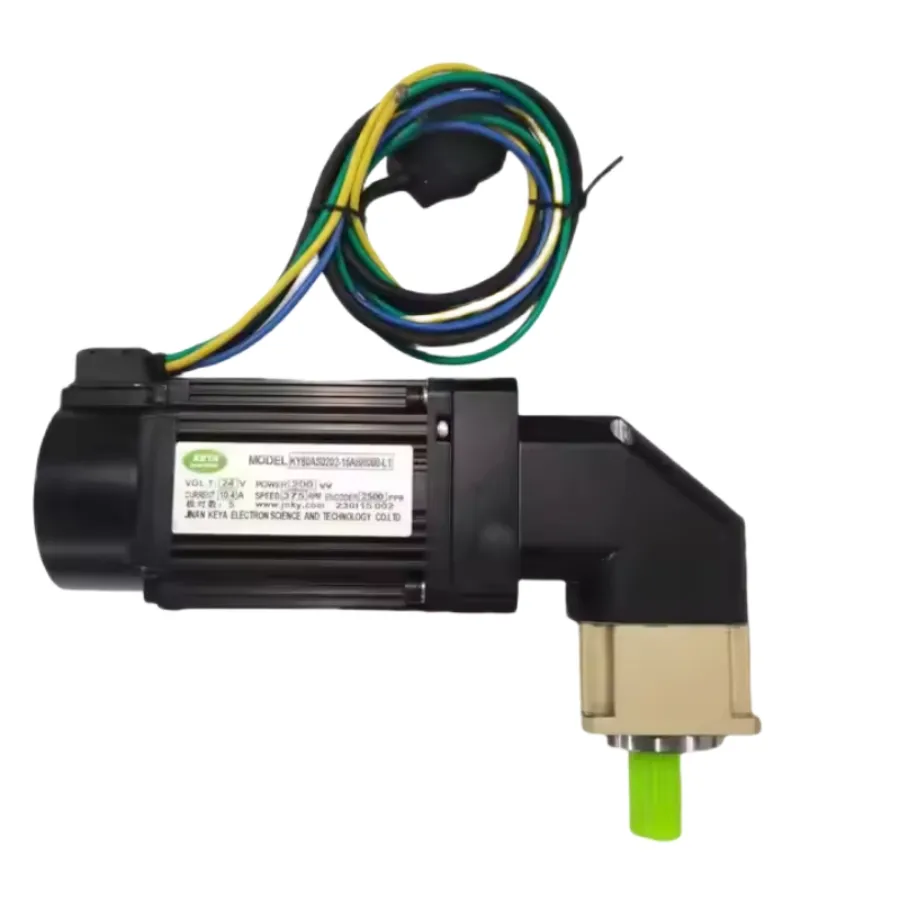

Motor View 1

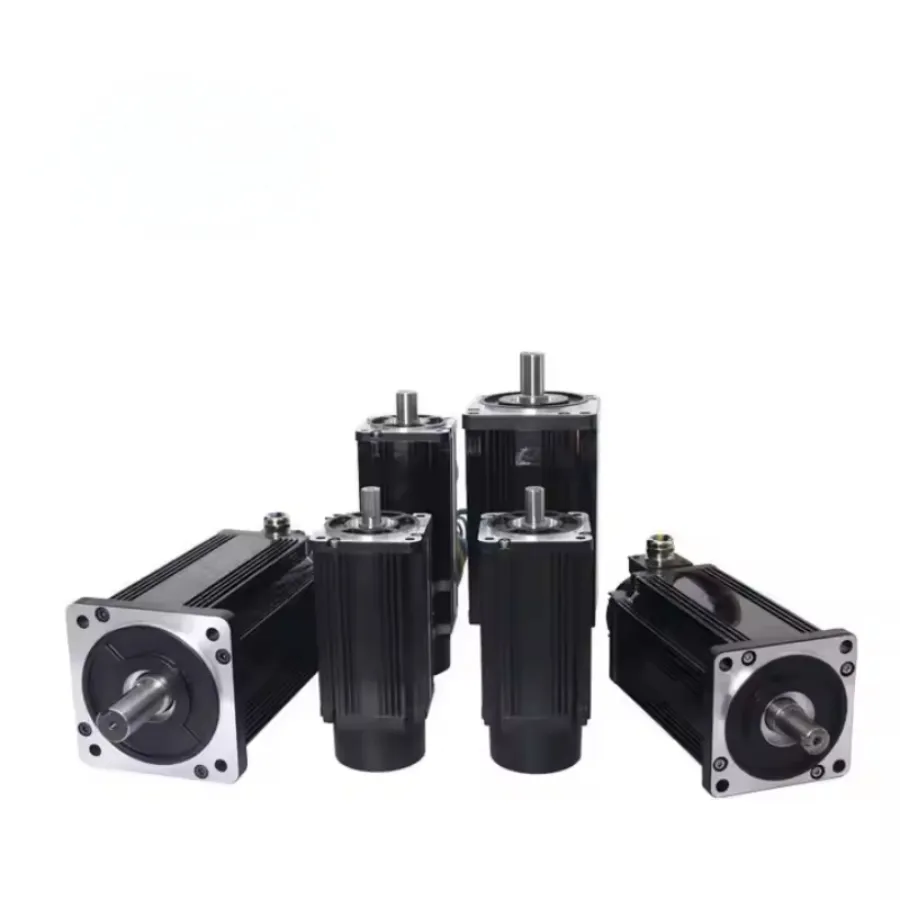

Motor View 2

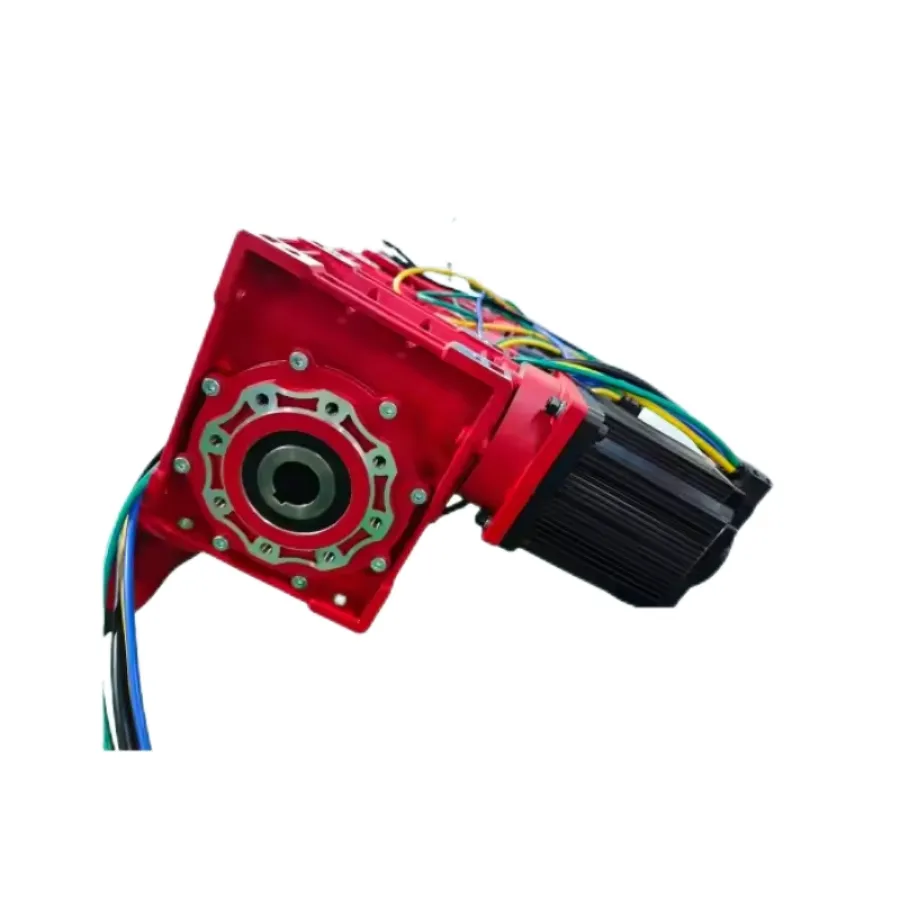

Motor View 3

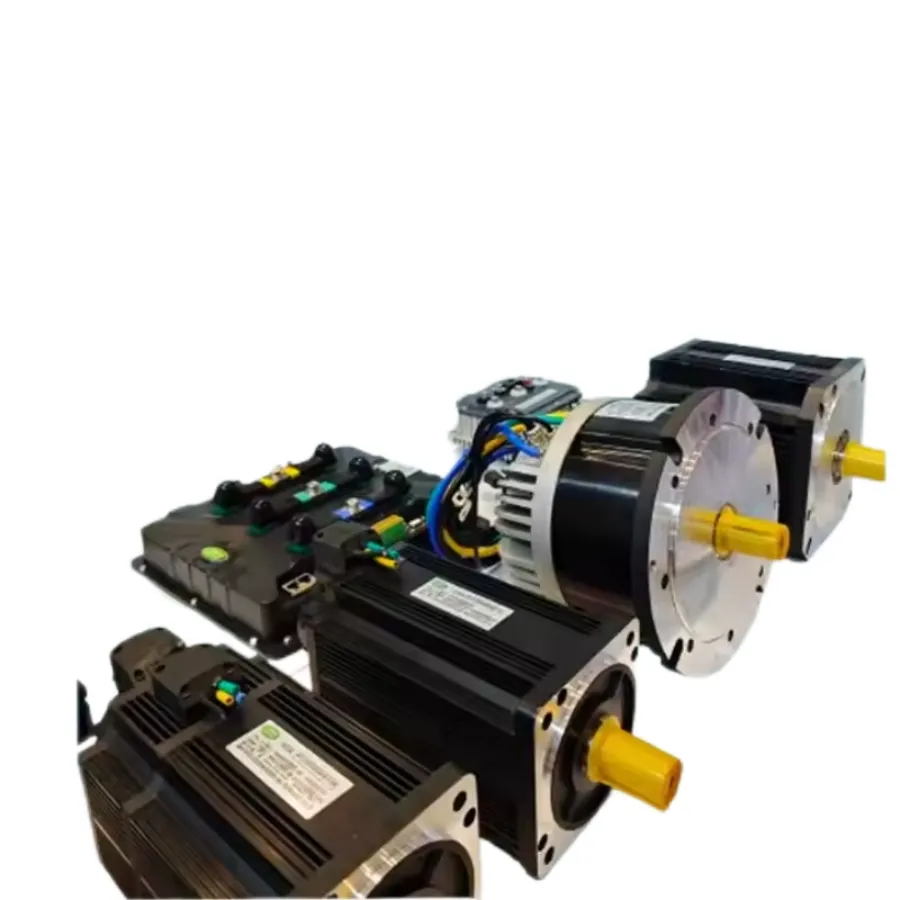

Motor Dimension Detail
📜 Certifications
Product Certifications CE ISO
🚀 Product Application

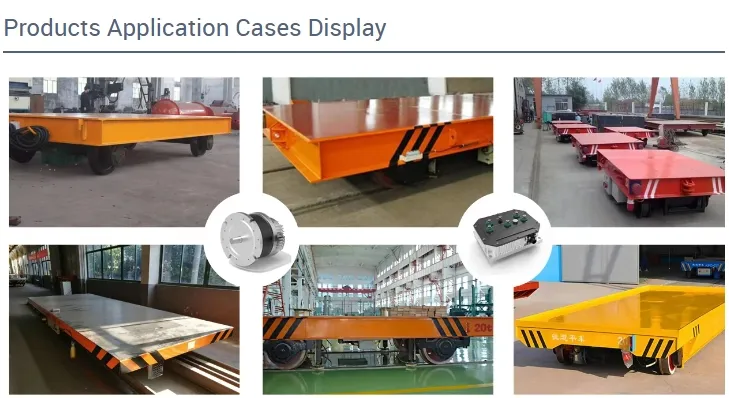

Application 1

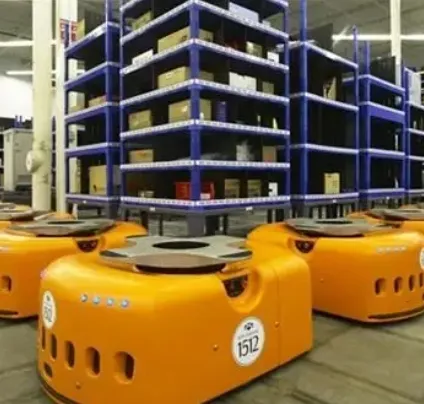

Application 2
Application 3
Robot Application Detail Motor Internal Structure Servo System Setup
❓ Frequently Asked Questions
1. What type of feedback system does this DC servo motor use?
The motor is equipped with an incremental encoder (2500ppr) and a hall sensor to ensure precise speed and position control.
2. Is this motor suitable for outdoor or harsh environments?
Yes, the motor features an IP55 or IP65 protection level and Class F insulation, making it resistant to dust and moisture in industrial settings.
3. What are the main applications for the KY80AS series?
This series is primarily designed for mobile robots, AGVs (Automated Guided Vehicles), and high-precision driving or control systems.
4. Does the motor support different voltage inputs?
Yes, various models support 24V and 48V DC power supplies, with power ratings ranging from 200W up to 2000W.
5. Can the motor handle high overload conditions?
Absolutely. It supports high overload capacities, such as 2N.m for 30 seconds and up to 3.5N.m for 10 seconds for dynamic tasks.
6. What is the standard warranty period for this product?
The motor comes with a 1-year warranty covering manufacturing defects and standard operation.
