Customization:	Available
Warranty:	1 Year
Condition:	New

Send Inquiry

Product Description

📊 Basic Information

Model NO.	ZC-QCG12B
Function	Teaching & Training
Certification	ISO9001, CE, ISO14001
Training Topics	Diesel Engine Operation, Maintenance, Troubleshoot
Materials	High-quality Steel & Aluminum
Teaching Level	Beginner to Advanced
Type	Training Platform
Language	OEM Customized
Dimensions	1450 x 950 x 1150mm
Origin	China

📦 Packaging & Delivery

Package Size	145.00cm * 95.00cm * 115.00cm
Gross Weight	200.000kg
Package Type	Sturdy Wooden Carton

💡 Equipment Overview & Configuration

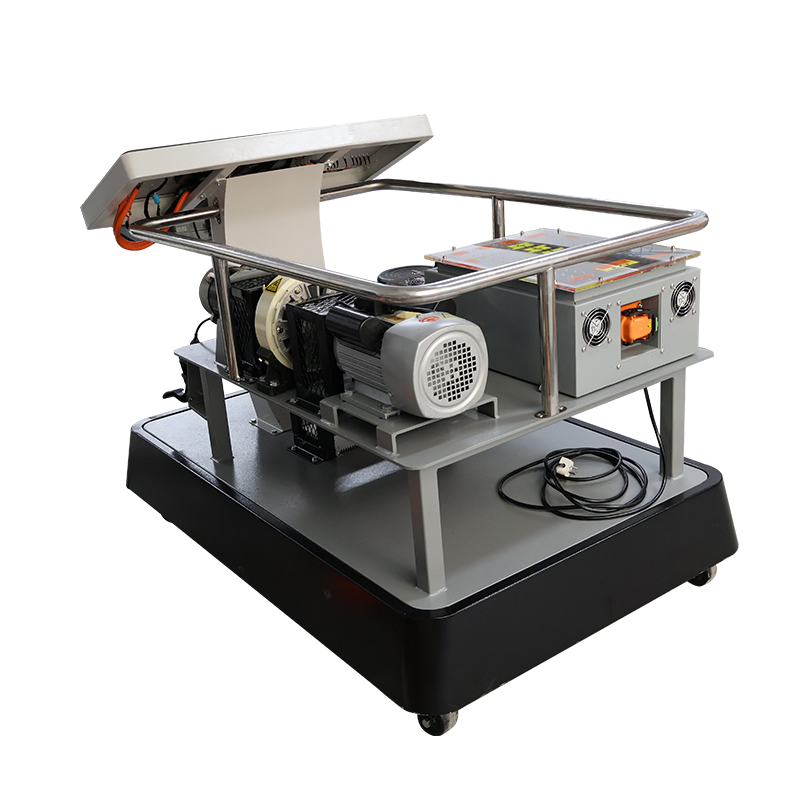

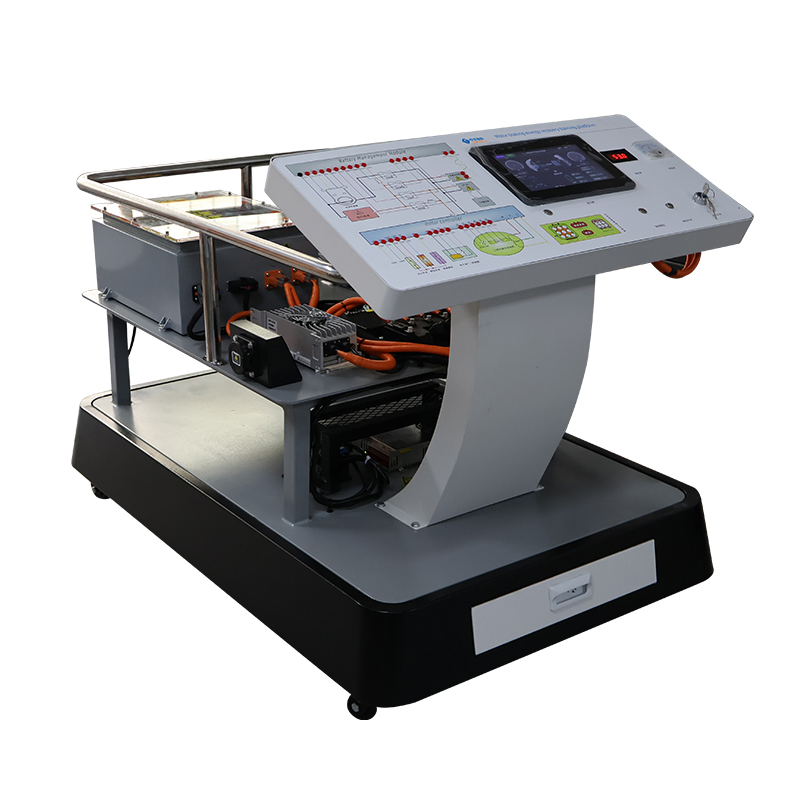

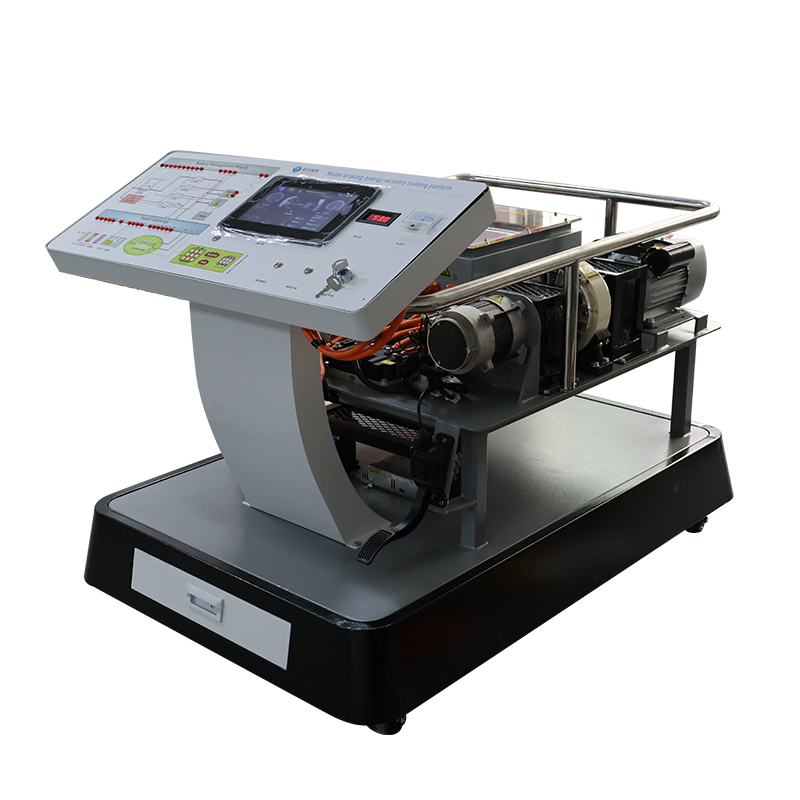

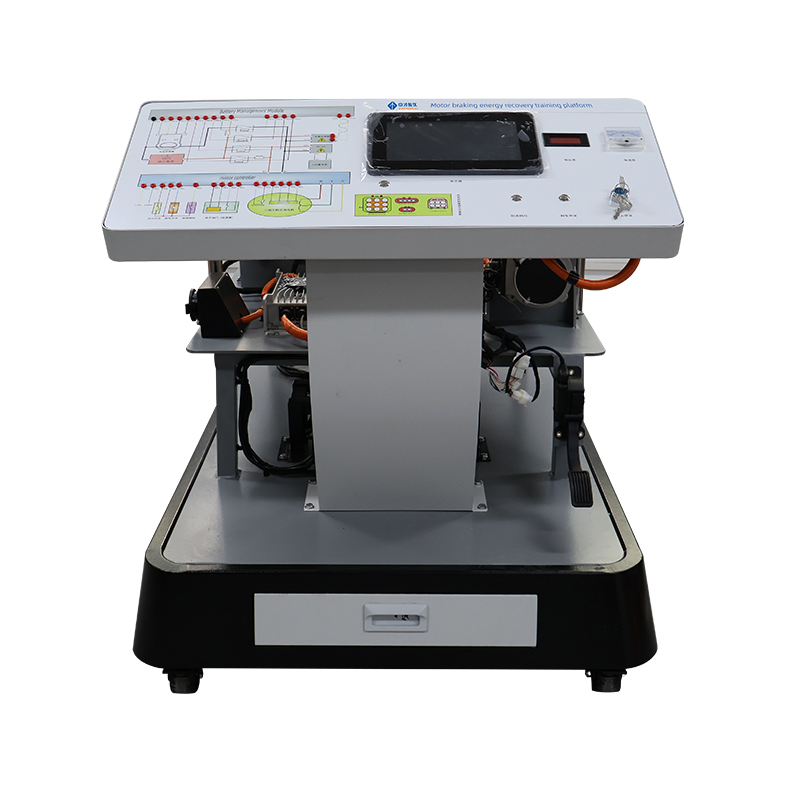

I. System Realism: Based on a physical example of a pure electric vehicle's regenerative braking system, this equipment realistically demonstrates the system's structure and operation, providing braking energy feedback and related displays. It is ideal for teaching, research, and development needs.

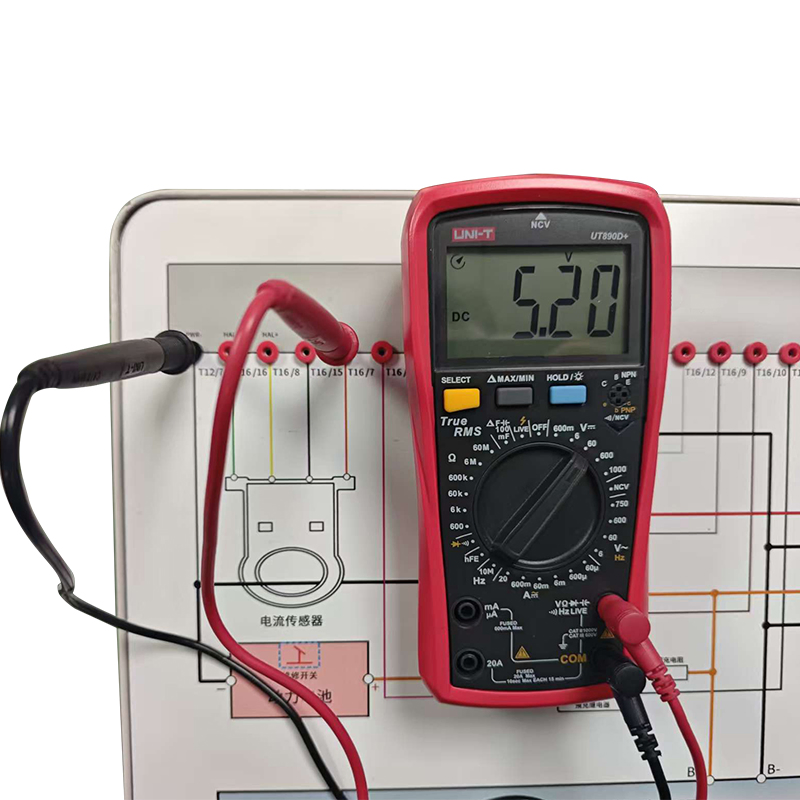

II. Interactive Learning: The equipment fully demonstrates the basic principles of regenerative braking and can dynamically simulate operation under different conditions. The panel features a 4mm thick aluminum composite base with UV flatbed printed circuit diagrams and working principle schematics.

⚙️ Technical Parameters

External Power Supply: AC 220V±10% 50Hz (for charging conditions)
Operating Voltage: Powered by the vehicle battery pack
Structural Dimensions: ≥1450mm × 950mm × 1150mm
Mobility: Equipped with 4-inch heavy-duty swivel casters for easy movement
Working Power: DC 12V system control

🖼️ Product Display

Training System 1

Training System 2

Training System 3

Training System 4

Training System 5

Training System 6

Training System 7

Training System 8

❓ Frequently Asked Questions

What type of vehicle system does this platform simulate?

This training platform specifically simulates the regenerative braking energy recovery system of a pure electric vehicle.

Is the equipment language customizable?

Yes, we provide OEM customization services which include tailoring the operating language to meet your specific regional requirements.

How is the circuit diagram printed on the panel?

The diagrams are printed using UV flatbed technology on a 4mm thick aluminum composite panel, ensuring durability and resistance to wear.

What are the power requirements for this equipment?

It requires an external AC 220V±10% 50Hz supply for charging, while the internal control system operates on DC 12V.

Is the platform easy to move around the workshop?

Yes, it is equipped with 4-inch heavy-duty swivel casters, making it highly mobile and suitable for various classroom or workshop layouts.

What educational institutions is this suitable for?

It is designed for technical schools, automotive training centers, and workshops for students ranging from beginner to advanced levels.
