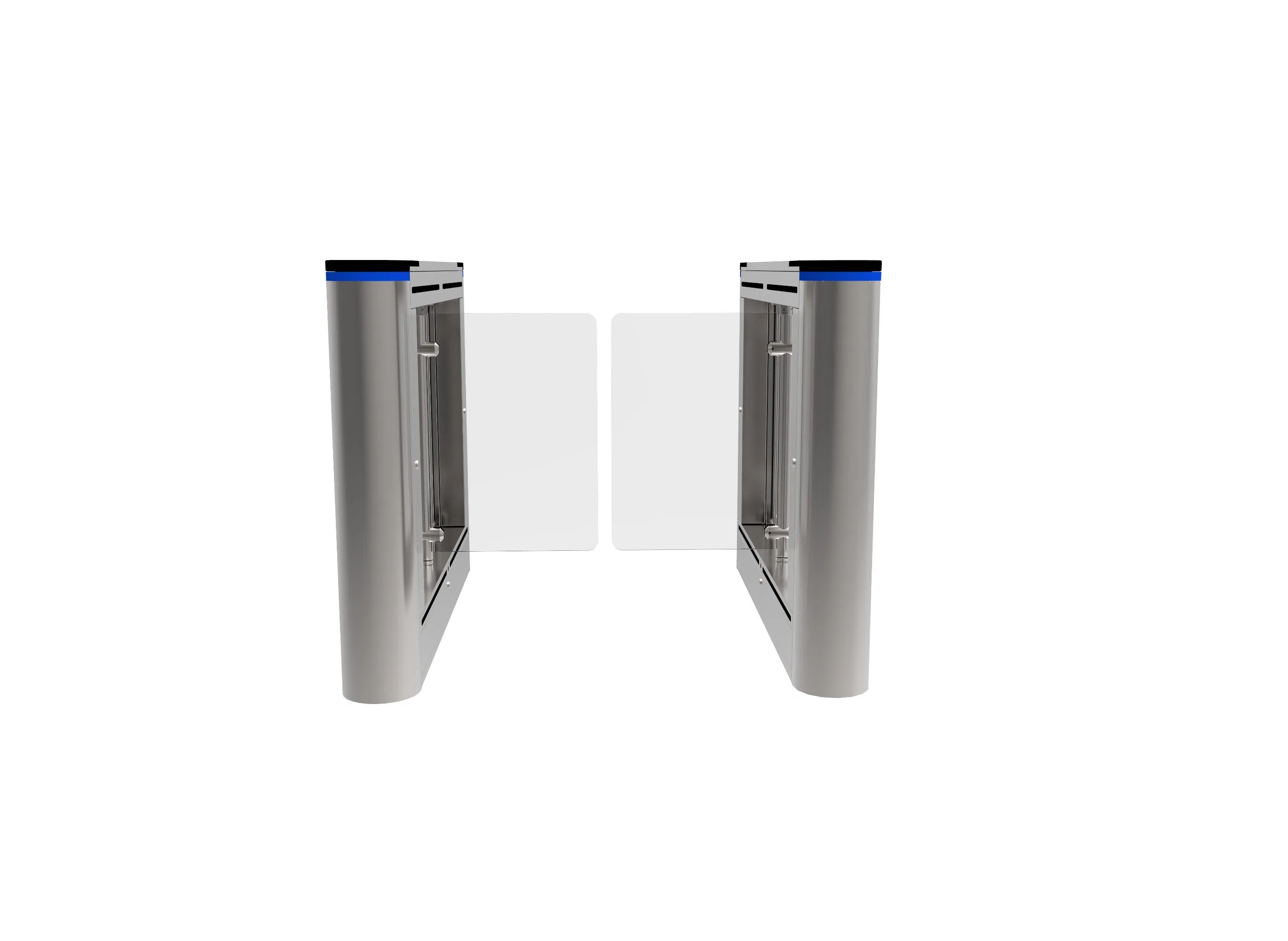

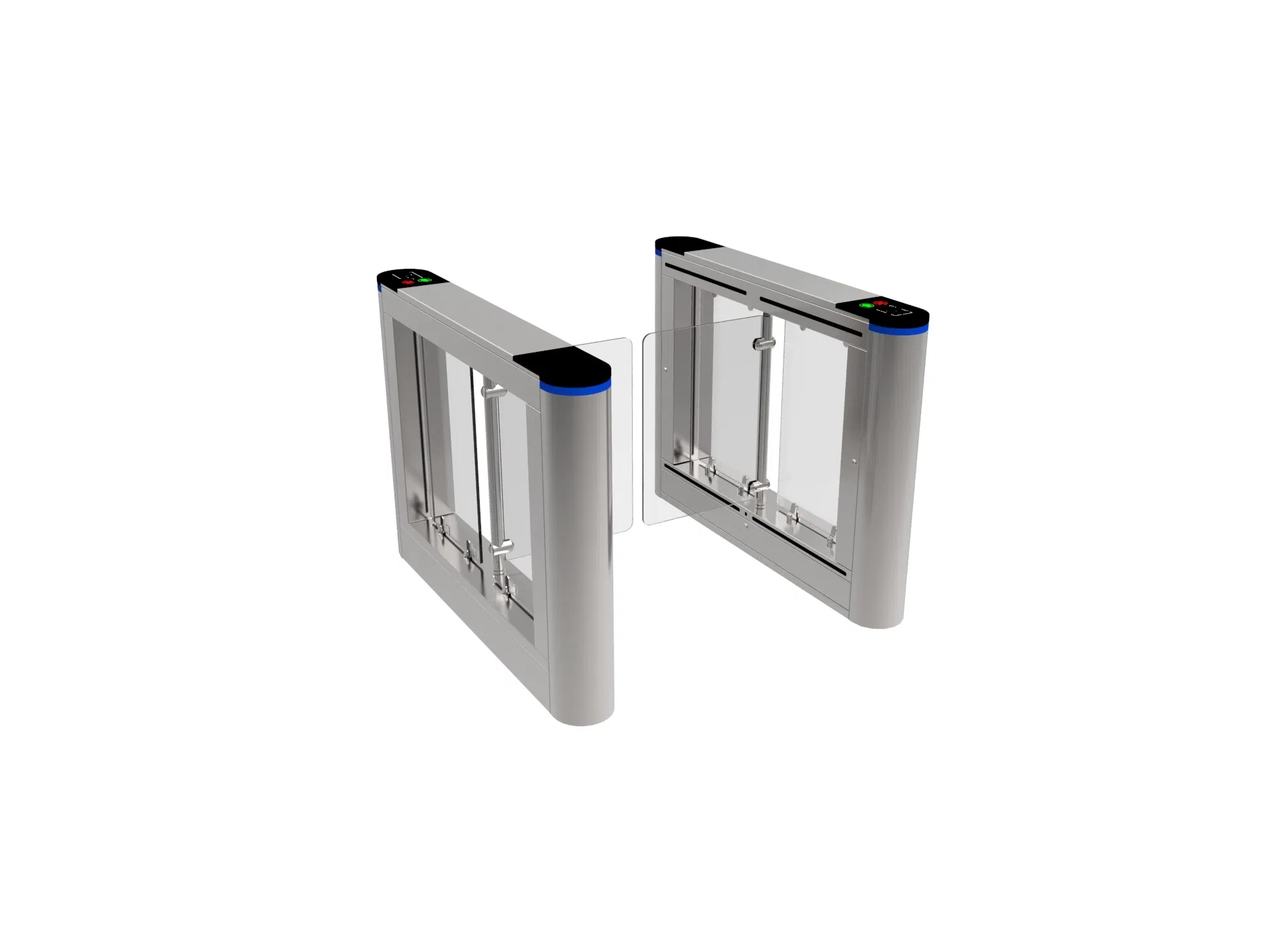

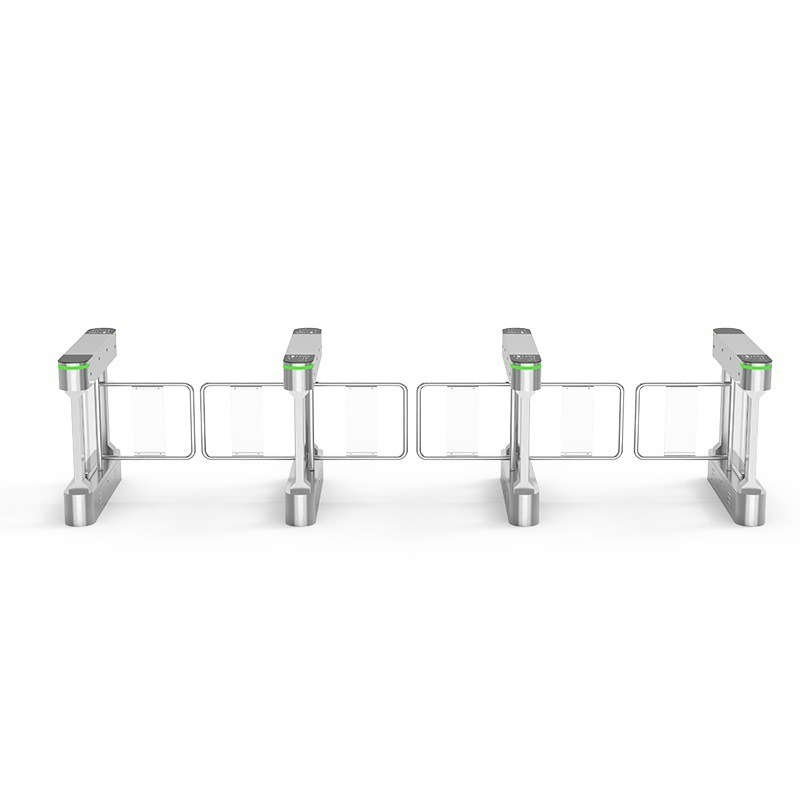

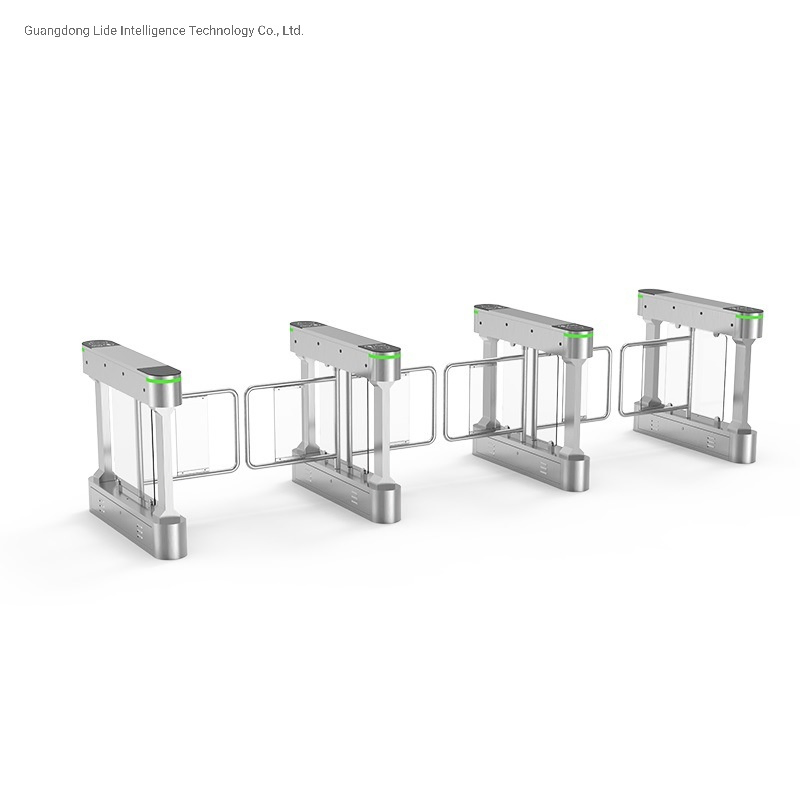

Automatic Swing Barrier Turnstile Access Control System for Hotels Park

Customization:	Available
Sensing Method:	Slot Reader
Application:	Access Control System

Basic Specifications

Model NO.

LD-B503

Movement

Single Movement

Type

Swing Gate

Control Mode

Automatic

Communication Interface

RS485, TCP/IP

Direction

Dual Direction

Speed

40 Per/ Min

Open Speed

0.6s

Channel Width

600-1200mm

Transport Package

Carton

Specification

304 Stainless steel

Origin

China

HS Code

8608009000

Production Capacity

100 Set Per Month

Product Description

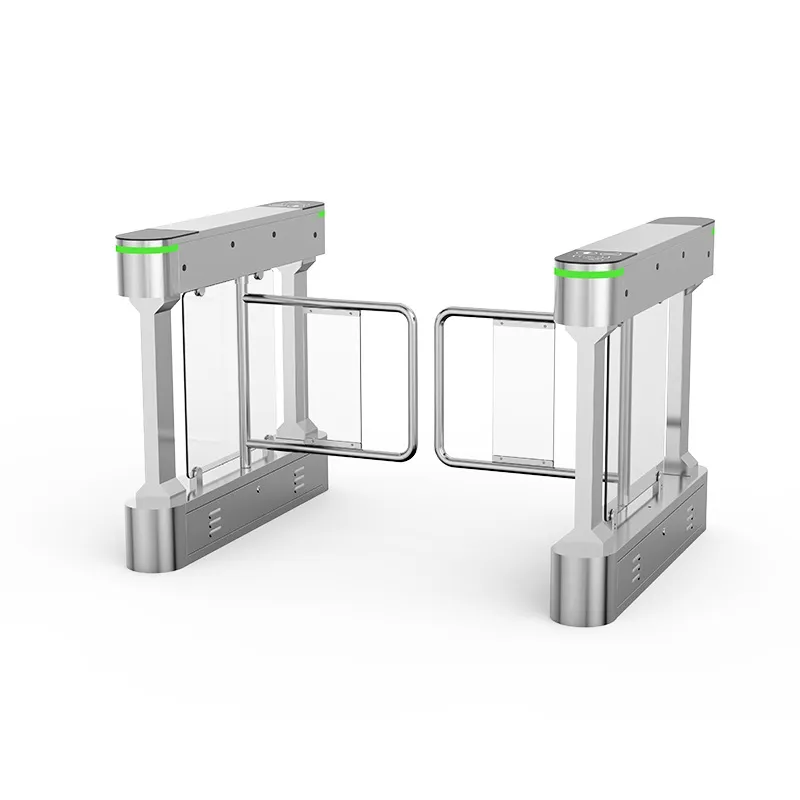

Automatic Swing Barrier Turnstile Access Control System

High-end swing barrier gate: it is mainly used for the management of passageway entrance and exit. It has the characteristics of fast opening, safety and convenience, etc. It is the ideal management and dredge equipment for pedestrians' high-frequency access and exit. It is widely used in airports, subway stations, stations, wharves, scenic spots, parks, shopping malls, office buildings, pedestrian passages and other places.

Technical Parameters

Material	304 stainless steel + acrylic swing arm
Accessories	LED lamp board + acrylic swing arm + brushless anti-collision drive + acrylic partition + 304# stainless steel box
Channel Width	Standard 600mm, 600-900mm (customizable)
Dimensions	1400 * 185 * 1020mm
Net Weight	66±3 Kg
Box Thickness	1.5mm
Traffic Speed	35-40 people/min
Interface	RS232
Open Speed	0.6s-1s
Temperature	-20°C ~ 70°C
Drive Motor	DC brushless 24V
Working Life	9 million times
Power	40-70 ±10% W

Product Advantages

✔No noise during operation.

✔Advanced drive research and development.

✔Anti-cutting handbag edge design for the frame.

✔Imported electronic components for infrared sensors.

✔High temperature quenching treated gear drive.

✔Unique drawing pattern and customizable light effects.

Main Functions

(1) Automatic Homing: Pendulum returns to initial position after passage.

(2) Power Off Opening: Manual push allowed during power failure for fire safety.

(3) Anti-Trespass: System alarms and locks if invalid cards are used.

(4) Anti-Reverse Intrusion: Alarms if pedestrians enter from the wrong direction.

(5) Anti-Reverse Passage: Prevents forceful pull-back during passage.

(6) Anti-Trailing: Photoelectric switches detect and alarm trailing behavior.

(7) Intelligent Linkage: Form sound and light alarms with monitoring devices.

(8) Anti-Clip: Infrared sensors stop movement if an object is detected.

(9) Anti-Collision: Protects movement and pedestrians against safe-range impacts.

Frequently Asked Questions

Q1: What materials are used in the construction of the turnstile? A: The turnstiles are constructed using international standard 304 stainless steel, combined with acrylic swing arms and high-quality imported components for maximum durability.

Q2: Can the channel width be customized for different passage requirements? A: Yes, while the standard channel width is 600mm, it can be customized between 600mm and 900mm to suit specific site requirements.

Q3: How long is the typical lead time for standard and customized orders? A: Standard products typically require 10 working days, while customized solutions generally take around 20 working days.

Q4: What safety features are included for emergency situations? A: The system includes a power-off opening function where the brake pendulum unlocks automatically, allowing for manual evacuation to meet fire protection requirements.

Q5: What is the expected service life of the drive movement? A: The movement drive is designed for high-frequency use, with a tested working life of up to 9 million cycles.

Q6: How are the products packaged for international shipping? A: Export products are secured in inspection-exempt wooden cases with pearl wool and plastic wrap to ensure safe delivery during transit.
