Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System
1 / 5
Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System
Powerful 0.75kw Vertical Lift Garage Door Opener System

Powerful 0.75kw Vertical Lift Garage Door Opener System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
0.75KW A0PE201 soft fast door servo system
Number of Stator
Single-Phase
Function
Control
Casing Protection
Open Type
Number of Poles
2
Starting Mode
Variable Frequency Starting
Certification
ISO9001, CCC
Rated Output Power
0.75kw
Rated Speed
3000 Rpm
Rated Torque
2.39nm
Torque Management
Automatic Torque
Max Door Area
Less Than 16 Square Meter
Limit Mode
Built-in Encoder
Self-Locking Mode
Electronic Brake
Manual Tripping
Hand Shank
Nominal Voltage
220V
Input Supply Voltage
Single-Phase AC200-240V
Box Material
Cold-Roll Steel Sheets
Weight (Net)
7.5Kg
HS Code
8479899990
Product Description

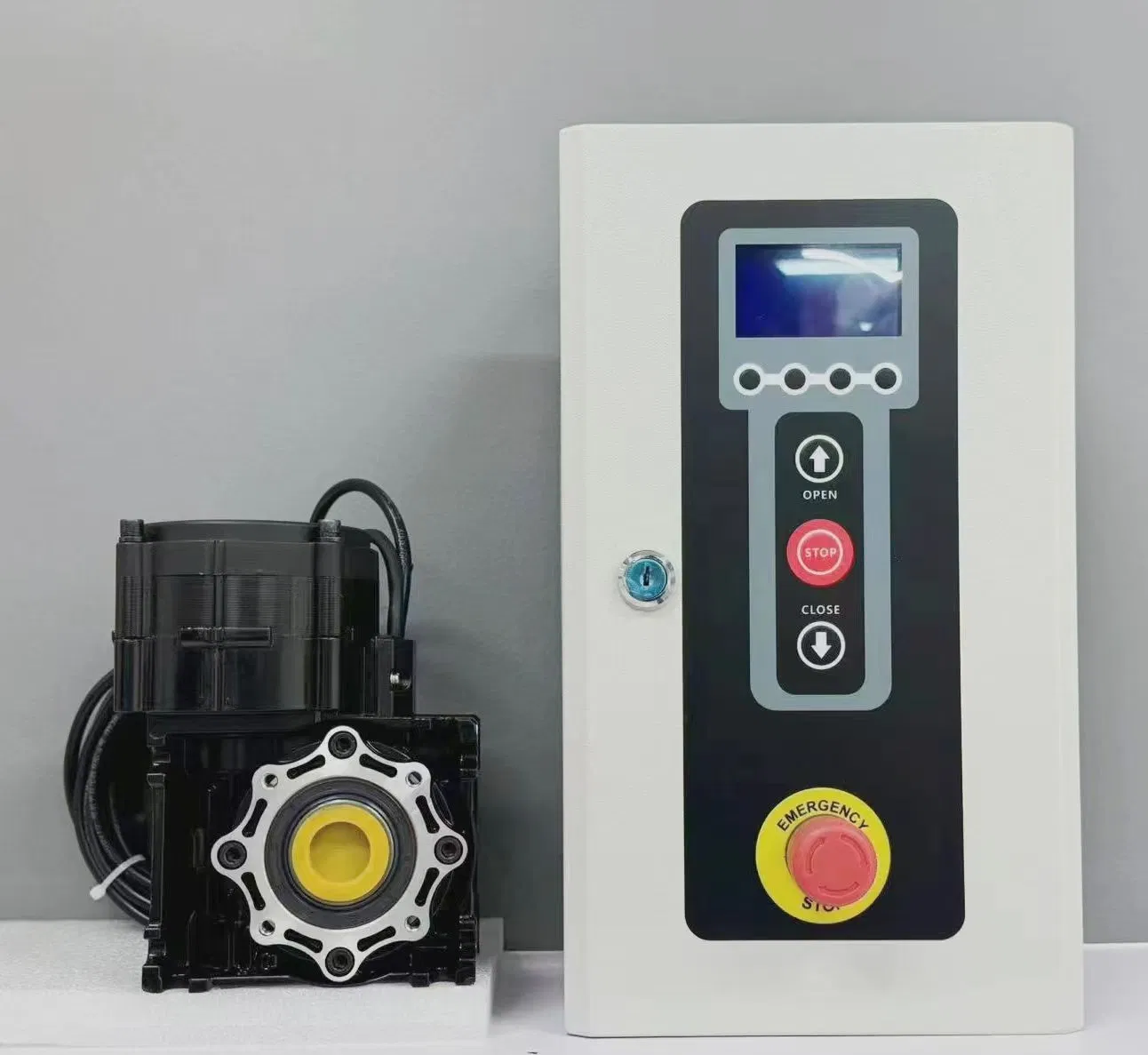

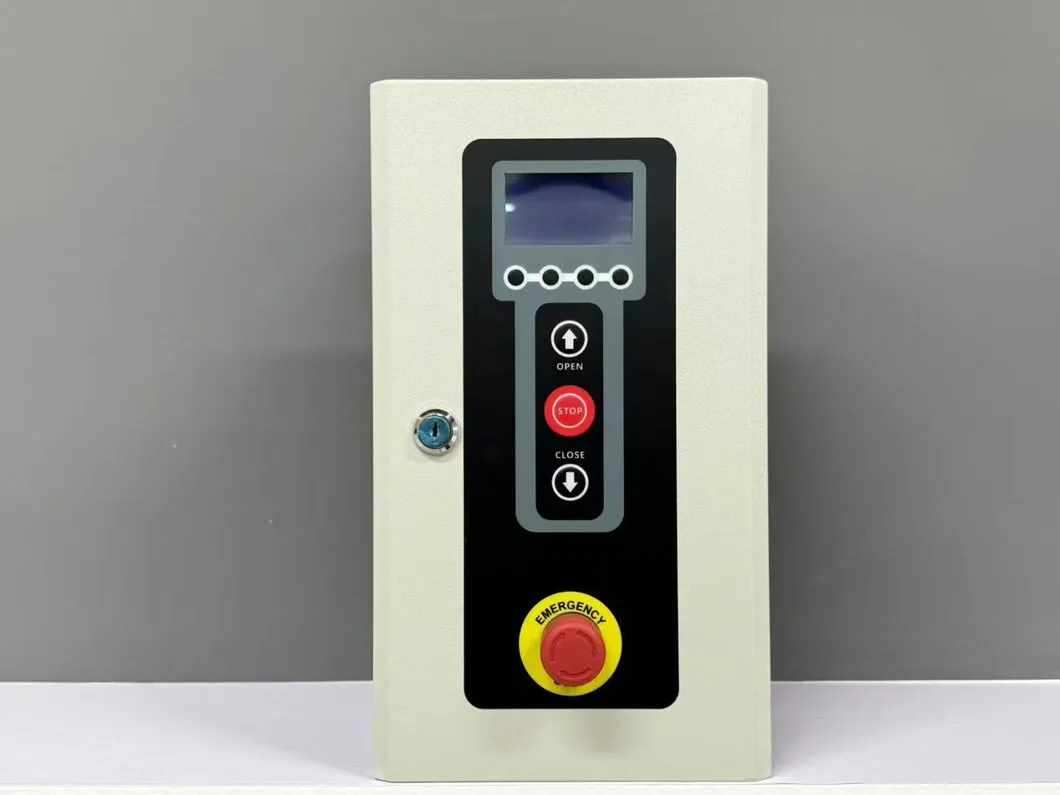

Control Box
Sophisticated Control Box: Experience precision control

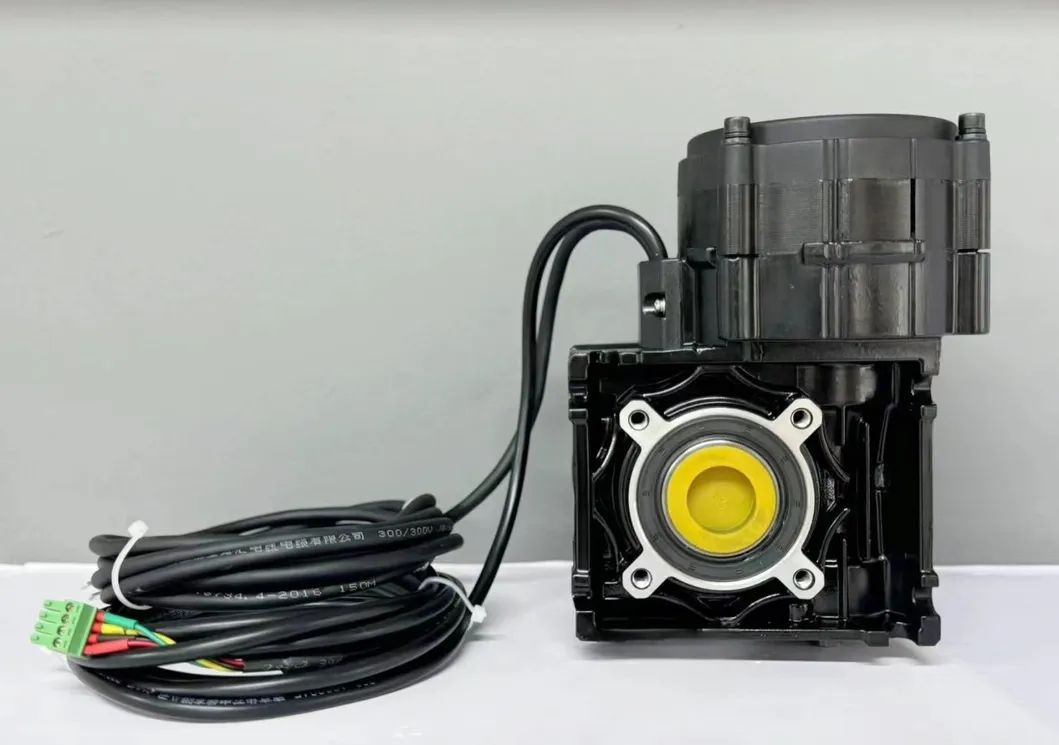

Motor Group
Robust Motor Group: Built for durability

✓Advanced Configuration: A0 Series PE201 model designed for cutting-edge engineering and innovation.

✓High Performance: Dynamic 0.75KW power ensuring smooth and fast operations without compromise.

✓User-Friendly Interface: Dual language LCD screen (Chinese & English) for seamless information display.

✓Stable Connectivity: 4M Shielded wire included for secure and stable electrical connections.

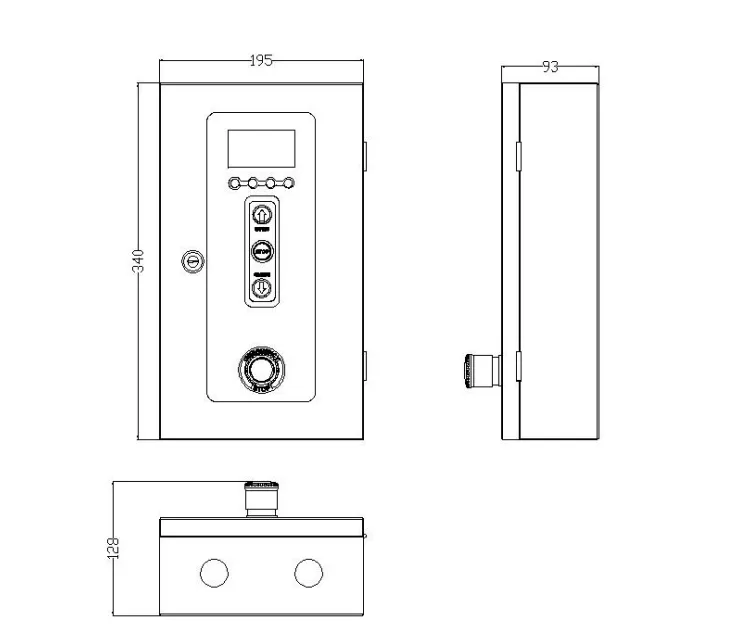

1. A0 Control Box Precision: Detailed sizing line diagram provides exact measurements for seamless system integration (mm).

Control Box Diagram

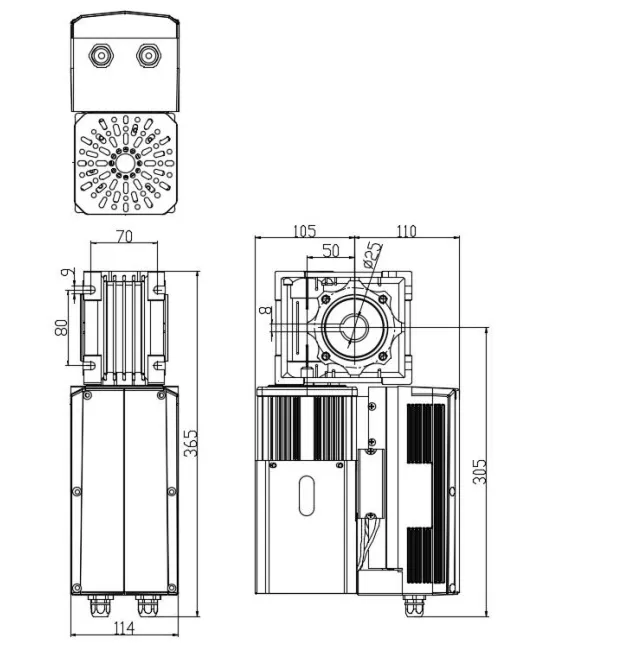

2. A0 Electric Unit Comprehensive Understanding: Meticulously detailed size line diagram ensuring clarity in installation (mm).

Electric Unit Diagram

Operational Notes:

• Note 1: Rated power operates efficiently within -10 ~ +40ºC. Derating maintains functionality from -20 ~ +50ºC.

• Note 2: For extreme conditions (-30~-20ºC), customization of a special low-temperature reducer is required.

Packaging & Delivery
Package Size
34.00cm * 19.50cm * 16.20cm
Package Gross Weight
7.500kg
Transport Package
Carton Packing
Frequently Asked Questions
What is the rated power of the A0PE201 servo system?
The system features a dynamic 0.75KW rated output power, specifically engineered for smooth and fast door operations.
Does the display support multiple languages?
Yes, the system is equipped with a dual-language LCD screen that supports both Chinese and English for clear and concise information display.
What is the maximum door area this system can control?
The 0.75KW A0PE201 model is designed to handle door areas less than 16 square meters efficiently.
Can this system operate in extremely cold environments?
Standard operation is efficient down to -10ºC. It can function down to -20ºC with derating, but for temperatures between -30ºC and -20ºC, a special low-temperature reducer is required.
What type of limit and braking system is integrated?
The system utilizes a built-in encoder for precision limit mode and an electronic brake for a secure self-locking mode.
What is included for manual operation in case of power failure?
The system includes a hand shank for manual tripping, allowing for manual operation when necessary.
