MOAD AUTO
1 / 5

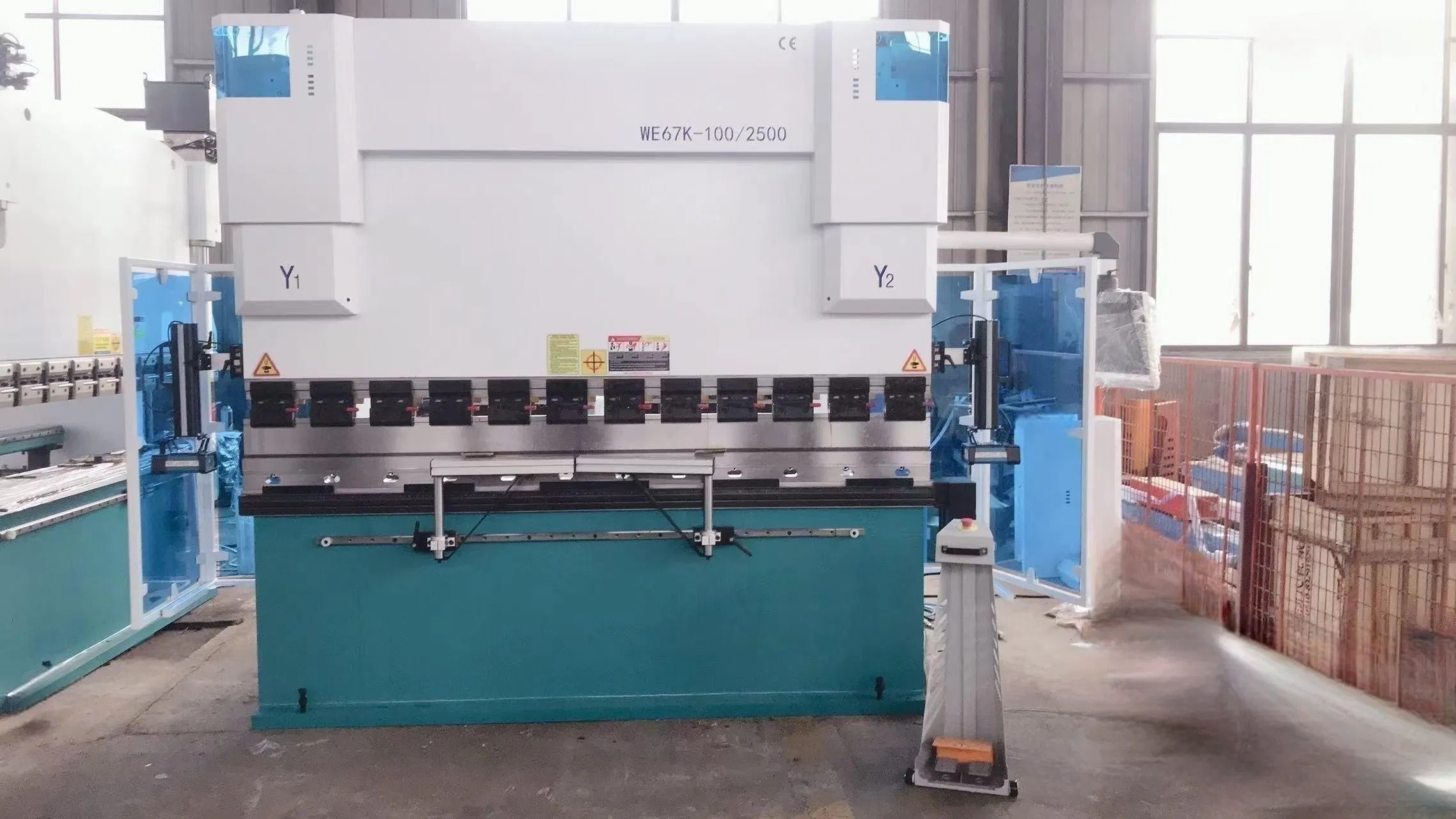

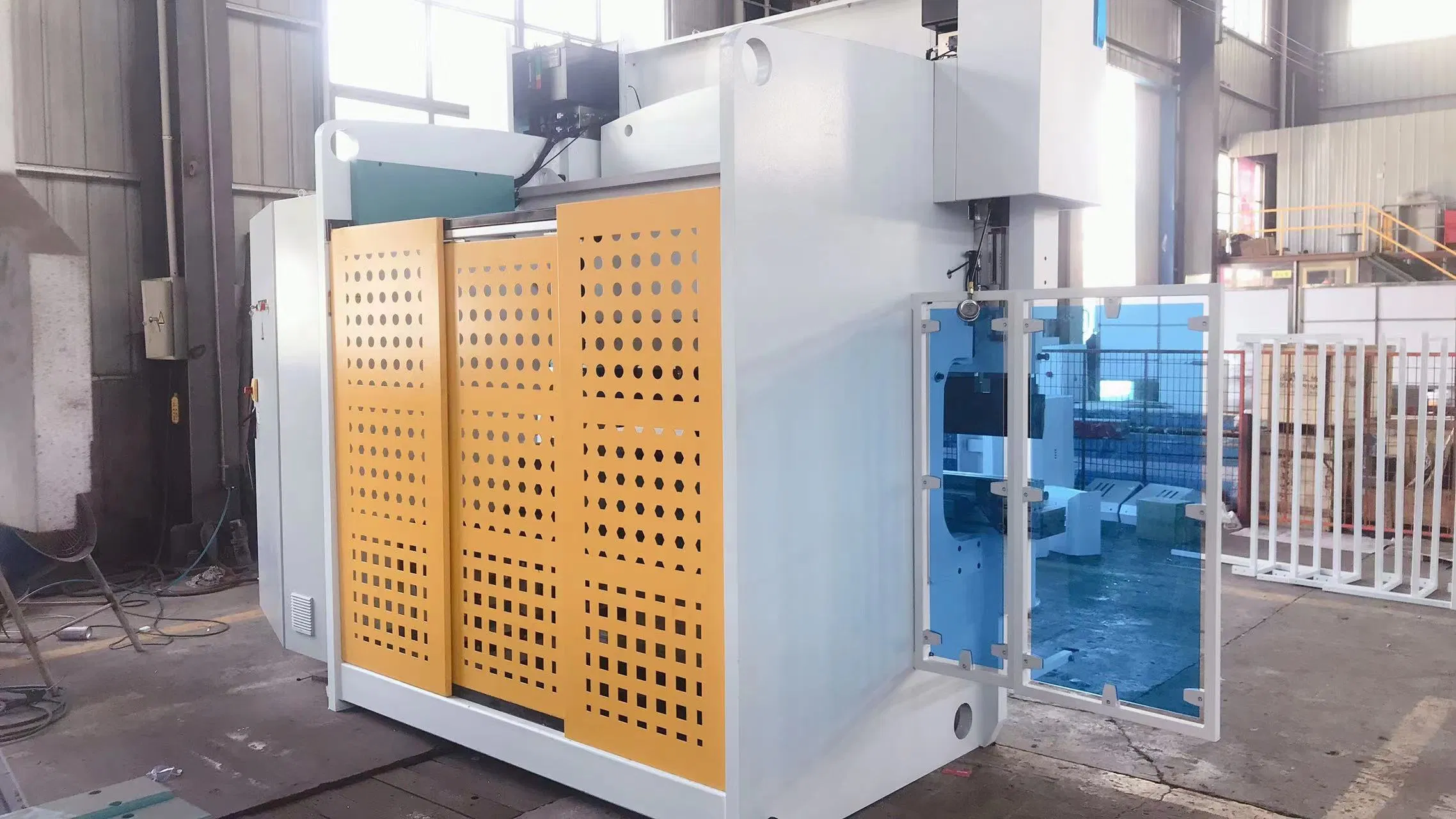

Crafted with premium components, it delivers exceptional durability, featuring Y-axis Torsion bar syncro technology for high-speed approach, bending, and return. This is further optimized by a manual crowning system and offers flexibility for future upgrades.

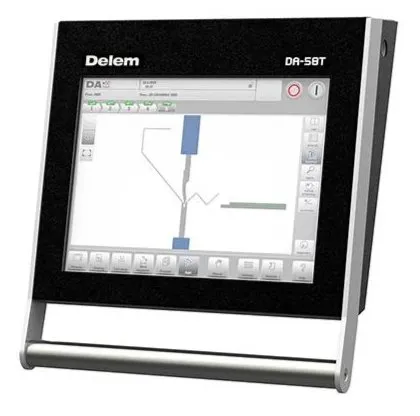

The Delem DA58T control is the all-in-one solution for 2-axis conventional press brake applications. It offers comprehensive axes management for the press beam and back gauge, paired with a state-of-the-art flexible I/O configuration.

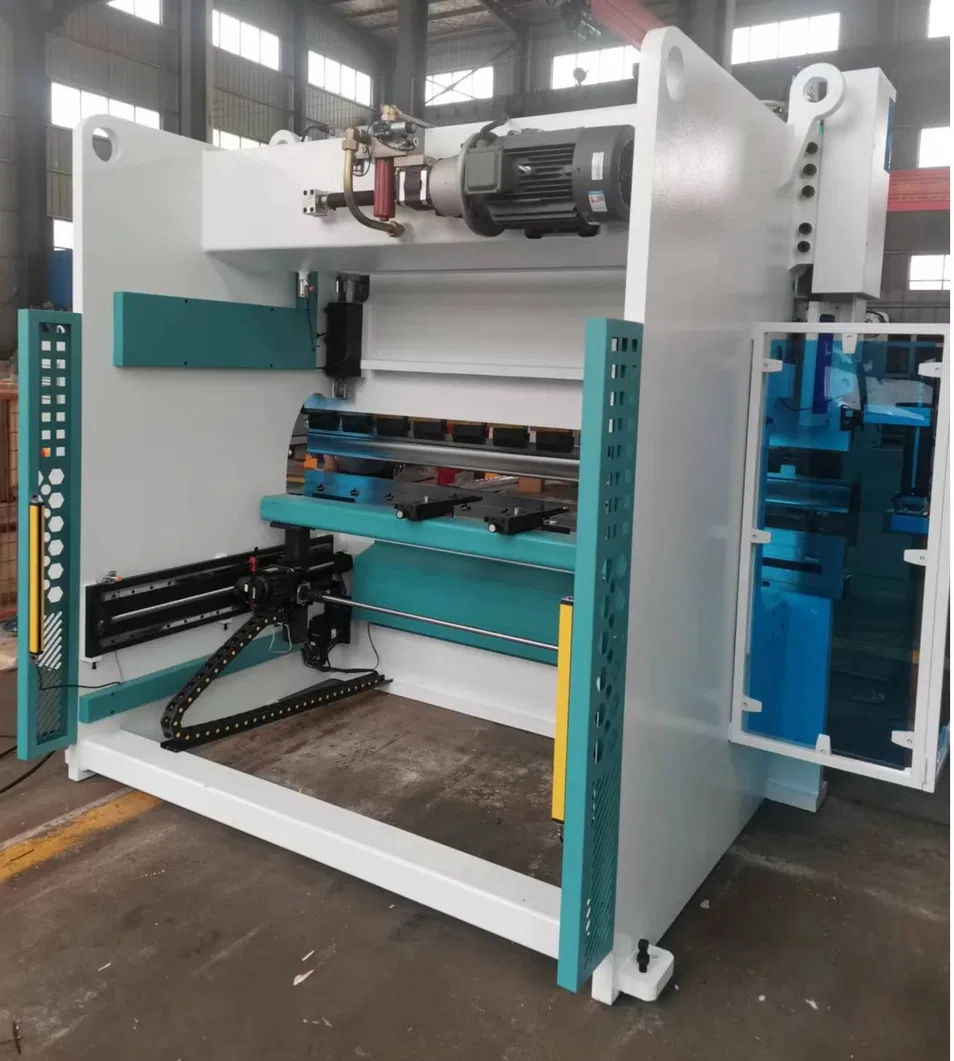

Precision Backgauge
Performance Components

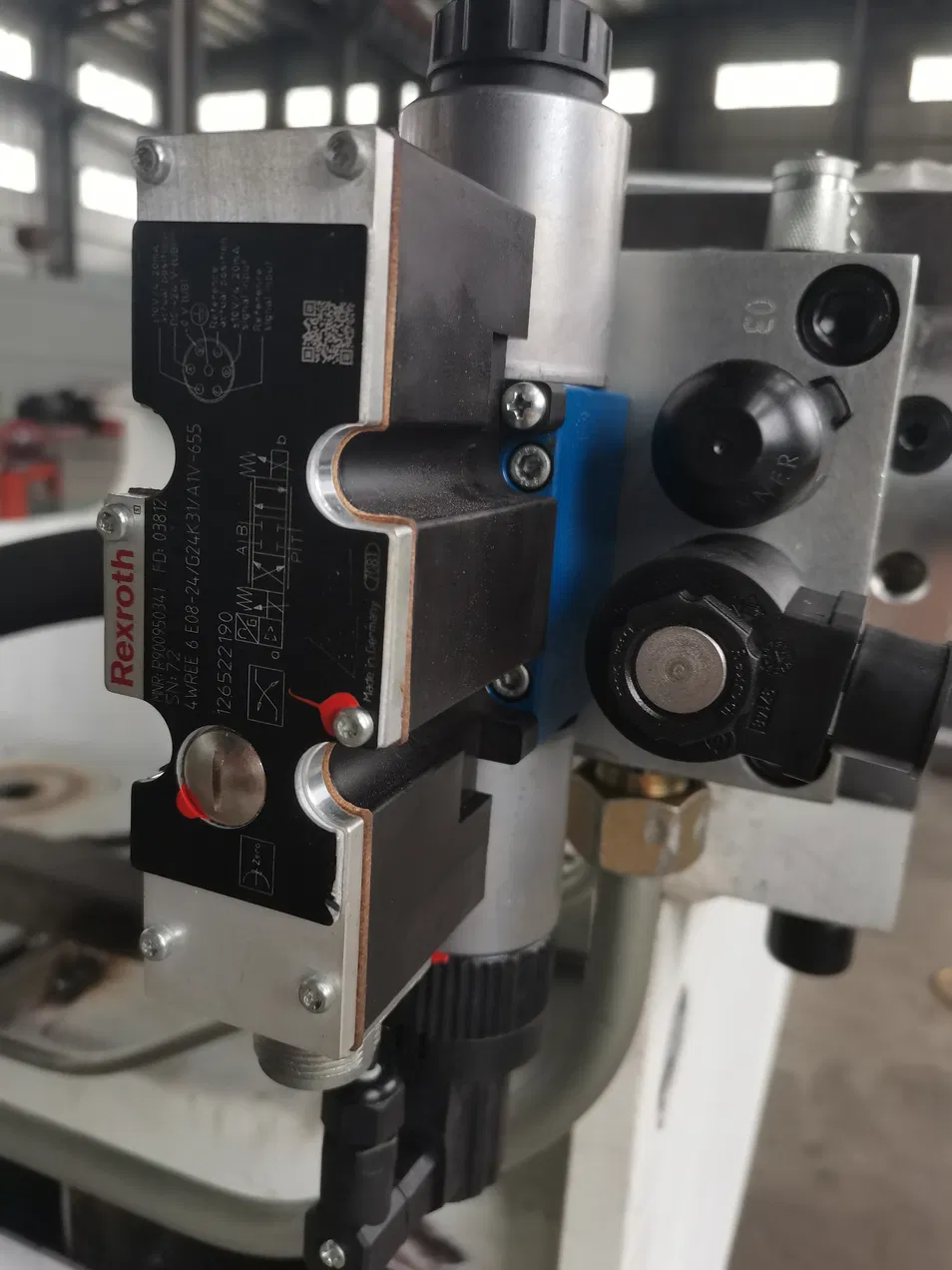

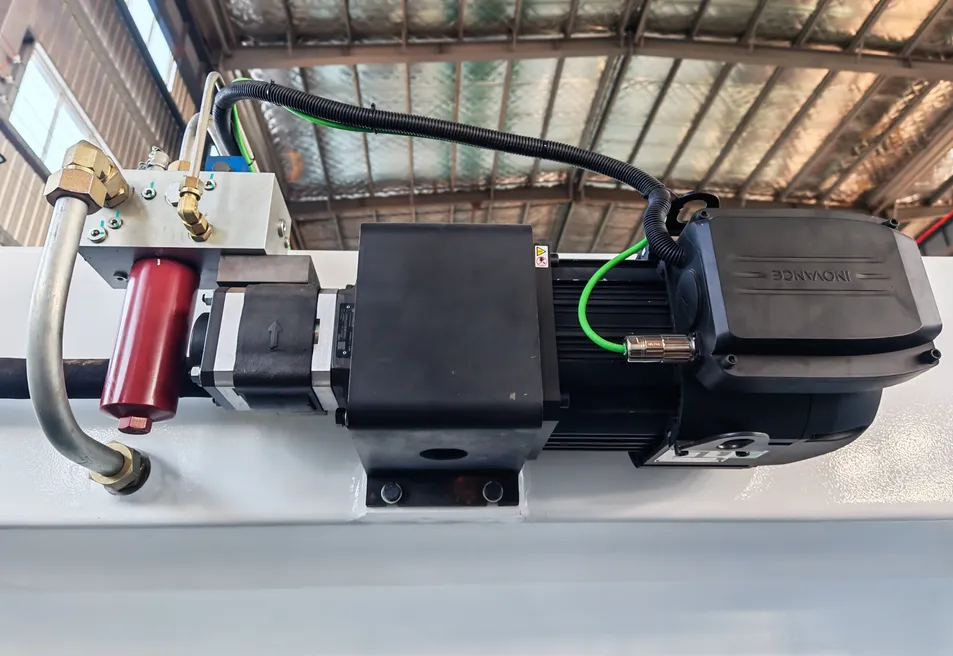

Bosch-Rexroth Hydraulic System

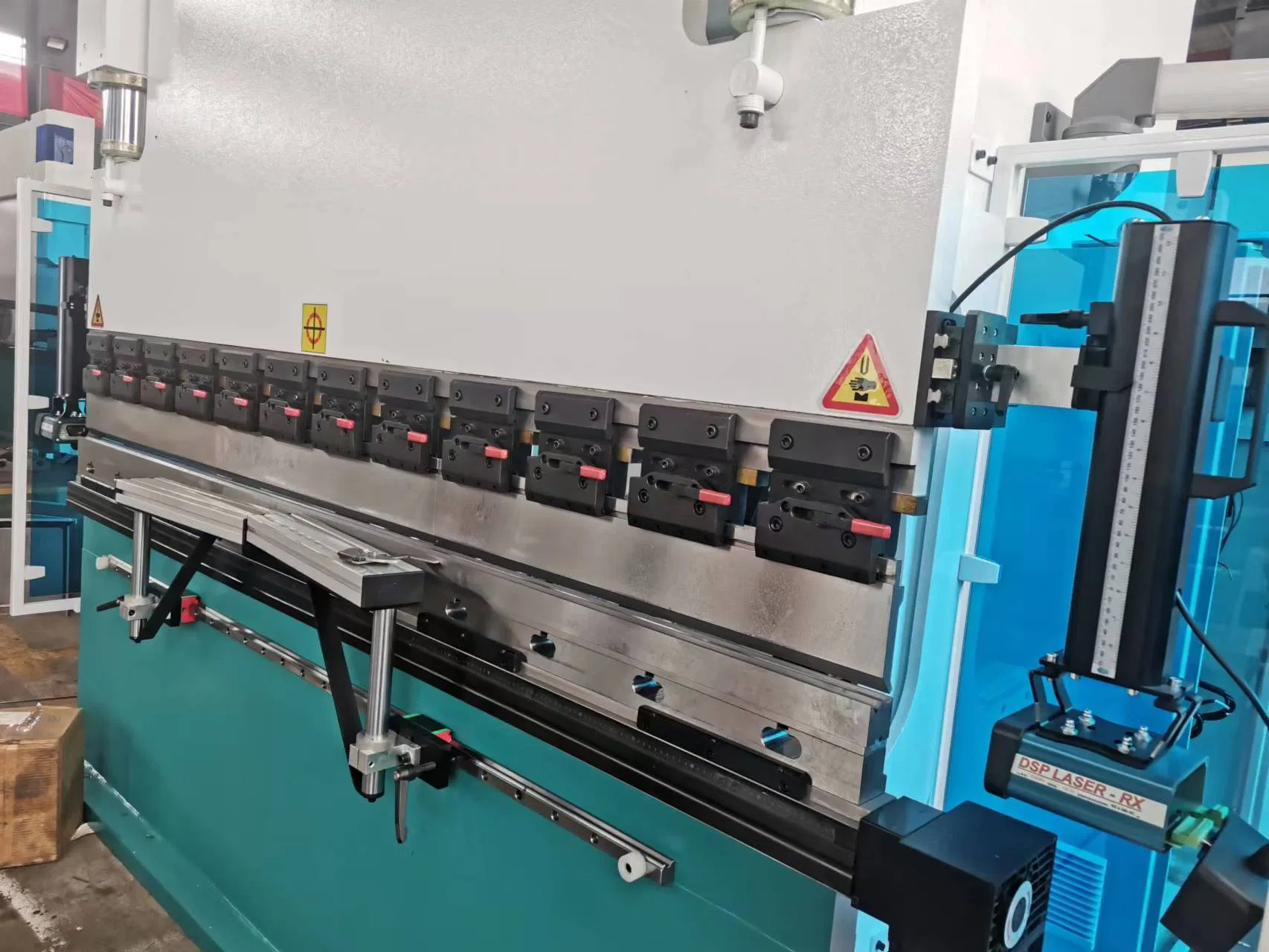

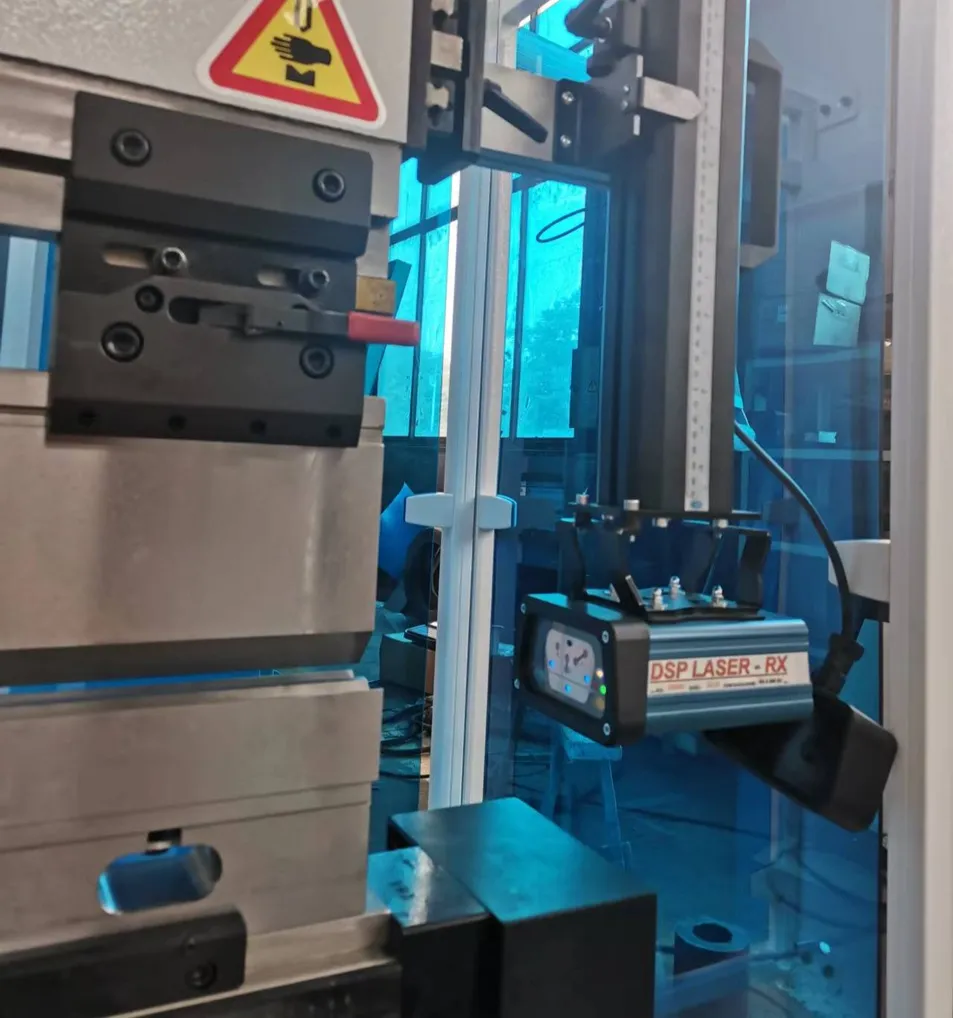

Quick Clamp System

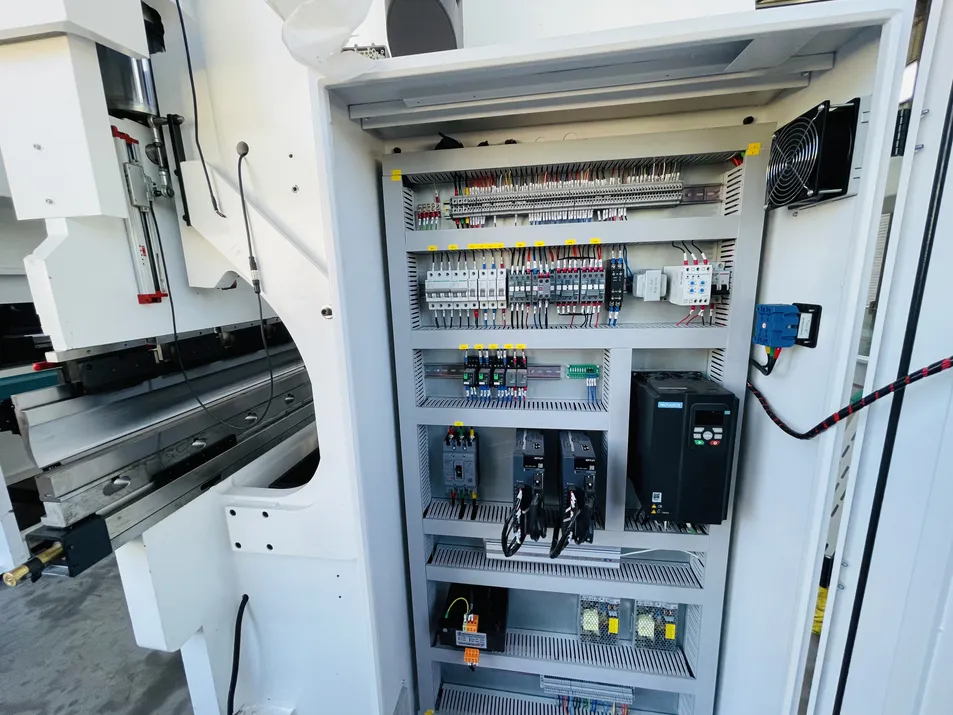

Schneider Electric & Grating Ruler
| Parameter | 63Tx2500 | 100TX3200 | 160Tx3200 | 200Tx4000 | Unit |
|---|---|---|---|---|---|
| Pressure | 630 | 1000 | 1600 | 2000 | KN |
| Bending Length | 2500 | 3200 | 3200 | 3200 | mm |
| Column Distance | 2000 | 2600 | 2600 | 3200 | mm |
| Max Opening Height | 440 | 480 | 500 | 520 | mm |
| Throat Depth | 250 | 320 | 320 | 320 | mm |
| Slide Stroke (Y-axis) | 170 | 200 | 200 | 220 | mm |
| No Loading Speed | 200 | 200 | 200 | 200 | mm/s |
| Pressing Speed | 12 | 12 | 12 | 12 | mm/s |
| Returning Speed | 170 | 170 | 170 | 170 | mm/s |
| Main Motor Power | 5.5 | 7.5 | 11 | 15 | KW |
| Weight | 5000 | 7600 | 11500 | 13000 | KG |

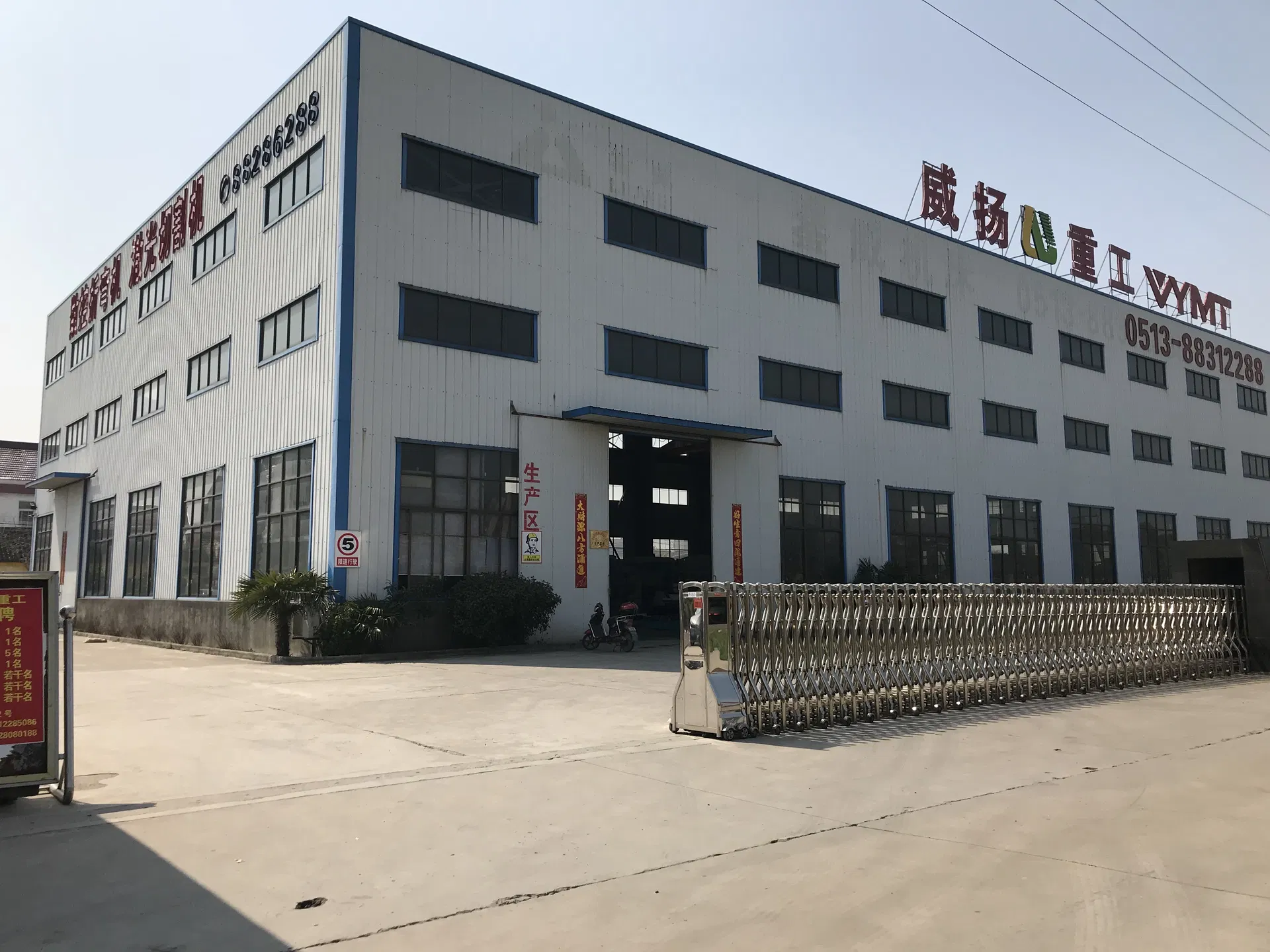

We specialize in R&D, production, sales, and service of CNC shearing machines, CNC press brakes, plate rolling machines, hydraulic machines, laser cutting machines, planer slot machines, and uncoiling leveling machines. Our enterprise boasts a complete set of milling, turning, grinding, drilling, forging, and metal forming processing capabilities.
