VYMT Delem DA53T 6+1axis WE67K CNC Bending Solution

Customization:	Available
After-sales Service:	Yes
Waterproof Rating:	IPX-3

Send Inquiry

Product Description

Basic Specifications

Model NO.	WE67K-30T/1300	Warranty	1-year
Condition	New	Certification	ISO 9001, CE
Automation	Automatic	Type	Press Brake
Suitable for	Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Product Description

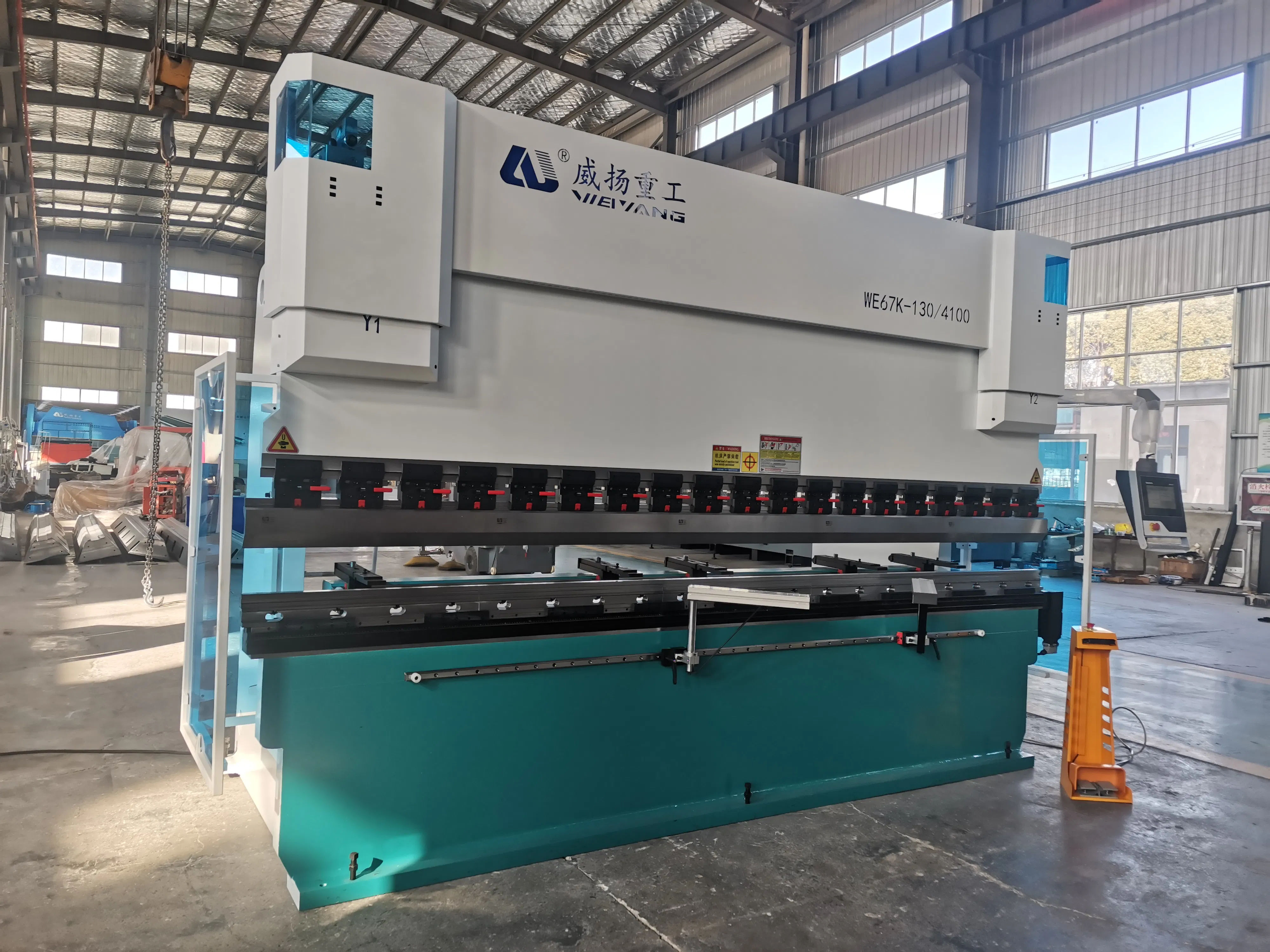

The Hydraulic CNC Press Brake Machine is renowned for its reliability and robust performance. The design minimizes framework flexions, ensuring the machine responds optimally to mechanical stress, thus delivering superior bending precision. Enhanced with manual crowning, it allows for configuration upgrades post-purchase. Crafted with premium components, it features Y-axis torsion bar syncro technology for high approach, bending, and return speeds.

Control System: Delem DA53T

This system delivers superior efficiency in programming and control. It provides a comprehensive solution for press brake applications with up to 4 axes control (Y1, Y2, plus 2 auxiliary axes).

10.1" high-resolution true color TFT display
Crowning function control
Advanced Y-axis control algorithm
USB peripheral interface and offline programming software
Supports servo or frequency conversion control

Core Components

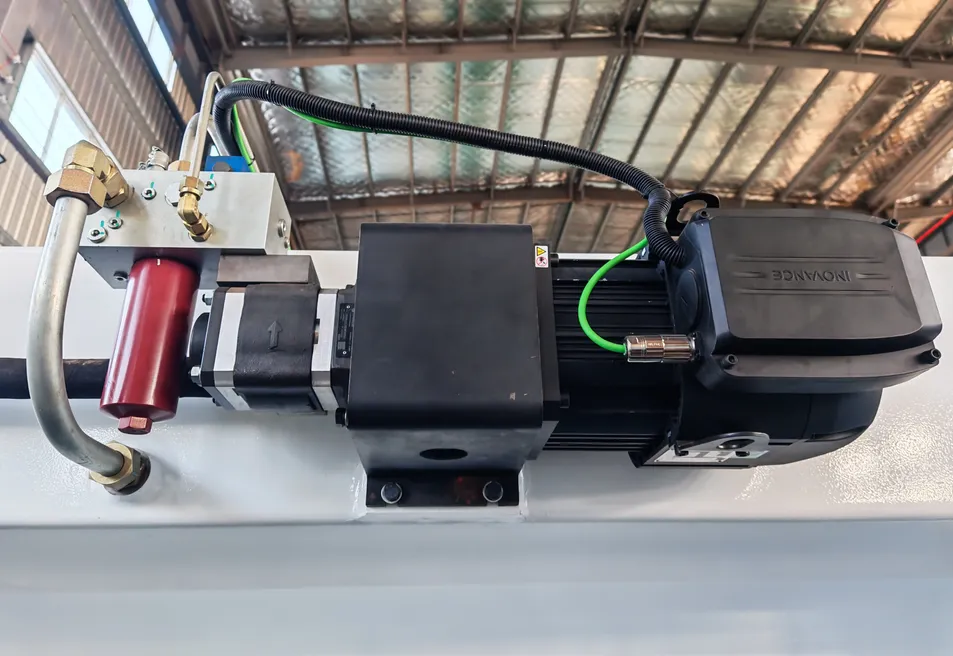

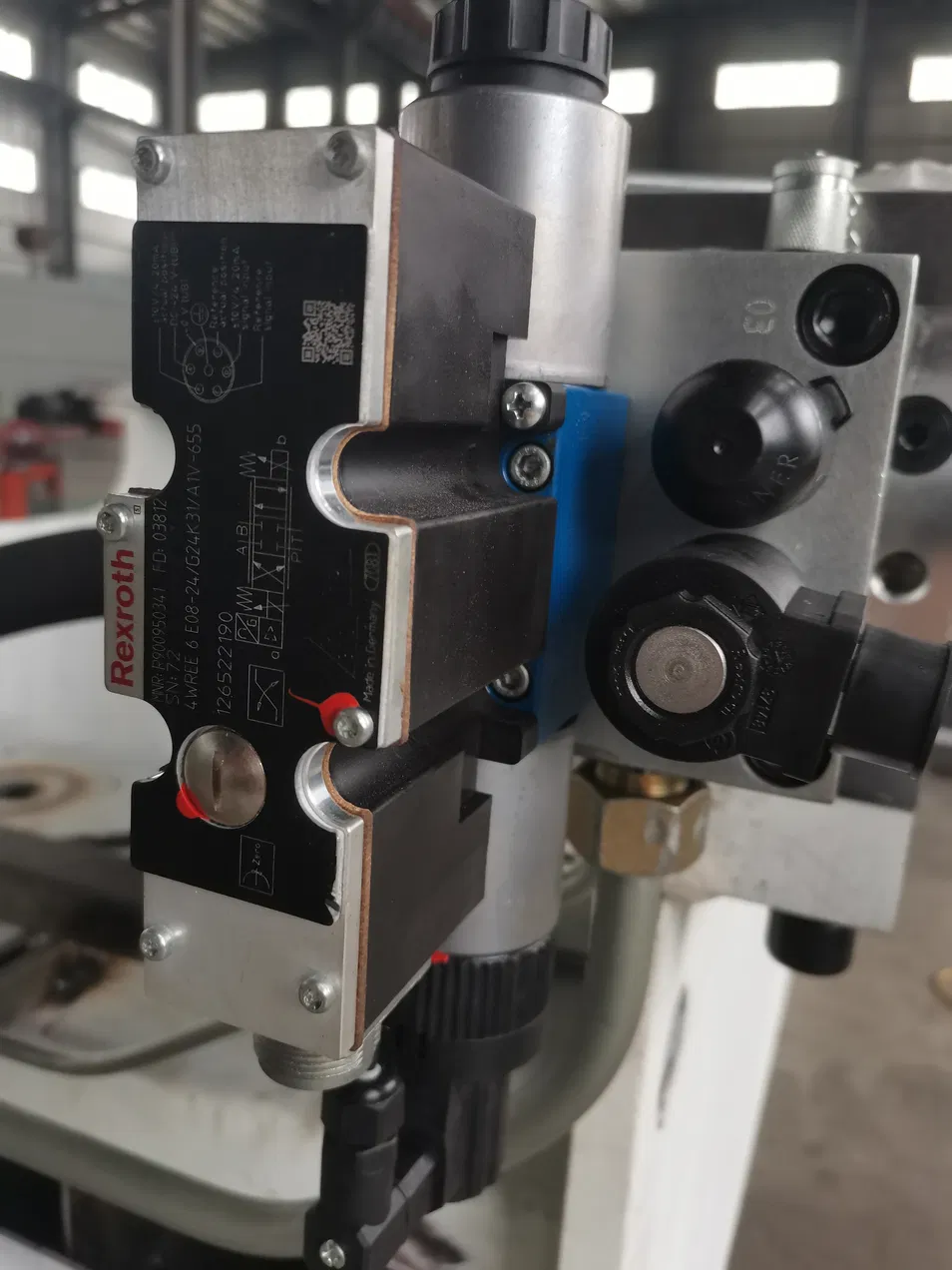

Hydraulic System: Features the Germany Bosch-Rexroth integrated block, ensuring reliable transmission and minimizing leakage issues.

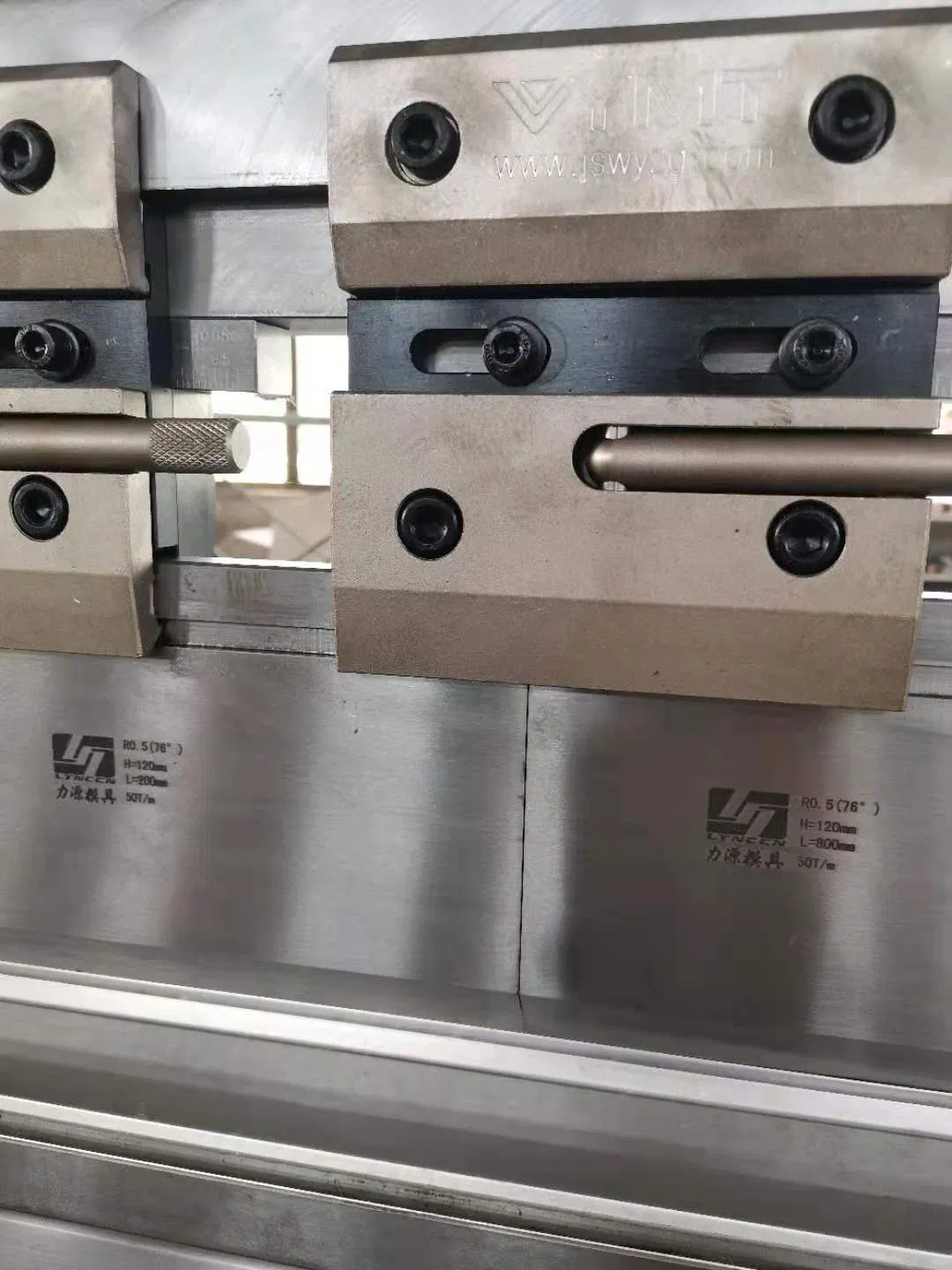

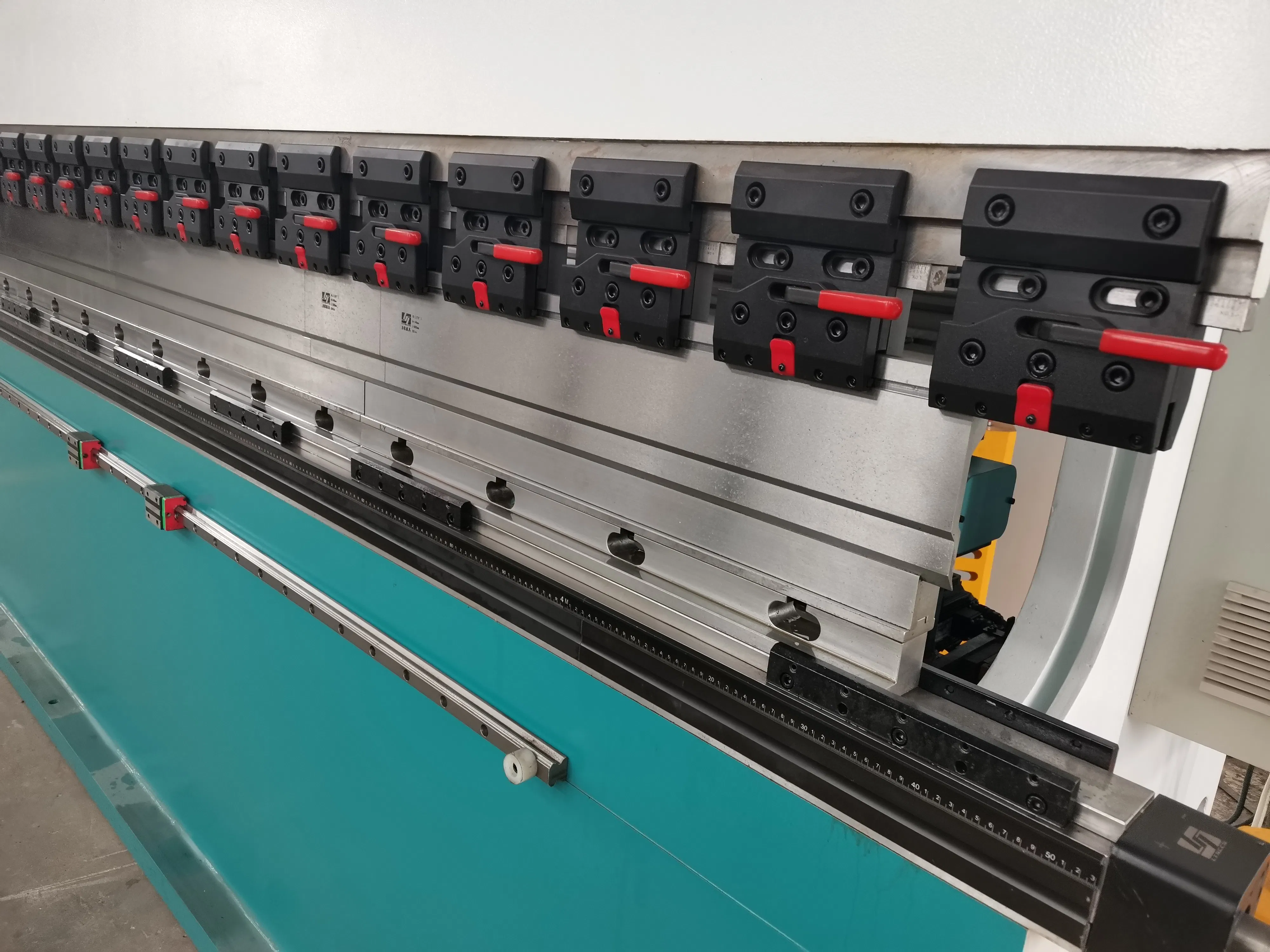

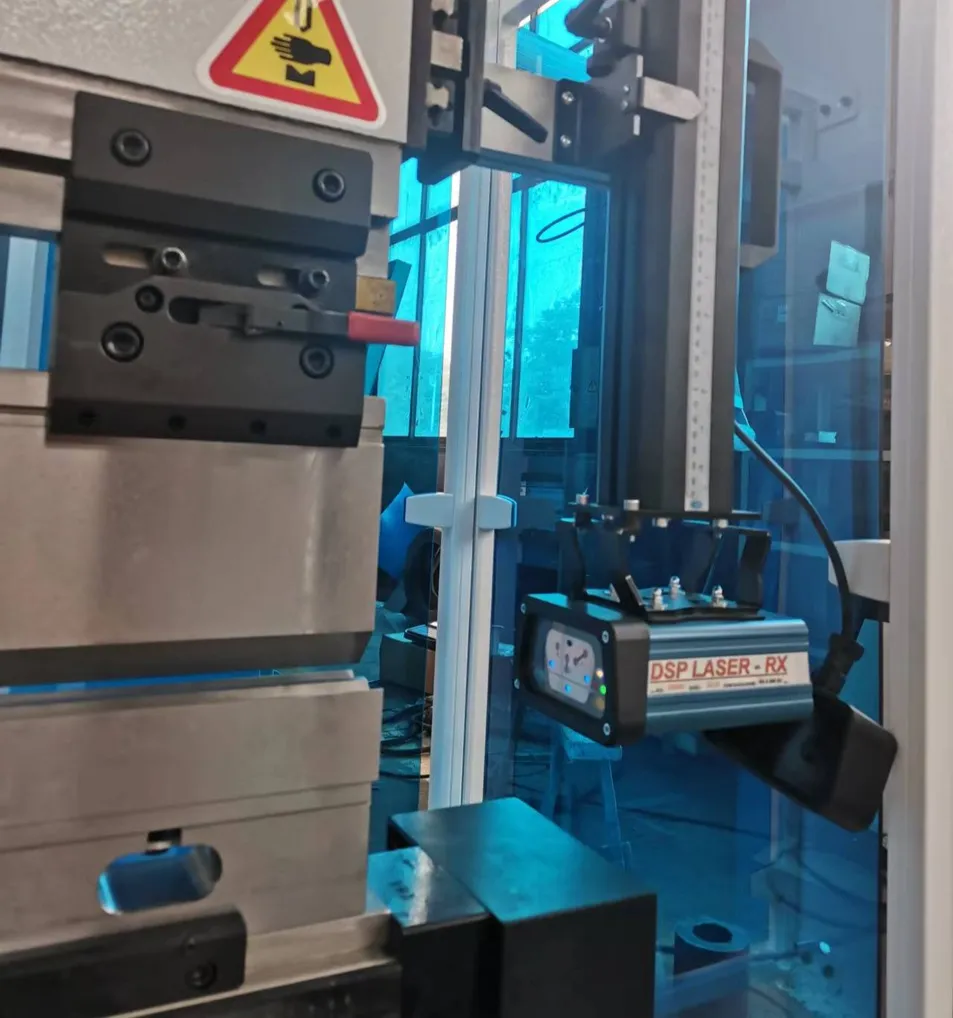

Quick Clamp System: Allows safe and rapid tool changes, significantly reducing setup time and costs. Available in manual, pneumatic, and hydraulic models.

Technical Parameters

Parameter	63Tx2500	100TX3200	160Tx3200	200Tx4000	Unit
Pressure	630	1000	1600	2000	KN
Bending Length	2500	3200	3200	3200	mm
Column Distance	2000	2600	2600	3200	mm
Max Opening Height	440	480	500	520	mm
Throat Depth	250	320	320	320	mm
Slide Stroke (Y)	170	200	200	220	mm
Main Motor	5.5	7.5	11	15	KW
Repeat Accuracy	≤±0.02				mm

Frequently Asked Questions (FAQ)

1. What materials can this CNC press brake handle? The machine is suitable for bending a wide range of materials, including Copper, Aluminum, Alloy, Carbon Steel, and Stainless Steel.

2. What are the advantages of the Delem DA53T system? It features a 10.1" high-resolution color display, supports up to 4 axes, and includes advanced algorithms for high-precision Y-axis control and crowning.

3. How does the hydraulic system ensure reliability? By utilizing a Bosch-Rexroth integrated hydraulic block, the machine ensures smooth transmission and significantly reduces the risk of fluid leakage.

4. Can I upgrade the machine configuration later? Yes, the design allows for configuration upgrades and the addition of accessories even after the initial purchase.

5. Is the tool changing process fast? Yes, the machine is equipped with a Quick Clamp System that allows for rapid and safe tool changes, minimizing downtime.

6. What is the positioning accuracy of the slider? The Y-axis slider features a repeat positioning accuracy of ≤±0.02mm, ensuring highly consistent bending results.
