Product Description

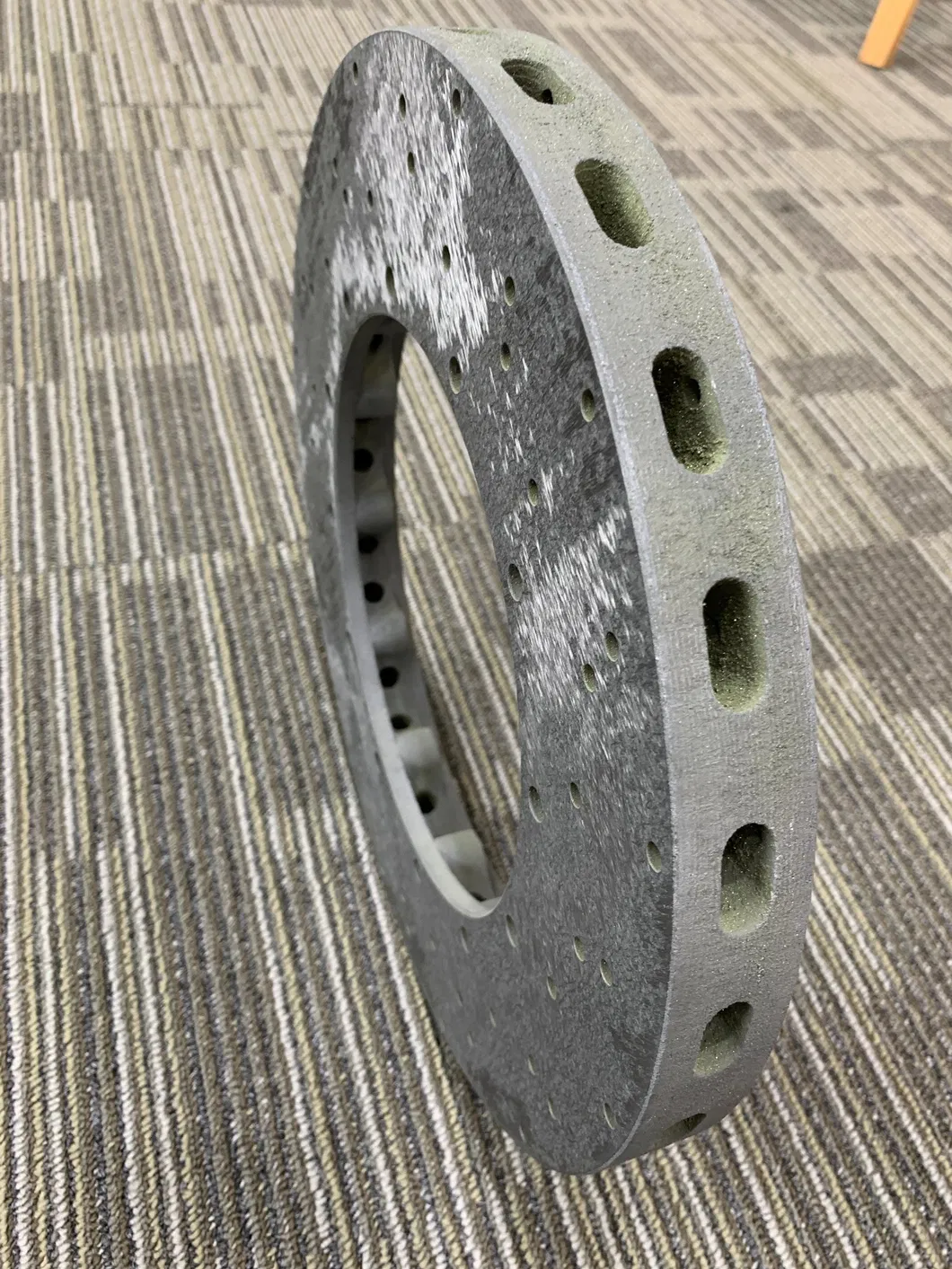

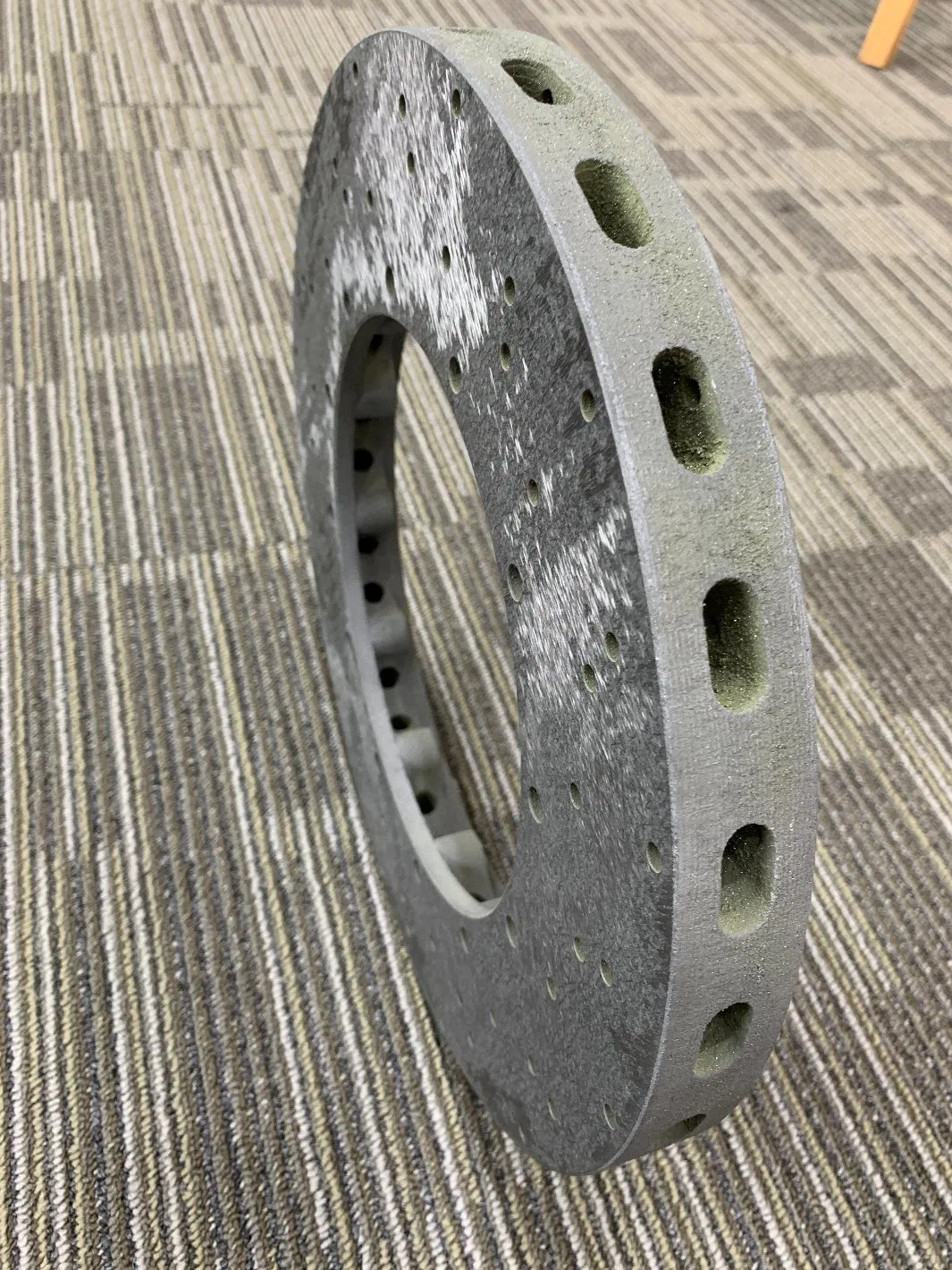

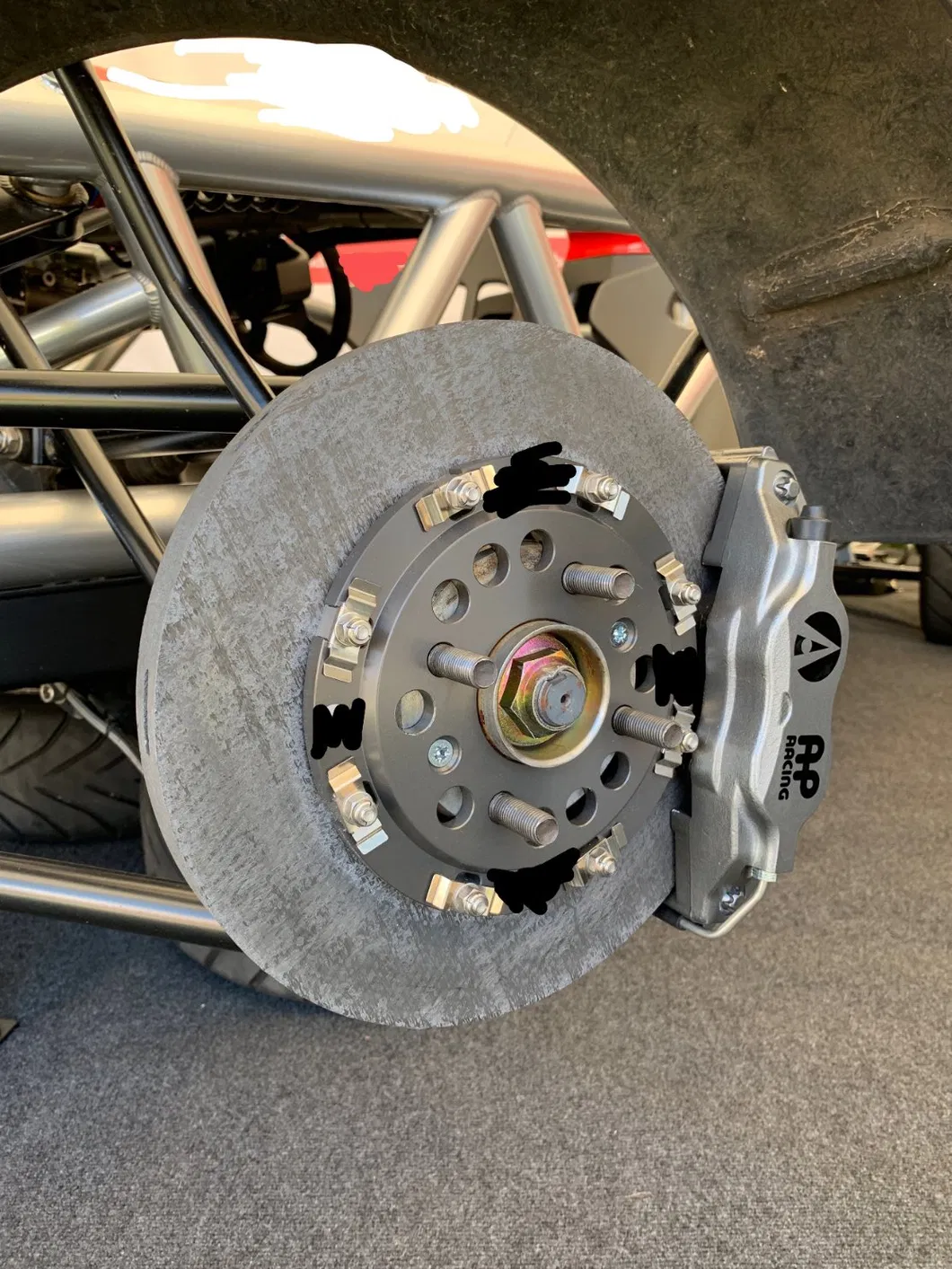

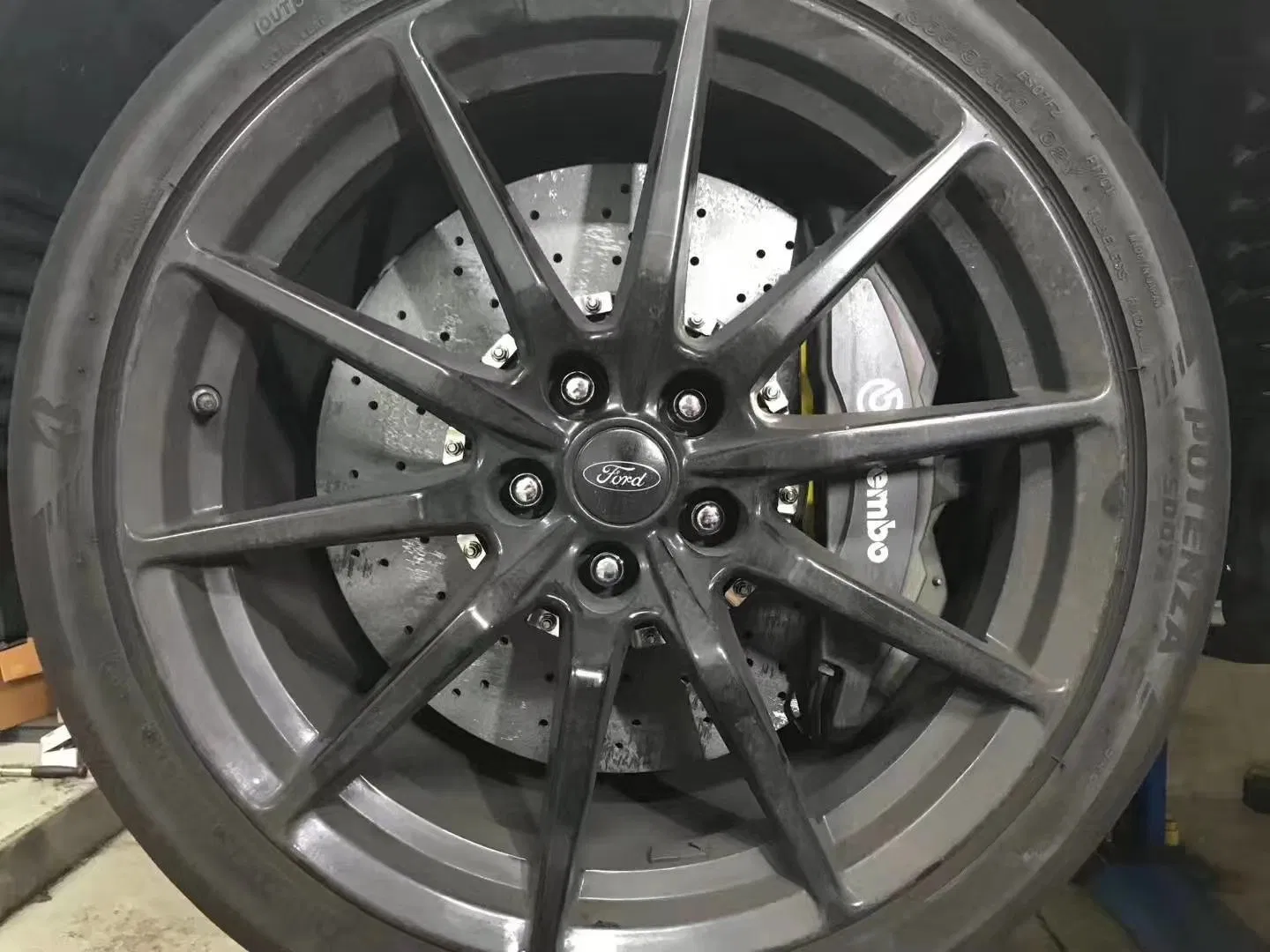

We produce lightweight Carbon Ceramic disc brakes for high-performance cars where users are interested in increased braking performance, weight saving, improved handling and reduced brake wear.

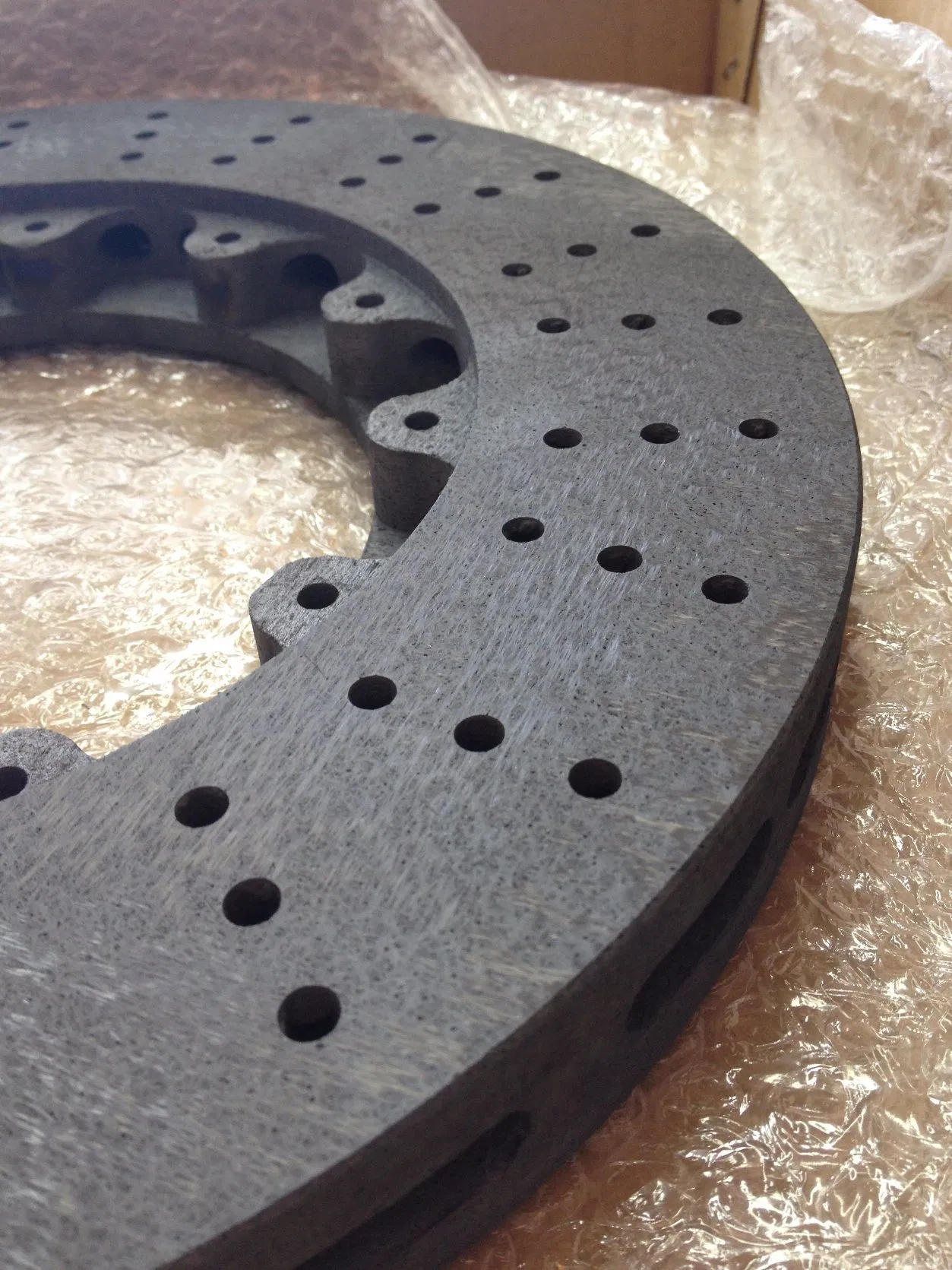

A special feature of the carbon ceramic brake discs is represented by the carbon ceramic composite material. This material is obtained through a particular process, which gives the possibility to add or deposit a layer of material to improve the friction coefficient on both the braking surfaces.
Technical Data: Physical Properties
| Density/ g/cm3 | 2.0±0.05 |
| Tensile Strength/ MPa | 87 |
| Compressive Strength/ MPa | 212 |
| Bending Strength/ MPa | 189 |
| Interlaminar Shear Strength/MPa | 26 |
| In-plane Shear Strength/MPa | 49 |
| Room Temperature Specific Heat/ J/kg·k | 1140-1880(RT-1200ºC) |
| Thermal Conductivity/ W/mK | 40~50 |
Frictional Properties
| Dry | 0.27~0.35 |
| In Fresh water | 0.29~0.35 |
| In Sea water | 0.24~0.29 |
| @Static | 0.35~0.55 |
Frequently Asked Questions
Q1: What are the primary advantages of Carbon Ceramic brakes?
They offer significant weight reduction, enhanced braking performance, improved vehicle handling, and a much longer lifespan compared to traditional steel discs.
Q2: Do these brakes work effectively in wet conditions?
Yes, the frictional properties data shows a stable friction coefficient of 0.29~0.35 in fresh water, ensuring reliable stopping power even in wet environments.

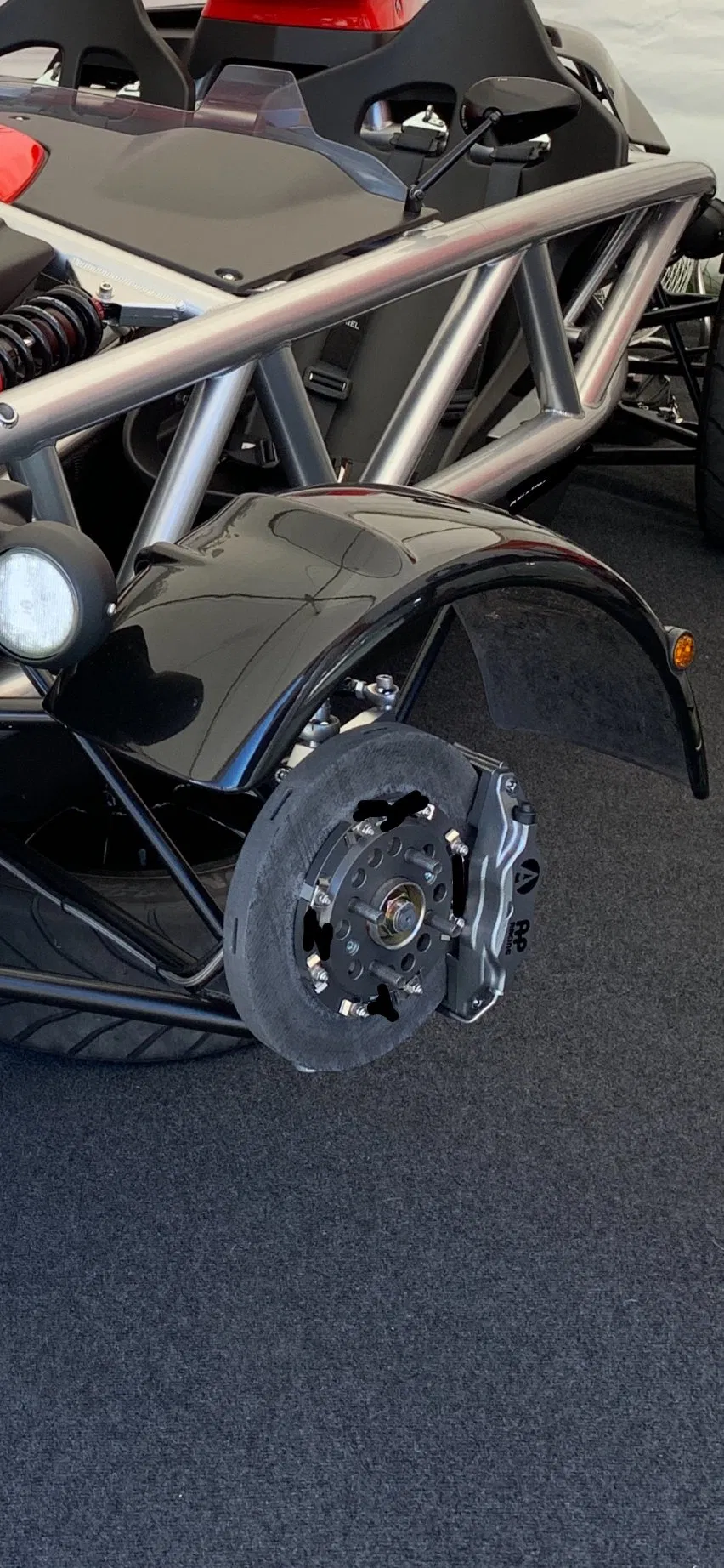

Q3: Which car types are these brake discs suitable for?
These are specifically designed for high-performance sports cars where weight saving and extreme thermal stability are required.
Q4: What certifications do these products hold?
Our manufacturing processes are certified under ISO/TS16949 and ISO9001 standards, ensuring international quality management compliance.
Q5: What is the thermal conductivity of the OD340XT35 model?
The thermal conductivity ranges between 40~50 W/mK, providing excellent heat dissipation during intensive braking sessions.

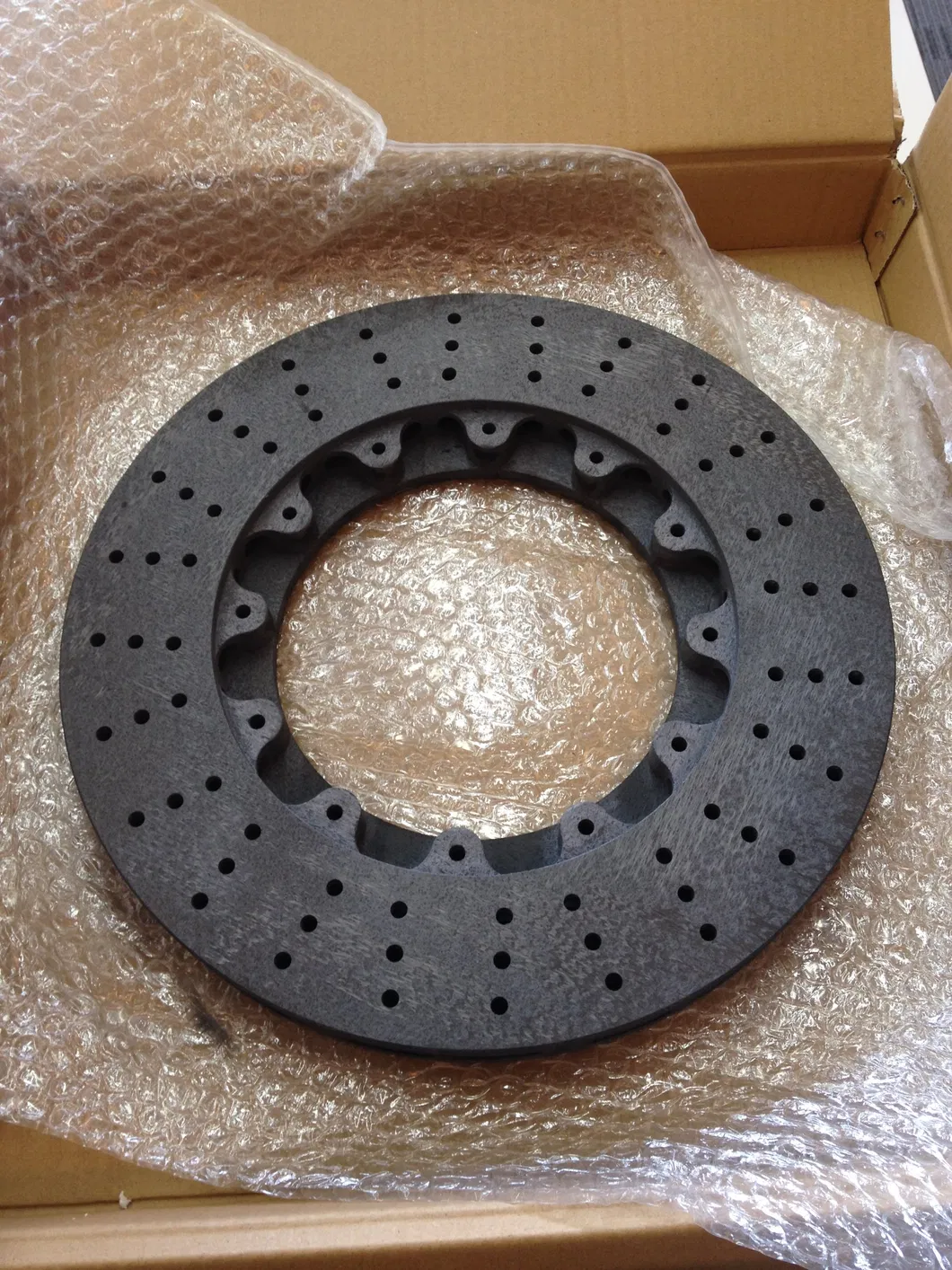

Q6: How are the products packaged for international shipping?
To ensure safety during transit, the discs are packed in standard boxes or reinforced wooden cases, depending on the shipment volume and destination.
