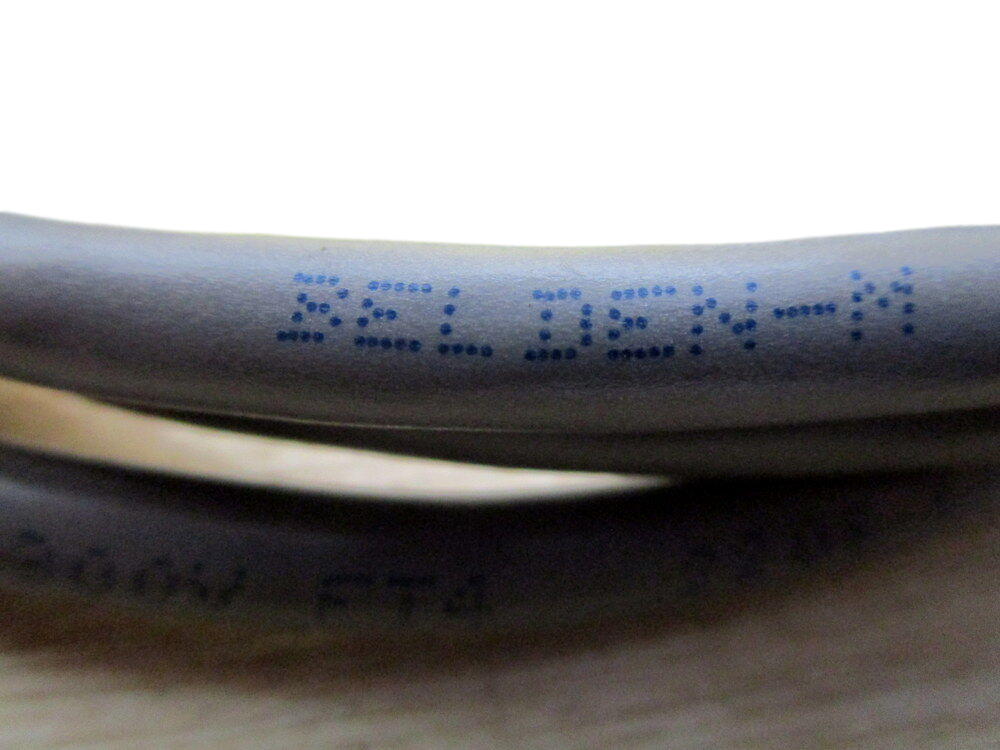

Premium Belden Cable Solutions for Effortless Data Transfer

📋 Basic Information

Model NO.	A0437
Industry Type	Automotive Wiring Harness
Bandaging Materials	PVC Pipe
General Wiring Harness	Injection Molding Assembly Class
Signal	Signal Wiring Harness
Shape	Round
Interface Type	DC/DC
Certification	VDE, RoHS, ISO9001, CCC
Wire Conductor	Tinned Copper
Quality Control	100% Inspection Before Shipment
Connector	OEM or Equivalents for Wiring Harness
Terminal	OEM or Equivalents for Wiring Harness
Switch	OEM or Equivalents for Wiring Harness
Service	ODM/OEM/Customized
Transport Package	Carton
HS Code	8544421900
Production Capacity	50000PCS/Year

📦 Packaging & Delivery

Package Size	45.00cm * 30.00cm * 25.00cm
Package Gross Weight	15.000kg

🔍 Product Description

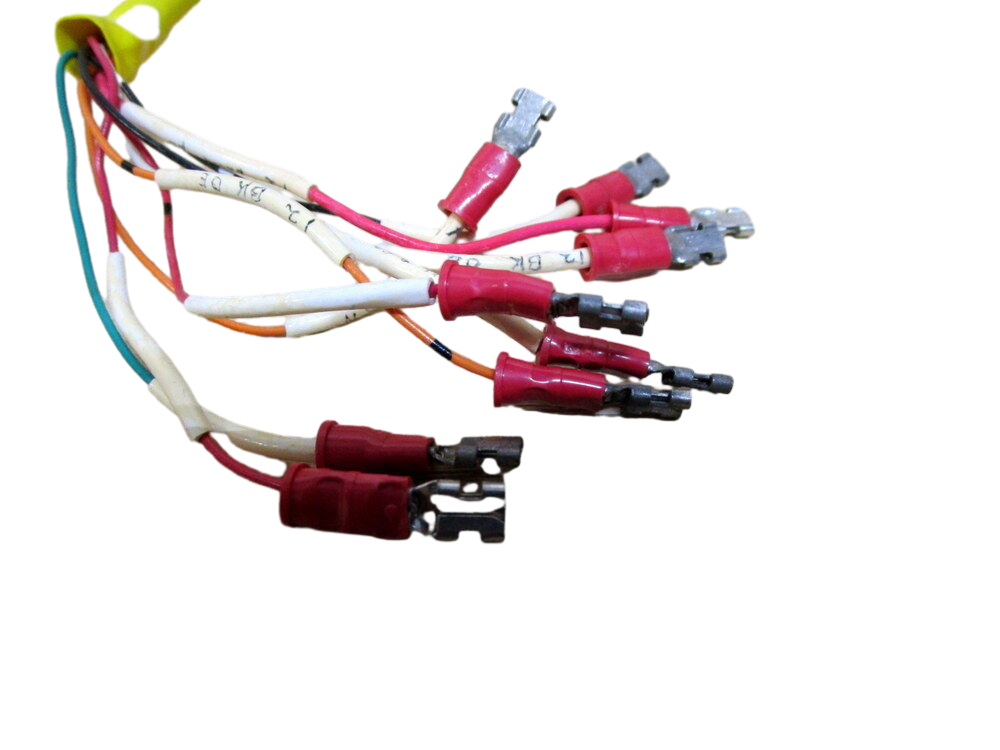

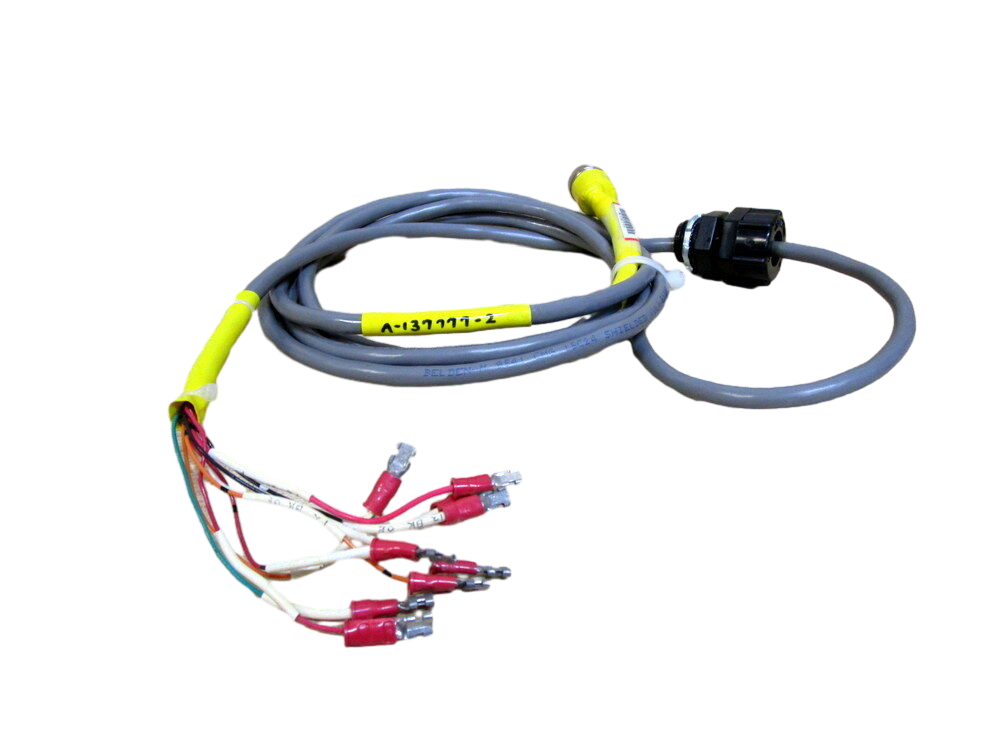

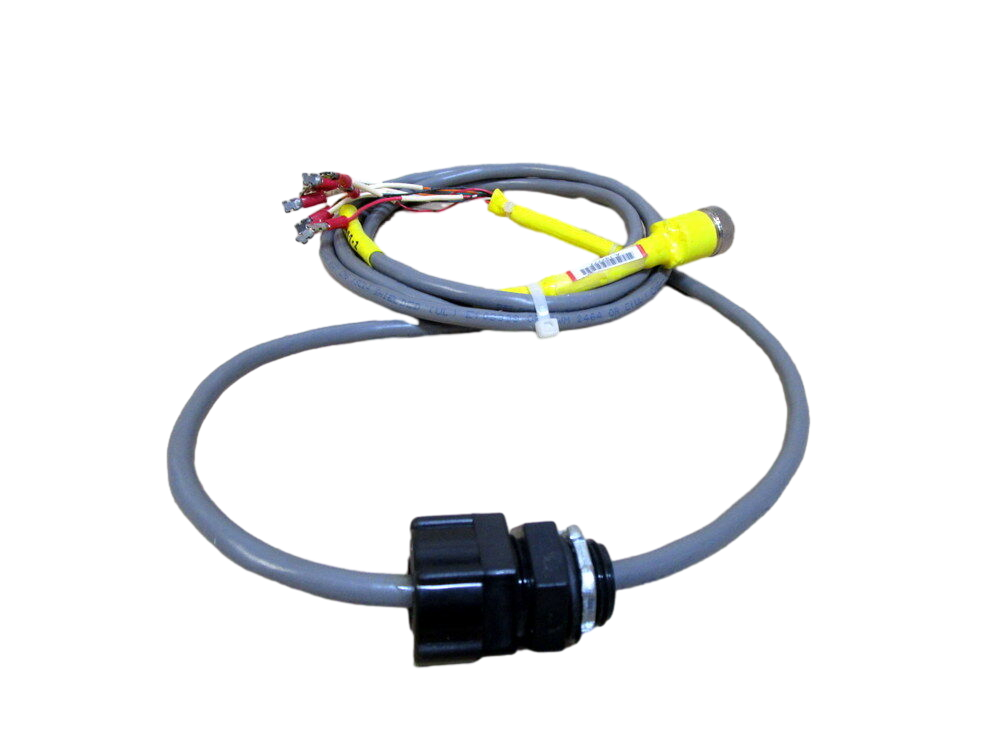

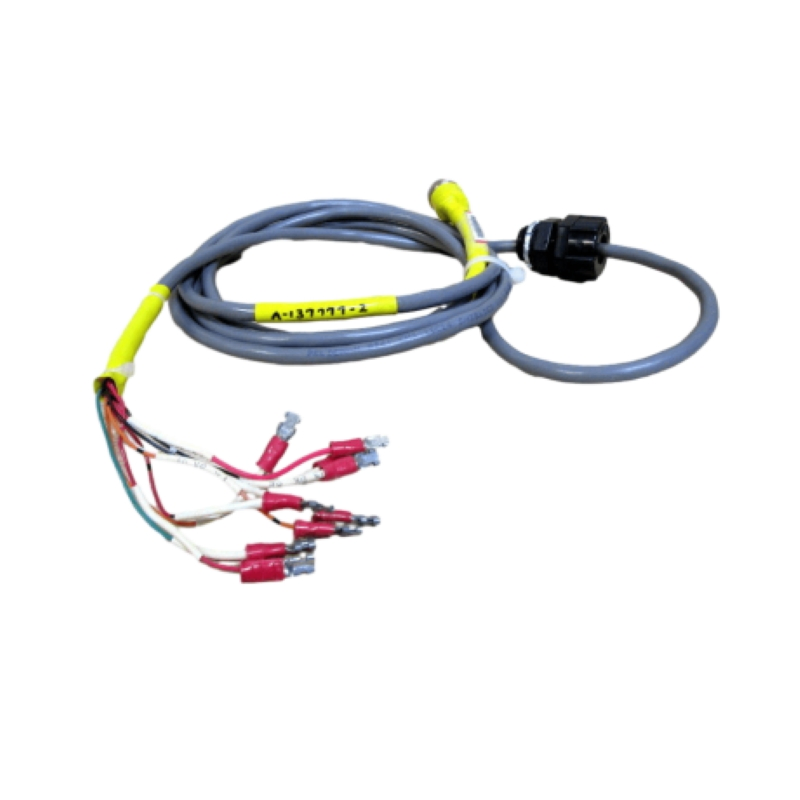

High-Quality Belden Cable Assembly for Reliable Connectivity Solutions

Our universal 21-circuit harness consists of conveniently bundled into 4 sections: Engine Section, Dash Section, Steering Column Section, and Tail section.

Key Components

Engine compartment feed wires (EFI engines will need an additional engine-specific harness)
Instrument cluster feed wires (mechanical or electric gauges)
Ignition/Headlight/Dimmer/Turn Signal/Brake Light switch lead wires with connectors
Radio/Heater/Air Conditioning feed wires
Rear body feed wires
Additional accessory wires

Product Features

Perfect for restoration projects, custom vehicles or budget-minded DIY builders
Universal design for nearly any 12-volt vehicle - great for engine swaps!
Works with nearly any engine/transmission combination (carb or EFI, auto or manual)
Tail light leads are extra long length; suitable for cars, trucks, longbox pickups, and vans
Constructed of GXL insulated, automotive-grade copper wiring
High-temp polyethylene insulation makes it viable in engine compartments
Includes appropriate wire diameter for each fused circuit (ranging 8 to 16 gauge)
Compact 5.5"x 4.5"x 3.3" fuse block mounts discreetly out of view
Two-piece fuse block design makes for easy fuse block removal/service
Uses modern blade-style ATO/ATC fuses in place of outdated glass fuses
21 individually fused circuits, conveniently bundled
Each wire strand is color-coded and labeled every 5" for easy identification
Includes proven GM-type switches, for easy repair/replacement if needed

⚙️ Product Parameters

Product Name	Radio Dash Mounting Kit/wire harness install kits /Automotive wiring harness
Materials	Wire harness can be UL, CE, CCC, SGS, RoHs, VED, etc and pure copper
Length	According to the customers' requirements
Insulation	PVC, PE, PFA, Silicone, XLPVC etc.
Nominal Voltage	300V, 300/500V, 600V, 30V, 450/750V etc.
Temperature Range	-30ºC~+80ºC, -30ºC~+90ºC, -30ºC~+105ºC, -30ºC~+70ºC/90ºC, 105/180ºC, 200ºC etc.
Application	Automotive, Electrical, Industry
Order Quantity	Small quantity can be accepted, such as 100pcs
Samples	FREE
Lead time	Small orders under 500pcs is 5-7days, exceed 1000pcs 7-15days
Test	100% test before shipment
Payment	T/T, L/C, PayPal, Western Union
Service	OEM and ODM products are acceptable

📜 Certifications & Logistics

🚀 Our Advantages

RoHS/UL/CCC/CEA/CE/SAA certificated
ISO9001, TS 16949 system certificates
Prompt delivery, and accept urgent order.
100% test before delivery.
Experienced manufacturer for 10 years.
Trial run order or small order are acceptable.
Best price and competitive service to you

🛠️ After Sales Service

Technical support online service provided.
OEM available.
Our product with test report and certification.
Our product with 12 months warranty.

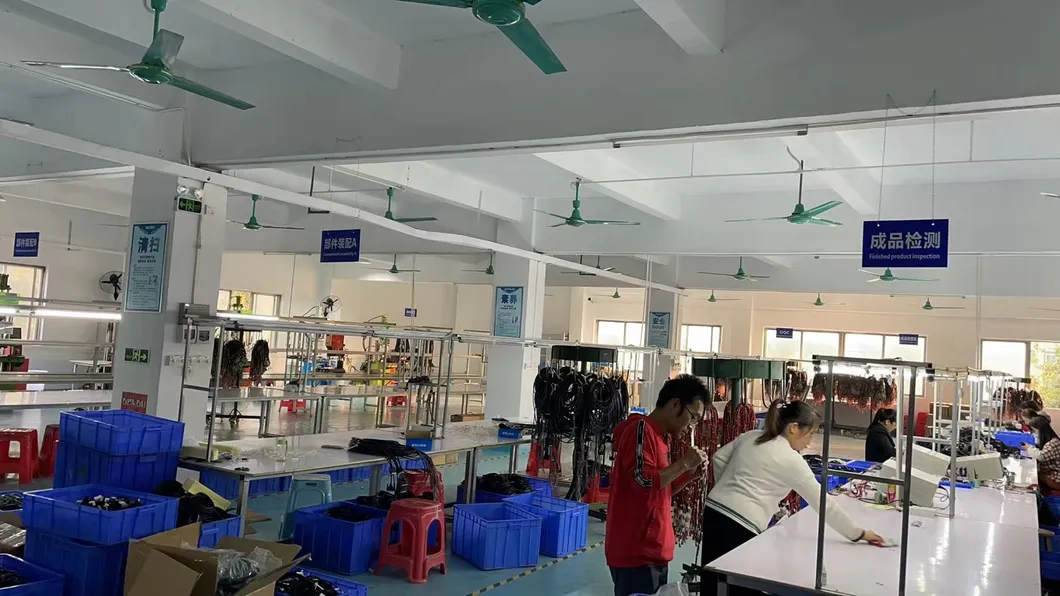

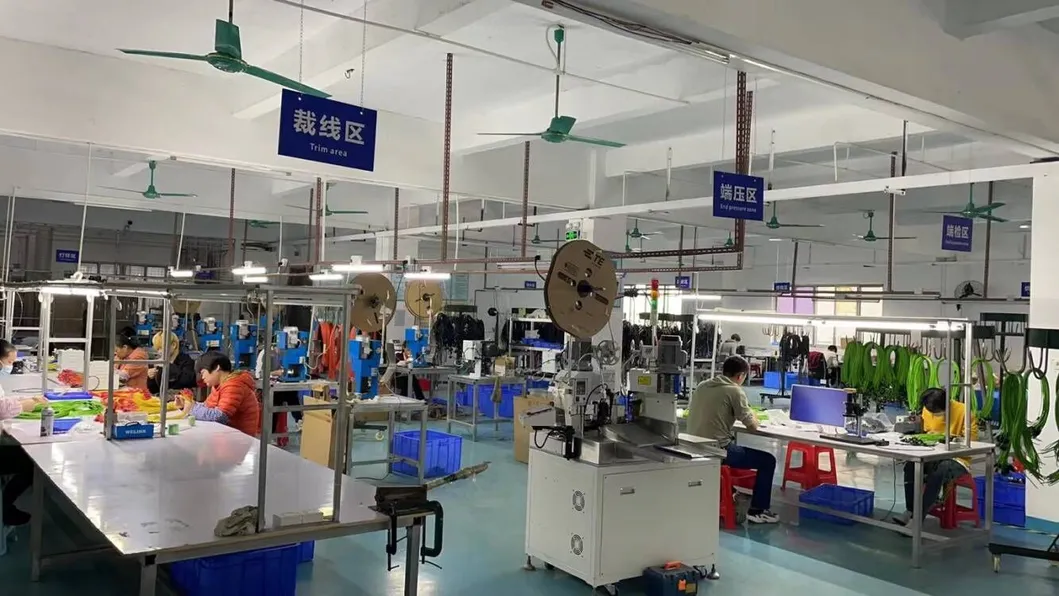

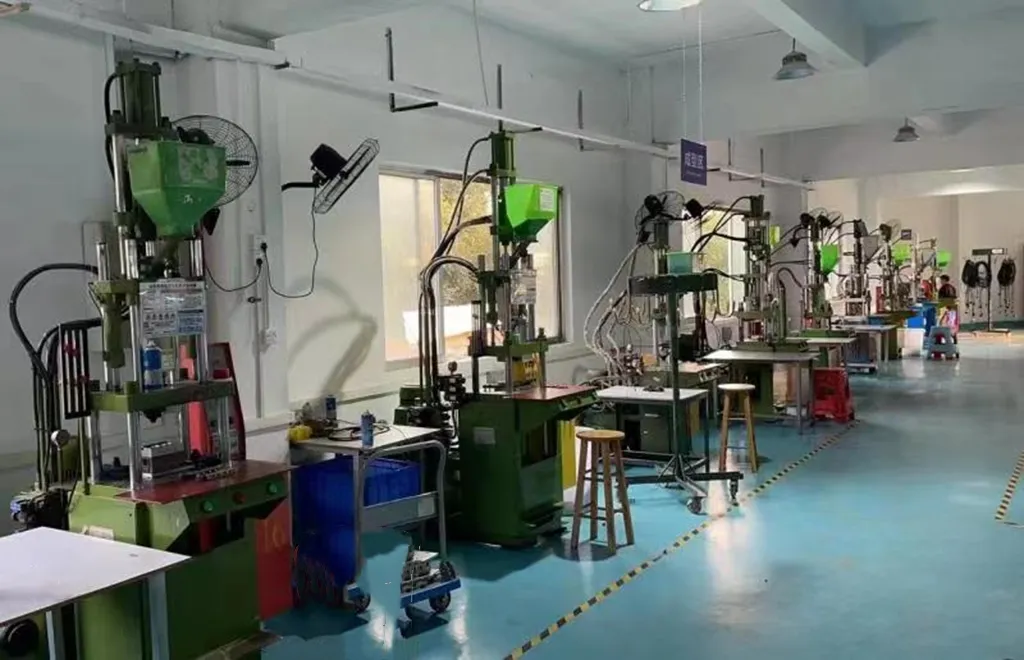

🏢 Production Facility

❓ Frequently Asked Questions

1) How does your factory control quality?

We utilize a dedicated quality staff team and management tools like PFMEA to oversee our production process. All products undergo 100% testing before delivery to ensure reliability for automotive and industrial applications.

2) Is there any environmental risk on materials?

As an ISO9001/ISO14001 certified company, all our materials are RoHS 2.0 compliant. We source materials from reputable suppliers and perform regular testing. COC can be provided upon request.

3) How can I customize our products?

You can send us your technical drawings or physical samples along with specifications. For wire harnesses, please provide connector types, wire gauge, length, and wiring diagrams.

4) Can you supply OEM & ODM service?

Yes, we have over 10 years of experience in manufacturing high-quality connectors and wire harnesses. Our professional engineering team warmly welcomes OEM and ODM projects.

5) Can you provide samples for testing?

After price confirmation, samples can be requested for performance testing. Most samples are supplied free of charge (depending on type and quantity), though shipping costs are typically covered by the customer.

6) What is your lead time for mass production?

Lead times generally range from 3 to 6 weeks, depending on the order quantity and the complexity of the products.
