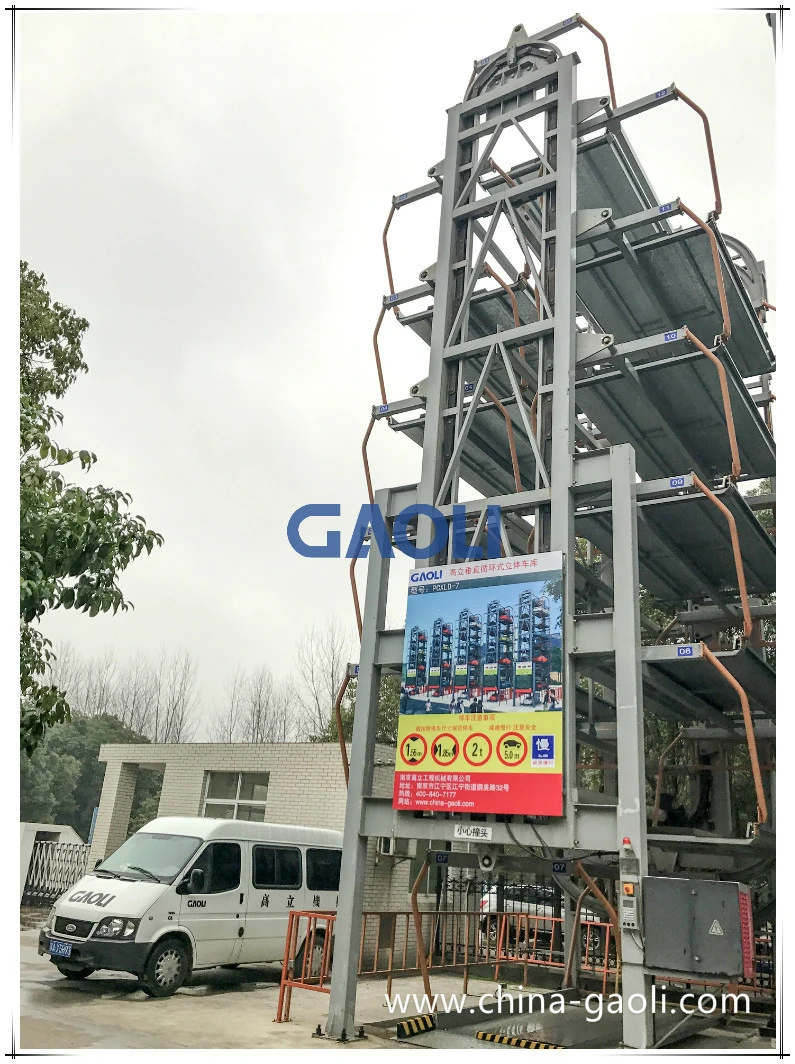

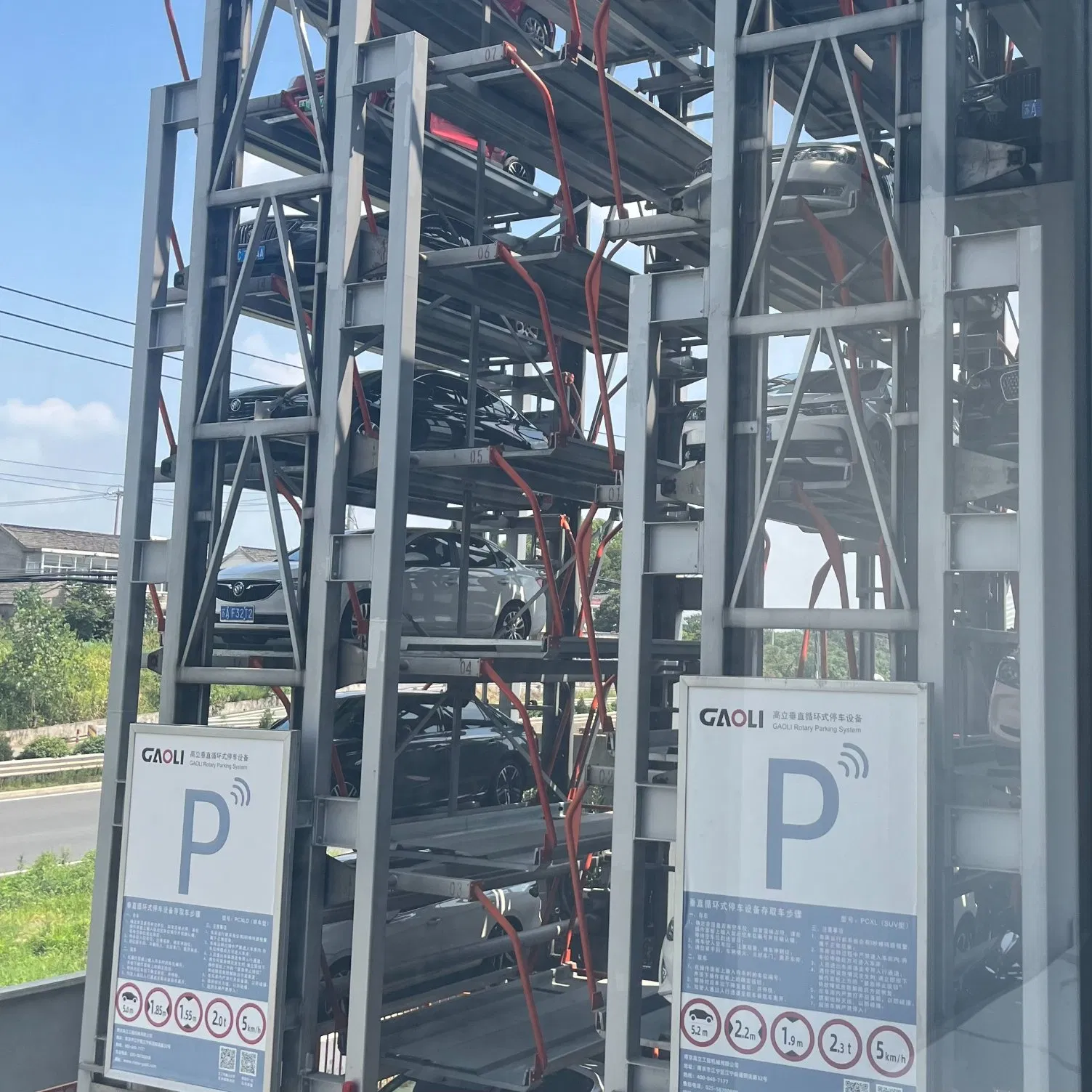

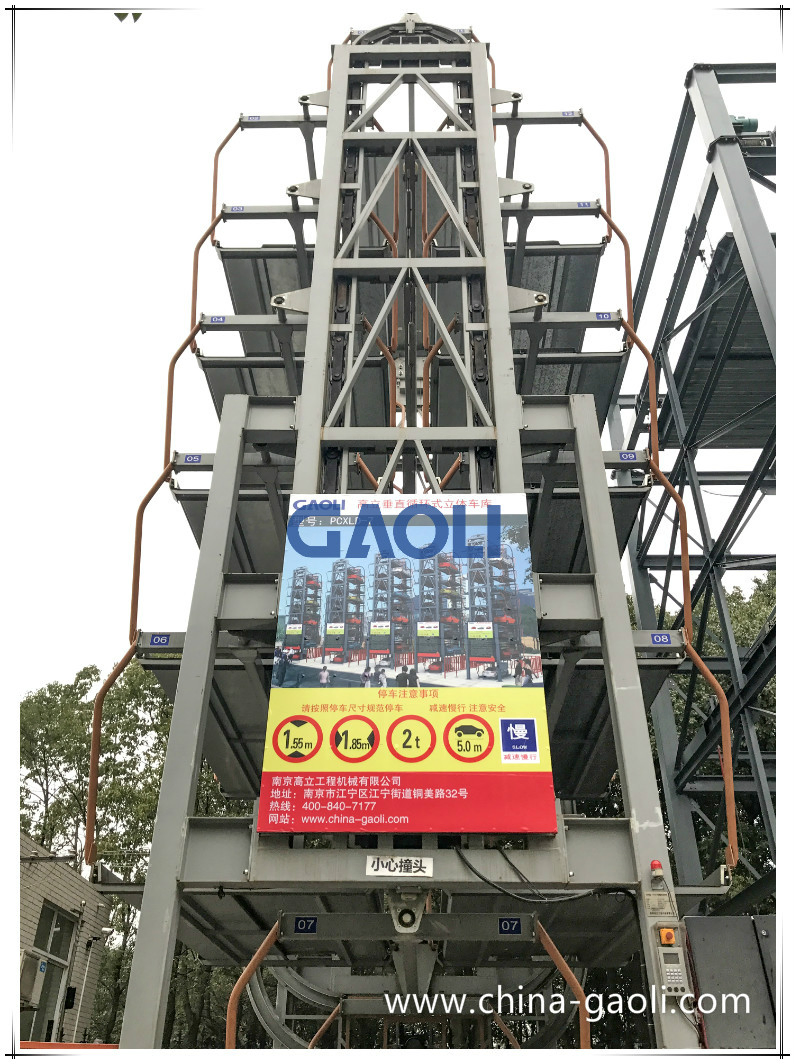

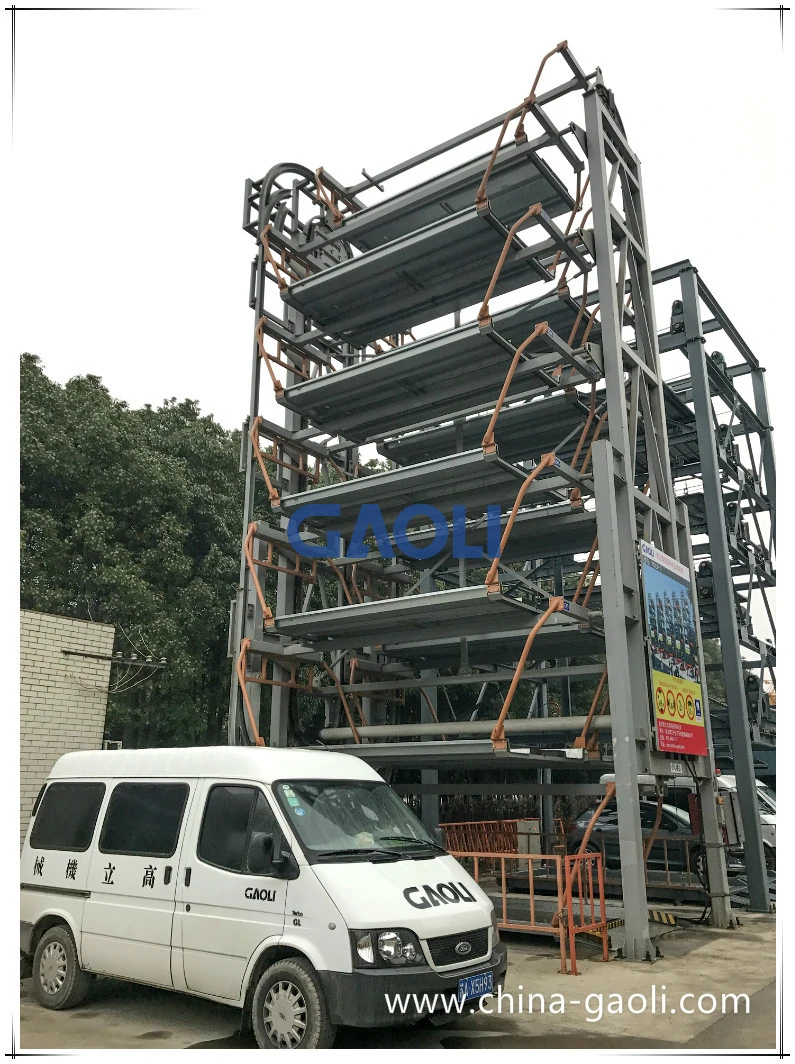

Automated Car Parking System/ Vertical Smart Rotary Car Park

Customization:	Available
Level:	5-9 Levels
Parking Post:	2000 Kg

Basic Specifications

Model NO.

PCXLD-7

Compatibility

Electric Vehicles

Control System

PLC Control

Installation

Aboveground

Lifting Mechanism

Hydraulic

Load Capacity

2000kg

Operation Mode

Manual

Safety Features

Emergency Stop Button

Type

Vertical Circulation Parking

Surface Treatment

Galvanized

Parking Type

Self Parking System

Voltage

380V/50Hz/3 Phase

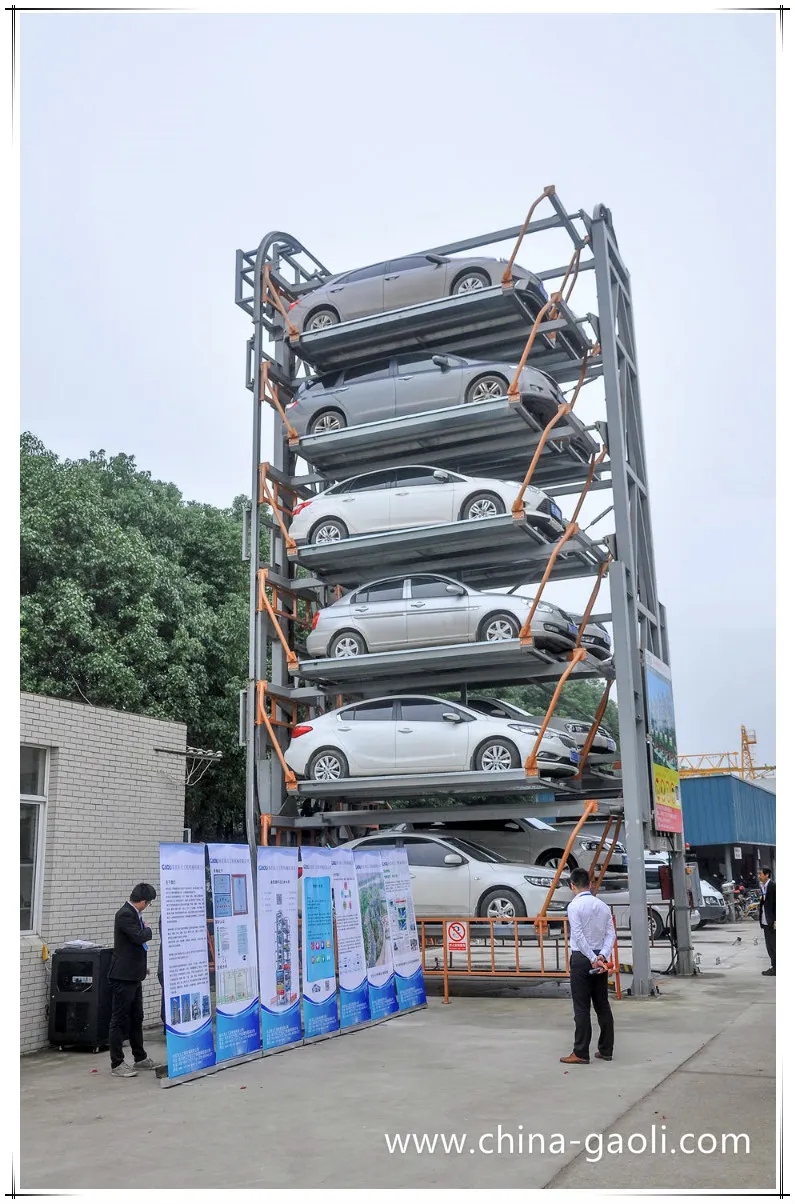

Automated Car Parking System

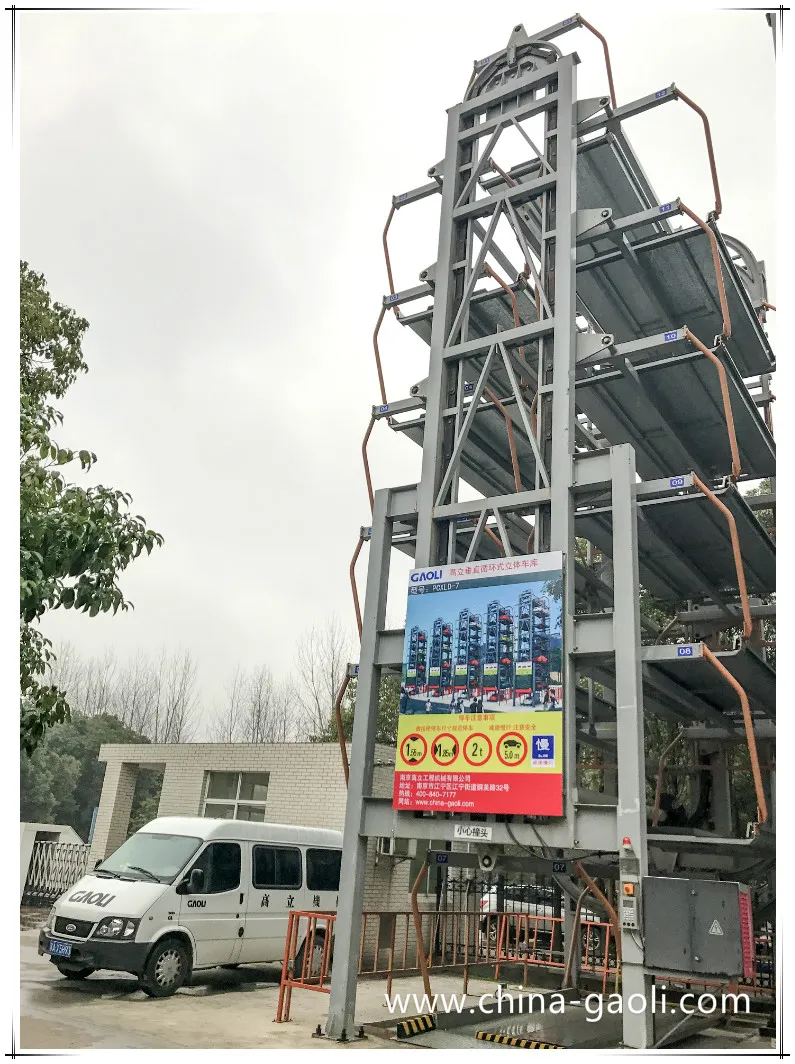

Vertical Smart Rotary Car Park

Nowadays, the number of vehicles is increasing rapidly with the development of economy, making parking a prominent social problem. Traditional parking lots often fail to meet the needs of villas, residential areas, hotels, shopping malls, hospitals, and business units.

How it Works:
A motor drives the transmission mechanism together with a reducer; parking plates are installed at regular intervals on the traction chain. When the motor starts, plates circulate to realize the parking and retrieving of vehicles. Simply drive the car onto the empty plate, lock it, and press the operation button. The system automatically moves plates to the entrance for the next user.

Product Features

High Space Efficiency: Each unit covers only 35 sq.m, providing up to 16 parking spaces.
Flexible Configuration: Can be set independently or integrated into buildings.
Advanced PLC Control: Programmable system with IC card and button board for easy operation.
High Efficiency: Designed with a transmission mechanism that saves 50% power and increases efficiency by 200%.
Safety Systems: Includes emergency brakes, overrun devices, and photoelectric monitoring for safety.
Fast Access: Specifically designed for rapid parking and retrieval in high-density areas.

Technical Specification

Model		PCXLD-7
Capacity	Qty. of parking lifts	12 Normal Vehicles	8 SUV
Capacity	Weight Limit	≤2000kg
Dimensions (L/W/H)	Length/Width	5000mm / 1850mm
	Height (Normal)	1550mm
	Height (SUV)	2050mm
Performance	Lifting Speed	4.1m/min
Power	Motor / Voltage	9.2kw / 3 phase 380V 50HZ
