Advanced Air Blower Wiring Solutions for Maximum Efficiency

Basic Information

Model NO.A0629

Industry TypeAutomotive Wiring Harness

Bandaging MaterialsPVC Pipe

General WiringInjection Molding Assembly

SignalSignal Wiring Harness

ShapeRound

Interface TypeDC/DC

CertificationVDE, RoHS, ISO9001, CCC

Wire ConductorTinned Copper

Quality Control100% Inspection Before Shipment

ServiceODM/OEM/Customized

OriginChina

Product Description

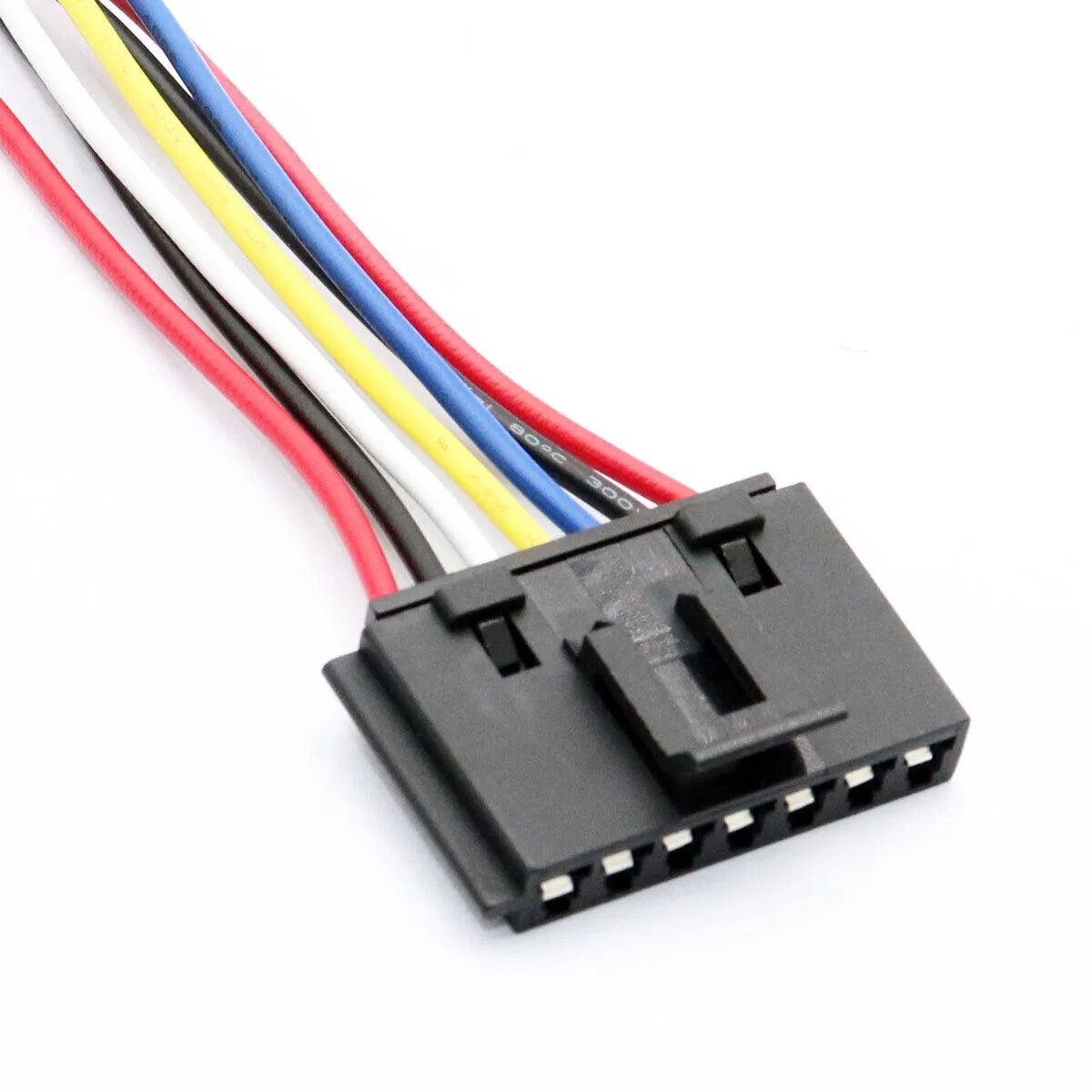

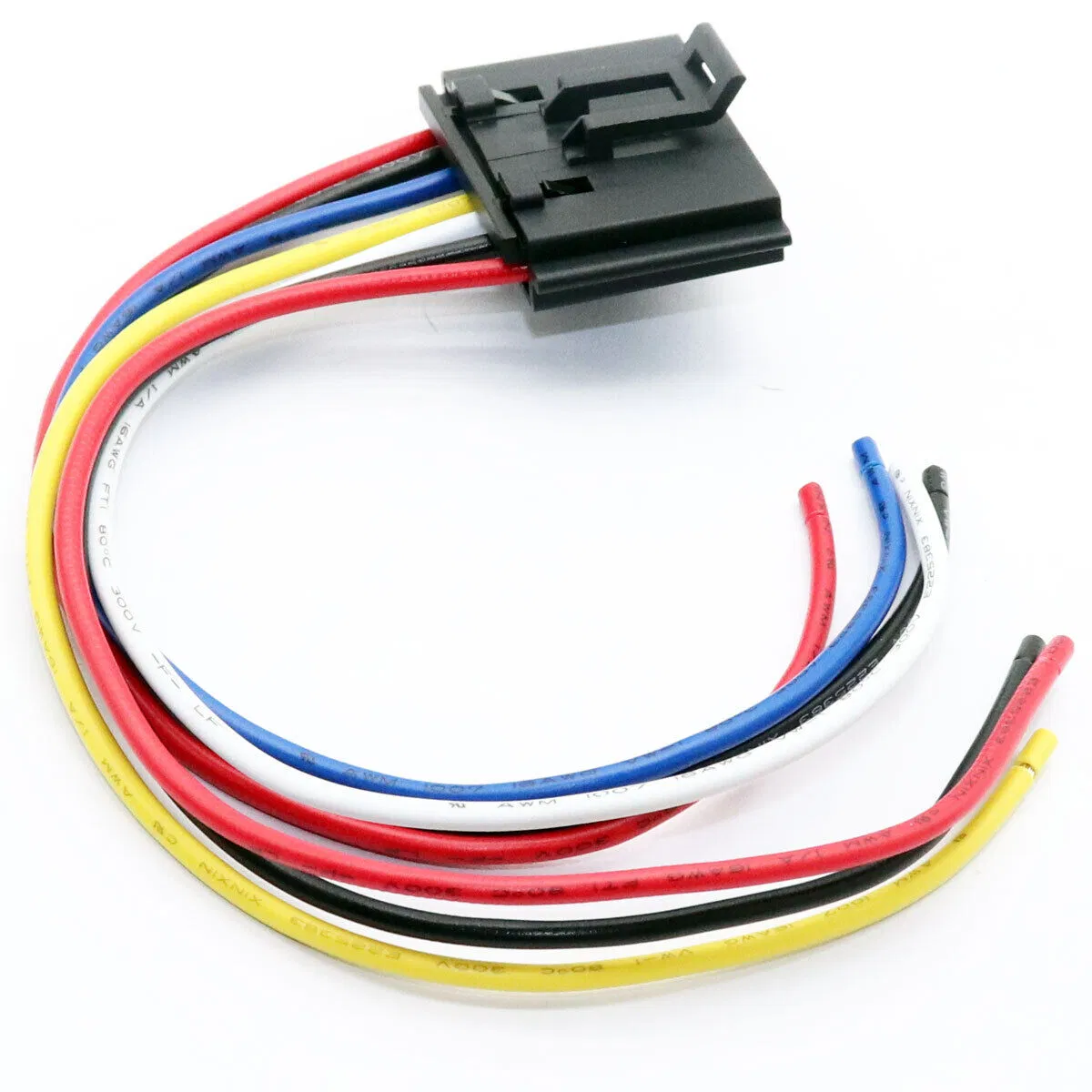

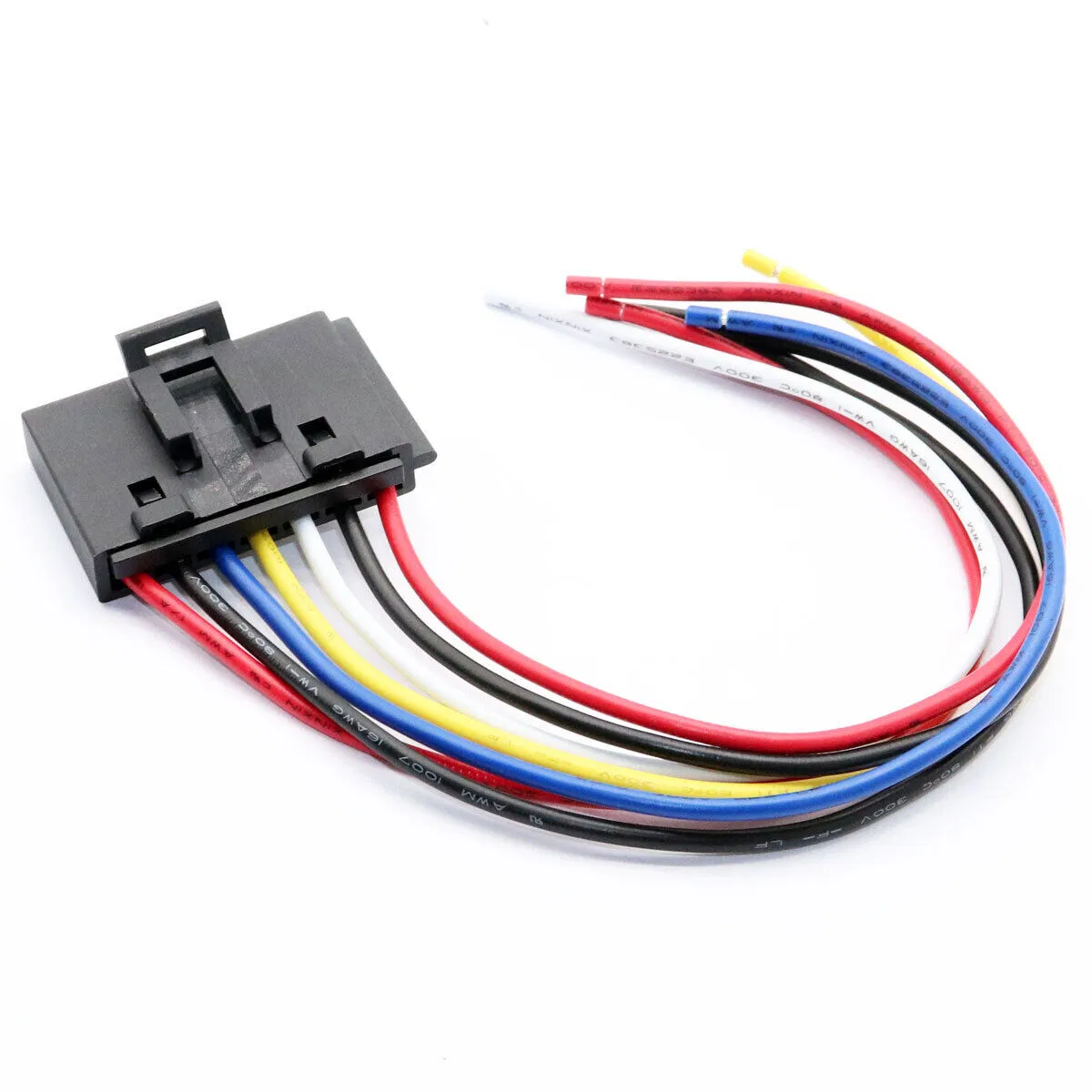

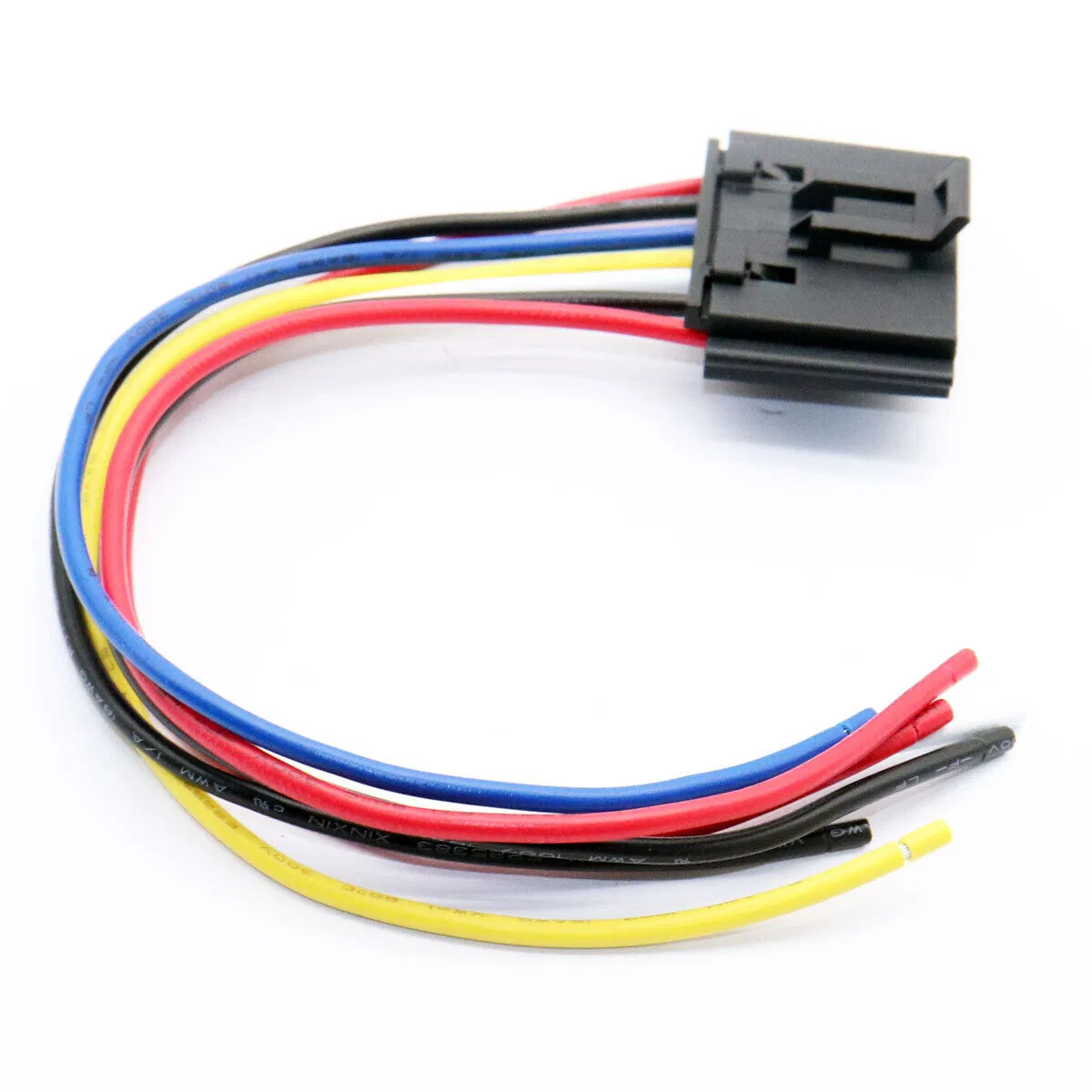

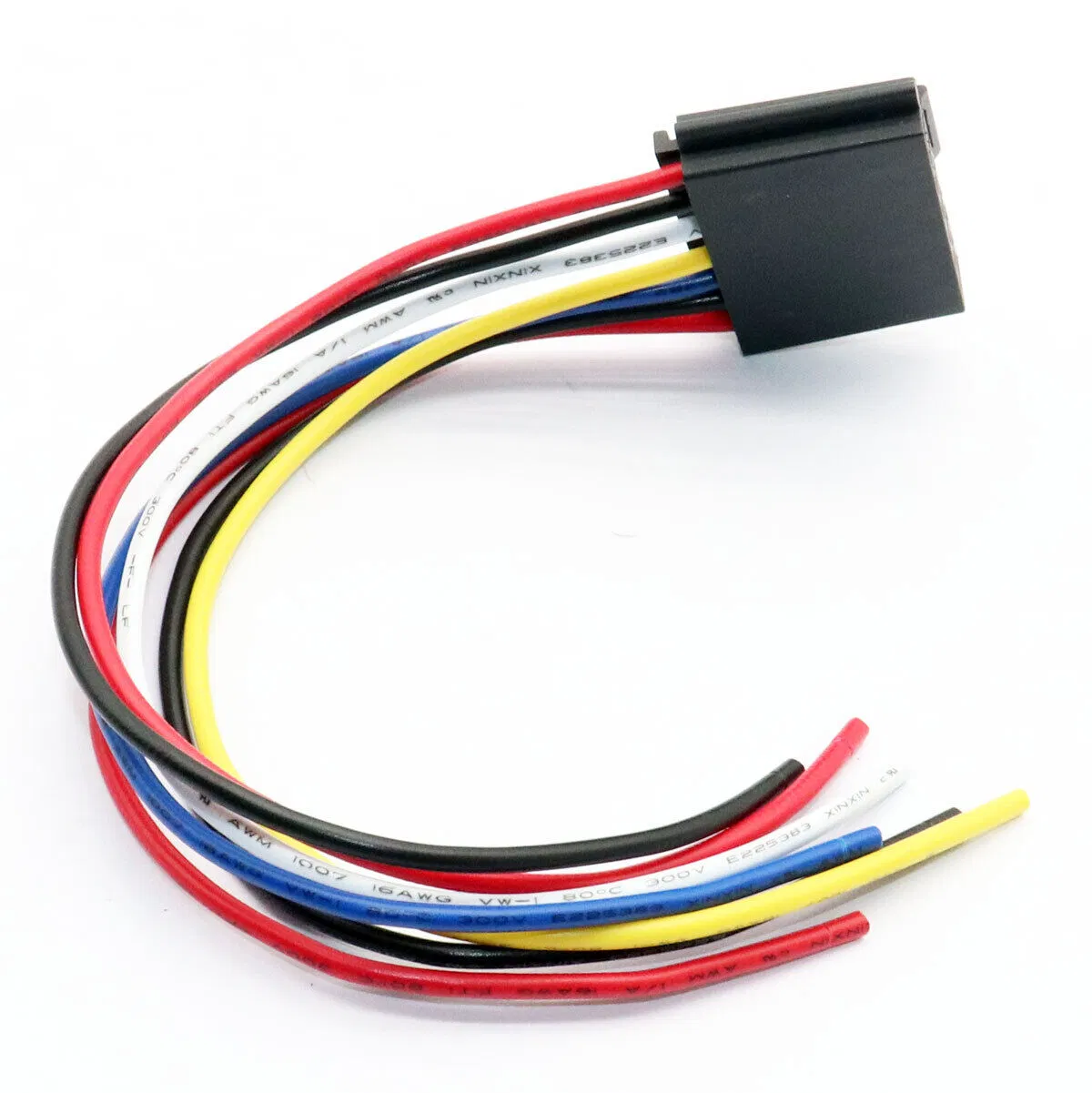

High Quality Blower Motor Resistor Wiring Harness Assembly

Our universal 21-circuit harness consists of conveniently bundled into 4 sections: Front Section, Dash Section, Steering Column Section and Tail section.

Main Components:

Engine compartment feed wires
Instrument cluster feed wires
Ignition/Headlight/Dimmer/Turn Signal/Brake Light switch lead wires
Radio/Heater/Air Conditioning feed wires
Rear body feed wires
Additional accessory wires

Key Features:

Universal design for nearly any 12-volt vehicle
Constructed of GXL insulated, automotive-grade copper wiring
High-temp polyethylene insulation for engine compartments
Color-coded and labeled every 5" for easy identification
Uses modern blade-style ATO/ATC fuses

Product Parameters

Product Name	Radio Dash Mounting Kit/wire harness install kits /Automotive wiring harness
Materials	UL, CE, CCC, SGS, RoHs, VED compliant pure copper
Insulation	PVC, PE, PFA, Silicone, XLPVC etc.
Nominal Voltage	300V, 300/500V, 600V, 30V, 450/750V
Temperature Range	-30ºC~+80ºC, -30ºC~+105ºC, 180ºC, 200ºC etc.
Application	Automotive, Electrical, Industry
Lead Time	Small orders (<500pcs): 5-7 days; Bulk (>1000pcs): 7-15 days
Test	100% test before shipment

Certifications

RoHS/UL/CCC/CEA/CE/SAA certificated
ISO9001, TS 16949 system certificates

Packaging & Shipping

Package Size45.00cm * 30.00cm * 25.00cm

Gross Weight15.000kg

Our Advantages & Service

Advantages:

10+ years of automotive wiring harness production experience
Professional technical team & advanced production equipment
100% pure copper materials used
Accepts urgent and small trial orders

Service:

Technical support online service provided
OEM & ODM available
Product test reports and certification provided
12 months warranty on products

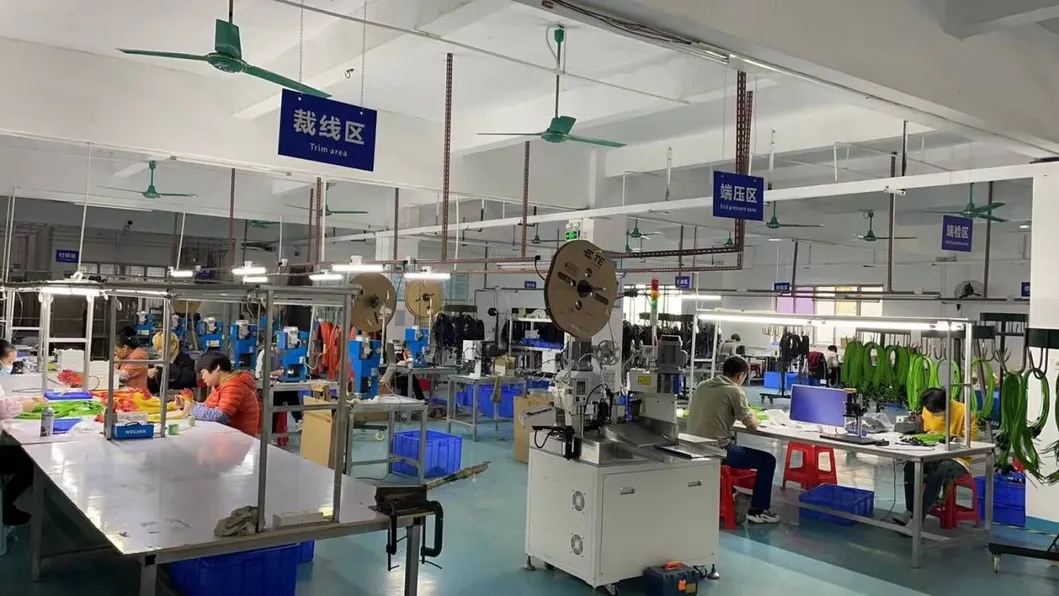

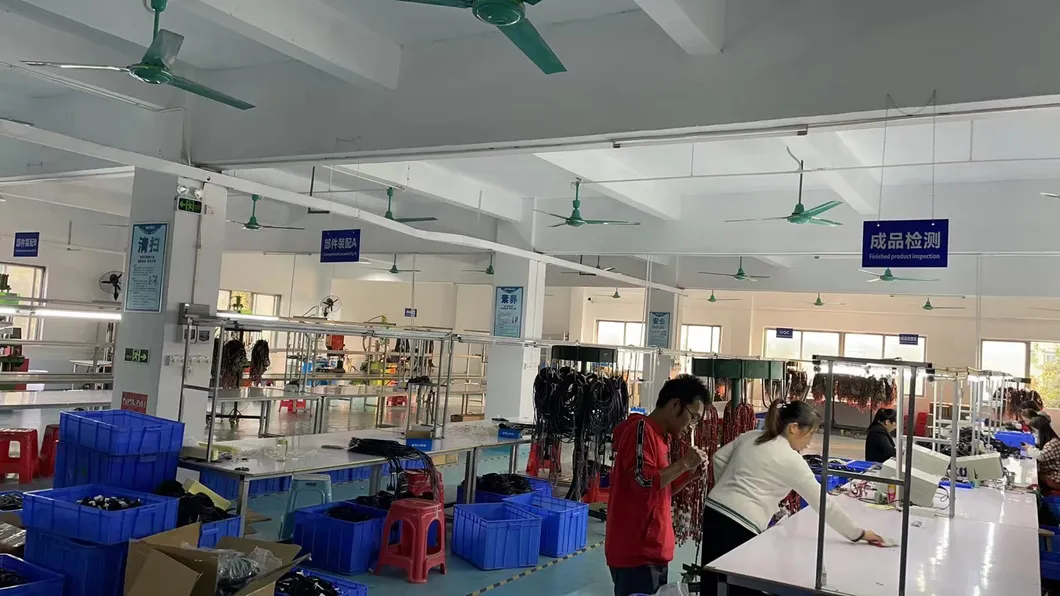

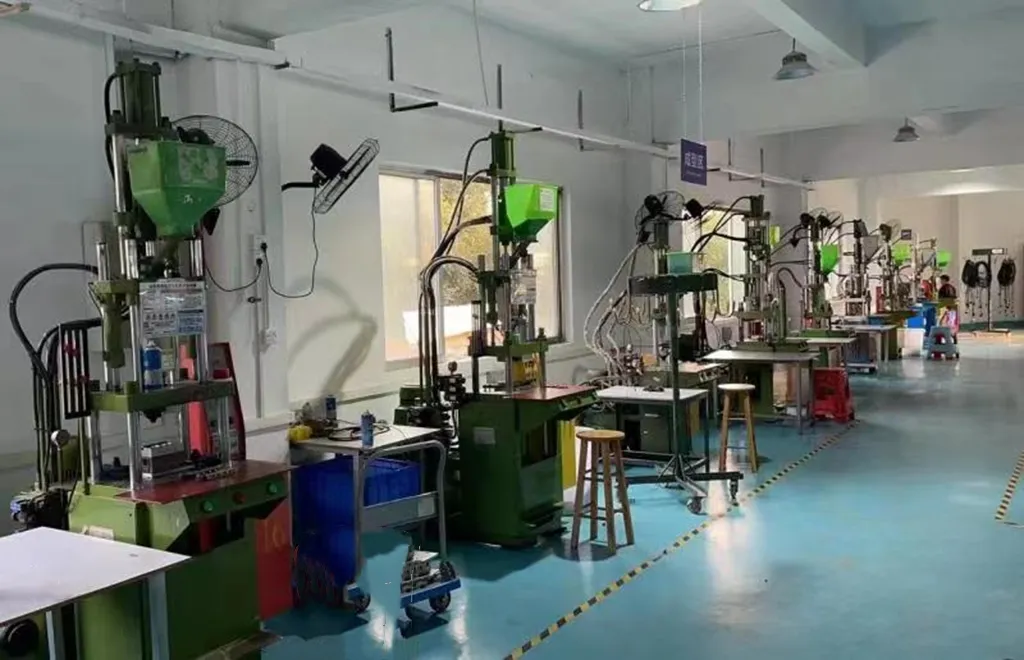

Factory Display

Frequently Asked Questions

How does your factory control quality?

We utilize quality staff and systems like CPK and PFMEA to manage our production process. All products for automobiles and industries undergo 100% testing before delivery.

Is there any environmental risk on materials?

We are ISO9001/ISO14001 certificated. All materials are RoHS 2.0 Compliant, sourced from reputable companies, and regularly tested. COC can be provided upon request.

How can I customize products?

Please send us your drawings or samples along with specifications. For wire harnesses, we need to know the connector type, wire gauge, length, and wire diagram.

Do you supply OEM & ODM service?

Yes, we have specialized in manufacturing high-quality connectors and wire harnesses for over 10 years with a professional engineering team.

Can you provide samples for testing?

Yes, samples can be required to test performance. Most samples are free (depending on type and quantity), though shipping costs are usually covered by the customer.

What is the lead time for mass production?

The typical lead time is 3 to 6 weeks, depending on the order quantity and product complexity.
